jacking Citroen DS3 2012 1.G Owner's Manual

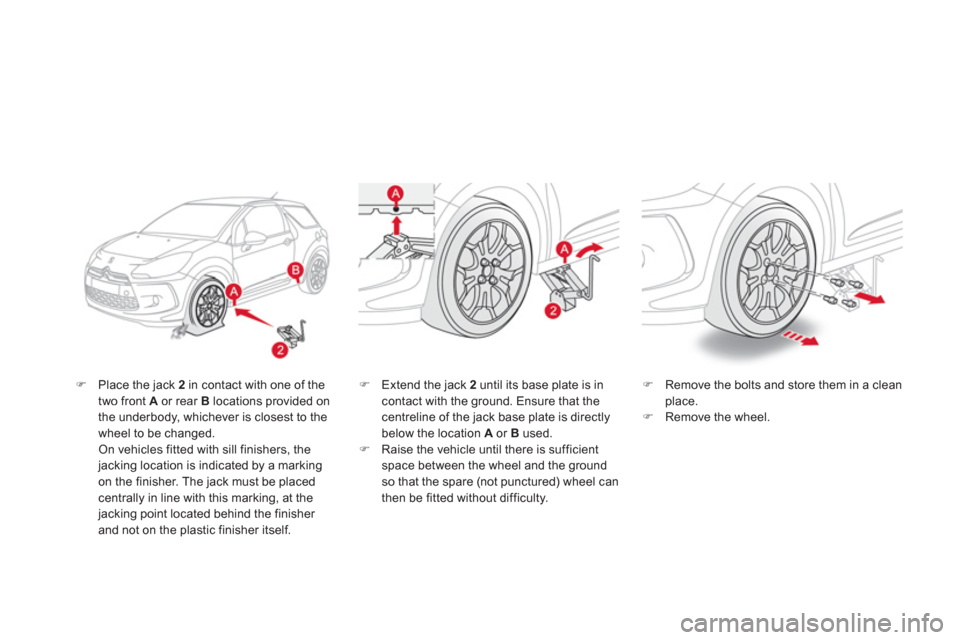

)Place the jack 2 in contact with one of the
two front A or rear Blocations provided on
the underbody, whichever is closest to the
wheel to be changed.
On vehicles fitted with sill finishers, the jacking location is indicated by a marking
on the finisher. The jack must be placed centrally in line with this marking, at thejacking point located behind the finisher and not on the plastic finisher itself.
)Remove the bolts and store them in a clean place. )Remove the wheel.
) Extend the jack 2
until its base plate is incontact with the ground. Ensure that the centreline of the jack base plate is directlybelow the location Aor B
used.)
Raise the vehicle until there is sufficient space between the wheel and the groundso that the spare (not punctured) wheel can
then be fitted without difficulty.
