CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.

Your vehicle is fitted with only some of theequipment described in this document,
depending on the trim level, version and thespecifications for the country in which it is sold.
The fittin
g of electrical equipment or accessories which are not recommended
byCITROËNmay result in a failure of your
vehicle's electronic system. Please note thisspecific warning and contact aCITROËNdealer to be shown the recommended
equipment and accessories.
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.


Happy motoring!

We draw your attention to the following...

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen (MyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Window controls
98 Doors
101Boot
102Fuel tank
104Misfuel prevention (Diesel)
108Lighting controls
113LED lamps
113Headlamp adjustment
114 Wiper controls
118Courtesy lamp
119Interior mood lighting
119Boot lamp
004004005005002002003003

CHECKS PRACTICAL
INFORMATIONTECHNICAL DATA AUDIO and
TELEMATICS
183 Bonnet
184 Running out of fuel (Diesel)
185 Petrol engines
186Diesel engines
187 Checking levels
190Checks
194 Temporary puncture repair kit
200 Changing a wheel
207 Changing a bulb
214Changing a fuse
221Battery
223Energy economy mode
224Changing a wiper blade
225 Towing the vehicle
227To w i ng a trailer
229Advice on care andmaintenance
230Accessories
234 Petrol engines
236Petrol weights
238LPG engines
239LPG weights
240Diesel engines
241Diesel weights
242 Dimensions
244Identifi cation markings
249Emergency or assistance
251MyWay
283 Audio system
012012013013010010011011

11Familiarisation
Instruments and controls
1.
Cruise control/speed limiter controls.2.Headlamp height adjustment. 3.Steering wheel adjustment. 4.
Lighting and direction indicator stalk
5. Instrument panel.
6.Driver's airbag.
Horn. 7. Gear lever. 8.12 V accessory socket
USB por t/auxiliary socket.9. Heated seat control. 10.Bonnet release lever.11.
Door mirror controls.
Electric window controls. 12. Fusebox.13.Stop & Star t switch
Electronic stability programme switch(ESP/ASR).14 .Front door window demisting/defrosting
vent. 15.Speaker (tweeter). 16. Windscreen demisting/defrosting vent.

Instruments and controls
1.
Steering lock and ignition. 2.
Audio equipment steering wheel controls.3.
Wiper/screenwash/trip computer stalk.4.
Scented air freshener.5.
Central locking switch.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Side adjustable air vent. 12.Glove box/Passenger's airbag deactivation. 13.Parking brake.14.Central armrest with storage.15.
Upper and lower storage.16.
MyWay or Audio system. 17.Heating/air conditioning controls.

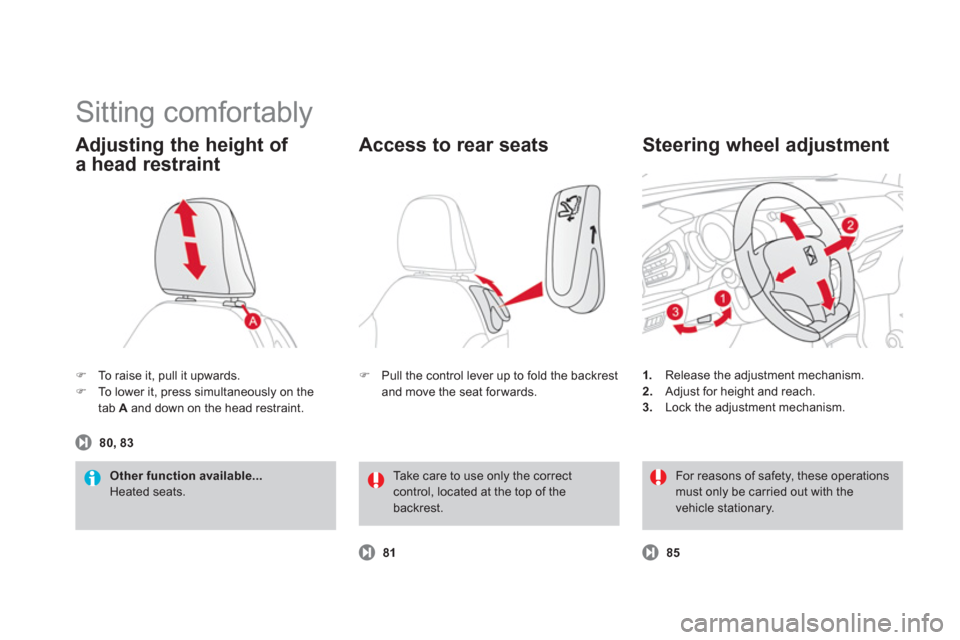

Sitting comfortably
)To raise it, pull it upwards. )To lower it, press simultaneously on the
tab A
and down on the head restraint.
Adjusting the height of
a head restraint
Other function available...
Heated seats.
80, 83
1.
Release the adjustment mechanism. 2.Adjust for height and reach.3.Lock the adjustment mechanism.


Steering wheel adjustment
85

For reasons of safety, these operationsmust only be carried out with the vehicle stationary.


Access to rear seats
)
Pull the control lever up to fold the backrestand move the seat forwards.

8
1
Take care to use only the correctcontrol, located at the top of the backrest.

25
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack,bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres andrefit your summer tyres.



Observe the recommendations
on maintenance


Check the tyre pressures regularly, whencold, referring to the label in the door aperture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engineoil, oil filter, air filter...) and obser ve theschedule of operations recommended by the manufacturer.




When refuelling, do not continue after the 3 rd
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel. Disconnect your por table devices beforeleaving the vehicle.

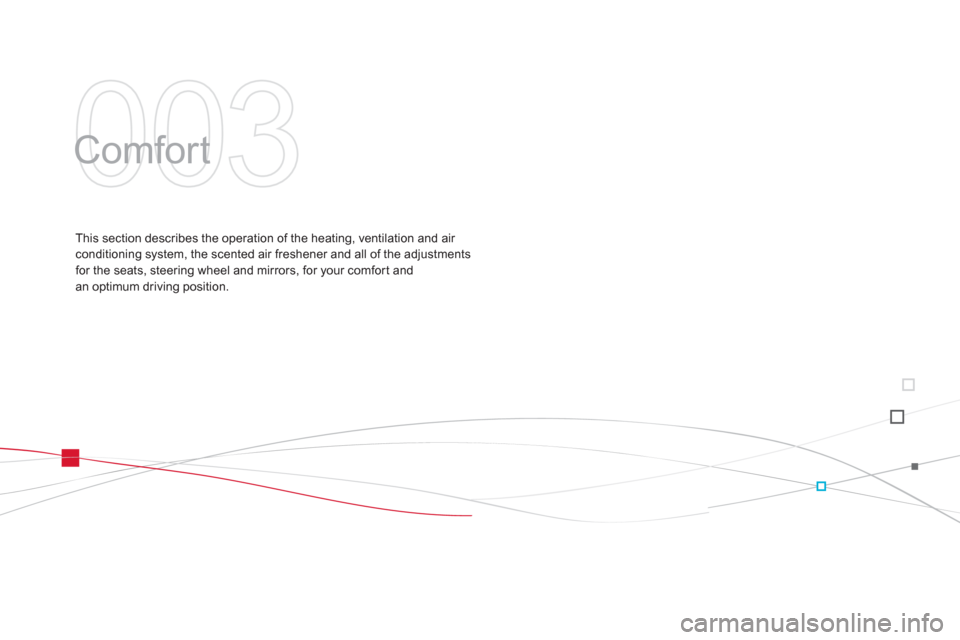

003
Comfort
This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments
for the seats, steering wheel and mirrors, for your comfor t and an optimum driving position.

85

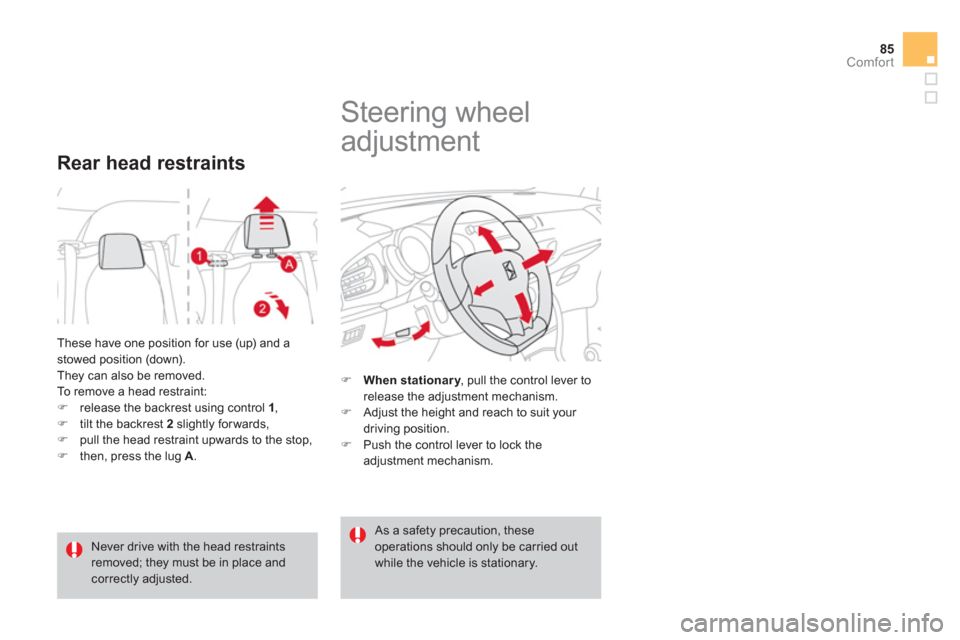

Comfort
These have one position for use (up) and a stowed position (down).
They can also be removed.
To remove a head restraint: )release the backrest using control 1,)tilt the backrest 2 slightly forwards, )pull the head restraint upwards to the stop, )then, press the lug A
.

Rear head restraints

Never drive with the head restraints removed; they must be in place and correctly adjusted.









Steering wheel
adjustment
)When stationary, pull the control lever toyrelease the adjustment mechanism.) Adjust the height and reach to suit your
driving position. ) Push the control lever to lock the
adjustment mechanism.
As a safety precaution, theseoperations should only be carried outwhile the vehicle is stationary.

1.Rear parcel shelf(see the following page for details) 2.Retaining strap3.Location for Hi- Fi amplifier
4.Stowing rings5.Storage box (version equipped with a
temporary puncture repair kit)(see the following page for details) or
Tool box (version equipped with a spare
wheel)(refer to section "Practical Information - § Changing a wheel")











Boot fi ttings
