CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.

Your vehicle is fitted with only some of theequipment described in this document,
depending on the trim level, version and thespecifications for the country in which it is sold.
The fittin
g of electrical equipment or accessories which are not recommended
byCITROËNmay result in a failure of your
vehicle's electronic system. Please note thisspecific warning and contact aCITROËNdealer to be shown the recommended
equipment and accessories.
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.


Happy motoring!

We draw your attention to the following...

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen (MyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Alarm
100 Window controls
102Doors
105Boot
106 Fuel tank
108 Misfuel prevention (Diesel)
112 Lighting controls
117LED lamps
117Headlamp adjustment
118Wiper controls
122Courtesy lamp
123 Interior mood lighting
123 Boot lamp
004004005005002002003003

CHECKS PRACTICAL
INFORMATIONTECHNICAL DATA AUDIO AND
TELEMATICS
187 Bonnet
188 Running out of fuel (Diesel)
189Petrol engines
190Diesel engines
191Checking levels
194 Checks
198 Temporary puncture repair kit
204 Changing a wheel
211 Changing a bulb
218 Changing a fuse
225 Battery
227Energy economy mode
228Changing a wiper blade
229Towing the vehicle
231To w i ng a trailer
233Advice on care andmaintenance
234 Accessories
238Petrol engines
240Petrol weights
242 LPG engines
243 LPG weights
244Diesel engines
245Diesel weights
246 Dimensions
248 Identifi cation markings
253Emergency or assistance
255 MyWay
287 Audio system
012012013013010010011011

11Familiarisation

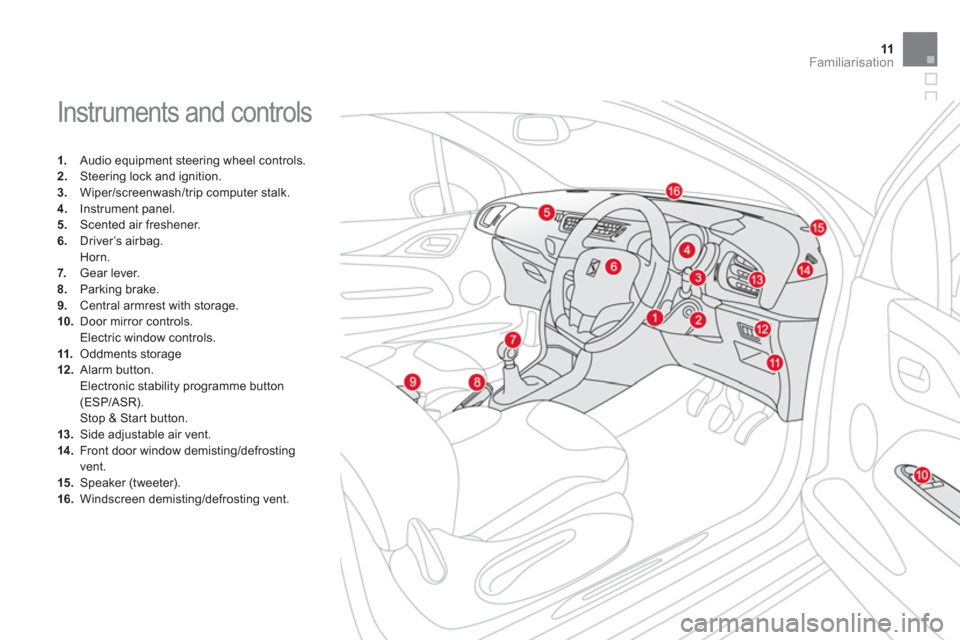

Instruments and controls
1.
Audio equipment steering wheel controls.2.Steering lock and ignition. 3.Wiper/screenwash/trip computer stalk.4.
Instrument panel.
5. Scented air freshener.
6.Driver’s airbag.
Horn. 7. Gear lever. 8.Parking brake.9.
Central armrest with storage. 10.Door mirror controls.
Electric window controls. 11. Oddments storage12.
Alarm button.
Electronic stability programme button (ESP/ASR).
Stop & Star t button.
13.Side adjustable air vent.14 .Front door window demisting/defrosting
vent. 15.Speaker (tweeter). 16. Windscreen demisting/defrosting vent.

Instruments and controls
1. Steering wheel adjustment. 2.
Headlamp height adjustment. 3.
Cruise control/speed limiter controls. 4.
Lighting and direction indicator stalk5.
Central locking button.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger’s airbag. 11.
Glove box/Passenger’s airbag
deactivation/Fusebox. 12.Bonnet release lever.13.12 V accessory socket
USB por t /auxiliary socket.14 .Upper and lower storage.15. MyWay or Audio system. 16.
Heating/air conditioning controls.

Sitting comfortably
)To raise, pull it upwards. )To lower, press the lug Aand down on the head restraint at the same time.
Head restraint height
adjustment


80
1.
Release the adjustment mechanism. 2.Adjust for height and reach.3.Lock the adjustment mechanism.


Steering wheel adjustment


85

For reasons of safety, these operationsmust only be carried out with the vehicle stationary.


Access to rear seats
)
Pull the control lever upwards to fold the backrest and move the seat forwards.
81, 8
3
Take care to use only the correct lever, located at the top of the seat backrest.

25
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack,bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres andrefit your summer tyres.



Observe the recommendations
on maintenance


Check the tyre pressures regularly, whencold, referring to the label in the door aperture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engineoil, oil filter, air filter...) and obser ve theschedule of operations recommended by the manufacturer.




When refuelling, do not continue after the 3 rdcut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel. Disconnect your por table devices beforeleaving the vehicle.

003
Comfort
This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments
for the seats, steering wheel and mirrors, for your comfor t and an optimum driving position.

85
Comfort
These have one position for use (up) and a stowed position (down).
They can also be removed.
To remove a head restraint: )release the backrest using control 1,)tilt the backrest 2 slightly forwards, )pull the head restraint upwards to the stop, )then, press the lug A
.

Rear head restraints

Never drive with the head restraints removed; they must be in place and correctly adjusted.









Steering wheel
adjustment
)When stationary, pull the control lever toyrelease the adjustment mechanism.) Adjust the height and reach to suit your
driving position. ) Push the control lever to lock the
adjustment mechanism.
As a safety precaution, theseoperations should only be carried outwhile the vehicle is stationary.

1.Rear parcel shelf(see the following page for details) 2.Retaining strap3.Location for Hi- Fi amplifier
4.Stowing rings5.Storage box (version equipped with a
temporary puncture repair kit)(see the following page for details) or
Tool box (version equipped with a spare
wheel)(refer to section "Practical
Information - § Changing a wheel")











Boot fi ttings
