MPG Citroen DS3 2013 1.G Owner's Manual

A few definitions…

Range
(miles or km)
This indicates the distance
which can still be travelled with the fuelremaining in the tank in relation to the average
fuel consumption over the last few miles
(kilometres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
Average speed
(mph or km/h)This is the average speed calculatedsince the last trip computer zero reset(ignition on).


Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip computer zero reset.
Stop & Start timecounter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop &Star t, a time counter calculates the time spent
in STOP mode during a journey. It resets to zero every time the ignition isswitched on with the key.


This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Distance remaining to
destination
(miles or km)
This is the distance remaining to be travelled
to the final destination. It can be entered bythe user.
If the distance is not entered, dashes are
displayed in place of the digits.

Languages
Once the "Languages" menu has been selected,you can change the language used by the display (Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been selected, you can change the units of the followingparameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units havebeen set to mpg, the information in the instrument panel screen on speed anddistance will also be in mph and miles.
For safety reasons, configuration by the driver of the multifunction screen mustonly be done when stationary.
Display settings
Once the "Display settings" menu has beenselected, you can gain access to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
-
12 or 24 hour mode.
)
Once you have selected a setting, press
the "  " or " " buttons to change its value.
) Press the "
" or "
" buttons to switch
respectively to the previous or next setting.) Press the "OK"
button to save the change
and return to the normal display or press
the "ESC"button to cancel.

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio s
ystem par t of the
"Audio and telematics" section.

"Telephone" Menu

"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",- "Units",
- "System".




System language

This menu allows you to select the language used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Por tugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the time (refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).

Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
Accordin
g to country.

Vehicle

This menu allows you to activate or deactivatecertain driving and comfor t equipment:


- wiper linked with reverse gear(refer to the "Visibility" section),

- guide-me-home lighting and duration(refer to the "Visibility" section),

- parking sensors (refer to the "Driving" section).


Units
This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

Checks
Battery

Air filter and passenger compartment filter


Oil filter
Par ticle emission filter (Diesel)
Unless other wise indicated, check these components in accordance with the ser vicing booklet and according to your engine.
Other wise, have them checked b
y a CITROËN dealer or a qualified workshop.
The batter
y does not require any
maintenance.

However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer to
the "Practical information" section for details of
the precautions to be taken before disconnecting
the battery and following its reconnection. Re
fer to the ser vicing booklet for
details of the replacement inter vals
for these components.
Dependin
g on the environment (e.g.
dusty atmosphere) and the use of the vehicle(e.g. city driving), replace them twice as often
if necessary(refer to the "Engines" section).
A clogged passenger compar tment filter may
have an adverse effect on the performance
of the air conditioning system and generateundesirable odours.
Re
place the oil filter each time
the engine oil is changed.
Re
fer to the ser vicing booklet for
details of the replacement inter val
for this component. The
presence of this label, in par ticular with
the Stop & Star t system, indicates the use of a specific 12 V lead-acid battery with special
technology and specification, for which the
involvement of a CITROËN dealer or a qualified
wor
kshop is required when replacing or disconnecting the battery. Failure to observe this recommendation mayshor ten the life of the battery. Th
e start of saturation of theparticle filter is indicated by the
temporary illumination of this warning lamp
accompanied by a message in the multi-
function screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lampgoes off.
If the warning lamp stays on, this indicates a low additive level.

On a new vehicle, the first par ticlefilter regeneration operations may be accompanied by a "burning" smell, which is perfectly normal.
Following prolonged operation of thevehicle at very low speed or at idle, you may, in exceptional circumstances,
notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.

**
The parameter settings vary according to vehicle. D
ark blue
Map colour
Ni
ght mode for map
Units
Da
y mode for map
Vehicle **
Vehicle information

Alert log
Status of functions
Temperature
Celsius
F
ahrenheit
Metric/Imperial

Kilometres (Consumption: l/100)
Kilometres
(Consumption: km/l)
Miles
(Consumption: MPG)
System
Auto. Day/Night for map Factor
y reset
Software version
Automatic scrolling
3
4
4
2
4
3
4
4
2
3
4
4
3
4
4
4
2
4
3
3
3
Colour
Pop titanium
T
offee
Bl
ue steel
Techno
grey
3
4
4
4
4
Display
Brightness
2
3

299
08

UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT

FUEL CON
SUMPTION:
KM/L - L/100 - MPG

1
2
2

SCREEN MENU MAP


DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR


12 H/24 H MODE


LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH

ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

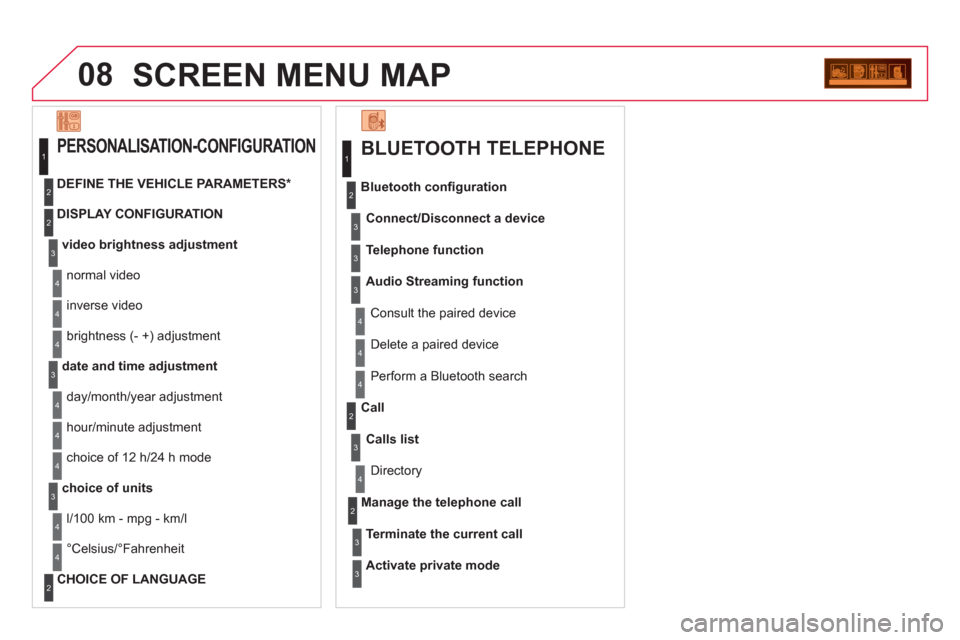

08SCREEN MENU MAP

BLUETOOTH TELEPHONE
Connect/Disconnect a device
Consult the paired device
Bluetooth confi
guration
Telephone function
Audio Streamin
g function
Delete a
paired device
P
erform a Bluetooth search
Calls lis
t
Call
Directory
Terminate the current call
Manage the telephone call
Activate private mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3
video brightness adjustment


DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *



PERSONALISATION-CONFIGURATION

normal video
inverse video
bri
ghtness (- +) adjustment
date and time adjustment


day/month/year adjustment
hour
/minute adjustment

choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°
Celsius/°Fahrenheit

CHOICE OF LANGUAGE
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
