fuses Citroen DS3 2013 1.G Owner's Manual

Interior
Interior mood lighting
This subdued passenger compartment lightingimproves visibility inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.
Gear shift indicator
Associated with the manual gearbox, this system suggests when to change up to obtain
optimum fuel consumption.
Scented air freshener

The scented air freshener diffuses theselected fragrance throughout the passenger compartment from its location in the ventilation
system.

Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this level
according to the ambient conditions.
119
160
77
73
283

Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, MyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio system.MyWay
251
Audio system

011

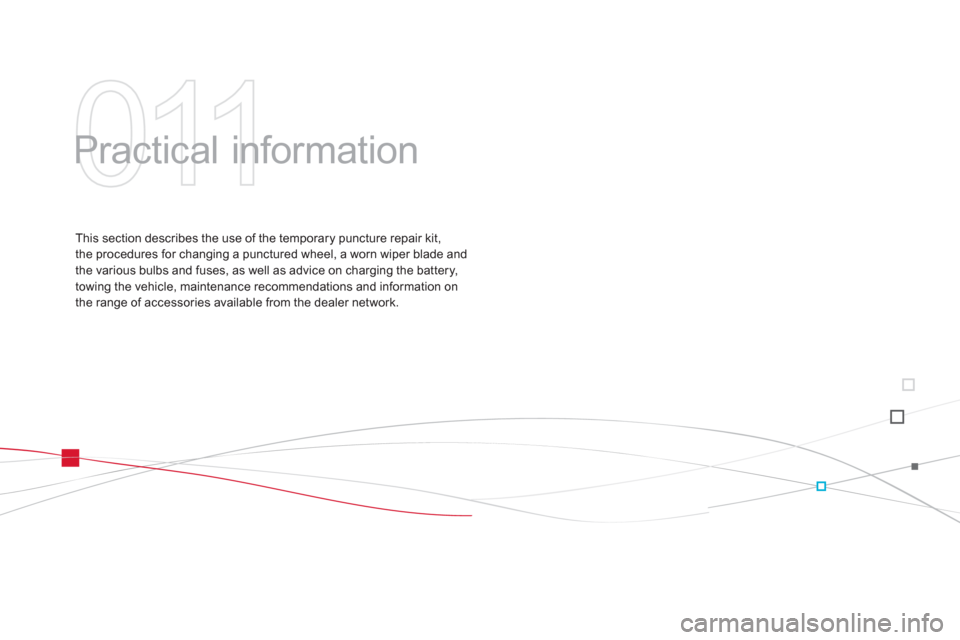

Practical information
This section describes the use of the temporary puncture repair kit,
the procedures for changing a punctured wheel, a worn wiper blade and
the various bulbs and fuses, as well as advice on charging the battery,
towing the vehicle, maintenance recommendations and information on
the range of accessories available from the dealer network.

215
Practical information

Dashboard fusebox

The fusebox is located in the lower dashboard(left-hand side).


Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 ATr a i l e r r e l ay unit.
FH37
-Not used.
FH3
820 AHi-Fi amplifier.
FH3
920 AHeated seats.
FH40
40 ATr a i l e r r e l ay unit.
Fuse N°RatingFunctions
F115 ARear wiper.
F2-Not used.
F
35 A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochromatic mirror,particle filter pump (Diesel), diagnostic socket, air flowsensor (Diesel).
F5
30 AElectric windows panel, passenger's electric window control,front electric window motor.
F
630 ADriver's electric window motor.
F7 5
ACourtesy lamp, glove box lighting.

217Practical information

Engine compartment
fusebox

The fusebox is located in the enginecompartment near the battery (left-hand side).Access to the fuses
)
Unclip the cover.
)
Change the fuse (see correspondingparagraph). )
When you have finished, close the cover carefully to ensure the sealing of the fuse box.

All work on the fuses in the box located on the battery, must be doneby a CITROËN dealer or a qualifiedworkshop.

Table of maxi-fuses
Fuse N°RatingFunctions
MF1*60 A Fan assembly.
MF2*30 A ABS/ESP pump.
MF3 * 30 A ABS/ESP electrovalves.
MF4 * 60 A
Built-in Systems Interface (BSI) supply.
MF5 * 60 A
Built-in Systems Interface (BSI) supply.
MF6 * 30 A Additional cooling fan unit (THP).
MF7 *80 A
Dashboard fusebox.
MF
8 *- Not used.
*
The maxi-fuses provide additional protection for the electrical s
ystems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.

231Practical information
"Multimedia":

hands-free system, audio systems, semi-
integral satellite navigation system, por table
navigation systems, mapping update CD, speed camera warning, DVD player, reversing camera, USB Box, speakers, Hi-Fi module,
230 V socket, WiFi on Board...B
y visiting a CITROËN dealer, you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecologicalproducts from the "TECHNATURE" range,products for topping up (screenwash fluid...),
touch-up pens and paint aerosols for the exact
colour of your vehicle, refills (cartridge for the
temporary puncture repair kit...), ...



Installation of radiocommunication transmitters

Before installing any after-market radio communication transmitter, you can contact a CITROËN dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption. Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the rangeof recommended equipment and accessories.
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle.

Instruments and controls
Instrument panels 28 -29, 30 -31
Warning lamps 32- 41
Indicator lamps 42- 45
Ad
justment buttons 46-47
- trip distance recorder
- li
ghting dimmer/black panel

Li
ghting controls 108-113
Headlamp adjustment 113 Stop & St a r t 170 -173
Speed limiter 174-175 Cruise control 176-17 7
Door mirrors
86
Electric windows 96-97
D
ashboard fuses 214 -216
Opening the bonnet 183
Steering wheel adjustment 85
Horn 143
Scented air freshener 77-78
Multifunction screens 54-62
Hazard warning lamps 142-143
Manual
gearbox 159 Gear shift indicator 160
Electronic gearbox 161-165
Automatic gearbox 166 -169
Parking brake 158 Rear view mirror 87
Sun visor 123
W i p e r c o n t r o l s 114 -117
Tr i p c o m p u t e r 4 8 - 5 0
Heatin
g/Ventilation 66 -72
Manual air conditioning 69 -72
Di
gital air conditioning 73 -75
Demisting/defrostingthe rear screen 76
Emergency or
assistance call 143, 249

Audio system 283 -304
Setting the date/time 296 -297
MyWay 251-282
Setting the date/time 274
Interior mood li
ghting 11 9

311Visual search
Technical data - Maintenance


Running out of Diesel 184

Checking levels 187-189


- oil

- brake fluid

- coolant

- screenwash fluid -additive (Diesel with particle emissions filter)



Changing bulbs 207-213


- front

- rear

- interior

Petrol en
gines 234-237
LPG engine 238 -239
Diesel engines 240-241
Dimensions 242-243
Identification markings 244

Bonnet
183-184
Under-bonnet layout, petrol 185
Under-bonnet la
yout, Diesel 186Batter
y 221-222
Energy economy mode 223
Checking components 19 0 -191
- battery- air filter/passenger compartment filter
- oil filter
- particle emissions filter (Diesel)
- brake pads/discs

En
gine compar tment
fuses 214, 217-220

313Alphabetical index
