language Citroen DS3 2013 1.G Owner's Manual

On-line owner's handbook


Referring to the owner's handbook on-line also gives you
access to the latest information available, easily identifi ed by
the bookmarks, associated with this pictogram:

If the heading "MyCitroën" is not available on the public website for
your country, you can fi nd your handbook at the following address:
http://service.citroen.com
Select:
You can fi nd your handbook on the CITROËN website, under the
heading "MyCitroën".




This personal space provides you with information on your products
and services, direct and special contact with CITROËN and
becomes a space tailored for you.

the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
You will fi nd your handbook, presented in the same way as the paper
version.

Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature
(this flashes if there isa risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing the "ESC"button.
Displays on the screen

From the control panel of your Audio system, you can:)
press the "MENU"
button to gain access to
the main menu,
)
press the " " or " " buttons to scroll
through the items on the screen,) press the "MODE"button to change
the permanent application (date, audio source...), ) press the "
" or "
" buttons to change
a setting value, ) press the "OK"button to confirm,or )
press the "ESC"button to abandon
the operation in progress.

Controls
)Press the "MENU"
button to gain access
to the main menu
, then press the "  " or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
-
units. )Press the "OK"button to select the menurequired.

Main menu

Languages
Once the "Languages" menu has been selected,you can change the language used by the display (Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been selected, you can change the units of the followingparameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units havebeen set to mpg, the information in the instrument panel screen on speed anddistance will also be in mph and miles.
For safety reasons, configuration by the driver of the multifunction screen mustonly be done when stationary.
Display settings
Once the "Display settings" menu has beenselected, you can gain access to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
-
12 or 24 hour mode.
)
Once you have selected a setting, press
the "  " or " " buttons to change its value.
) Press the "
" or "
" buttons to switch
respectively to the previous or next setting.) Press the "OK"
button to save the change
and return to the normal display or press
the "ESC"button to cancel.

59Multifunction screens
"Personalisation-
Confi
guration" menu
Once this menu has been selected, you can gain access to the following functions:


- define the vehicle parameters,

- display configuration,

- choice of language.


Defi ne the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment:


- wiper linked to reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting and duration(see "Visibility" section),

- parking sensors (refer to the "Driving" section). Example: settin
g of the duration of the guide-
me-home lighting) Press the " " or "" buttons, then the"OK"
button to select the menu required.
)
Press the "
" or "" buttons, then the"OK"
button to select the "Guide-me-home
headlamps" line.
) Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
) Press the "
" or "
" buttons, then the "OK"button to select the "OK"
box and confirm or press the "ESC"button to cancel.

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio s
ystem par t of the
"Audio and telematics" section.

"Telephone" Menu

"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",- "Units",
- "System".




System language

This menu allows you to select the language used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Por tugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the time (refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).

Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
Accordin
g to country.

Vehicle

This menu allows you to activate or deactivatecertain driving and comfor t equipment:


- wiper linked with reverse gear(refer to the "Visibility" section),

- guide-me-home lighting and duration(refer to the "Visibility" section),

- parking sensors (refer to the "Driving" section).


Units
This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

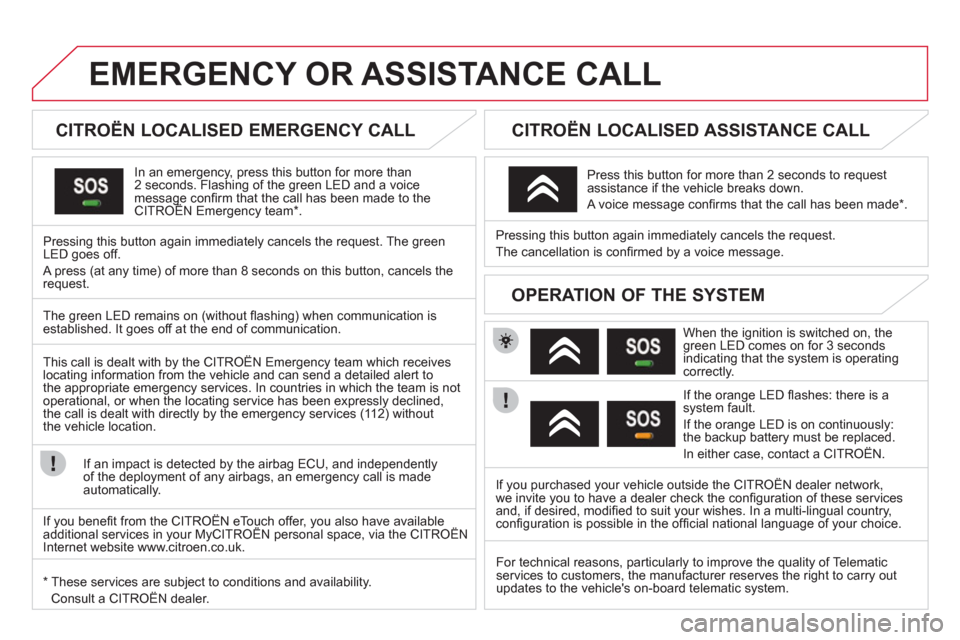

EMERGENCY OR ASSISTANCE CALL







CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the CITROËN Emergency team * .gg
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

CITROËN LOCALISED ASSISTANCE CALL


When the ignition is switched on, thegreen LED comes on for 3 seconds
indicating that the system is operating correctly.

If the oran
ge LED fl ashes: there is asystem fault.
If the oran
ge LED is on continuously:
the backup battery must be replaced.
In either case, contact a CITRO
ËN. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROËN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to
the appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directl
y by the emergency services (11 2) without
the vehicle location.

If an impact is detected b
y the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.


*

These services are subject to conditions and availability.
Consult a CITROËN dealer.If you purchased your vehicle outside the CITROËN dealer network,
we invite
you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website www.citroen.co.uk.

03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the"Screen menu map" section.
Press the M
ODE button several times in succession for access to the following menus:


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. RADIO / MUSIC MEDI
A PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MA
P
NAVIGATION
(If guidance is in progress)
SETUP:
system language *
, date and time *
, display,
vehicle settings * , unit and system settings,
"Demo mode".
TRAFFIC:
TMC information and messages.

*
Available accordin
g to model. TRIP COMPUTE
R

09
4 3 2 1
65

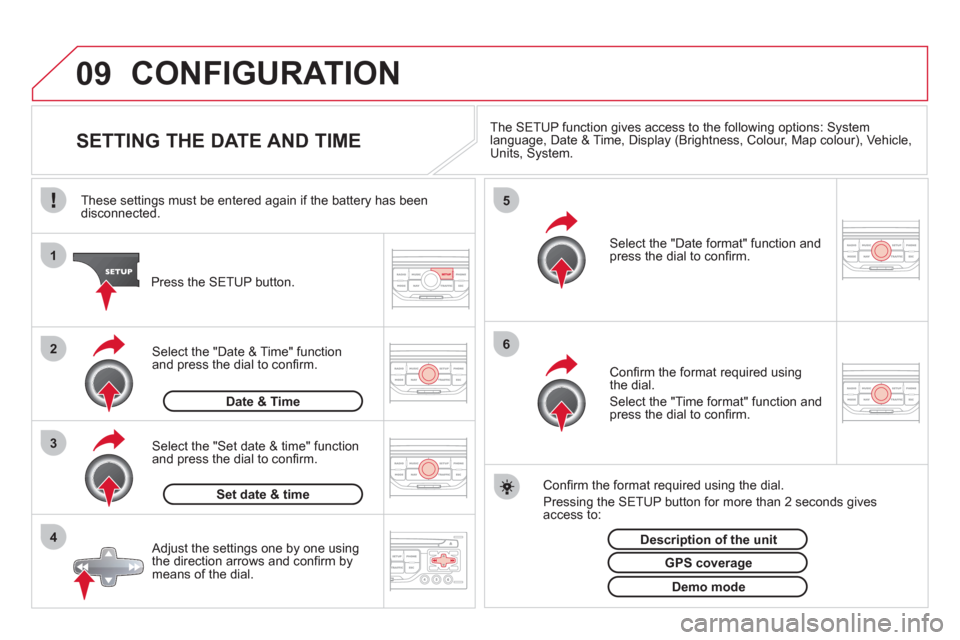

CONFIGURATION















SETTING THE DATE AND TIME The SETUP function gives access to the following options: Systemlanguage, Date & Time, Display (Brightness, Colour, Map colour), Vehicle,Units, System.

Adjust the settings one by one usingthe direction arrows and confi rm bymeans of the dial.
Select the "Date format" function andpress the dial to confi rm.
Select the "Set date
& time" function
and press the dial to confi rm.

Confi rm the format required using the dial.
Pressing the
SETUP button for more than 2 seconds gives access to: These settin
gs must be entered again if the battery has been disconnected.

Pr
ess the SETUP button.

Confi rm the format required usingthe dial.

Select the "Time format" function and press the dial to confi rm.
Set date & tim
e
Select the "Date & Time" function
and press the dial to confi rm.
Demo mode
GPS coverage
Description of the unit
Date & Time

277
Recalculate
Settings
Navi volum
e
POI categories on Map
Set parameters for risk areas
Displa
y on map
Vi
sual alert

Sound alert

3
2
4
3
3
3
4
4
4


Dial from address book


"Phone" Menu
Search phone


Call lists

Connect phone
Select rin
g tone
Phone/Ring tone volume
Phones connected
Enter mailbox number Settin
gs Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details

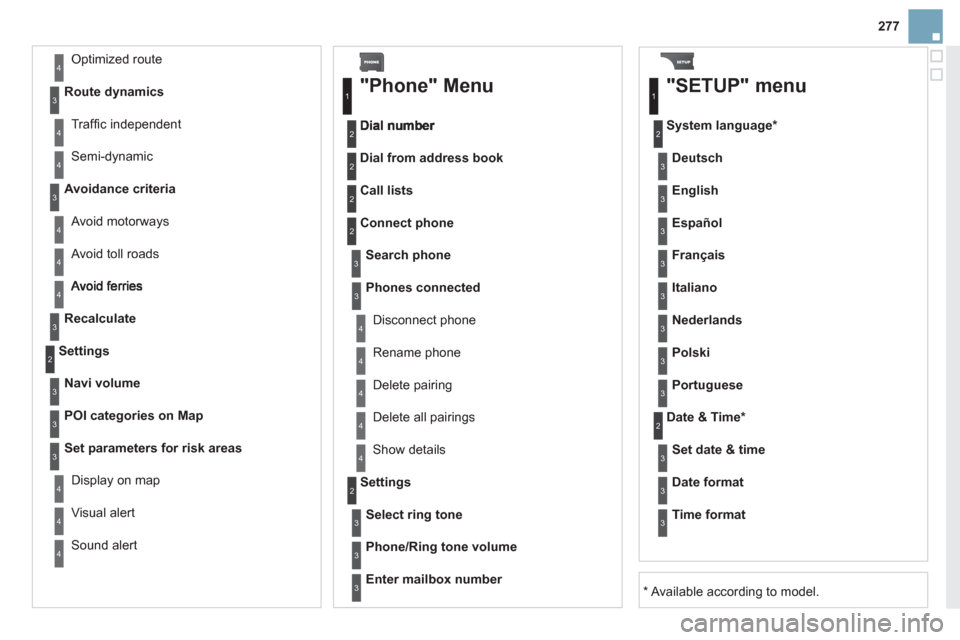

"SETUP" menu
System language *
English
Español
Deutsch
Italiano
Français
Nederlands
Polski
Portuguese
Date & Time *
Set date & tim
e
Date format
Time format
1
2
2
2
2
3
3
4
4
4
4
4
2
3
3
3
1
2
3
3
3
3
3
3
3
3
3
3
3
2
Avoid motorways Route d
ynamics
Traffi c inde
pendent
Semi-d
ynamic
Avoidance criteria

Avoid toll roads
Optimized route
3
3
4
4
4
4
4
*

Available according to model.
