phone Citroen DS3 2013 1.G Owner's Manual

57

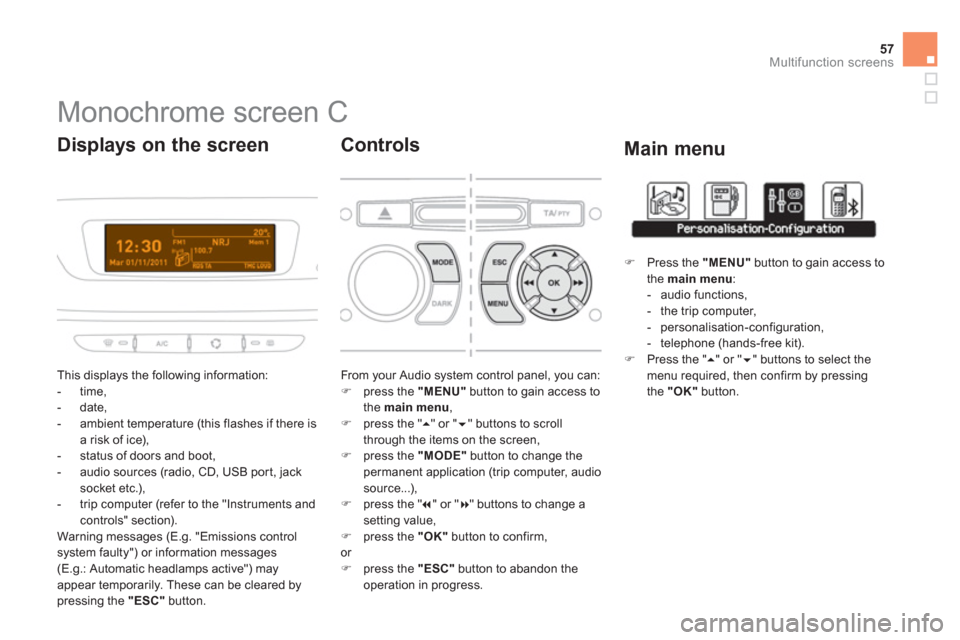

Multifunction screens










Monochrome screen C

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- status of doors and boot,

- audio sources (radio, CD, USB por t, jacksocket etc.),

- trip computer (refer to the "Instruments andcontrols" section).
Warning messages
(E.g. "Emissions controlsystem faulty") or information messages(E.g.: Automatic headlamps active") may
appear temporarily. These can be cleared by pressing the "ESC"
button.


Displays on the screen
From your Audio system control panel, you can:)
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "ESC"button to abandon theoperation in progress.

Controls
)
Press the "MENU"
button to gain access to
the main menu:- audio functions,
- the trip computer,
- personalisation-configuration,
- telephone (hands-free kit). )
Press the "
" or "
" buttons to select themenu required, then confirm by pressing
the "OK"
button.


Main menu

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio s
ystem par t of the
"Audio and telematics" section.

"Telephone" Menu

61Multifunction screens

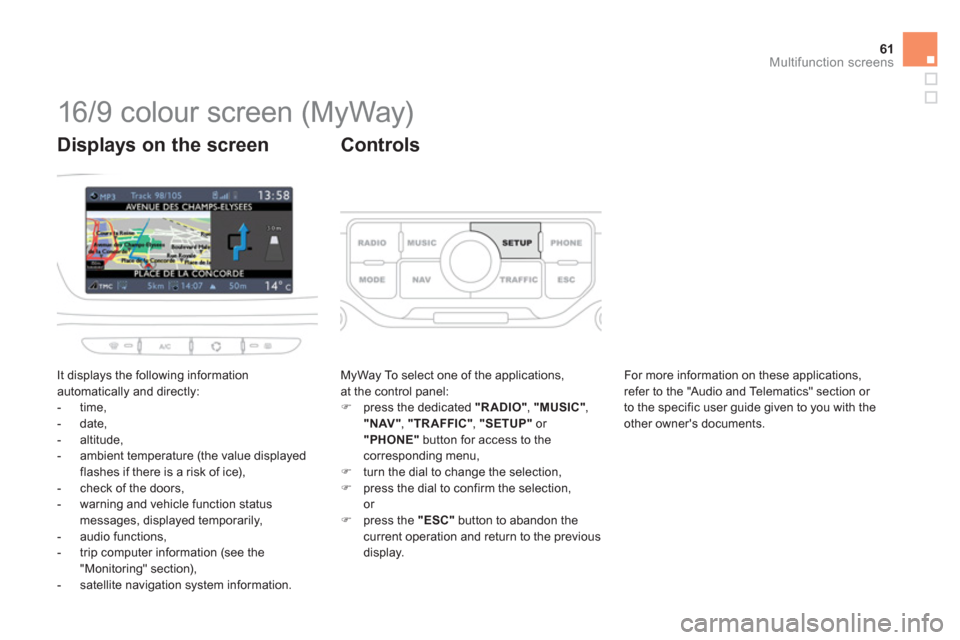

16/9 colour screen (MyWay)

It displays the following information
automatically and directly:


- time,

- date,

- altitude,

- ambient temperature
(the value displayedflashes if there is a risk of ice),

- check of the doors,

- warning and vehicle function status messages, displayed temporarily,

- audio functions,

- trip computer information (see the
"Monitoring" section),

- satellite navigation system information.



Displays on the screen
MyWay To select one of the applications,at the control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"or "PHONE"
button for access to thecorresponding menu,)
turn the dial to change the selection, )
press the dial to confirm the selection, or )
press the "ESC"button to abandon the
current operation and return to the previous
display.
Controls

For more information on these applications,
refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.

Fittings
Component which protects against sunlightfrom the front or the side, also equipped with an
illuminated courtesy mirror.)With the ignition on, raise the concealingflap; the mirror is lit automatically.
This sun visor is also equipped with a ticket
holder.









Sun visor









Illuminated glove
box
This can be used to hold a water bottle.
Its lid has a location for storing the vehicle'shandbook pack.) To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passen
ger's airbag deactivation switch A.It provides access to the ventilation nozzle B , distributing the same air as the vents in the passenger compartment.









Centre armrest


Storage
)
For access to the closed storage box, lift
the lever to open the lid.) For access to the open storage box below
the armrest, lift the complete armrest
t
owards the rear.
These can be used for por table devices (mobile
phone, MP3 player...) which can be connected
to the USB por t/auxiliary socket or charged from the 12 V socket in the centre console.
Comfor t and storage system for the driver andfront passenger.

223Practical information








Energy economy mode System which manages the period of use of cer tain functions to conser ve a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen wipers, dipped beam headlamps, cour tesylamps, etc. for a maximum combined period of thirty minutes.
This period may be greatly reduced if the battery is not fully charged.

A flat battery prevents the engine from starting (refer to the correspondingparagraph).
If the telephone is being used at the same time on the MyWay audionavigation system, it will be interrupted after 10 minutes.
Switching to economy mode
Once this period has elapsed, a message
appears on the multifunction screen indicating
that the vehicle has switched to economy mode and the active functions are put on standby.

Exiting economy mode

These functions are reactivated automatically
t
he next time the vehicle is driven. ) In order to resume the use of thesefunctions immediately, star t the engine and
let it run for a few minutes.
The time available to you will then be double
the period
for which the engine is left running. However, this period will always be between five and thir ty minutes.

251
The MyWay is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.
Certain functions described in this handbook will
become available during the year.
MyWay

For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 252
253
254
257
265
267
268
271
274
275
279

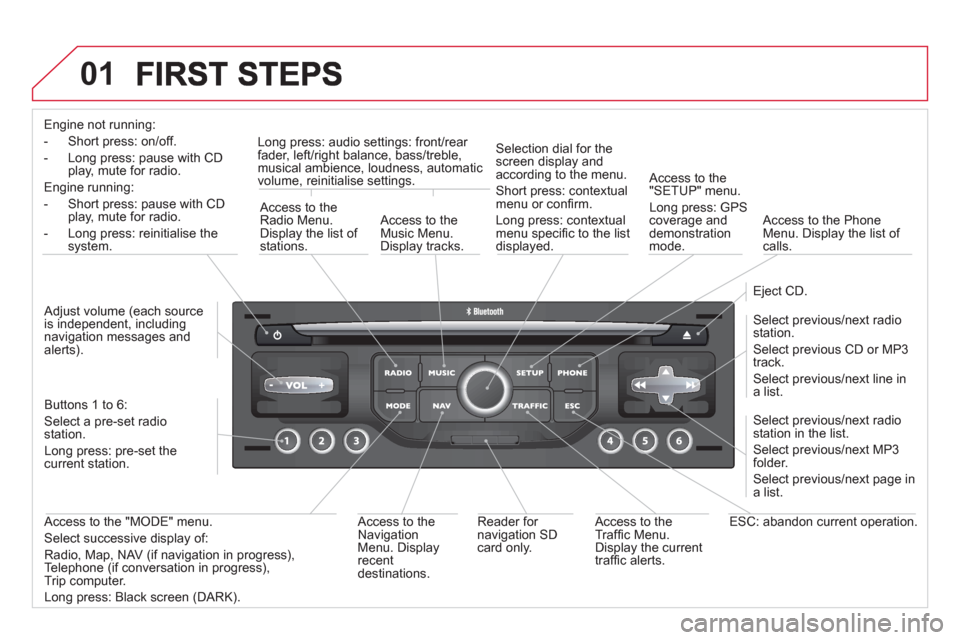

01
Engine not running:
-
Short press: on/off.
- Long press: pause with
CD play, mute for radio.
Engine running:
- Short
press: pause with CD play, mute for radio.
-
Long press: reinitialise thesystem.
Access to theRadio Menu.Display the list of stations.
Access to theMusic Menu. Display tracks. Lon
g press: audio settings: front/rear fader, left/right balance, bass/treble,
musical ambience, loudness, automatic
volume, reinitialise settings.
Selection dial for the
screen display and according to the menu.
Short press: contextual
menu or confi rm.
Long press: contextual
menu specifi c to the list
displayed.
A
ccess to the"SETUP" menu.
Lon
g press: GPS coverage anddemonstration
mode.
Access to the PhoneMenu. Display the list of calls.

E
ject CD.

Select previous/next radio station.
Select previous CD or MP3
track.
Select previous/next line in a list.

Select
previous/next radio station in the list.
Select previous/next MP3
folder.
Select previous/next page in a list.

E
SC: abandon current operation.
Access to theTraffi c Menu. Display the current
traffi c alerts. R
eader for navigation SDcard only.
A
ccess to theNavigation Menu. Displayrecent destinations.
A
ccess to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress),
Telephone (if conversation in progress),Trip computer.
Long press: Black screen (DARK). Buttons 1 to
6:
Select a pre-set radiostation.
Long press: pre-set the current station.
Ad
just volume (each source
is independent, including
navigation messages andalerts).

253

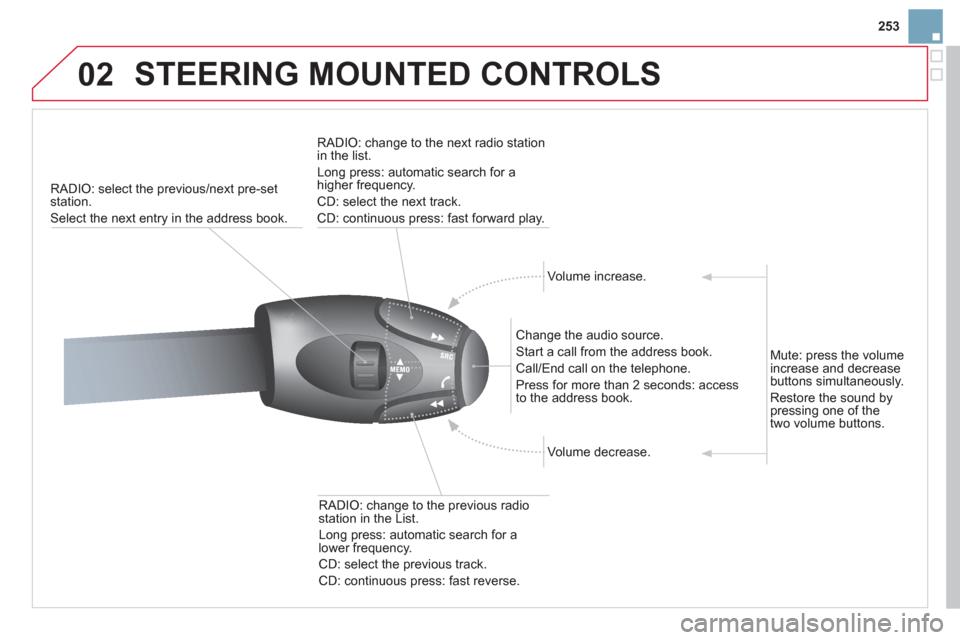

02 STEERING MOUNTED CONTROLS
RADIO: select the previous/next pre-set station.
Select the next entr
y in the address book.
RADI
O: change to the next radio station in the list.
Lon
g press: automatic search for ahigher frequency.

CD: select the next track.
CD: continuous press: fast forward pla
y.

Volume increase.

Change the audio source.

Start a call from the address book.
Call/End call on the tele
phone.
Pr
ess for more than 2 seconds: accessto the address book.
V
olume decrease.

RADI
O: change to the previous radio station in the List.
Lon
g press: automatic search for a
lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
Mute:
press the volume
increase and decrease
buttons simultaneously.

Restore the sound bypressing one of the
two volume buttons.

03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the"Screen menu map" section.
Press the M
ODE button several times in succession for access to the following menus:


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. RADIO / MUSIC MEDI
A PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MA
P
NAVIGATION
(If guidance is in progress)
SETUP:
system language *
, date and time *
, display,
vehicle settings * , unit and system settings,
"Demo mode".
TRAFFIC:
TMC information and messages.

*
Available accordin
g to model. TRIP COMPUTE
R

255

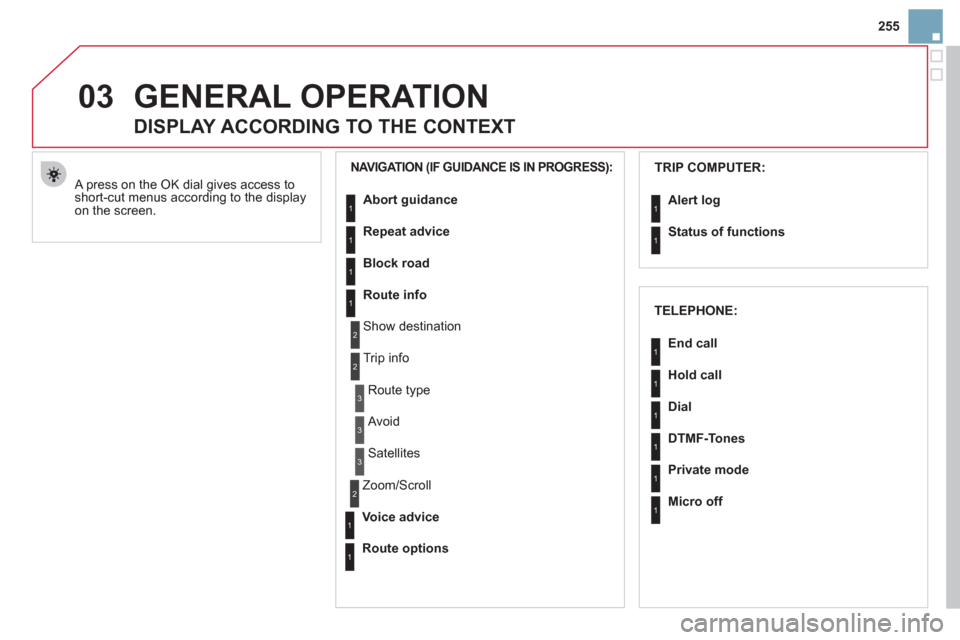

03GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the displayon the screen.







DISPLAY ACCORDING TO THE CONTEXT


NAVIGATION (IF GUIDANCE IS IN PROGRESS): TRIP COMPUTER:
Abort
guidance
Repeat advice
Block road
Route info

Show destination
Tri
p info
Route t
ype

Avoid
Satellites
Zoom
/Scroll
Voice advice
Route options
Alert log
Status of functions
1
2
3
3
2
1
1
1
3
1
1
1
1
2


TELEPHONE:
End call
Hold call
Dial
DTMF-Tones
Private mode
Micro off
1
1
1
1
1
1
