Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not   block   traffic:   the   ground   must   be
l

evel,   stable   and   not   slippery.
Apply
  the   parking   brake,   switch   off   the
i

gnition   and   engage   first   gear*   to   lock
t

he   wheels.
If
  necessary,   place   a   chock   under   the
w

heel   diagonally   opposite   the   wheel   to
be c

hanged.
It
  is   imperative   that   you   ensure   that   the
o

ccupants   get   out   of   the   vehicle   and
w

ait   where   they   are   safe.
Never
  go   underneath   a   vehicle   raised
u

sing   a   jack;   use   an   axle   stand.
List of operations
F Remove  the   chromed   bolt   cover   from   each  o
f   the   bolts   using   the   tool   3 (alloy wheels
only).
F

F
it   the   socket   4 on the wheelbrace 1 to
slacken
  the   security   bolt   (if   your   vehicle   is
f

itted   with   them).
F

S
lacken   the   other   bolts   using   the
w

heelbrace 1
o
n l y.
* position P

for

an

automatic

gearbox. Ensure
  that   the   jack   is   stable.   If   the  g
round   is   slippery   or   loose,   the   jack
c

ould   slip   or   drop   -   Risk   of   injury!
Take
  care   to   position   the   jack   only   at
o

ne   of   the   jacking   points   A or B under
the
  vehicle,   ensuring   that   the   vehicle's
c

ontact sur face is well centred on the
head
  of   the   jack.   Other wise,   there   is   a
r

isk   of   damage   to   the   vehicle   and/or   the
j

ack   might   drop   -   Risk   of   injury!

2 11
DS3_en_Chap10_info-pratiques_ed01-2014

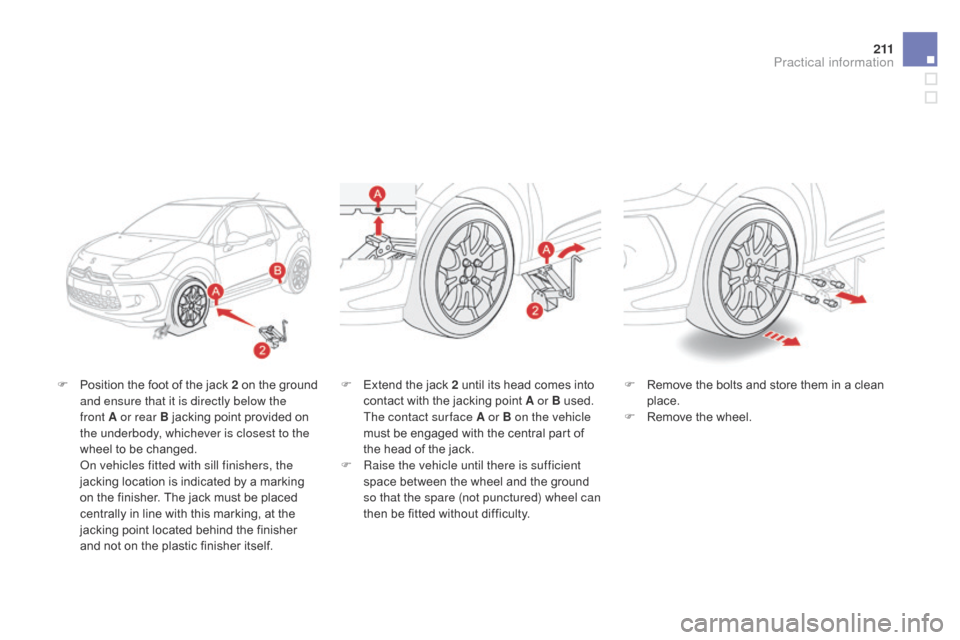

F Position  the   foot   of   the   jack   2   on   the   ground  a
nd ensure that it is directly below the
front
A or rear B   jacking   point   provided   on
t

he underbody, whichever is closest to the
wheel
  to   be   changed.


o
n v
ehicles fitted with sill finishers, the
jacking
  location   is   indicated   by   a   marking
o

n   the   finisher.   The   jack   must   be   placed
c

entrally   in   line   with   this   marking,   at   the
j

acking   point   located   behind   the   finisher
a

nd   not   on   the   plastic   finisher   itself. F
 R emove   the   bolts   and   store   them   in   a   clean  p
lace.
F

R
emove   the   wheel.
F
 E xtend   the   jack   2   until   its   head   comes   into  c
ontact   with   the   jacking   point   A or B   used.
T

he contact sur face A or B on the vehicle
must
  be   engaged   with   the   central   part   of
t

he   head   of   the   jack.
F

Ra
ise the vehicle until there is sufficient
space
  between   the   wheel   and   the   ground
s

o that the spare (not punctured) wheel can
then
  be   fitted   without   difficulty.
Practical information
