service CITROEN DS3 2019 Owners Manual

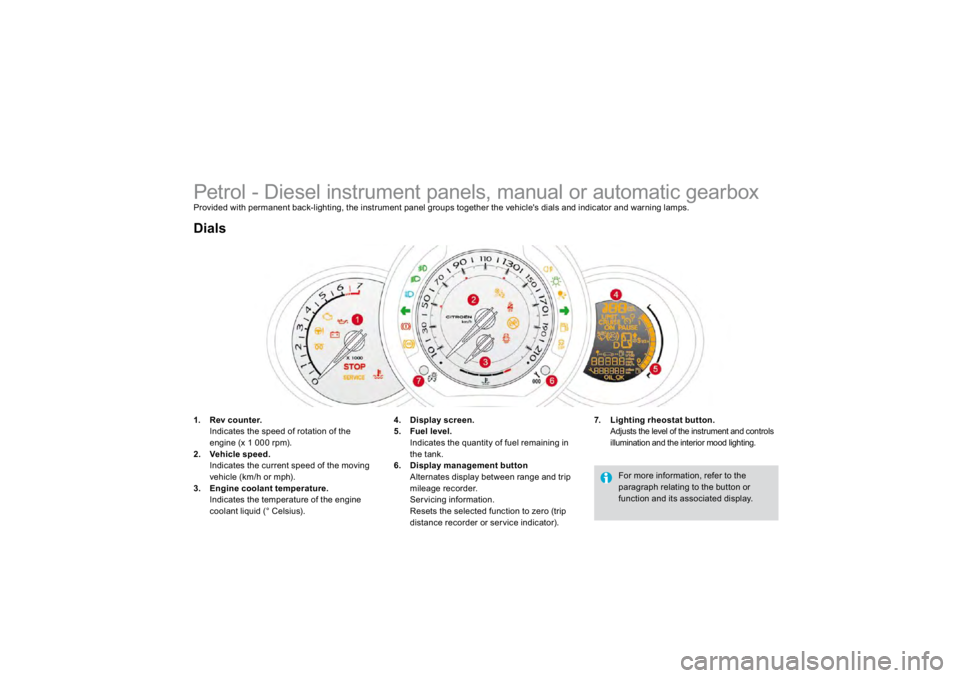

Petrol - Diesel instrument panels, manual or automatic gearbox Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.1.
Rev counter.
Indicates the speed of rotation of the
engine
(x 1 000 rpm
).
2.
Vehicle s
peed.
Indicates the current speed o
f the movin
g
vehicle
(km
/h or mph
).
3.
Engine coolant
temperature
.
Indicates the temperature of the enginecoolant liquid (° Celsius).
Dials
7.
Lighting rheostat button.

Adjusts the level of the instrument and controls
illumination an
d the inter
ior moo
d ligh
ting.
4.
Display screen
.
5. Fuel level
.
Indicates the quantit
y of fuel remainin
g in
the
tank.
6.
Display mana
gement
button

Alternates
display between range an
d trip
mileage recorder.
Servicing information.
Resets the selected function to zero (trip
distance recorder or service indicator).
For more information
, refer to the
para
grap
h relating to t
he button or
function and its associated displa
y.

25
Instruments and controls

Screen
E.
Service indicator(miles or km), then Total mileage recorderThese two functions are displa
yed
success
ively when sw
itching on t
he ignition
F.
Engine oil level indicator
r
Appears a
few seconds a
fter switchin
g on
the ignition, t
hen
disappears.
A
.Speed limiter
(mph or km/h) or
Cruise control.
B.
Gear change indicator.
C.Automatic
gearbox in
formation.
D.
Range
(miles or km) or
Trip m
ileage recor
der.

Warning lamp
is on
Cause
Action/Obse
rvations
Diesel engine pre-heatin
g

fixed. The ignition switch is at the
2nd
position
(ignition on
).

Wait until the warning lamp has switched off before starting.
The duration for which the warnin
g lamp is on is determined
by the climat
ic con
ditions.
Parking brake
fixed.
The par
king brake is app
lied or not
properly released.

Release the parkin
g brake to switch o
ff the warnin
g
lamp, keepin
g your
foot on the brake pedal.

Observe the sa
fety recommendations.

For
further in
formation on the parkin
g brake, re
fer to
the "Driving" sect
ion.
Engine coolant tempera
ture
fixed blue.

On starting the engine, it indicates that the engine is cold.
After a
few minutes driving, it swiches o
ff to indicate
that t
he eng
ine temperature
is norma
l.

In or
der to protect your eng
ine, avo
id driving too
hard
until the warning lamp has switched o
ff.
Foot on the brake peda
l

fixed. With an automatic gearbox, you have
forgotten to press the brake pedal to
come out of the
Ppost
ion. With the engine running, before releasing the parking
brake you must press the brake pedal to unlock the the automatic gear selector lever and come out of the
P position.
Automat
ic w
iping
fixed.
The w
iper contro
l is pushed
downwards.
Automatic
front wipin
g is activated.

Passenger's airbag system

fixed. The control switch, located in the glove
box, is in the "
ON

" position.
The passen
ger's front airba
g is activated.

In this case, do not install a rear-
facin
g
child
seat. T
urn th
e control switch to the "
OF
F " position to
deactivate the front passen
ger's airba
g.
In this case
you can install a rear-facin
g child seat.

The passen
ger's a
irbag system
is automat
ically put
into service on startin
g the vehicle
("ON
" position
).

Warning lamps When the engine is running or the vehicle isbeing driven, the switching on of one of thefollowing warning lamps indicates a fault which
requires action on the part of the driver.
Any fault resultin
g in the switchin
g on o
f a warnin
g lamp must be investi
gated
further b
y
readin
g the associated messa
ge on the multi
function screen.
If you encounter an
y problems, do not hesitate to contact a CITRO
ËN dealer.
Warning lamp
is on
Cause
Action/Obse
rvations
STOP
fixed
, associated with
another warn
ing lamp
and accompanied by an au
dibl
e s
ignal.
It is assoc
iate
d with the braking
s
ystem or t
he en
gine coo
lant
temperature.
Stop as soon as it is sa
fe to do so.
Park, switch off the i
gnition and call a CITRO
ËN
dealer.
Service

temporarily.
A minor
fault has occurred
for which
there is no speci
fic warning lamp.
Identi
fy the
fault b
y readin
g the messa
ge shown on the
screen, such as,
for exam
ple:
- t
he eng
ine o
il leve
l,
- the screenwash level,
- the remote control battery,
- saturation of the particle emission filter (Diesel).

For an
y other faults, contact a CITROËN dealer.

fixed.
A ma
jor fault has occurred
for which
there is no speci
fic warnin
g lamp.
Identi
fy the
fault b
y readin
g the messa
ge shown on the
screen and contact a
CITR
OË
N dealer.

System which informs the driver when thenext ser vice is due, in accordance with the manufacturer's servicing schedule.The point at w
hich the ser v
ice
is due
is
calculated from the last indicator zero reset. It is determined by two parameters: - the distance travelled, - the time elapsed since the last ser vice. Service indicator

More than 600 miles
(1 000 km
)
remain
be
fore the next se
rvi
ce
is due


For 5 seconds after the i
gnition is switched on,
the spanner s
ymbolising the ser v
ice operat
ions
comes on.
The distance recor
der display line
indicates the distance remainin
g be
fore the
next serv
ice
is due.
Example:

4 800 km remain be
fore the next
service is due.
For 5 seconds after the ignition is switched on, the displa
y indicates:
Less than 600 miles
(1 000 km
)
remain
be
fore the next se
rvi
ce
is due

Exam
ple: 400 miles
(900 km
) remain before
t
he next service is due
.
For 5 seconds a
fter the i
gnition is switched on,
t
he display indicates:
5 seconds after the ignition is switched on,
th
e distance reco
rder resu
mes its normal
o
perat
ion.
The s
panner rema
ins on
to
indica
te that a service must be carried
out
soon
.
5 seconds after the ignition is switched on, the
spanner is switched off
; the distance recorder f
resumes its normal operation. The displa
y then
indicates the total and trip distances.

37
Instruments and controls
5 seconds a
fter the i
gnition is switched on,
t
he distance reco
rder resu
mes its normal
operation.
The spanner rema
ins
lit.

The distance remaining may be weighted b
y the time factor, dependin
g
on the driver
's driving habits.

There
fore, the spanner ma
y also come
on if you have exceeded the two
year
serv
ice
interva
l.
Service indicator zero reset After each service, the service indicator mustbe reset to zero.The procedure
for resetting to zero is as
follows:
) switch off the ignition, ) press and hold the trip distance recorder zero reset button
,
) switch on the i
gnition; the distance recorder
display begins a count
down,
)
w
hen t
he display indicates
"=0" , re
lease
the button; t
he s
panner
disappears.

Followin
g this operation, i
f you wish to
disconnect t
he battery,
lock the ve
hicle
and wait at least
five minutes
for the
zero reset to be taken into account.

Retrieving the service information You can access the ser vice in
formation at an
y
t
ime. ) Press t
he tr
ip distance recor
der zero reset
button.
The ser vice information is displayed for a few seconds, then disappears.
Service overdue
For 5 seconds after the ignition is switched on, the spanner flashes
to indicate that
the service must be carried out as soon as possible.Example:
the ser vice is overdue b
y 300
km.

For 5 seconds a
fter the i
gnition is switched on,
t
he display indicates:

System which informs the driver whether theengine oil level is correct or not. Thi
s information is indicated for a few seco
nds
when the ignition is switched on, after the service in
formation.
En
gine oil level indicator
The level read will onl
y be correct i
f
the ve
hicle is on
leve
l groun
d an
d the
engine has been o
ff for more than
15 minutes.
Oil level correct
Lack of oil
This is indicated by the
flashing o
f "OIL" ,
linked
with the ser vice warning lamp, accompanied
by an audible signal and a message on the
multifunction screen.
If the lack of oil is confirmed b
y a check usin
g
the dipst
ick, it is essent
ial that t
he leve
l is
toppe
d up to prevent
dama
ge to t
he en
gine.
Oil level indicator faultThis is indicated b
y the
flashin
g of "OIL--
".
Consult a
CITR
OË
N dealer.

There are 2 marks on th
e
dipstick:-
A
= max; never excee
d this
level
(risk o
f dama
ge to the
engine),
-
B = m
in; to
p up the leve
l via
the oil filler cap, using the
grade of oil suited to your engine.
Dip
stick
Refer to the "
Checks" section to locate the
dipstick and the oil
filler cap on your engine.

85
Access
Do not throw the remote control
batter
ies awa
y, they conta
in meta
ls
which are harm
ful to the environment.
Take them to an a
pprove
d co
llect
ion
point.

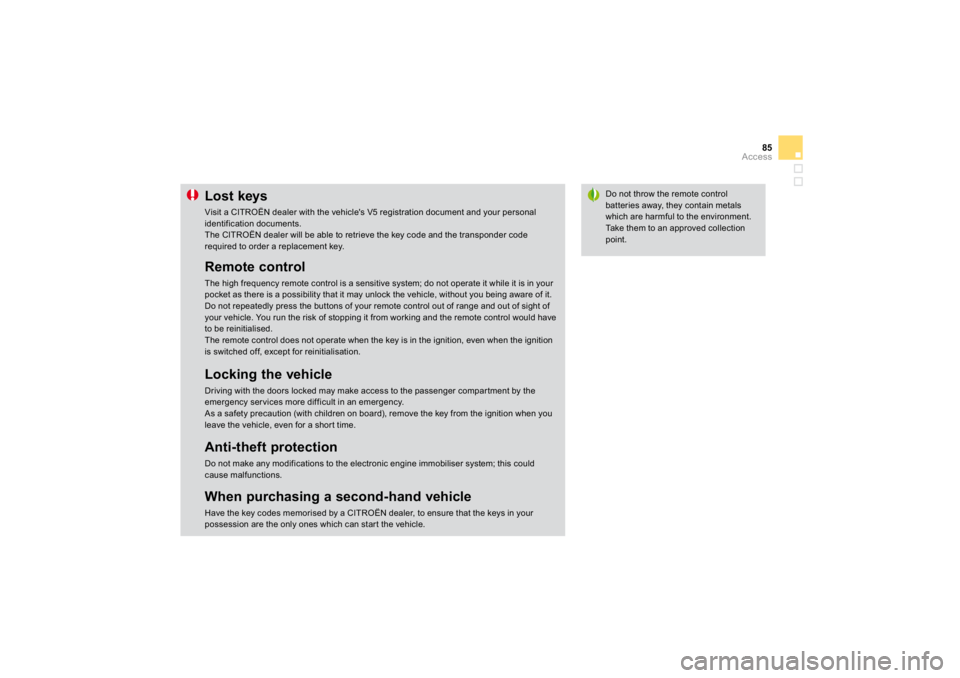

Lost
keys
Visit a CITRO
ËN dealer with the vehicle's V5 re
gistration document and
your personal
identi
fication documents.

The CITRO
ËN dealer will be able to retrieve the key code and the transponder code
required to order a replacement key. Remote contro
l

The hi
gh frequenc
y remote control is a sensitive s
ystem; do not operate it while it is in
your
pocket as there is a possibility that it may unlock the vehicle, without you being aware o
f it.

Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reiniti
alised
.

The remote control does not operate when the ke
y is in the i
gnition, even when the i
gnition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emer
genc
y services more difficult in an emer
genc
y.
As a safet
y precaution
(with children on board
), remove the ke
y from the i
gnition when
you
leave the vehicle, even
for a short time.

Anti-theft protection Do not make an
y modi
fications to the electronic en
gine immobiliser s
ystem; this could
cause mal
functions.

When purchasin
g a second-hand vehicle

Have the ke
y codes memorised b
y a CITRO
ËN dealer, to ensure that the ke
ys in
your
possess
ion are t
he on
ly ones w
hich can start t
he ve
hicle.

85
Access
Do not throw the remote control
batter
ies awa
y, they conta
in meta
ls
which are harm
ful to the environment.
Take them to an a
pprove
d co
llect
ion
point.
Lost
keys
Visit a CITRO
ËN dealer with the vehicle's V5 re
gistration document and
your personal
identi
fication documents.

The CITRO
ËN dealer will be able to retrieve the key code and the transponder code
required to order a replacement key. Remote contro
l

The hi
gh frequenc
y remote control is a sensitive s
ystem; do not operate it while it is in
your
pocket as there is a possibility that it may unlock the vehicle, without you being aware o
f it.

Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reiniti
alised
.

The remote control does not operate when the ke
y is in the i
gnition, even when the i
gnition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emer
genc
y services more difficult in an emer
genc
y.
As a safet
y precaution
(with children on board
), remove the ke
y from the i
gnition when
you
leave the vehicle, even
for a short time.

Anti-theft protection Do not make an
y modi
fications to the electronic en
gine immobiliser s
ystem; this could
cause mal
functions.

When purchasin
g a second-hand vehicle

Have the ke
y codes memorised b
y a CITRO
ËN dealer, to ensure that the ke
ys in
your
possess
ion are t
he on
ly ones w
hich can start t
he ve
hicle.

85
Access
Do not throw the remote control
batter
ies awa
y, they conta
in meta
ls
which are harm
ful to the environment.
Take them to an a
pprove
d co
llect
ion
point.
Lost
keys
Visit a CITRO
ËN dealer with the vehicle's V5 re
gistration document and
your personal
identi
fication documents.

The CITRO
ËN dealer will be able to retrieve the key code and the transponder code
required to order a replacement key. Remote contro
l

The hi
gh frequenc
y remote control is a sensitive s
ystem; do not operate it while it is in
your
pocket as there is a possibility that it may unlock the vehicle, without you being aware o
f it.

Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reiniti
alised
.

The remote control does not operate when the ke
y is in the i
gnition, even when the i
gnition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emer
genc
y services more difficult in an emer
genc
y.
As a safet
y precaution
(with children on board
), remove the ke
y from the i
gnition when
you
leave the vehicle, even
for a short time.

Anti-theft protection Do not make an
y modi
fications to the electronic en
gine immobiliser s
ystem; this could
cause mal
functions.

When purchasin
g a second-hand vehicle

Have the ke
y codes memorised b
y a CITRO
ËN dealer, to ensure that the ke
ys in
your
possess
ion are t
he on
ly ones w
hich can start t
he ve
hicle.
