engine CITROEN DS3 CABRIO 2013 Handbook (in English)

A
ABS and EBFD systems.............................148Accessories................................................234Accessory socket, 12 V ..............................128Access to rear seats...............................81, 83Adjusting headlamps ..................................117Adjusting head restraints ..............................80Adjusting the steering wheel.........................85Advice on care and maintenance...............233Airbags, curtain...................................158, 159Airbags, front.......................................155, 159Airbags, lateral....................................157, 159Air conditioning.............................................24Air conditioning, digital ............................67,73Air conditioning, manual .........................67, 70Air filter........................................................r194Air flow....................................................24, 66Air intake.................................................66,73Air recirculation.............................................73Air vents........................................................66Alarm.............................................................96Alloy wheels ................................................233Anti-lock braking system (ABS)..................148Anti-pinch ....................................................101Anti-theft........................................................92Armrest, front.............................................. 127Assistance call....................................147, 254Audible warning..........................................147Audio streaming (Bluetooth).......................299Audio system...............................................287Automatic illumination
of headlamps .....................................113,116Automatic operation of hazard
warning lamps...........................................147
Battery.................................................194,225Battery, charging.........................................225Battery, remote control...........................94,95Black panel....................................................47Bluetooth (hands-free)........................275,297Bluetooth (telephone)..........................275,297Bonnet.........................................................187Boot.............................................................105Boot lamp............................................123, 217Brake discs ..................................................195Brake lamps................................................215Brake pads ..................................................195Brakes .........................................................195Braking assistance system .........................148
Capacity, fuel tank......................................106CD MP3...............................................273,293Central locking......................................90, 103Changing a bulb...................................211-217Changing a fuse...................................218-224Changing a wheel...............................204-210Changing a wiper blade...................... 121, 228Changing the date......................278, 300,301Changing the remote control battery............94Changing the time......................278, 300,301Checking levels....................................191-193Checking the engine oil level........................45Checking tyre pressures(using the kit)............................................198Checks .................................................189-195Children................................ 132-142, 153, 156Child seats ..........................................134-139Cleaning (advice)........................................233Closing the boot....................................90,105Closing the doors..................................90,102Connectors, audio ...............128, 274, 294, 296Control panel .......................................256, 288Coolant level.........................................42,191Coolant temperature indicator......................r42Cour tesy lamps ................................... 118, 217Courtesy mirror...........................................r127Cruise control..............................................180Cup holder...................................................r126
BC
Automatic rain sensitive windscreen
wipers...............................................118, 120Auxiliary socket...................128,274, 294,296

317
Alphabetical index
EBA (Emergency braking assistance)........................................148,149Eco-driving...................................................24Economy mode...........................................227Electric window controls .............................100Electronic brake force distribution(EBFD)......................................................148Electronic engine immobiliser.................r92, 95Emergency boot release ............................. 105Emergency braking system........................149Emergency call...................................147,254Emergency warning lamps.................146, 147
Energy economy mode...............................227Engines.......................................238, 242,244Engine, Diesel.............................107,190, 244
Engine, petrol ..............................107,189, 238Engine compartment...........................189, 190Engine compar tment fusebox .....................221Engine oil level indicator.......................r45, 191Environment.....................24, 76, 95, 193, 226
ESP/ASR.....................................................149
E
Filling with fuel.....................................106-108Fitting a wheel.............................................207Fittings, boot...............................................130Flashing indicators ......................................146Foglamps, front ...................................114,214Foglamps, rear....................................r114, 147Fragrance car tridge......................................77Front seats..............................................79, 82Fuel........................................................24, 107Fuel consumption..........................................24Fuel filler flap.......................................106, 108Fuel gauge..................................................106Fuel tank..............................................106, 108Fusebox, dashboard ...................................218Fuses ...........................................................218
Halogen headlamps ....................................211Hands-free kit...................................... 275, 297Hazard warning lamps ........................ 146, 147Head restraints, front....................................80Head restraints, rear.....................................r84Heating..............................................24,70, 73Height and reach adjustment,steering wheel ............................................85Hill start assist.............................................177Horn.............................................................147
F
Date (setting)..............................278,300,301Deactivating the passenger airbag.............156Deadlocking ..................................................91Defrosting ..........................................70, 73,76Demisting..........................................70,73, 76Dials and gauges ....................................28, 30Diesel additive level .................................... 193Dimensions.................................................246Dipped beam.......................................112,212Dipstick..................................................45,191Direction indicators.....................146, 212, 215Doors...........................................................102Doors emergency control ...........................104Door pockets ...............................................126Driving economically ....................................24
H
G.P.S...........................................................261Gearbox, automatic............................170,195Gearbox, electronic.....................165,174,195Gearbox, manual ................163,164,174,195Gear efficiency indicator.............................r164Gear lever, automatic gearbox ...................170Gear lever, electronic gearbox system...............................................165,195Gear lever, manual gearbox.......................163Glove box....................................................127Grab handles...........................................81, 83Guidance .....................................................261
DG

Unlocking......................................................90Unlocking from the inside...........................103Update risk areas ........................................268Updating the date .......................278, 300, 301Updating the time .......................278, 300, 301USB Box......................................................128USB Reader........................................r128, 294
U
Ta b l e s of engines........................238,242, 244Tables of fuses............................................218Table of weights ..................240, 241, 243, 245
Tank, fuel.............................................106,108Technical data .............................238,242, 244
Te l e p h o ne...........................................275, 297Te mperature, coolant ....................................42Temperature adjustment.........................70,73Temporary tyre repair kit.............................198Third brake lamp.........................................216TMC (Tr a f f i c i n f o)........................................269Tools ............................................................204Total distance recorder.................................r46To w b a r.........................................................r231Towed loads ........................240, 241, 243, 245
Towing another vehicle ............................... 229Traction control (ASR)................................149Tr affic information (TA)...............270,271, 292Tr affic information (TMC)....................269, 270Tr i p c o m p u t e r....................................r48-50,57Tr i p d i s t a n c e r e c o r d e r...................................r46Tyre pressures ............................................248Tyres......................................................24, 248
T
Ventilation ...................................66,67,70, 73
V
Warning lamps .........................................32- 41Wash-wipe, rear..........................................r119Washing (advice).........................................233Weights...............................240, 241, 243, 245Window controls..........................................100Wiper, rear...................................................r119Wiper control stalk...............................118-120Wipers ..................................................118-120
W

Contents

Contents


ACCESS
2
Soft top
11
Boot
13Alarm
004004

PR ACTICAL
INFORMATION
14Rear shelf
012012
011011

TECHNICAL DATA
15
Changing a bulb
1
6 Changing a fuse
1
7 Recommendations on care

1
8Petrol engines
19

Petrol weights
2
0 Diesel engine
2
1Diesel weights
22Dim
ensions

Key
safety warning
additional information
contributes to the protection o
f
the environment
refer to the pa
ge indicated
FITTINGS 006006

Access

In order to maintain the state of charge of the battery, it is recommended that the roof be operated with the engine running.

Operation of the roof is possible:


- engine running, or

- ignition on.



During operation of the roof with justthe ignition on, starting the engine may cause the roof to stop, dependingon the state of charge of the battery. To have the roof continue the operation, operate the control again after the engine has started.

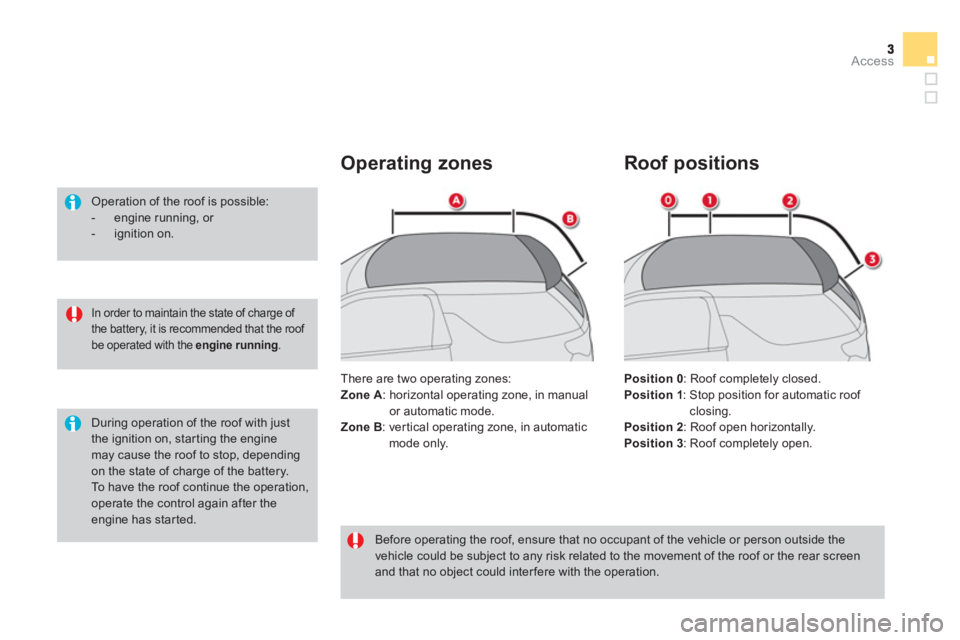

Operating zones
There are two operating zones:
Zone A : horizontal operating zone, in manualor automatic mode.
Zone B
: ver tical operating zone, in automaticmode only.
Before operating the roof, ensure that no occupant of the vehicle or person outside the vehicle could be subject to any risk related to the movement of the roof or the rear screen and that no object could interfere with the operation.


Roof positions
Position 0
: Roof completely closed.Position 1: Stop position for automatic roof closing. Position 2
: Roof open horizontally. Position 3
: Roof completely open.

6Access
Closing
Manual mode
)In zone A, press and hold the control
without passing the point of resistance toclose the roof.
Closing the roof in zone B
can only be done in automatic
mode.
If the roof does not lock correctly, it opensagain by a few centimetres. With the engine running, operate the control again. If the problem persists, contact a CITROËN dealer or a qualified workshop.
)
The roof stops as soon as you release thecontrol. )
To close the roof completely, press and
hold the control until the the roof is heardto lock.

7Access

Automatic mode
)In position 3, press the control to begin closing the roof.


When the roof is completely open, the rear screen rests on the rear shelf. Do not place any object on the rear screen.


During automatic closing of the roof in zone A
(position 2to position 1 ),pressing the control stops the roof.
Complete closing of the roof between 1 and 0can only be done in manual
mode. Press and hold the control until the roof is heard to lock. If the roof does not lock correctly, it opensagain by a few centimetres. With the engine running, operate the control again. If the problem persists, contacta CITROËN dealer or a qualified workshop.
)
Release the control: closing of the roof continues up to position 2.)
Between positions 2
and 1, pressing the control beyond the point of resistance
allows automatic closing of the roof toposition 1.) Between positions 1
and 0
, press and hold
the control until the roof closes fully.


During an operation in zone B
, an instruction to stop the roof is not possible.
Pressing the control reverses the direction of movement of the roof, whichever
direction the control is pressed.
This "anti-panic" function allows a quick change in direction of movement of theroof in the event if suddenly required.

Access
If the roof stops in zone B
, a message in thescreen will ask you to stop the operation of the roof immediately. )Press and hold the control:
- in the opening direction to reachposition 3,- in the closing direction to reach position 2.


Reinitialisation

Do not release the control during thereinitialisation procedure.

Downgraded operation
Manual opening and
closing
This procedure must be carried out withthe engine running.
Do not manually open the roof in zone Bwhen the boot is open.
In the event o
f a failure, the roof can be
operated manually. If the automatic roof operation mode is lost, the
s
ystem must be reinitialised. ) Press and hold the control for closing the
r
oof.) After about 5 seconds, the roof closes completely to position 0
, then reverses by a few millimetres.
The roof is the reinitialised.
)Insert fully a 4 mm allen key (not supplied)in the hexagonal socket accessible through
the aper ture provided in the upper boot
tr
im. )Opening and closing of the roof is obtainedby turning the allen key in the appropriate direction.

You must not drive when the roof isstopped in zone B .

11Access











Boot


Opening
)After unlocking the vehicle using theremote control or the key, press the
opening control and raise the boot lid.
Closing
) Lower the boot lid by pressing on the
middle of its finisher.
If the boot is not closed correctl
y:
-
when the engine is running
, this
warnin
g lamp comes on, accompanied
by a message on the multifunctionscreen for a few seconds,
-when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a messa
ge in the multifunction screen for a
few seconds.

It is strongly recommended not to lower the boot lid by pressing on either end.

If the boot is not fully closed, openingthe roof in zone Bis not possible.Check that the boot is fully closed.

18Technical data
MODELS:ENGINES AND GEARBOXES
Model codes:SB...HMZ05FS05FS95FV85FN8 *
PETROL ENGINESVTi 82VTi 120THP 155THP 150 *

Cubic capacity (cc) 1 199
1 598

1 598

Bore x stroke (mm)75 x 90.577 x 85.8

77 x 85.8

Max power: EU standard
(kW) 60
88
115
110
*

Max power engine speed
(rpm)
5 750
6 000 6 000
Max torque: EU standard
(Nm) 118

160240

Max torque en
gine speed (rpm)
2 750

4 250
1 400

F
uel Unleaded Unleaded Unleaded

Catalytic conver ter yes yes
yes
GEARBOXManual
(5-speed)Manual
(5-speed)
Automatic(4-speed)
Manual(6-speed)
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.25 4.25 4.25
4.25
*
For Belgium.
