139Child safety
Advice on child seats

The incorrect installation of a child seat in avehicle compromises the child's protectionin the event of an accident.
Remember to fasten the seat belts or the child seat harness keeping the slackin relation to the child's body to a minimum , even for shor t journeys.
To install a child seat using the vehicle'sseat belt, ensure that the belt is well tightened on the child seat and that it holdsthe child seat firmly against the vehicle's seat.
For optimum installation of the "forwardfacing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "forward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag
* when a "rear facing" child seat is installed on thefront seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.CITROËN recommends the use of abooster seat which has a back, fitted with aseat belt guide at shoulder level.
*
According to country.

As a safety precaution, do not leave: - one or more children alone and unsuper vised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windowsclosed, - the keys within reach of children inside the vehicle.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Your vehicle has been approved in accordance
with the newISOFIX regulation.The seats, represented below, are fitted withregulation ISOFIX mountings:





















"ISOFIX" mountings

There are three rings for each seat:


- two rings A, located between the vehicle seat back and cushion, indicated by a label,

- a rin
g B , behind the seat, referred to as theTOP TETHER
for fixing the upper strap. This I
SOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with
two latches which are secured on the two rings A.
When fitting an ISOFIX child seat to the right hand rear seat, before fixing the seat in place,first move the centre rear seat belt towards themiddle of the vehicle so as to not interfere with
the operation of the seat belt.
Some seats also have an upper strap
which isattached to ring B.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between its
rods. Then fix the hook on ring Band tighten
the upper strap.
The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident.
For in
formation regarding the ISOFIX childseats which can be installed in your vehicle,
refer to the table showing the locations for
installing I
SOFIX child seats.

141Child safety











ISOFIX child seat recommended by CITROËN and approved for
your vehicle
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using the three point seat belt.Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
RÖMERDuo Plus ISOFIX(size category B1 )

Group 1: from 9 to 18 kg





Installed only in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.) Adjust the front seat of the vehicle so that the child's feet do not touch the back of the seat.

Installing ISOFIX child seats In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with
ISOFIX mountings.
In the case o
f the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between Aand G ,
is indicated on the child seat next to the ISOFIX logo.
IUF:seat suitable for the installation of an I sofix U niversal seat, "F
orward facing" and secured using the "Top Tether" upper strap.IL- SU:
seat suitable for the installation an I sofix S emi-U
niversal seat which is:
- "rear facing" fitted with a "Top Tether" upper strap or a stay,
- "forward facing" fitted with a stay,
For the securing of the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
*

Infant car seats and "car cots" cannot be installed on the front passenger seat.




Weight of the child
/indicative age
Less than 10 kg(group 0)Up to 6 months approx
Less than 10 kg(group 0)Less than 13 kg (group 0+)Up to 1 year approx
From 9 to 18 kg (group 1)From 1 to 3 years approx
Type of ISOFIX child seatInfant car seat

*"rear facing""rear facing""for ward facing"
ISOFIX size categoryFGCDECDABB1
Universal and semi-universal ISOFIX child seats which can be installed on the outer rear seatsXXIL-SUXIL- SUIUFIL- SU

153Safety
The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off.
Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys. Do not interchange the seat belt buckles asthey will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the lengthof the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower part of the strap must bepositioned as low as possible on the pelvis.
The upper par t must be positioned in the hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can releasethe device by pulling firmly on the strap and releasing it so that it reels in slightly.

In order to be effective, a seat belt must:


- be tightened as close to the body as possible,


- be pulled in front of you with a smooth movement, checking that it does nottwist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modified to avoidaffecting its per formance.
In accordance with current safety regulations, for all repairs on your vehicle, go to aqualified workshop with the skills and equipment needed, which a CITROËN dealer is able to provide. Have your seat belts checked regularly by a CITROËN dealer or a qualified workshop, particularly if the straps show signs of damage.
Clean the seat belt straps with soapy water or a textile cleaning product, sold by CITROËN dealers.
After folding or moving a seat or rear bench seat, ensure that the seat belt is positioned and reeled in correctly.
Recommendations for children
Use a suitable child seat if the passenger
is less than 12 years old or shor ter thanone and a half metres.Never use the same seat belt to securemore than one person. Never allow a child to travel on your lap.
In the event of an impact
Depending on the nature and seriousness of the impact, the pretensioning device may be deployed before and independently of the airbags. Deployment of the pretensioners is accompanied by a slight discharge of harmless smoke and a noise, due tothe activation of the pyrotechnic car tridgeincorporated in the system.In all cases, the airbag warning lampcomes on.Following an impact, have the seat belts system checked, and if necessary replaced, by a CITROËN dealer or a qualifiedworkshop.

Deactivation
Only the passenger's front airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch, )turn it to the "OFF"position,)then, remove the key keeping the switch in
the new position.
This warnin
g lamp comes on in the
instrument panel when the ignition is
on and until the airbag is re-activated.
To assure the safety of your child,the passenger's front airbag mustbe deactivated when you install a "rear facing" child seat on the front passenger seat. Other wise, the child would risk beingseriously injured or killed if the airbag were deployed.

Reactivation

When you remove a child seat that has been
fitted "rear wards facing", turn switch to the
"ON"
position to re-activate the airbag and so
assure the safety of your front passenger in theevent of an impact.
With the i
gnition on, this warning lampcomes on in the instrument panel for approximately one minute, if thepassenger's front airbag is activated.


Operating fault
If this warning lamp flashes, contact
a CITROËN dealer or a qualified
workshop. The passen
ger's front
airbag may no longer be deployed in the event
of a serious impact.
If at least one of the two airbag
warning lamps come on continuously, do not install a child seat on the front passenger seat.
Have it checked by a CITROËN dealer or a qualified workshop.
If this warnin
g lamp comes on in the instrument panel, accompanied byan audible warning and a message in
the multifunction screen, contact a CITROËN
dealer or qualified workshop to have thesystem checked. The airbags may no longer be
deployed in the event of a serious impact.

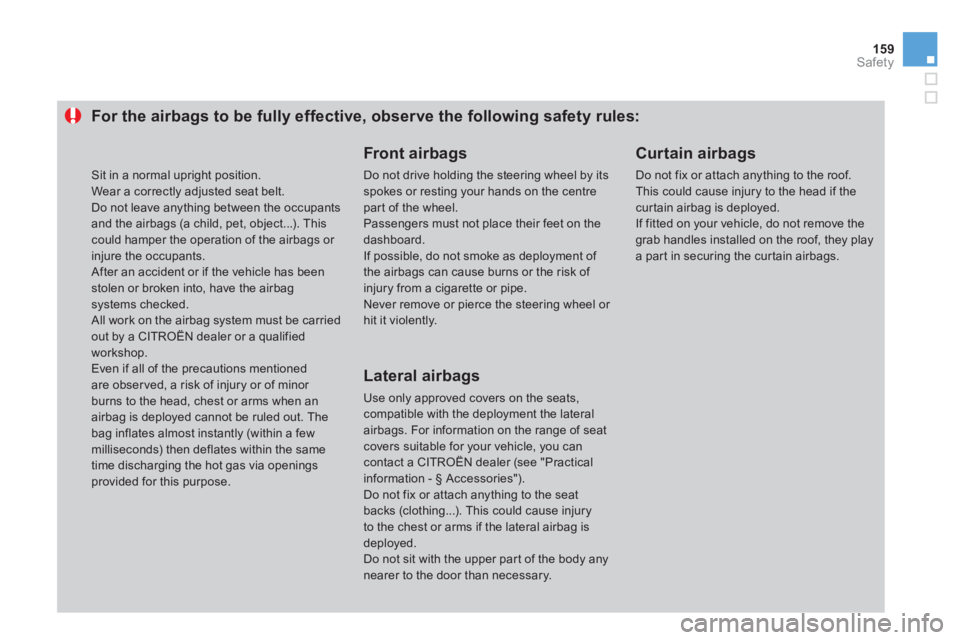

159Safety
For the airbags to be fully effective, observe the following safety rules:
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on the centre par t of the wheel.
Passengers must not place their feet on thedashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.




Lateral airbags

Use only approved covers on the seats,compatible with the deployment the lateral airbags. For information on the range of seatcovers suitable for your vehicle, you cancontact a CITROËN dealer (see "Practical information - § Accessories").
Do not fix or attach anything to the seat backs (clothing...). This could cause injuryto the chest or arms if the lateral airbag isdeployed.
Do not sit with the upper par t of the body any nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof.This could cause injury to the head if thecurtain airbag is deployed. If fitted on your vehicle, do not remove thegrab handles installed on the roof, they play a part in securing the cur tain airbags.

Sit in a normal upright position.
Wear a correctly adjusted seat belt. Do not leave anything between the occupants and the airbags (a child, pet, object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a CITROËN dealer or a qualifiedworkshop.
Even if all of the precautions mentionedare obser ved, a risk of injury or of minor burns to the head, chest or arms when an airbag is deployed cannot be ruled out. Thebag inflates almost instantly (within a fewmilliseconds) then deflates within the sametime discharging the hot gas via openings provided for this purpose.

A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
The
y are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.





Accessories
"Comfort":
sun blinds, air deflectors, isotherm module,ashtray, fragrance car tridges, coat hanger fixed
to head restraint, front centre armrest, movable
mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net,
transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses...

"Styling":
full grain leather steering wheel, coloured and carbotech dashboards, coloured and leather gear lever knobs, aluminium footrest, spoiler,
alloy wheels, coloured wheel trims, coloured
wheel caps, exterior expressive stickers,
exterior chrome kit...

*

To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.


"Security and safety":

anti-intrusion alarm, wheel security devices,
vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety vest,child seats, snow chains, non-skid covers, fire extinguisher...


"Protection":

mats *
, mudflaps, seat covers, vehicle covers,
bumper protectors...

When fitting a towbar outside the CITROËN dealer network, the installation must be done using thevehicle's electrical pre-equipment and following the vehicle manufacturer'srecommendations.

313Visual search
Interior


Boot fittings 13 0 -131


- rear parcel shelf

- retaining strap

- stowing rings


Child seats 134-139


ISOFIX mountings 140 -142
Rear seats 84-85
Front seats 79 - 81, 82- 83
Seat belts 151-153

Interior fittin
gs 126 -129


- auxiliary sockets

- centre armrest

- mat
Glove box 127
Deactivating the passenger’s airbag 15 6

Airbags 15 4 -159
