FITTINGS 006006

18Technical data
MODELS:ENGINES AND GEARBOXES
Model codes:SB...HMZ05FS05FS95FV85FN8 *
PETROL ENGINESVTi 82VTi 120THP 155THP 150 *

Cubic capacity (cc) 1 199
1 598

1 598

Bore x stroke (mm)75 x 90.577 x 85.8

77 x 85.8

Max power: EU standard
(kW) 60
88
115
110
*

Max power engine speed
(rpm)
5 750
6 000 6 000
Max torque: EU standard
(Nm) 118

160240

Max torque en
gine speed (rpm)
2 750

4 250
1 400

F
uel Unleaded Unleaded Unleaded

Catalytic conver ter yes yes
yes
GEARBOXManual
(5-speed)Manual
(5-speed)
Automatic(4-speed)
Manual(6-speed)
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.25 4.25 4.25
4.25
*
For Belgium.

19Technical data
WEIGHTS AND TOWED LOADS (in kg)
Petrol enginesVTi 82VTi 120THP 155THP 150 *
GearboxesManualManualAutomaticManual
Model codes: SB...HMZ05FS05FS95FV85FN8 *


- Unladen wei
ght 1 032
1 088
1 13 3
1 156



- Kerb wei
ght 1 107
1 163

1 208 1 231


- Gross vehicle wei
ght (GV W)
1 532
1 5751 610
1 619



- Gross train weight (GTW)
on a 12 % gradient 2 332
2 475

2 510

2 519



- Braked trailer
(within the GTW limit)
on a 12 % gradient 800
900
900
900



- Braked trailer
**
(with load transfer within the GTW limit)
1 10 01 150
1 150
1 150



- Unbraked trailer 520
570
570
570



- Recommended nose wei
ght
46

46

4646
*
For Belgium.

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

20Technical data
MODELS:ENGINES AND GEARBOXES
Model codes: SB...9HP8/PS
DIESEL ENGINESe-HDi 90 PEF

Cubic capacity (cc) 1 560

Bore x stroke
(mm)

75 x 88.3

Max power: EU standard (kW) 68

Max power engine speed (rpm) 4 000

Max torque: EU standard (Nm)
230

Max torque engine speed (rpm) 1 750

F
uel

Diesel
Catal
ytic conver ter
yes

Particle emissions filter (PEF)
yes
GEARBOX
Electronic gearbox system(6-speed)
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.75
.../
S:e-HDi model fitted with Stop & Start .

21Technical data
WEIGHTS AND TOWED LOADS (in kg)
Diesel enginese-HDi 90 PEF
GearboxElectronic gearbox system(6-speed)
Model codes:SB...9HP8/PS


- Unladen weight 1 090



-
Kerb weight 1 165



- Gross vehicle wei
ght (GV W)
1 639



- Gross train wei
ght (GTW)
on a 12 % gradient 2 539


- Braked trailer
(within GTW limit) on 12 % gradient 900



- Braked trailer *
(with load transfer with theGTW limit)
1 150



- Unbraked trailer 570



- Recommended nose wei
ght 46

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The wei
ght of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

22Technical data

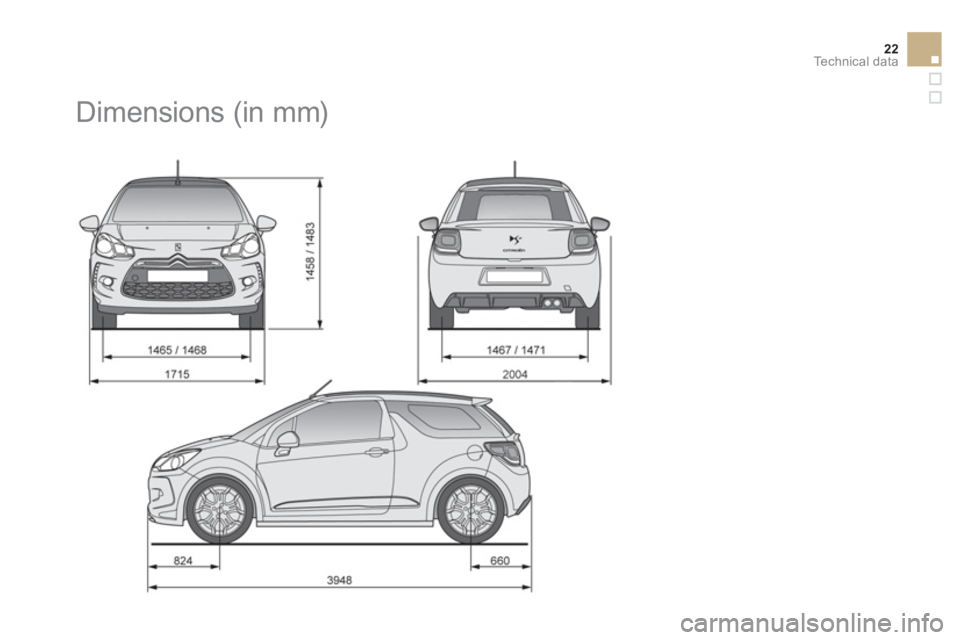

Dimensions (in mm)
