CITROEN DS3 CABRIO 2013 Handbook (in English)

07-11

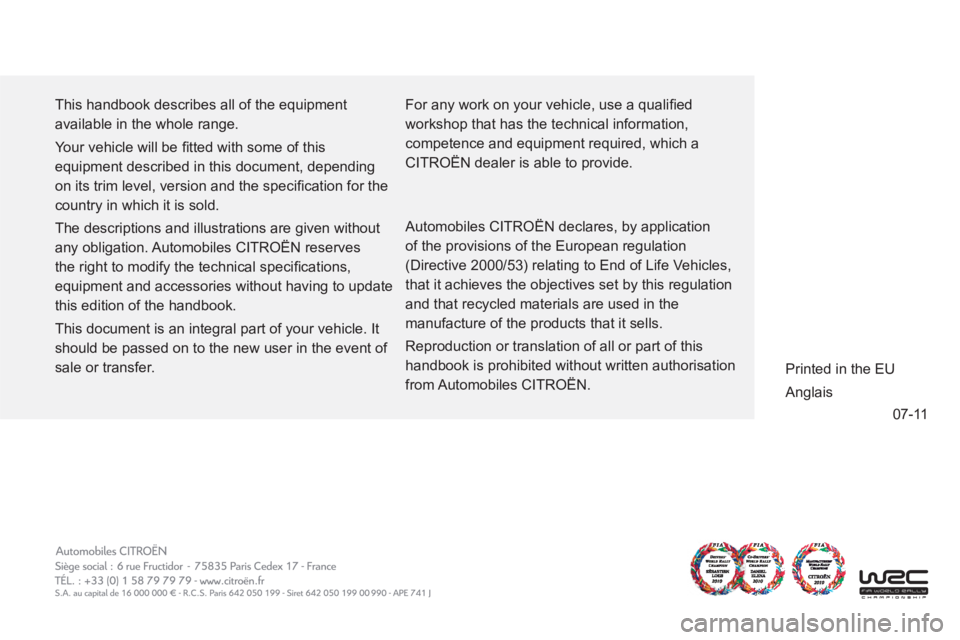

This handbook describes all of the equipment
available in the whole range.
Your vehicle will be fi tted with some of this
equipment described in this document, depending
on its trim level, version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are given without
any obligation. Automobiles CITROËN reserves
the right to modify the technical specifi cations,
equipment and accessories without having to update
this edition of the handbook.
This document is an integral part of your vehicle. It
should be passed on to the new user in the event of
sale or transfer. Automobiles CITROËN declares, by application
of the provisions of the European regulation
(Directive 2000/53) relating to End of Life Vehicles,
that it achieves the objectives set by this regulation
and that recycled materials are used in the
manufacture of the products that it sells.
Reproduction or translation of all or part of this
handbook is prohibited without written authorisation
from Automobiles CITROËN. Printed in the EU
Anglais
For any work on your vehicle, use a qualifi ed
workshop that has the technical information,
competence and equipment required, which a
CITROËN dealer is able to provide.

CRÉATIVE TECHNOLOGIE
2011 – DOCUMENTATION DE BORD4DconceptDiadeisEdipro
11 DS3.0031
Anglais

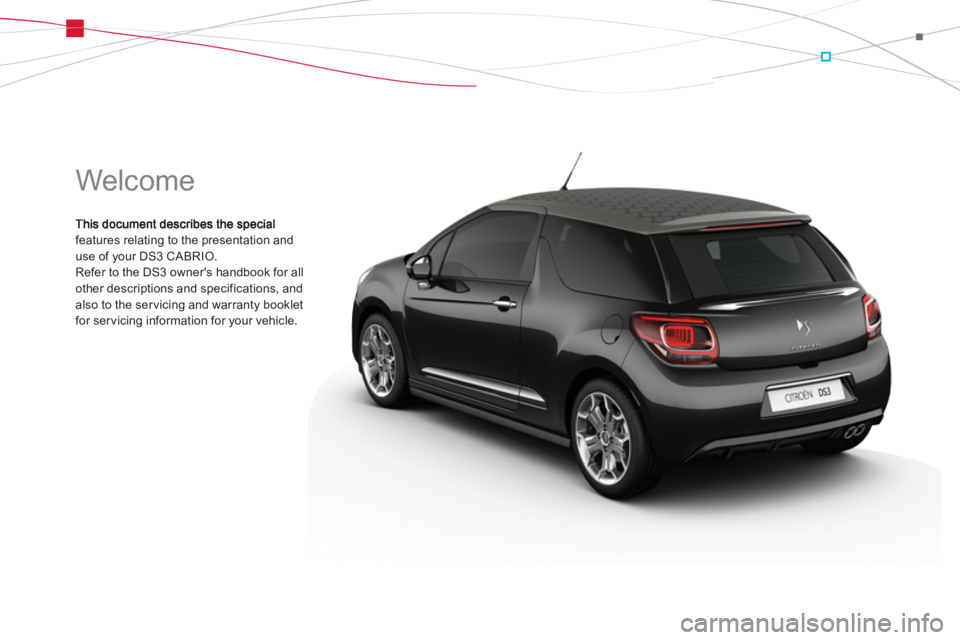

Welcome
features relating to the presentation and
use of your DS3 CABRIO.
Refer to the DS3 owner's handbook for all
other descriptions and specifications, and also to the ser vicing and warranty booklet
for servicing information for your vehicle.

Contents

Contents


ACCESS
2
Soft top
11
Boot
13Alarm
004004

PR ACTICAL
INFORMATION
14Rear shelf
012012
011011

TECHNICAL DATA
15
Changing a bulb
1
6 Changing a fuse
1
7 Recommendations on care

1
8Petrol engines
19

Petrol weights
2
0 Diesel engine
2
1Diesel weights
22Dim
ensions

Key
safety warning
additional information
contributes to the protection o
f
the environment
refer to the pa
ge indicated
FITTINGS 006006

2Access

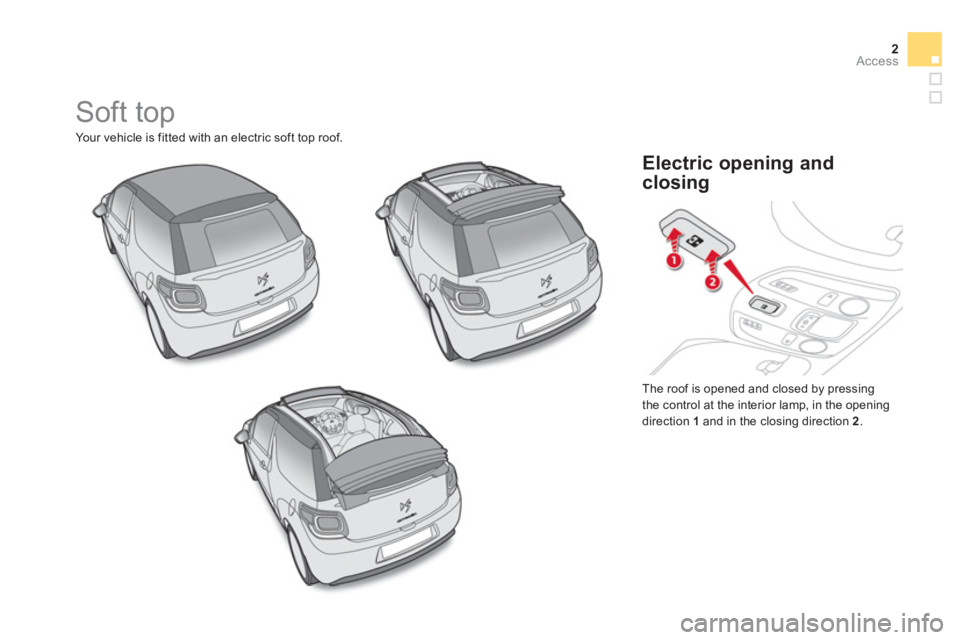

Soft top
Your vehicle is fitted with an electric soft top roof.
The roo
f is opened and closed by pressing
the control at the interior lamp, in the opening direction 1 and in the closing direction 2.


Electric opening and
closing

Access

In order to maintain the state of charge of the battery, it is recommended that the roof be operated with the engine running.

Operation of the roof is possible:


- engine running, or

- ignition on.



During operation of the roof with justthe ignition on, starting the engine may cause the roof to stop, dependingon the state of charge of the battery. To have the roof continue the operation, operate the control again after the engine has started.

Operating zones
There are two operating zones:
Zone A : horizontal operating zone, in manualor automatic mode.
Zone B
: ver tical operating zone, in automaticmode only.
Before operating the roof, ensure that no occupant of the vehicle or person outside the vehicle could be subject to any risk related to the movement of the roof or the rear screen and that no object could interfere with the operation.


Roof positions
Position 0
: Roof completely closed.Position 1: Stop position for automatic roof closing. Position 2
: Roof open horizontally. Position 3
: Roof completely open.

4Access

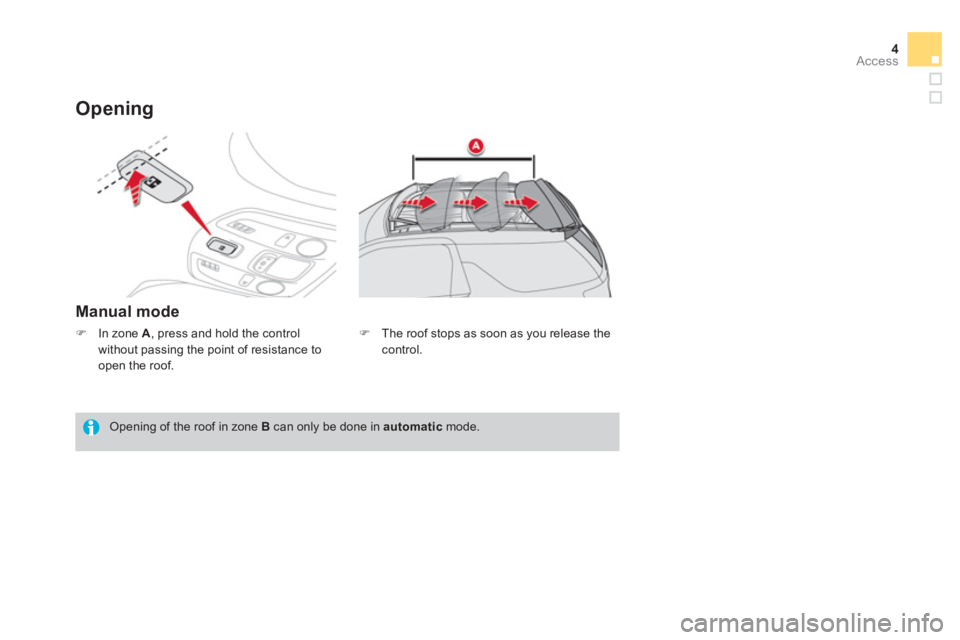

Opening
Manual mode
Opening of the roof in zone B
can only be done in automatic
mode.
)In zone A, press and hold the control
without passing the point of resistance to
open the roof. ) The roof stops as soon as you release thecontrol.

5
Access

Automatic mode


During automatic operation of the roof in zone A, pressing the control stops
the roof.
During complete opening of the roof,the rear screen comes down onto the
rear shelf. Ensure that no object is lefton the shelf which might damage therear screen or the roof.

Automatic opening of the roof in zone Bis not possible if the boot is open. In the event of a problem, check that the boot is fully closed .


During an operation in zone B
, an instruction to stop the roof is notpossible.
Pressing the control reverses the direction of movement of the roof,whichever direction the control ispressed.
This "anti-panic" function allows a quick
change in direction of movement of theroof if suddenly required.

)
Release the control: opening of the roof continues up to the maximum horizontal
position (position 2).
) In zone B
, a press on the control opens the
roof completely (position 3).)In zone A, press the control beyond
the point of resistance to begin openingthe roof.

6Access

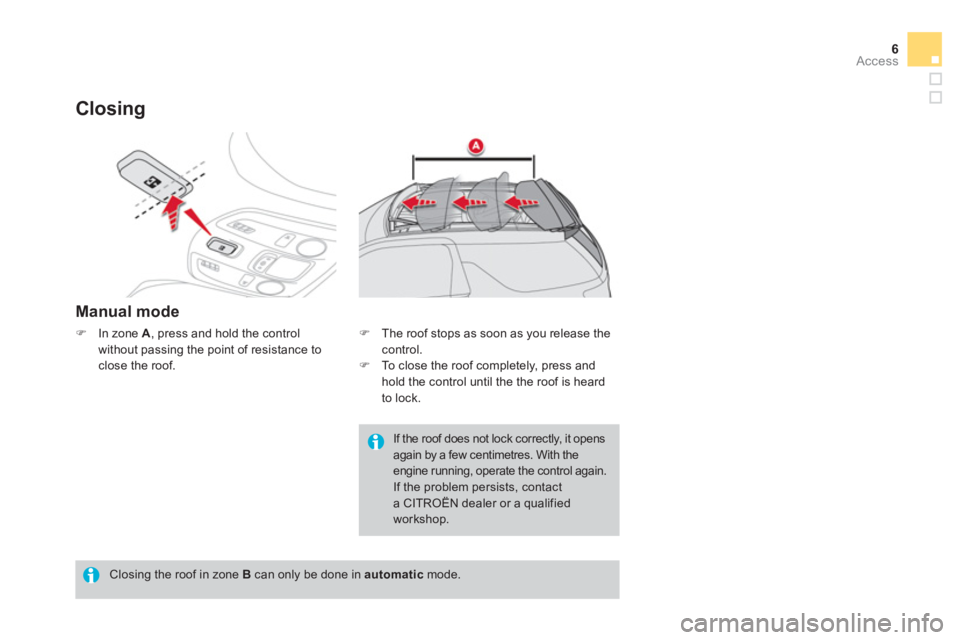

Closing
Manual mode
)In zone A, press and hold the control
without passing the point of resistance toclose the roof.
Closing the roof in zone B
can only be done in automatic
mode.
If the roof does not lock correctly, it opensagain by a few centimetres. With the engine running, operate the control again. If the problem persists, contact a CITROËN dealer or a qualified workshop.
)
The roof stops as soon as you release thecontrol. )
To close the roof completely, press and
hold the control until the the roof is heardto lock.
