SAFETY DRIVING FITTINGS CHILD SAFETY
162Parking brake
1636 -speed manual gearbox
164 Gear effi ciency indicator
165 Electronic gearbox
170Automatic gearbox
174Stop & Start
17 7 Hill start assist
178Speed limiter
180 Cruise control
182Rear parking sensors
146 Direction indicators
146 Hazard warning lamps
147 Horn
147 Emergency or assistance call
14
8Braking assistance systems
149Tr ajectory control systems
151Front seat belts
154 Airbags
134Child seats
140ISOFIX child seats
126 Interior fi ttings
130 Boot fi ttings
008008009009006006007007

15
Familiarisation

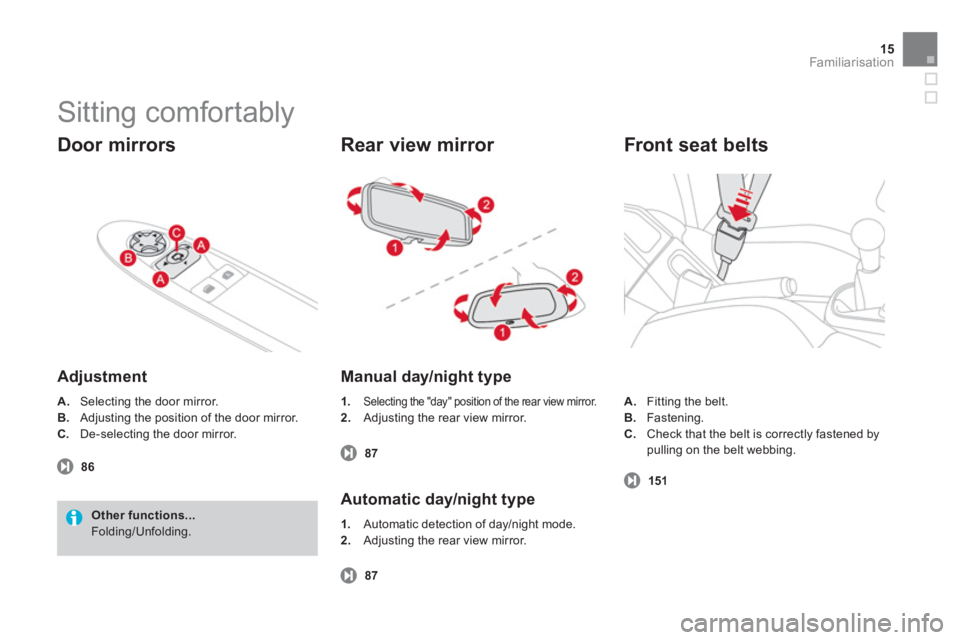

Sitting comfortably


Door mirrors


Adjustment
A.Selecting the door mirror.
B. Adjusting the position of the door mirror.
C
.De-selecting the door mirror.


86
Other functions...
Folding/Unfolding.
Rear view mirror
Manual day/night type
1.Selecting the "day" position of the rear view mirror.2.
Adjusting the rear view mirror.
87
Automatic day/night type
87
1.Automatic detection of day/night mode.2. Adjusting the rear view mirror.
A.Fitting the belt.
B. Fastening.
C
. Check that the belt is correctly fastened by pulling on the belt webbing.


Front seat belts


151

Familiarisation

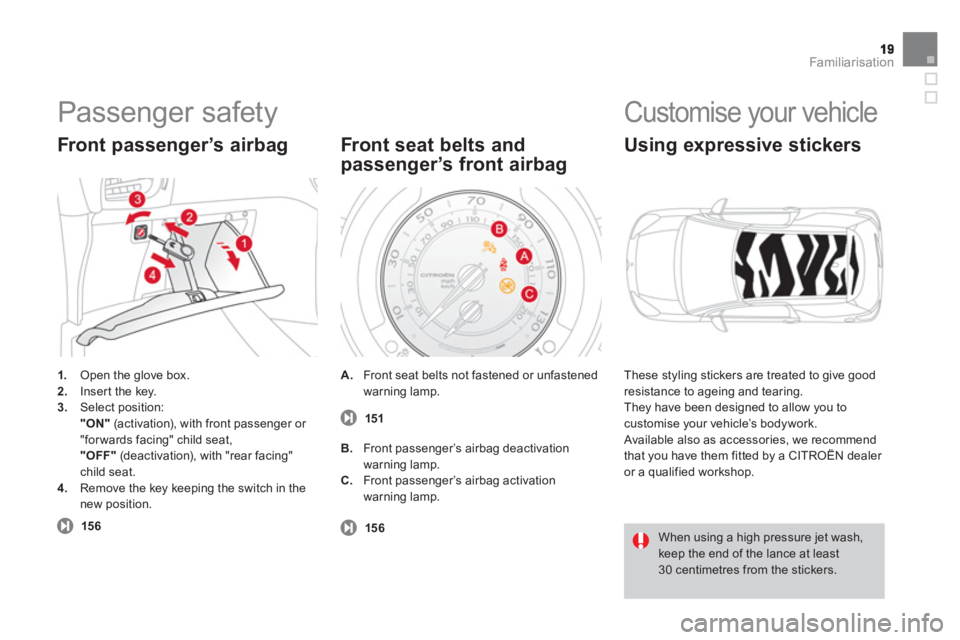

Passenger safety
1.
Open the glove box. 2.Inser t the key. 3.Select position:"ON"(activation), with front passenger or
"for wards facing" child seat, "OFF"
(deactivation), with "rear facing" child seat. 4.
Remove the key keeping the switch in the new position.


Front passenger’s airbag


156
A.
Front seat belts not fastened or unfastenedwarning lamp.
Front seat belts and
passen
ger’s front airbag
156
Customise your vehicle
These styling stickers are treated to give goodresistance to ageing and tearing.
They have been designed to allow you to customise your vehicle’s bodywork.
Available also as accessories, we recommend
that you have them fitted by a CITROËN dealer or a qualified workshop.

Using expressive stickers

When using a high pressure jet wash,keep the end of the lance at least30 centimetres from the stickers. B
. Front passenger’s airbag deactivation
warning lamp. C. Front passenger’s airbag activation
warning lamp. 15
1

Warning lampis onCauseAction/Observations
Engine oil pressure
fixed. There is a fault with the enginelubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Battery charge fixed. The battery charging circuit has a fault(dirty or loose terminals, slack or cut
alternator belt, ...). The warnin
g lamp should go off when the engine isstarted.
If it does not go off, contact a CITROËN dealer or aqualified workshop.
Door(s) open
fixed if the speed isbelow 6 mph (10 km/h).

A door or the boot is still open. Close the door or boot.
fixed and accompanied by an audible signal
if the speed is above6 mph (10 km/h).

41Monitoring
Airbagstemporarily. This lamp comes on for a few seconds
when you turn on the ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or aqualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified workshop.
Warning lampis onCauseAction/Observations
Seat belt notfastened/unfastenedfixed then flashin
gaccompanied by anincreasing audible
signal. The driver and/or the front passen
ger
has not fastened or has unfastened
their seat belt.Pull the strap then inser t the ton
gue in the buckle.
Power steeringfixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked b
y a CITROËN dealer or a qualified workshop.

81Comfort

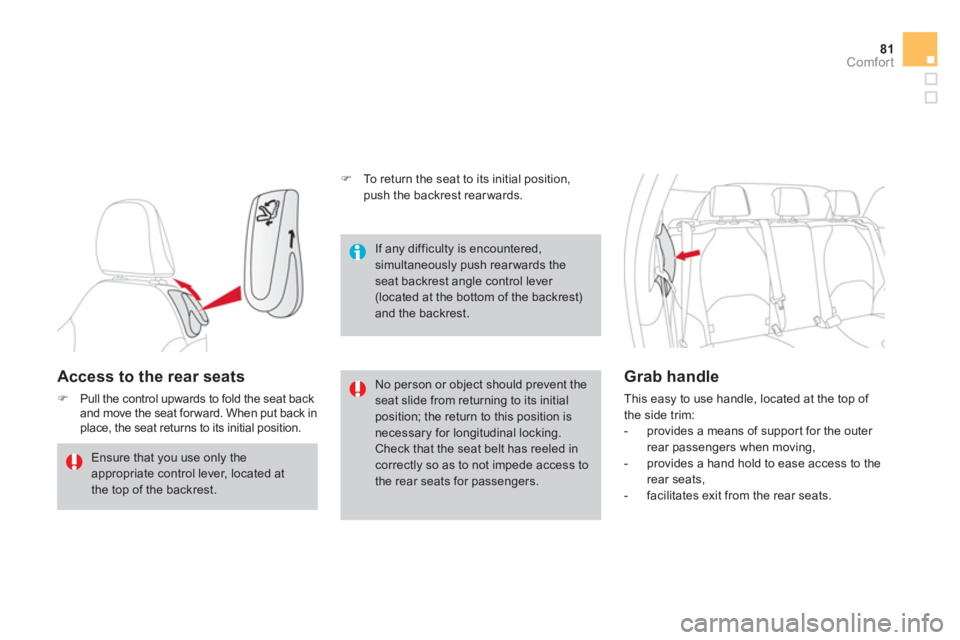

Access to the rear seats
)Pull the control upwards to fold the seat backand move the seat for ward. When put back in place, the seat returns to its initial position.
No person or object should prevent the seat slide from returning to its initialposition; the return to this position isnecessary for longitudinal locking. Check that the seat belt has reeled in correctly so as to not impede access to the rear seats for passengers.

Grab handle

This easy to use handle, located at the top of
the side trim:


- provides a means of suppor t for the outer
rear passengers when moving,

- provides a hand hold to ease access to the
rear seats,

-
facilitates exit from the rear seats.


If any difficulty is encountered,simultaneously push rear wards the seat backrest angle control lever (located at the bottom of the backrest)and the backrest.

Ensure that you use only the appropriate control lever, located atthe top of the backrest.
)
To return the seat to its initial position,
push the backrest rear wards.

83Comfort
Additional adjustments


Access to rear seats
)Pull the handle forwards to fold the seatbackrest and move the seat forwards.
On repositioning, the seat returns to its
initial position.
Grab handle
This ergonomic grab handle, located at the top
of the side trim, ser ves:
- as a handle to stead
y rear passengers
when driving,
- as a grip to improve access to the rear seats,
- to facilitate exit from the rear seats.
No person or object must prevent the seat slide from returning to its initial position; return to this position isnecessary for the seat to lock in place.
Ensure that the seat belt reels incorrectly to avoid hindering access for the passengers to the rear seats.

Rear seats
)Move the corresponding front seat forwardif necessary. )Check that the seat belt is positioned correctly on the side of the seat backrest.)Place the head restraints in the lowposition.
Folding the backrest
)
Pull control 1
forwards to release the seat backrest 2 . )
Fold the seat backrest 2
on to the cushion.

)Straighten the seat backrest 2and secure it. )Check that the red indicator, located next to
the control 1, is no longer visible.

Repositioning the seat backrest

When repositioning the seat backrest, take care not to trap the seat belts.

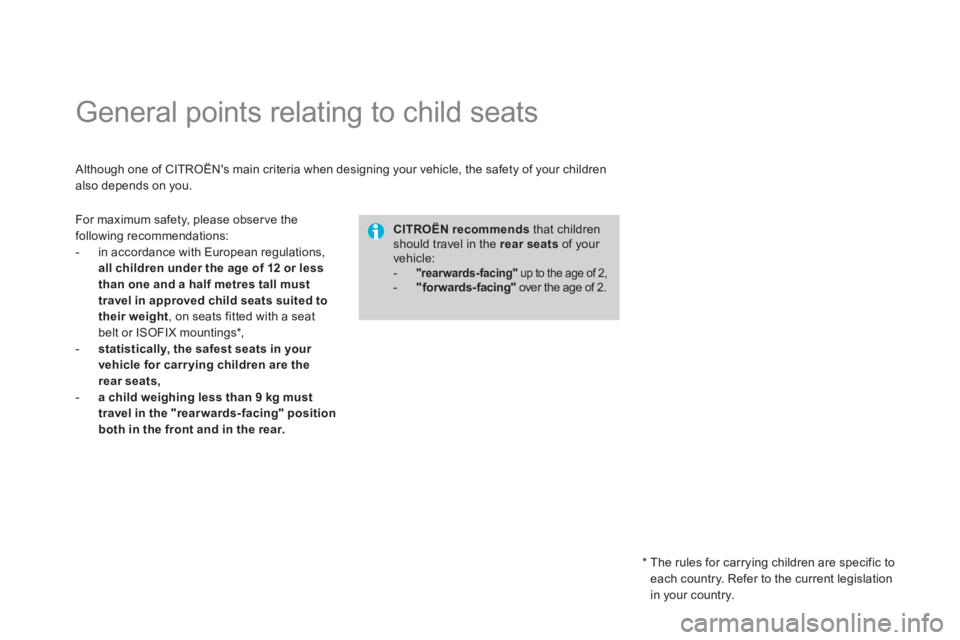

General points relating to child seats
Although one of CITROËN's main criteria when designing your vehicle, the safety of your childrenalso depends on you.
CITROËN recommends
that childrenshould travel in the rear seats
of your vehicle: -"rearwards-facing"
up to the age of 2, -"forwards-facing"
over the age of 2. For maximum safet
y, please obser ve the
following recommendations:
- in accordance with European regulations,all children under the age of 12 or less
than one and a half metres tall must
trave
l in approved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in your
vehicle for carrying children are the rear seats,-a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
*

The rules for carrying children are specific to each country. Refer to the current legislation
in
your country.

137
Child safety





Child seats recommended by CITROËN
CITROËN offers a complete range of recommended child seats which are secured using a ythree point seat belt:
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg




L1"RÖMER Baby-Safe Plus" Installed in the rearwards-facing position.


L2
"KIDDY Comfort Pro"
The impact shield must be
used for carr
ying young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg


L3"RECARO Start''


L4"KLIPPAN Optima"
From the age of 6 years (approximately 22 kg), thebooster is used on its own.



L5
"R
ÖMER KIDFIX" Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
