oil pressure CITROEN DS3 CABRIO 2013 Handbook (in English)

25
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack,bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres andrefit your summer tyres.



Observe the recommendations
on maintenance


Check the tyre pressures regularly, whencold, referring to the label in the door aperture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engineoil, oil filter, air filter...) and obser ve theschedule of operations recommended by the manufacturer.




When refuelling, do not continue after the 3 rdcut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel. Disconnect your por table devices beforeleaving the vehicle.

Warning lampis onCauseAction/Observations
Engine oil pressure
fixed. There is a fault with the enginelubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Battery charge fixed. The battery charging circuit has a fault(dirty or loose terminals, slack or cut
alternator belt, ...). The warnin
g lamp should go off when the engine isstarted.
If it does not go off, contact a CITROËN dealer or aqualified workshop.
Door(s) open
fixed if the speed isbelow 6 mph (10 km/h).

A door or the boot is still open. Close the door or boot.
fixed and accompanied by an audible signal
if the speed is above6 mph (10 km/h).

195
Checks
Manual gearbox
Automatic
gearboxBrake
pads
Brake wear depends on the style
of driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It ma
y be necessary to have the condition of the brakes checked, even between vehicle services. Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn. The
gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for the
details of the level checking interval for this component.















Only use products recommended by CITROËN or products of equivalent
quality and specification.
In order to optimise the operationof units as impor tant as the braking system, CITROËN selects and offers very specific products.
To avoid damaging the electrical units, the use of a high pressure washer in the engine compar tment is strictly prohibited.
The gearbox does not require any
maintenance (no oil change).
Refer to the ser vicing booklet for
details of the level checking inter val for this component.
Electronic gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
details of the checking interval for
this component.
For information on checkin
g brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake disc wear
Manual parking brake

If a loss of effectiveness of this system is noticed, the parking brake
must be checked, even between
tw
o services.
Checking this system must be done by aCITROËN dealer or a qualified workshop.

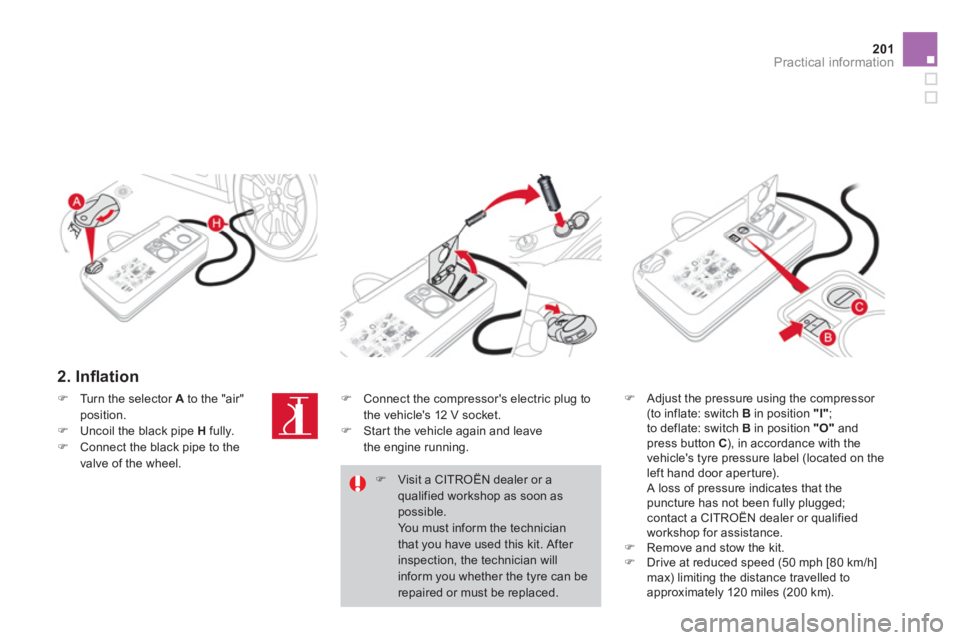

201Practical information

2. Infl ation
)
Adjust the pressure using the compressor (to inflate: switch B
in position "I"
;
to deflate: switch B in position "O"and press button C), in accordance with the
vehicle's tyre pressure label (located on the
left hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged; contact a CITROËN dealer or qualified
workshop for assistance.
) Remove and stow the kit. )
Drive at reduced speed (50 mph [80 km/h]max) limiting the distance travelled to
approximately 120 miles (200 km).
)Turn the selector A to the "air" position.)Uncoil the black pipe Hfully. )Connect the black pipe to the
valve of the wheel.
) Connect the compressor's electric plug to
the vehicle's 12 V socket.) Star t the vehicle again and leave
the engine running.
)Visit a CITROËN dealer or aqualified workshop as soon aspossible. You must inform the technician that you have used this kit. After inspection, the technician willinform you whether the tyre can berepaired or must be replaced.

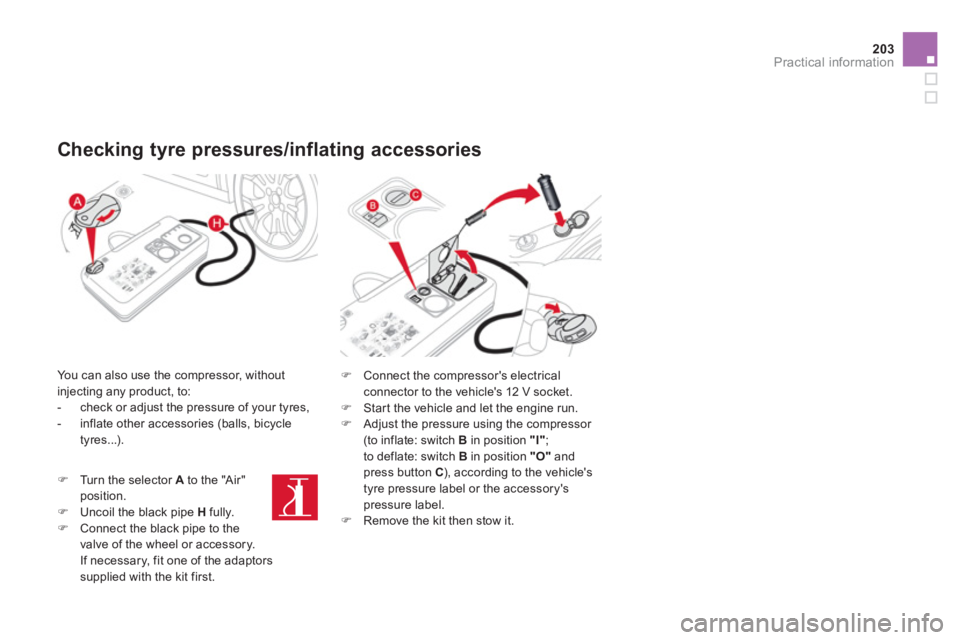

203Practical information

Checking tyre pressures/inflating accessories


You can also use the compressor, without
injecting any product, to:


- check or adjust the pressure of your tyres,

- inflate other accessories (balls, bicycle
tyres...).
) Connect the compressor's electricalconnector to the vehicle's 12 V socket. )
Start the vehicle and let the engine run.)
Adjust the pressure using the compressor
(to inflate: switch Bin position "I";
to deflate: switch Bin position "O"
andpress button C ), according to the vehicle's
tyre pressure label or the accessory's
pressure label.) Remove the kit then stow it.


)Turn the selector A
to the "A ir"position.)Uncoil the black pipe Hfully. )Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptors supplied with the kit first.
