CITROEN DS3 CABRIO 2014 Handbook (in English)

Familiarisation
90
Open
A.Unfolding / Folding the key.
B.Unlocking the vehicle.

Remote control key
Other functions...C.
Normal locking of the vehicle or
Deadlocking the vehicle Vehicle location.1
.Opening the fuel filler flap.
2. Opening and hooking the fuel filler cap.
Fuel t ank
106, 108
191
Ta n k c a p a c i ty:
- approximately 50 litres (petrol),
- approximately 46 litres (Diesel).
- approximately 33 litres (LPG),
- (according to version: approximately30 litres (petrol or Diesel)).A.Interior release lever.B.
Exterior safety catch. C.
Bonnet stay.


Bonnet

Interior
Interior mood lighting
This subdued passenger compartment lightingimproves visibility inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.

Gear effi ciency indicator

Depending of the driving conditions and your style of driving, this system maysuggest changing up to reduce your fuel fuel consumption.

Scented air freshener

The scented air freshener diffuses theselected fragrance throughout the passenger compartment from its location in the ventilation
system.
Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this levelaccording to the ambient conditions.
12
3
177
77
73
317

Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, eMyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio system.eMyWay
263
Audio system

11Familiarisation
Instruments and controls
1.
Audio equipment steering wheel controls.2.Steering lock and ignition. 3.Wiper / screenwash / trip computer stalk.4.
Instrument panel.
5. Scented air freshener.
6.Driver's airbag.
Horn. 7. Gear lever. 8.Parking brake.9.
Central armrest with storage. 10.Door mirror controls.
Electric window controls. 11. Oddments storage12.
Alarm button.
Electronic stability programme button (ESP/ASR).
Stop & Star t button.
13.Side adjustable air vent.14 .Front door window demisting/defrosting
vent. 15.Speaker (tweeter). 16. Windscreen demisting/defrosting vent.

Instruments and controls
1.
Steering wheel adjustment. 2.
Headlamp height adjustment. 3.
Cruise control / speed limiter controls. 4.
Lighting and direction indicator stalk5.
Central locking button.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Glove box / Passenger's airbag
deactivation / Fusebox.12.Bonnet release lever.13.12 V accessory socket
USB por t / auxiliary socket. 14 .Upper and lower storage.15. Audio system or eMyWay.16.
Heating / air conditioning controls.

13Familiarisation

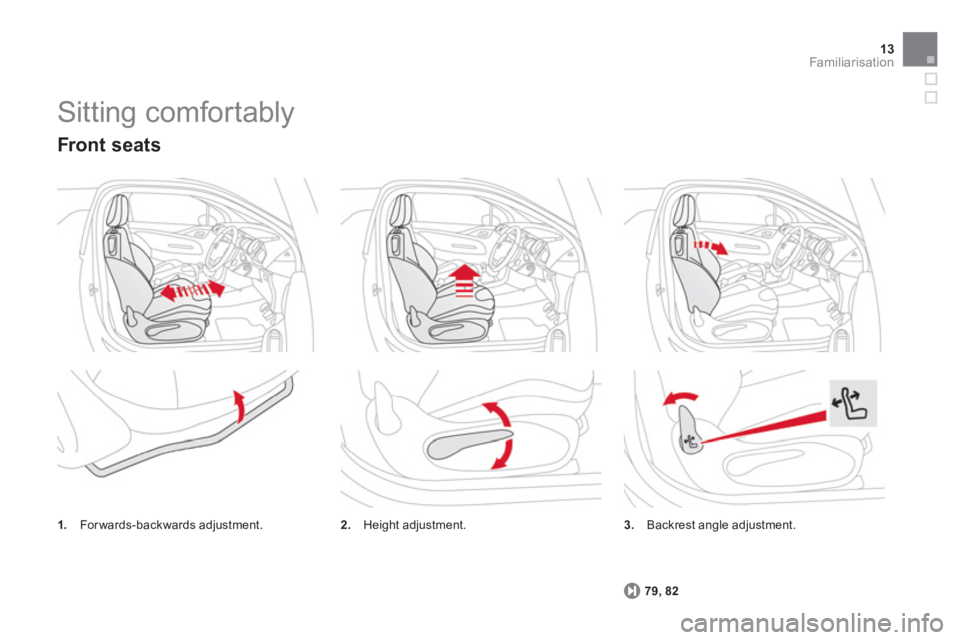

Sitting comfortably
3.Backrest angle adjustment.
79
, 82

Front seats
1.
Forwards-backwards adjustment.2.
Height adjustment.

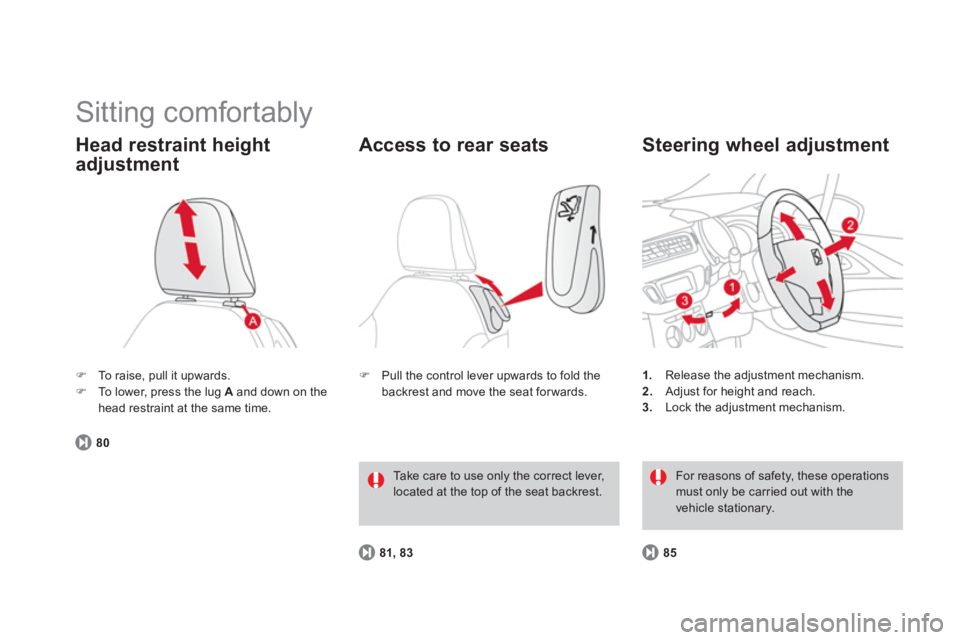

Sitting comfortably
)To raise, pull it upwards. )To lower, press the lug Aand down on the head restraint at the same time.
Head restraint height
adjustment
80
1.
Release the adjustment mechanism. 2.Adjust for height and reach.3.Lock the adjustment mechanism.


Steering wheel adjustment
85

For reasons of safety, these operationsmust only be carried out with the vehicle stationary.


Access to rear seats
)
Pull the control lever upwards to fold the backrest and move the seat forwards.
81, 83
Take care to use only the correct lever, located at the top of the seat backrest.

15
Familiarisation

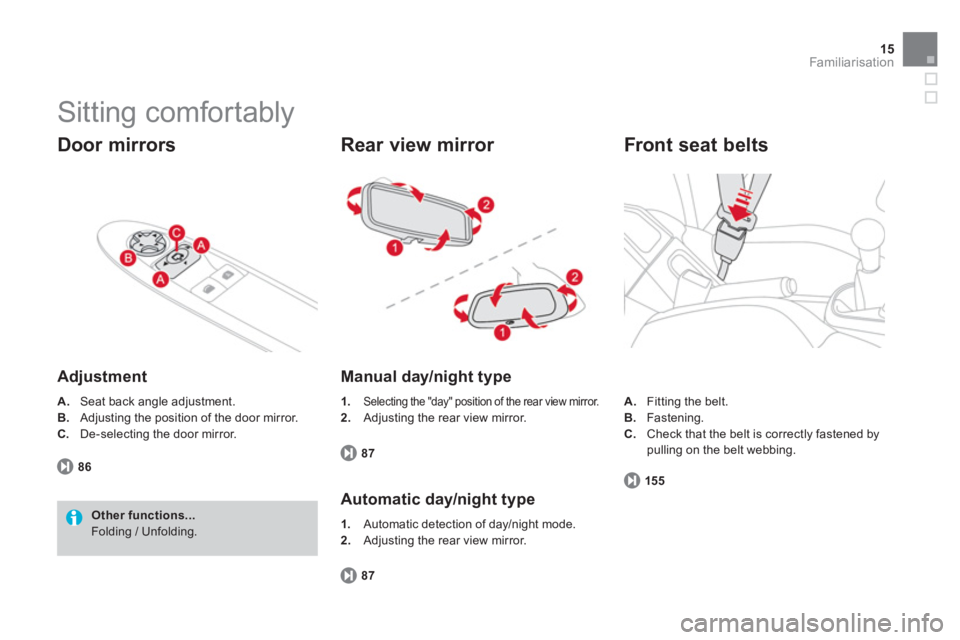

Sitting comfortably


Door mirrors


Adjustment
A.Seat back angle adjustment.
B.Adjusting the position of the door mirror.
C
.De-selecting the door mirror.
86
Other functions...
Folding / Unfolding.
Rear view mirror
Manual day/night type
1.Selecting the "day" position of the rear view mirror. 2.
Adjusting the rear view mirror.
87
Automatic day/night type
87
1.Automatic detection of day/night mode.2.
Adjusting the rear view mirror.
A.Fitting the belt.
B. Fastening.
C
. Check that the belt is correctly fastened by pulling on the belt webbing.


Front seat belts
155

Seeing clearly
Lighting
Ring A
Ring B


Wipers
112


Control stalk A: windscreen
wipers
2. Fast wipe.
1.Normal wipe. Int.Intermittent wipe.
0. Park.
AUTO ÈAutomatic wiping or single wipe.
Screenwash: pull the stalk towards you.
118

Switching on "AUTO" mode
)Push the stalk downwards and release it.


Switching off "AUTO" mode
)Push the stalk upwards and return it toposition "0"
.

Ring B: rear wiper
120
11
9
Lighting off.
Automatic illumination o
f headlamps.

Sidelamps.
Dipped
/ main beam headlamps.
Front and rear
foglamps.
P
ark.
Intermittent wipe.
Wash-wi
pe.

Familiarisation

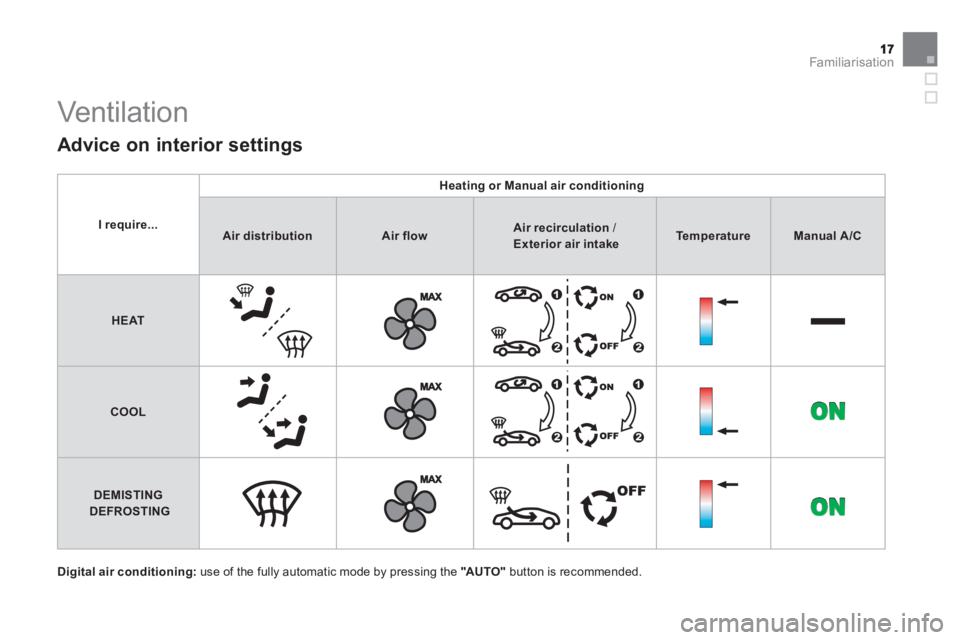

Vent ilat ion


Advice on interior settings
Digital air conditioning:use of the fully automatic mode by pressing the "AUTO"
button is recommended.
I require...
Heating or Manual air conditioning
Air distributionAir flowAir recirculation
/
Exterior air intakeTemperatureManual A/C
HEAT
COOL
DEMISTINGDEFROSTING

Monitoring
On switching on, the dial needles go to theextent of their travel then return to 0. A.
With the ignition on, the fuel gauge bars for
the fuel remaining should light up. B.With the engine running, the associated low level warning lamp should switch off.C.With the ignition on, the oil level indicator
should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the level
whi
ch is low.
Instrument panels
28, 30
1.With the ignition on, the orange and red
warning lamps come on.
2
. With the engine running, these warning lamps should go off.
If a warning lamp remains on, refer to the pageconcerned.


Warning lamps
32, 37 Li
ghting of the indicator lamp indicates the state
of the corresponding system.
A.Deactivation of alarm interior volumetricprotection.


Switch panel
98
B.Deactivation of the ESP/ASR system.
154
C.Deactivation of the Stop & Start system.
179
