headlamp CITROEN DS3 CABRIO 2014 Handbook (in English)

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting.
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility progressively according to climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when
th
e road is clear.

Main lighting
Other lamps are installed to fulfil therequirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for improved vision,
- LED lamps to be seen during the daytime.

Additional lighting

Various automatic lighting control modes
are also available accordin
g to the followingoptions:


- guide-me-home lighting,

- automatic illumination of headlamps.

Programming

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal surface of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.

113Visibility


Model without AUTO lighting



Model with AUTO lighting
Manual controls
The lighting is controlled directly by the driver
by means of the ring Aand the stalk B.
Automatic illumination of headlamps.
B
. Stalk for switching the headlamp beam:
pull the stalk to switch between dipped and
main beam headlamps.
In the lamps off and sidelamps modes,
t
he driver can switch on the main beam headlamps temporarily ("headlamp flash") bymaintaining a pull on the stalk.
A. Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
Lighting o
ff / daytime running lamps.

Sidelamps only.
Dipped headlamps or main beam headlamps.

Displays

Lighting of the corresponding indicator lamp on
the instrument panel confirms the switching onof the lighting selected.
The instrument panel has permanent back-
lighting. Illumination of the instrument panel is
therefore not linked to the exterior lighting.

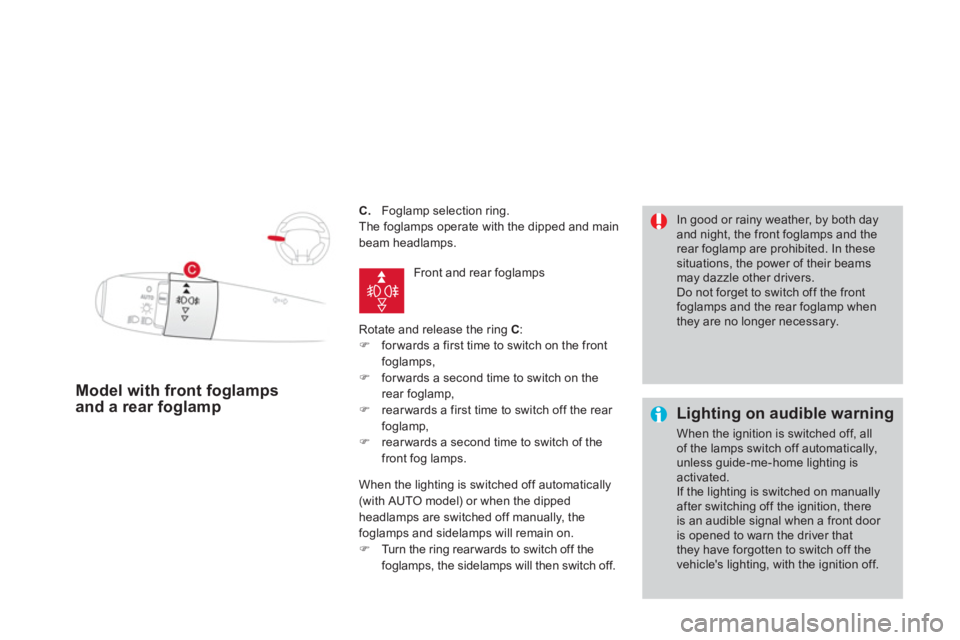

C. Foglamp selection ring.
The fo
glamps operate with the dipped and mainbeam headlamps.
Rotate and release the rin
g C:)
forwards a first time to switch on the front foglamps,)
forwards a second time to switch on the
rear foglamp,) rearwards a first time to switch off the rear foglamp,)
rearwards a second time to switch of thefront fog lamps.
Model with front foglamps and a rear foglamp

Lighting on audible warning

When the ignition is switched off, allof the lamps switch off automatically, unless guide-me-home lighting isactivated.
If the lighting is switched on manuallyafter switching off the ignition, thereis an audible signal when a front door is opened to warn the driver that they have forgotten to switch off thevehicle's lighting, with the ignition off.


In good or rainy weather, by both day and night, the front foglamps and the rear foglamp are prohibited. In thesesituations, the power of their beams may dazzle other drivers.
Do not forget to switch off the front foglamps and the rear foglamp whenthey are no longer necessary. Front and rear
foglamps
When the li
ghting is switched off automatically (with AUTO model) or when the dipped
headlamps are switched off manually, the
foglamps and sidelamps will remain on.) Turn the ring rear wards to switch off thefoglamps, the sidelamps will then switch off.

115
Visibility
The temporary illumination of the dipped beam headlamps after the vehicle's ignition has beenswitched off makes the driver's exit easier when
the light is poor.

Switching on
)With the ignition off, "flash" the headlamps
using the lighting stalk. )A fur ther "headlamp flash" switches the function off.

Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Manual guide-me-home
lighting

are switched on automatically, without any action on the par t of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.

As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Automatic illumination of headlamps
Activation
)
Turn ring to the "AU TO "position. The
automatic illumination of headlamps is
accompanied by a message in the screen.

Deactivation
)
Turn ring to a position other than "AU TO ".
Deactivation is accompanied by a message
in the screen.

Association with the automatic "Guide-me-home" lighting

Association with the automatic illumination of
headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to 15,30 or 60 seconds in the functions that can
be set in the vehicle configuration menu(except in the case of the monochrome screen A, for which the duration is set:
60 seconds),

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a fault with the
sunshine sensor, the lighting come on, this warning lamp is displayed in the
instrument panel and/or a message appears in
the screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, the lighting will not come onautomatically.
Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.

11 7Visibility





LED lamps
This daytime lighting, a signature of the vehicle, comprises two sets of light-emitting diodes (LEDs),located in ver tical cutouts below each headlamp.

On star ting the vehicle, in daylight the LED
lamps come on automatically, if the lighting
stalk is in position "0"or "AUTO".
If the sidelamps and headlamps are switched
on manually or automatically, the LED lampsswitch off.
For countries where exterior lighting by day is not a legal requirement, you can activate or deactivate the function via the multifunction
screen configuration menu.





Headlamp
adjustment
To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.
0.Driver only or driver + front passenger. - . Intermediate setting
1. 5 people. -. 5 people + load in the boot.2.Driver only + maximum authorised load in
the boot.
This position is sufficient to avoid causing dazzle. Higher settings may limit the spread of lightfrom the headlamps.

The initial setting is position "0"
.
Programming
In countries where it is a legalrequirement:- this function is activated by default and cannot be deactivated,- in daylight, the sidelamps and number plate lamps also come on, - If the sidelamps or headlampsare switched on manually or automatically, the LED lamps switch off.For versions not fitted with LED lamps, it is the dipped beam headlamps thatcome on automatically on star ting the vehicle.

217Practical information











Changing a bulb


The headlamps are fitted with polycarbonate glass with a protectivecoating:)do not clean them using a dry or abrasive cloth, nor with a detergent or solvent product,)
use a sponge and soapy water or apH neutral product,)
when using a high pressure washer on persistent marks, do notkeep the lance directed towards the lamps or their edges for too long, so as not to damage their protective coating and seals.


Front lamps
1.Direction indicators (PY21W amber).2.Sidelamps (W5W).3.Main beam headlamps (H1- 55W).4.Dipped beam headlamps (H7-55W).5.Front foglamps (PSX24W).6.
LED lamps (LEDs).
Changing a bulb should only be doneafter the headlamp has been switched off for a few minutes (risk of seriousburns). )Do not touch the bulb directly withyour fingers, use a lint-free cloth.It is imperative to use only anti-ultraviolet (UV) type bulbs to avoid damaging the headlamp. Always replace a failed bulb with a new bulb with the same type andspecification.

Changing direction indicator
bulbs
When refitting, close the protective cover carefully to preser ve the sealing of the headlamp.
Amber coloured bulbs, such as thedirection indicators, must be replacedwith bulbs of identical specificationsand colour.

Rapid flashing of the direction indicator warning lamp (right or left) indicates thefailure of a bulb on that side.
)Turn the bulb holder a quar ter of a turn and extract it. )Pull out the bulb and change it.
To r efit, carry out these operations in reverse order.
Changing dipped beam headlamp
bulbs
)Remove the protective cover by pulling the
t
ab. )Disconnect the bulb connector. )Spread the springs to release the bulb.)Pull the bulb out and change it.
To r efit, carry out these operations in reverse order.

219Practical information
Changing main beam headlamp
bulbs
)Remove the protective cover by pulling on
th
e tab. )Disconnect the bulb connector. )Spread the springs to release the bulb.)Remove the bulb and change it.
To r efit, carry out these operations in reverseorder.
Changing sidelamp bulbs
)
Remove the protective cover by pulling on
the tab.
) Pull the bulb holder pressing on the tabs on both sides. )
Pull the bulb and change it.
To r efit, carry out these operations in reverse order.

Changing integrated directionindicator side repeaters
)
Insert a screwdriver towards the centre of
the repeater between the repeater and the
base of the door mirror.) Tilt the screwdriver to extract the repeater and remove it. )
Disconnect the repeater connector.)
Replace the module.
To r efit, carry out these operations in reverse order.
Contact a CITROËN dealer or a qualified workshop to obtain areplacement side repeater module.

Fuse N°RatingFunctions
F1230 AWindscreen wipers slow / fast speed.
F1
340 ABuilt-in systems inter face supply (ignition positive).
F1
430 AValvetronic supply (VTi).
F1
510 ARight-hand main beam headlamps.
F16 10 ALe
ft-hand main beam headlamps.
F1715 ALeft-hand dipped beam headlamps.
F18 15
ARight-hand dipped beam headlamps.
F1
915 AOxygen sensors and electrovalves (VTi), electrovalves
(Diesel), EGR electrovalve (Diesel).
F20 10 APumps, electronic thermostat
(VTi), timimg electrovalve (THP), water in fuel sensor (Diesel).
F2
15 AFan assembly control supply, ABS/ESP, turbo pump (THP).
