C. Foglamp selection ring.
The fo
glamps operate with the dipped and mainbeam headlamps.
Rotate and release the rin
g C:)
forwards a first time to switch on the front foglamps,)
forwards a second time to switch on the
rear foglamp,) rearwards a first time to switch off the rear foglamp,)
rearwards a second time to switch of thefront fog lamps.
Model with front foglamps and a rear foglamp

Lighting on audible warning

When the ignition is switched off, allof the lamps switch off automatically, unless guide-me-home lighting isactivated.
If the lighting is switched on manuallyafter switching off the ignition, thereis an audible signal when a front door is opened to warn the driver that they have forgotten to switch off thevehicle's lighting, with the ignition off.


In good or rainy weather, by both day and night, the front foglamps and the rear foglamp are prohibited. In thesesituations, the power of their beams may dazzle other drivers.
Do not forget to switch off the front foglamps and the rear foglamp whenthey are no longer necessary. Front and rear
foglamps
When the li
ghting is switched off automatically (with AUTO model) or when the dipped
headlamps are switched off manually, the
foglamps and sidelamps will remain on.) Turn the ring rear wards to switch off thefoglamps, the sidelamps will then switch off.

are switched on automatically, without any action on the par t of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.

As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Automatic illumination of headlamps
Activation
)
Turn ring to the "AU TO "position. The
automatic illumination of headlamps is
accompanied by a message in the screen.

Deactivation
)
Turn ring to a position other than "AU TO ".
Deactivation is accompanied by a message
in the screen.

Association with the automatic "Guide-me-home" lighting

Association with the automatic illumination of
headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to 15,30 or 60 seconds in the functions that can
be set in the vehicle configuration menu(except in the case of the monochrome screen A, for which the duration is set:
60 seconds),

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a fault with the
sunshine sensor, the lighting come on, this warning lamp is displayed in the
instrument panel and/or a message appears in
the screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, the lighting will not come onautomatically.
Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.

Direction indicators
Selection of the left or right direction indicators
to signal a change of direction of the vehicle. )Left: lower the lighting stalk beyond thepoint of resistance.
)Right: raise the lighting stalk beyond thepoint of resistance.
"Motorway" function
) Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will
flash 3 times.










Hazard warning lamps
A visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident. )Press this button, the direction indicators
fl
ash.
They can operate with the ignition off.

Braking assistance systems
Group of supplementary systems which helpyou to obtain optimum braking in complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).

Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in par ticular on poor or slippery surfaces.
Activation
The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.
When braking in an emergency, pressvery firmly without releasing thepressure.


Operating fault
If this warning lamp comes on,
together with the STOPand ABSwarning lamps, accompanied by an
audible signal and a message in the screen, it
indicates a malfunction of the electronic brake force distribution which could result in loss of control of the vehicle when braking.You must stop as soon as it is safe to do so.

When replacing wheels (tyres andrims), ensure that they conform to themanufacturer's recommendations.
If this warnin
g lamp comes on,
accompanied by an audible signaland a message in the screen, it
indicates a malfunction of the anti-lock brakingsystem which could result in loss of control of
the vehicle when braking.
In either case, contact a CITROËN dealer or a
qualified workshop.

157

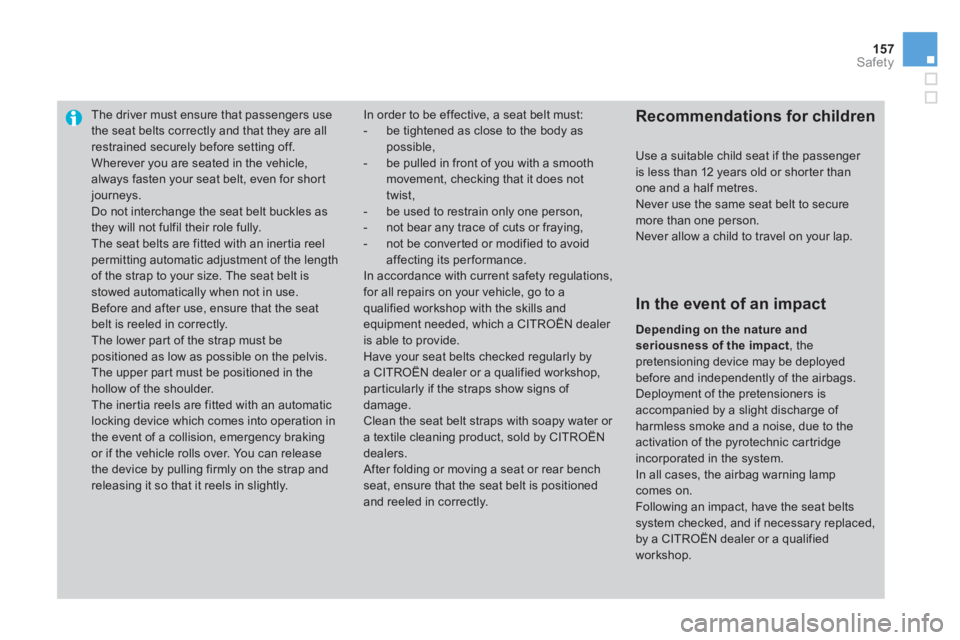

Safety
The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off.
Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys. Do not interchange the seat belt buckles asthey will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the lengthof the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower part of the strap must bepositioned as low as possible on the pelvis.
The upper par t must be positioned in the hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can releasethe device by pulling firmly on the strap and releasing it so that it reels in slightly.

In order to be effective, a seat belt must:


- be tightened as close to the body as possible,


- be pulled in front of you with a smooth movement, checking that it does nottwist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modified to avoidaffecting its per formance.
In accordance with current safety regulations, for all repairs on your vehicle, go to aqualified workshop with the skills and equipment needed, which a CITROËN dealer is able to provide. Have your seat belts checked regularly by a CITROËN dealer or a qualified workshop, particularly if the straps show signs of damage.
Clean the seat belt straps with soapy water or a textile cleaning product, sold by CITROËN dealers.
After folding or moving a seat or rear bench seat, ensure that the seat belt is positioned and reeled in correctly.
Recommendations for children
Use a suitable child seat if the passenger
is less than 12 years old or shor ter thanone and a half metres.Never use the same seat belt to securemore than one person. Never allow a child to travel on your lap.
In the event of an impact
Depending on the nature and seriousness of the impact , thepretensioning device may be deployedbefore and independently of the airbags.Deployment of the pretensioners isaccompanied by a slight discharge of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridge incorporated in the system. In all cases, the airbag warning lampcomes on.Following an impact, have the seat belts system checked, and if necessary replaced,by a CITROËN dealer or a qualified workshop.

Manual operation
D disappears and the gears engaged appear in succession in the
instrument panel.
Invalid value during manual operation
)Select position M
for sequentialchanging
of the four gears.)Push the lever towards the + sign tochange up a gear. )Pull the lever towards the -
sign to changedown a gear.
It is only possible to change from one gear to another if the vehicle speed and engine speedpermit; otherwise, the gearbox will operate
temporarily in automatic mode.This s
ymbol is displayed if a gear
is not engaged correctly (selector
between two positions).



Stopping the vehicle

Before switching off the engine, you can engage
position Por N to place the gearbox in neutral.
In both cases, apply the parking brake to
immobilise the vehicle. When the i
gnition is on, the lighting
of this warnin
g lamp, accompanied
by an audible signal and a message in the multifunction screen, indicates a gearbox fault.
In this case, the gearbox switches to back-up mode and is locked in 3rd gear. You may feel
a substantial knock when changing from Pto Rand from N to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (10 0 km/h), local speed
restrictions permitting.
Contact a CITROËN dealer or a qualified
wor
kshop as soon as possible.

Operating fault
If the lever is not in position P
, P
when the driver's door is opened or approximately 45 seconds after theignition is switched off, a warning message appears in the screen.)Return the lever to position P; the message disappears.




There is a risk of damage to thegearbox:


- if you press the accelerator and brake pedals at the same time,

- if you force the movement of the gear lever from the Pposition toanother position when the battery is flat.

To r e d u c e fuel consumption when at a prolonged standstill with the enginerunning (traffic jam...), put the gear lever in the Nposition and apply the parking brake. I
f the engine speed is too low or too high, the gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to chan
ge from position D(automatic) to position M (manual) at any time.
When the vehicle is stationary or movingvery slowly, the gearbox selects gear M1automatically. The spor t and snow programmes do not
operate in manual mode.

Stop & Start The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per
fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
For your comfor t, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...
Never refuel with the engine in STOPmode; you must switch off the ignition with the key. Th
e "ECO"warning lamp comes
on in the instrument panel and the engine goes into standby:
- with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear lever into neutral, and you release theclutch pedal. -with a 5 or 6-speed electronic gearbox ,
at speeds below 5 mph (8 km/h), when you press the brake pedal or put the gear lever in position N.
A time counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is switched on with the key.
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine star t using
the key,

- the engine is needed to maintain acomfortable temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.


Special cases: STOP mode not available

The "ECO"warning lamp flashes for
a few seconds then goes off.
This operation is per fectly normal.

RACING towbar

Your vehicle cannot be fitted with a towbar. The space occupied by thesport diffuser prevents this.


Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its coolingcapacity is not dependent on the engine speed. )To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Braking
To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine
braking is recommended.

Lighting
)
Check the electrical lighting and signallingon the trailer.
The rear parking sensors will bedeactivated automatically if a genuineCITROËN towbar is used.)
If the warning lamp and the
STOPwarning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.

*For Belgium and Russia. **
For Brazil.***

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
.../S: e-VTi model fitted with Stop & Start.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Petrol enginesVTi 82e-VTi 82VTi 95VTi 120THP 155THP 150*THP 160
**
GearboxesManualElectronicElectronicManualAutomaticManual
Model codes: SA...HMZ0HMZ0/PS8FR08FP05FS05FS95FV85FN8*5FM8**



- Unladen weight
975
980 1 079 1 075
1 089 1 090


-
Kerb weight
1 050

1 0551 1541 150

1 164
1 165



- Gross vehicle wei
ght (GV W)
1 4961 523
1 558
1 554 1 587 1 590



-
Gross train weight (GTW) on a 12 % gradient
2 296

2 323

2 458

2 454
2 487 2 490



- Braked trailer
(within the GTW limit) on a 12 % gradient 800
800
900
900
900900



- Braked trailer *** (with load transfer within
the GTW limit)1 100
1 1001 1501 150
1 150

1 150



-
Unbraked trailer
520
520
570
570
570570



-
Recommended nose weight
46
46
46

46

46

46

251Technical data
*


The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
LPG enginesVTi 95
GearboxManual
Model codes:SA...8FR0/GPL


-
Unladen weight 1 152


- Kerb wei
ght 1227



- Gross vehicle weight (GV W)
1 552



-
Gross train weight (GTW)

on a 12 % slope
2 452


- Braked trailer
(within GTW limit) on a 12 % slope 900



- Braked trailer *
(with load transfer within the
GTW limit) 1 15 0



- Unbraked trailer

570


-
Recommended nose weight 46

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
