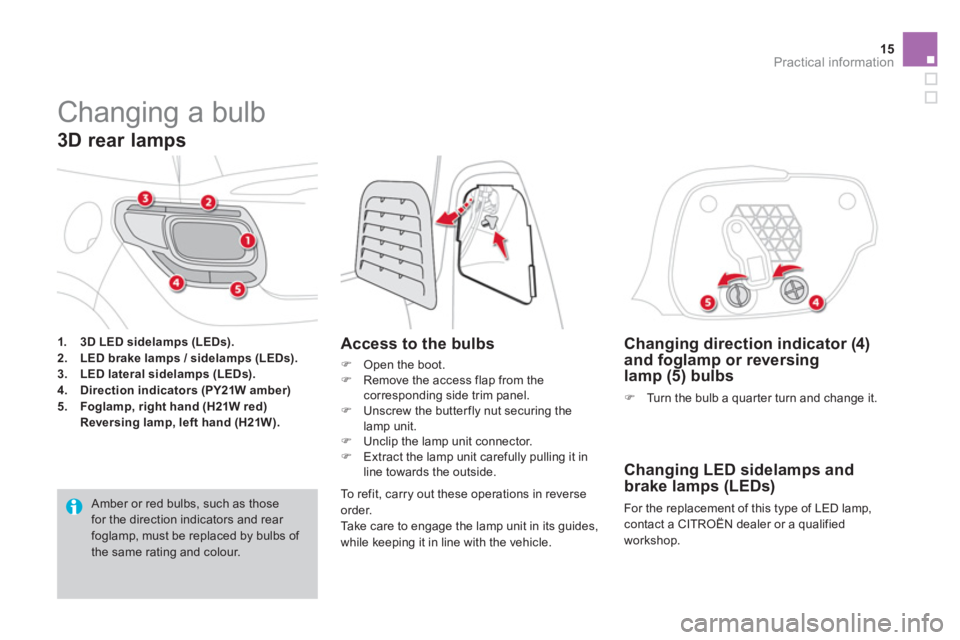

Changing a bulb



1.
3D LED sidelamps (LEDs).


2.
LED brake lamps / sidelamps (LEDs).


3.
LED lateral sidelamps (LEDs).


4.
Direction indicators (PY21W amber)


5.
Foglamp, right hand (H21W red)

Reversing lamp, left hand (H21W).



Access to the bulbs



)
Open the boot.

)
Remove the access flap from the
corresponding side trim panel.

)
Unscrew the butter fly nut securing the
lamp unit.

)
Unclip the lamp unit connector.

)
Extract the lamp unit carefully pulling it in
line towards the outside.


Changing direction indicator (4)
and foglamp or reversing
lamp (5) bulbs


)
Turn the bulb a quarter turn and change it.



Changing LED sidelamps and
brake lamps (LEDs)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.



3D rear lamps

To refit, carry out these operations in reverse
order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle. Amber or red bulbs, such as those
for the direction indicators and rear
foglamp, must be replaced by bulbs of
the same rating and colour.

16Practical information
Changing a fuse



)
To unclip the upper boot trim, pull it down, starting on the left.

)
Remove the trim by tipping it downwards.

)
Change the fuses.
To reassemble, carry out these operations in reverse order, starting at the back of the boot.


Fuse under the bonnet
(maxi-fuse)

Fuse N°

Rating

Functions


-

20 A
Soft top roof

-

20 A
Soft top roof

If the roof is in zone B
when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement,
first close the roof manually from inside the boot (by folding the rear seats).

There are three fuses for the soft top roof.


Fuses under the rear shelf


Fuse N°

Rating

Functions


MF08

40 A
Soft top roof
The maxi-fuses provide additional protection
for the electrical systems. All work on the
maxi-fuses must be carried out by a CITROËN
dealer or a qualified workshop.
