Interior
Interior mood lighting
This subdued passenger compartment lightingimproves visibility inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.

Gear effi ciency indicator

Depending of the driving conditions and your style of driving, this system maysuggest changing up to reduce your fuel fuel consumption.

Scented air freshener

The scented air freshener diffuses theselected fragrance throughout the passenger compartment from its location in the ventilation
system.
Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this levelaccording to the ambient conditions.
12
3
177
77
73
317

Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, eMyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio system.eMyWay
263
Audio system

Instruments and controls
1.
Steering wheel adjustment. 2.
Headlamp height adjustment. 3.
Cruise control / speed limiter controls. 4.
Lighting and direction indicator stalk5.
Central locking button.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Glove box / Passenger's airbag
deactivation / Fusebox.12.Bonnet release lever.13.12 V accessory socket
USB por t / auxiliary socket. 14 .Upper and lower storage.15. Audio system or eMyWay.16.
Heating / air conditioning controls.

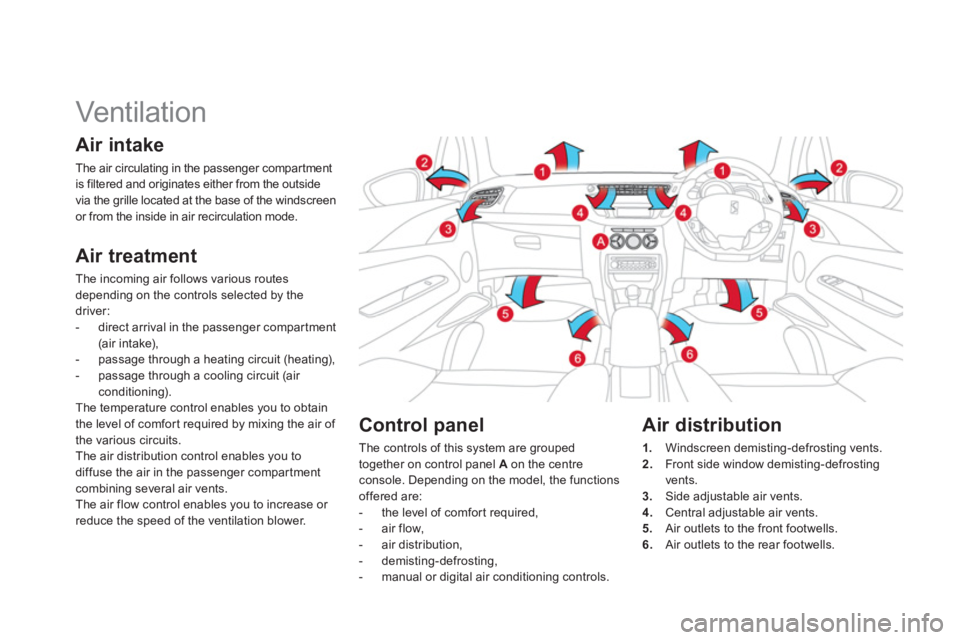

Vent ilat ion
Air intake
The air circulating in the passenger compar tment
is filtered and originates either from the outside
via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routesdepending on the controls selected by thedriver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you to
di
ffuse the air in the passenger compar tment combining several air vents.
The air flow control enables you to increase or reduce the speed of the ventilation blower.


Control panel

The controls of this system are grouped
together on control panel Aon the centre console. Depending on the model, the functionsoffered are:


- the level of comfort required,

- air flow,

- air distribution,

- demistin
g-defrosting,

- manual or digital air conditioning controls.



Air distribution
1.
Windscreen demisting-defrosting vents. 2.Front side window demisting-defrostingvents.3.Side adjustable air vents. 4.
Central adjustable air vents.
5. Air outlets to the front footwells.
6.Air outlets to the rear footwells.

77Comfort








Scented air freshener System permitting the diffusion of a fragrance in the passenger compar tment in accordance with your requirements, by means of the adjustment dial
and the various fragrance car tridges available.

This dial is located on the dashboard.
It allows you to adjust the intensity of diffusion
of the fragrance.)Turn the dial to the right to permit diffusion
of the fragrance.)Turn the dial to the left to stop diffusion of
the fragrance.
Adjustment dial
This cartridge can be removed easily. The
first time it is used, replace the plug with a real cartridge. You can change it at any time and store it in the
sealed case which keeps it closed once it has
been opened.
You can obtain different fragrance car tridges
from a CITROËN dealer or a qualified
workshop.
Leave the central vents open.
The intensity of diffusion of the fragrance may depend on the ventilation or air conditioning settings.
Fragrance cartridge
Do not discard the original cartridge as this ser ves as a plug when no fragrance car tridge is in use.
In order to preser ve the ser vice lifeof the car tridge, turn the dial fully tothe left when you no longer wish to diffuse the fragrance in the passenger compartment.

As a safety precaution, do not carryout any action on the car tridge while driving.
Do not dismantle the car tridges.
Do not attempt to refill the fragrancediffuser or the car tridges.
Avoid all contact with the skin and eyes.
Keep out of reach of children andanimals.

Fittings
Component which protects against sunlightfrom the front or the side, also equipped with an
illuminated courtesy mirror.)With the ignition on, raise the concealingflap; the mirror is lit automatically.
This sun visor is also equipped with a ticket
holder.









Sun visor









Glove box
)
To open the glove box, raise the handle.
It houses the front passenger airbagdeactivation switch A
.
It gives access to the dashboard fusebox (see
the "Practical information -
§ Changing a fuse"
section).








Centre armrest


Storage
)
For access to the closed storage box, lift
the lever to open the lid.) For access to the open storage box below
the armrest, lift the complete armrest
t
owards the rear.
These can be used for por table devices (mobile
phone, MP3 player...) which can be connected
to the USB por t / auxiliary socket or chargedfrom the 12 V socket in the centre console.
Comfor t and storage system for the driver andfront passenger.

193Checks














Petrol engines
1.
Screenwash fluid reservoir. 2.Coolant header tank.3.Air filter.
4.
Brake fluid reservoir.
5. Battery.
6.Fusebox.
7. Engine oil dipstick.8.Engine oil filler cap.

Diesel engines
1.
Screenwash fluid reservoir.2.
Coolant header tank.3.
Air filter.
4.
Brake fluid reservoir.5.
Battery.
6.Fusebox.
7. Engine oil dipstick. 8.Engine oil filler cap.9.
Priming pump (on fuel filter).

011
Practical information
This section describes the use of the temporary puncture repair kit, theprocedures for changing a punctured wheel, a worn wiper blade and the
various bulbs and fuses, as well as advice on charging the battery, towing
the vehicle, maintenance recommendations and information on the rangeof accessories available from the dealer network.

225
Practical information




















Changing a fuse

Installing electricalaccessories
Your vehicle's electrical system is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.

CITROËN will not accept responsibility for the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by CITROËN andnot installed in accordance with itsinstructions, in par ticular when the combined consumption of all of the additional equipment connectedexceeds 10 milliamperes. The extraction tweezer and the s
pare fusestorage locations are on the back of thedashboard fuse box cover.
For access to them:)open the glove box lid,)unclip the fusebox cover by pulling on the side,)remove the cover completely,)remove the tweezer.

Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the faulty fuse by checking thecondition of its filament.
Changing a fuse
GoodFailed
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the faulty fuse with a fuse
of the same rating. ) Check that the number marked on thebox, the rating marked on the fuse and the
tables below all agree.
