engine CITROEN DS3 CABRIO DAG 2013 Handbook (in English)

18Technical data
MODELS:ENGINES AND GEARBOXES
Model codes:SB...HMZ05FS05FS95FV85FN8 *
PETROL ENGINESVTi 82VTi 120THP 155THP 150 *

Cubic capacity (cc) 1 199
1 598

1 598

Bore x stroke (mm)75 x 90.577 x 85.8

77 x 85.8

Max power: EU standard
(kW) 60
88
115
110
*

Max power engine speed
(rpm)
5 750
6 000 6 000
Max torque: EU standard
(Nm) 118

160240

Max torque en
gine speed (rpm)
2 750

4 250
1 400

F
uel Unleaded Unleaded Unleaded

Catalytic conver ter yes yes
yes
GEARBOXManual
(5-speed)Manual
(5-speed)
Automatic(4-speed)
Manual(6-speed)
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.25 4.25 4.25
4.25
*
For Belgium.

19Technical data
WEIGHTS AND TOWED LOADS (in kg)
Petrol enginesVTi 82VTi 120THP 155THP 150 *
GearboxesManualManualAutomaticManual
Model codes: SB...HMZ05FS05FS95FV85FN8 *


- Unladen wei
ght 1 032
1 088
1 13 3
1 156



- Kerb wei
ght 1 107
1 163

1 208 1 231


- Gross vehicle wei
ght (GV W)
1 532
1 5751 610
1 619



- Gross train weight (GTW)
on a 12 % gradient 2 332
2 475

2 510

2 519



- Braked trailer
(within the GTW limit)
on a 12 % gradient 800
900
900
900



- Braked trailer
**
(with load transfer within the GTW limit)
1 10 01 150
1 150
1 150



- Unbraked trailer 520
570
570
570



- Recommended nose wei
ght
46

46

4646
*
For Belgium.

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
Hi
gh ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

20Technical data
MODELS:ENGINES AND GEARBOXES
Model codes: SB...9HP8/PS
DIESEL ENGINESe-HDi 90 PEF

Cubic capacity (cc) 1 560

Bore x stroke
(mm)

75 x 88.3

Max power: EU standard (kW) 68

Max power engine speed (rpm) 4 000

Max torque: EU standard (Nm)
230

Max torque engine speed (rpm) 1 750


Fuel
Diesel

Catal
ytic conver ter
yes
Particle emissions filter
(PEF) yes
GEARBOX
Electronic gearbox system(6-speed)
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.75
.../S:e-HDi model fitted with Stop & Start

21Technical data
WEIGHTS AND TOWED LOADS (in kg)
Diesel enginese-HDi 90 PEF
GearboxElectronic gearbox system(6-speed)
Model codes:SB...9HP8/PS


- Unladen weight 1 090



-
Kerb weight 1 165



- Gross vehicle wei
ght (GV W)
1 639



- Gross train wei
ght (GTW)
on a 12 % gradient 2 539


- Braked trailer
(within GTW limit) on 12 % gradient 900



- Braked trailer *
(with load transfer with theGTW limit)
1 150



- Unbraked trailer 570



- Recommended nose wei
ght 46

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The wei
ght of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

2

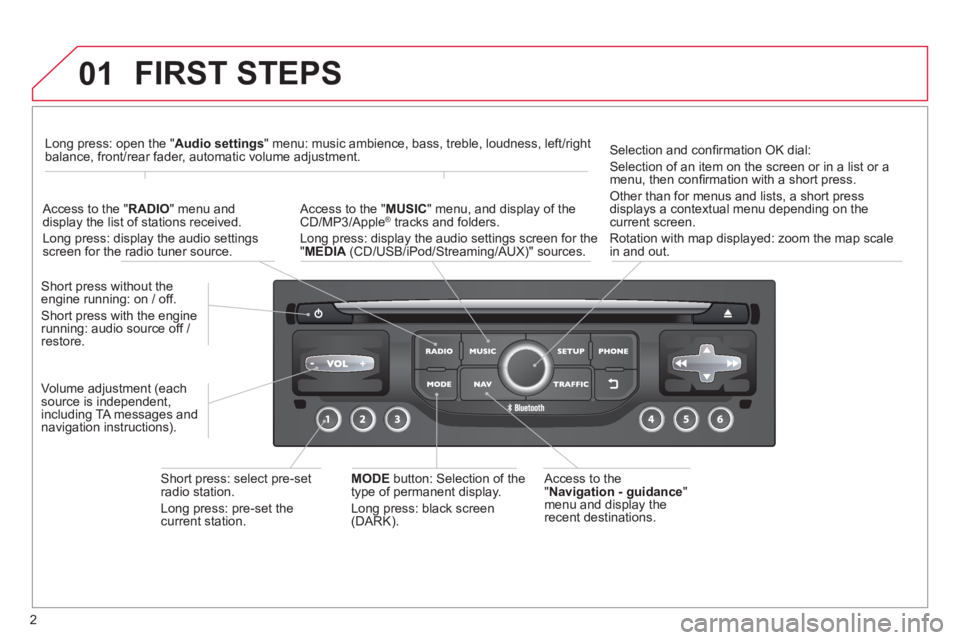

01 FIRST STEPS

Access to the" Navigation - guidance"
menu and display the
recent destinations. Short
press without the engine running: on / off.
Short press with the enginerunning: audio source off / restore.
Short press: select pre-set radio station.
Lon
g press: pre-set thecurrent station.
MODE
button: Selection of the
type of permanent display.
Lon
g press: black screen(DARK).
A
ccess to the " MUSIC
" menu, and display of the CD/MP3/Apple®
tracks and folders. ®

Long press: display the audio settings screen for the"MEDIA
(CD/USB/iPod/Streaming/AUX)" sources.
Long press: open the "Audio settings" menu: music ambience, bass, treble, loudness, left/right
balance, front/rear fader, automatic volume adjustment.


A
ccess to the "RADIO
" menu anddisplay the list of stations received.
Lon
g press: display the audio settingsscreen for the radio tuner source.
Selection and confi rmation OK dial:
Selection of an item on the screen or in a list or a
menu, then confi rmation with a short press.
Other than for menus and lists, a short press
displays a contextual menu depending on the current screen.
Rotation with map displa
yed: zoom the map scalein and out.
Volume ad
justment (each
source is independent,
includin
g TA messages and
navigation instructions).

54
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
With the engine off, the system switches off after a few minutes of use.When the en
gine is switched off, the system's operating time depends on
the battery charge.
The switch-off is normal: the s
ystem switches to economy mode and
switches off to prevent discharging of the vehicle's battery. Start the vehicle's en
gine to increase the batterycharge.
Pla
yback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some fi les supplied with the memory stick may greatly slow down access
to reading the memory stick (multiplication by 10 of the catalogue time). Delete the fi les supplied with the memory stickand limit the number of sub-folders in the fi le structure on the memory stick.
When I connect m
yiPhone as telephone and
to the USB port at thesame time, I am unable
to play the music fi les. When the iPhone connects automaticall
y as a telephone, it forces the
streaming function. The streaming function takes the place of the USB
function which is then not useable, there is a period without sound of the
track being played with Apple® players.®
Disconnect and reconnect to the USB port (the USB function takes priority over streaming).
