281
QUESTIONANSWER SOLUTION
TA is selected. However, certain traffi c jams
along the route are not
indicated in real time.
On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, onl
y major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
I receive a speed camera
alert for a camera which
is not on my route.The s
ystem announces all speed cameras located in a conical zoneforward of the vehicle. It may detect speed cameras on nearby or parallel roads. Zoom the map to view the exact position o
f thespeed camera.

The audible speedcamera alert is not
working.
Audible alerts are not active. Activate audible alerts in Navigation Menu, Settings, Set parameters for risk areas.
Th
e alert volume level is set to minimum. Increase the speed camera alert volume.

The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes
to receive more than 3 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least
3 satellites (long press on the SETUP button, then select GPS coverage).
Dependin
g on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS si
gnal.
Th
e route is notcalculated successfully.The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls). Check the exclusion criteria.

Maintenance (advice)....................................229Map reading lamps...............................118, 213Markings, identification.................................244Mat ................................................................125Menu, main ...................................................286Mini fuel level ................................................102Mirror, rear view ..............................................87Mirrors, door....................................................r86Misfuel prevention.........................................104Motorway function (direction indicators).......142Mountings for ISOFIX seats.................136,138MP3 CD.................................................269, 289Music media players.....................................268MyWay ....................................................61, 251
R
Navigation.....................................................257Number plate lamps ......................................211
NP
Paint colour code..........................................244Paintwork, matt.............................................229Parcel shelf, rear...........................................r127Parking brake........................................158, 191Parking sensors, rear....................................r178Particle emission filter..........................r189, 190Passenger compartment filter......................r190Player, CD MP3.....................................269, 289Port, USB.............................124, 276, 290,292Priming the fuel system................................184Protecting children.................128 -13 8, 149, 152
Puncture........................................................194
Radio ..................................................... 267,287Rear foglamp.........................................11 0 , 211Rear screen (demisting)..................................76Recharging the battery.................................222Reduction of electrical load..........................224Refitting a wheel...........................................205Regeneration of the par ticle emissions filter....................r190Reinitialising the electric windows ..................97Reinitialising the remote control .....................94Remote control..........................................90-95Removing a wheel........................................203Removing the mat.........................................125Repair kit, puncture.......................................194Replacing bulbs .....................................207-213Replacing fuses....................................214-220
Keeping children safe............128 -13 8, 149, 152Key in ignition warning....................................93Key with remote control ............................90,95
LLabels, identification.....................................244Lamps, warning and indicator....................r32-41Leather (care)................................................229LED lamps.............................................113,210Level, brake fluid ...........................................187Levels and checks..................................185-191Lighting, guide-me home.......................111,112Lighting, interior.............................r118, 119,213Lighting bulbs(replacement).......................................207-213Lighting control stalk.....................................108Lighting dimmer..............................................r46Loading............................................................24Load reduction mode....................................224Localised assistance call ..............................250Localised emergency call .............................250Locating your vehicle ......................................92Locking from the inside ...................................99LPG...............................................................238Luggage retaining strap................................126
K
M
Main beam ............................................108, 209Maintenance....................................................24
Oil filter..........................................................r190Oil level....................................................45,187Opening the bonnet ......................................183Opening the boot....................................90, 101Opening the doors...........................90, 98, 100Opening the fuel filler flap .............................102Operation indicator lamps..........................32-41
O

315
Alphabetical index
Replacing the air filter...................................r190Replacing the oil filter...................................r190Replacing the passenger compartment filter......................................r190Replacing wiper blades.........................117, 224Resetting the service indicator.......................r44Resetting the trip recorder..............................r46Rev counter...............................................r28,30Reversing lamp.............................................211Risk areas (update).......................................264Routine checks.....................................190, 191Running out of fuel (Diesel)..........................184
Safety for children..................128 -138, 149, 152Scented air freshener.....................................r77Screen, colour 16/9.........................61,254, 275Screen, monochrome..................286,298, 300Screen, multifunction(with audio equipment) .....................54,57, 61Screen-wash reservoir..................................187Screen menu map........................275,298, 300Screenwash..................................................115Screenwash fluid level..................................188Seat, rear bench .............................................84Seat adjustment........................................79,82Seat belts ...............................................147-149Seats, rear.......................................................r84Serial number, vehicle..................................244Ser vice indicator.............................................r43
S
Servicing.........................................................24Setting the clock...........................274, 296, 297Short-cut menus...................................255,256Sidelamps.....................................108, 209, 211Side repeater.................................................209Spare wheel..................................................200Speed limiter.................................................r174Speedometer............................................r28, 30Stability control (ESP)...................................145Starting the vehicle.........................92, 161,166Steering mounted controls, audio.........253,285Stopping the vehicle .......................92, 161,166Stop & Start .......50, 73, 102, 170, 183, 190, 221Storage ..................................................122, 123Storage box...................................................127Stowing rings ................................................ 126Sun visor.......................................................r123Synchronising the remote control...................94System, navigation........................................257Systems, ASR and ESP................................145U
Temporary tyre repair kit...............................194Third brake lamp...........................................212TMC (Tr a f f i c i n f o) ..........................................265Tools ..............................................................200Total distance recorder...................................r46To w b a r...........................................................r227Towed loads ..........................236, 237, 239, 241Towing another vehicle.................................225Tr a c t i o n c o n t r o l (ASR)..................................145Tr affic information (TA).................266, 267, 288Traffic information (TMC).....................265, 266Tr i p c o m p u t e r......................................r48-50,57Tr i p d i s t a n c e r e c o r d e r.....................................r46Tyre pressures ..............................................244
Tyres ........................................................24, 244
Unlocking........................................................90Unlocking from the inside...............................99Update risk areas..........................................264Updating the date ..........................274,296,297Updating the time..........................274 ,296,297USB Box ........................................................124USB Reader..........................................r124, 290
T
Table of weights....................236, 237, 239, 241Ta b l e s of engines .................234, 235,238, 240Tables of fuses..............................................214Ta n k, fuel...............................................102,104Technical data.......................................234-242Telephone.............................................271, 293Temperature adjustment...........................70,73Temperature control for heated seats............80
V
Ventilation .....................................66,67, 70, 73

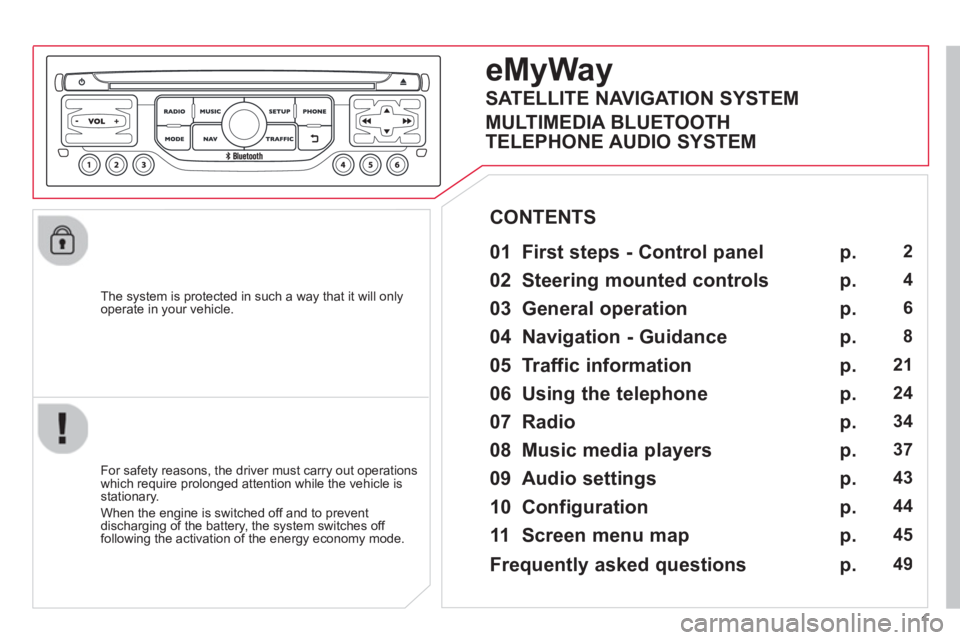

1

The system is protected in such a way that it will onlyoperate in your vehicle.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steerin
g mounted controls

03 General o
peration

04 Navi
gation - Guidance

05 Traffic information

06 Usin
g the telephone

07 Radio

08 Music media pla
yers

09 Audio settin
gs

10 Confi
guration

11 Screen menu ma
p
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
2
4
6
8
21
24
34
37
43
44
45
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

Frequentl
y asked questions p. 49

3
01
Select:
- the next lower / hi
gher radiofrequency automatically.
- the previous
/ next CD track, MP3
track or media.
- the le
ft / right of the screen when a menu is displayed.
Move left / ri
ght in "Move the map
" mode.
Abandon the current
operation, up one level in
t
he menu.

Long press: return to the permanent display.
Continuous
press:
reinitialisation of the system.
Open the" Telephone" menu
and display the list of recent calls or accept
an incoming call.
Open the
"Confi guration
" menu.
Lon
g press: access
to the GPS coverageand the navigation demonstration mode.
Open the "Traffi c information " menuand display thecurrent traffi c alerts.

Select:
- the previous
/next line in a list or menu.
- the previous
/ next media folder.
- step b
y step selection of the previous/next radio frequency.
- the previous / next MP3 folder.
Move up/down, in "
Move the map " mode.
FIRST STEPS

10
04

SELECTING A DESTINATION
NAVIGATION - GUIDANCE


TO ONE OF THE RECENT DESTINATIONS
Press NAV
to display the"Navigation - guidance" menu.

Select the desired destination and confi rm to start guidance. TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination" andconfi rm, then select " Directory " and confi rm.

Selection the desired destination from your contacts and confi rm " OK
" to start
the guidance.
Pr
ess NAVto display the"Navigation - guidance
" menu. Navi
gation towards a contact imported from your telephone is only
possible if the address is compatible with the system.

14
04

ALERT PARAMETERS
RISK AREAS
Select:
- "Vi
sual alert"
- "A
udible alert"
-
"Alert only in guidance"
- "
Overspeed alarm only".
Th
e choice of time of notifi cation defi nes how long in advance that Risk area
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select "Set parameters for riskareas
" and confi rm.
These
functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updatin
g risk area POIs can be found at
www.citroen.com.

Press NAVto display the "VNavigation - guidance" menu.

16
04NAVIGATION - GUIDANCE





ROUTE OPTIONS


CALCULATION CRITERIA
Select " Guidance options
" and confi rm.
Select " OK
" and confi rm to save themodifi cations.
Select " Defi ne calculation criteria" andconfi rm.
Thi
s function allows modifi cation of:

- the
guidance criteria: (" Fastest
route", " Shortest route", "Distance/Time "),

- the exclusion criteria:
(" With tolls"or "With Ferry
"),

- traffi c avoidance:
(" Traffi c info
").

Press NAV
to display the"Navigation - guidance" menu.
I
f traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.

17
04NAVIGATION - GUIDANCE
Press NAV
to display the
"Navigation - guidance" menu.


MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP
Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on thescreen.

Select "Map details" and confi rm.
Select " By default" to have only "Oil stations, garages" and"Accident-prone area
" appear on the map (if installed in the
system).
Select " OK
" then confi rm and select "OK" again then confi rm to save the
modifi cations.

20
04NAVIGATION - GUIDANCE


MALE VOICE / FEMALE VOICE
Press SETUP
to display theconfi guration menu.

Select "Select male voice
" or "Selectfemale voice" then confi rm " Ye s
" to activate a male or female voice. Thesystem restarts.

Select "Voice synthesis
" and confi rm.
