check engine CITROEN DS3 CABRIO DAG 2013 Handbook (in English)

189Checks
Diesel additive level
(Diesel engine with particle
emission filter)

To p p i ng up

This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

Used products
Avoid prolonged contact of used oil or fluids with the skin. Most of these fluids are harmful to health or indeed very corrosive.
Do not discard used oil or fluids intosewers or onto the ground.
Take used oil to a CITROËN dealer or a qualified workshop (France) or to an authorised waste disposal site. Th
e additive reservoir low level is
indicated by fixed illumination of
this warning lamp, accompanied by an audible
warning and a message in the multifunctionscreen.

Checks
Battery

Air filter and passenger compartment filter


Oil filter
Par ticle emission filter (Diesel)
Unless other wise indicated, check these components in accordance with the ser vicing booklet and according to your engine.
Other wise, have them checked b
y a CITROËN dealer or a qualified workshop.
The batter
y does not require any
maintenance.

However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer to
the "Practical information" section for details of
the precautions to be taken before disconnecting
the battery and following its reconnection. Re
fer to the ser vicing booklet for
details of the replacement inter vals
for these components.
Dependin
g on the environment (e.g.
dusty atmosphere) and the use of the vehicle(e.g. city driving), replace them twice as often
if necessary(refer to the "Engines" section).
A clogged passenger compar tment filter may
have an adverse effect on the performance
of the air conditioning system and generateundesirable odours.
Re
place the oil filter each time
the engine oil is changed.
Re
fer to the ser vicing booklet for
details of the replacement inter val
for this component. The
presence of this label, in par ticular with
the Stop & Star t system, indicates the use of a specific 12 V lead-acid battery with special
technology and specification, for which the
involvement of a CITROËN dealer or a qualified
wor
kshop is required when replacing or disconnecting the battery. Failure to observe this recommendation mayshor ten the life of the battery. Th
e start of saturation of theparticle filter is indicated by the
temporary illumination of this warning lamp
accompanied by a message in the multi-
function screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lampgoes off.
If the warning lamp stays on, this indicates a low additive level.

On a new vehicle, the first par ticlefilter regeneration operations may be accompanied by a "burning" smell, which is perfectly normal.
Following prolonged operation of thevehicle at very low speed or at idle, you may, in exceptional circumstances,
notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.

191Checks
Manual gearbox
Automatic
gearboxBrake
pads
Brake wear depends on the style
of driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It ma
y be necessary to have the condition of the brakes checked, even between vehicle services. Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn. The
gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for the
details of the level checking interval for this component.















Only use products recommended by CITROËN or products of equivalent
quality and specification.
In order to optimise the operationof units as impor tant as the braking system, CITROËN selects and offers very specific products.
To avoid damaging the electrical units, the use of a high pressure washer in the engine compar tment is strictly prohibited.
The gearbox does not require any
maintenance (no oil change).
Refer to the ser vicing booklet for
details of the level checking inter val for this component.
Electronic gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
details of the checking interval for
this component.
For information on checkin
g brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake disc wear
Manual parking brake

If a loss of effectiveness of this system is noticed, the parking brake
must be checked, even between
tw
o services.
Checking this system must be done by aCITROËN dealer or a qualified workshop.

195
Practical information
1. Sealing
) Uncoil the white pipe G
fully. )
Unscrew the cap from the white pipe.
)
Connect the white pipe to the valve of the
tyre to be repaired.
Repair procedure
Avoid removing any foreign bodieswhich have penetrated into the tyre.
)
Connect the compressor's electric plug to
the vehicle's 12 V socket.
) Star t the vehicle and leave the engine
running.
)Switch off the ignition. )Turn the selector A to the "sealant"
position.)Check that the switch B
is in position "O"
.
Take care, this product is harmful (e.g. ethylene-glycol, colophony...) if swallowed and causes irritation to theeyes.Keep it out of reach of children.


Do not star t the compressor before connecting the white pipe to the tyre valve: the sealant product would beexpelled through the pipe.

199Practical information

Checking tyre pressures/inflating accessories


You can also use the compressor, without
injecting any product, to:


- check or adjust the pressure of your tyres,

- inflate other accessories (balls, bicycle
tyres...).
) Connect the compressor's electricalconnector to the vehicle's 12 V socket. )
Start the vehicle and let the engine run.)
Adjust the pressure using the compressor
(to inflate: switch Bin position "I"; todeflate: switch Bin position "O"
and pressbutton C ), according to the vehicle's tyre
pressure label or the accessory's pressure label.) Remove the kit then stow it.


)Turn the selector A
to the "A ir"position.)Uncoil the black pipe Hfully. )Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptors supplied with the kit first.

The rear parking sensors will be deactivated automatically if a genuineCITROËN towbar is used.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its coolingcapacity is not dependent on the engine speed. )To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Braking
To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.

Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.

Lighting
)
Check the electrical lighting and signallingon the trailer.
)
If the warning lamp and the
STOPwarning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.

RACING towbar

Your vehicle cannot be fitted with a towbar. The space occupied by thesport diffuser prevents this.

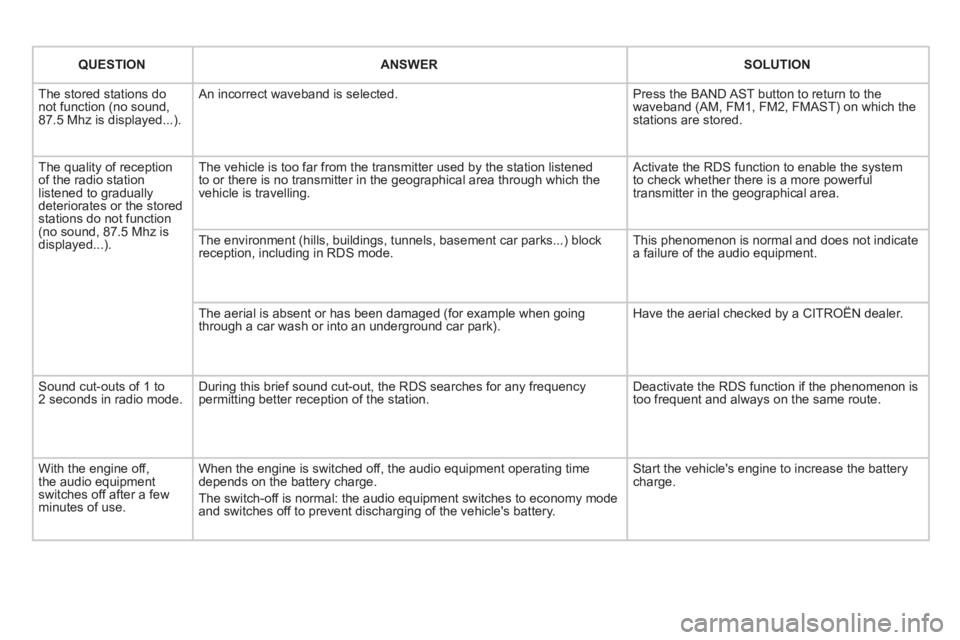

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the batterycharge.

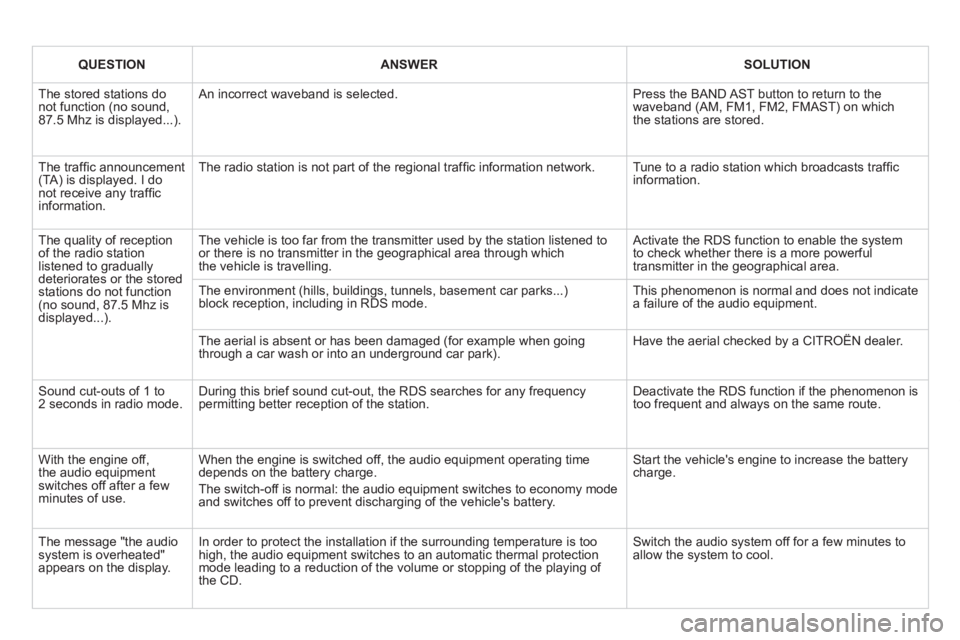

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on whichthe stations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through whichthe vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

311Visual search
Technical data - Maintenance


Running out of Diesel 184

Checking levels 187-189


- oil

- brake fluid

- coolant

- screenwash fluid -additive (Diesel with particle emissions filter)



Changing bulbs 207-213


- front

- rear

- interior

Petrol en
gines 234-237
LPG engine 238 -239
Diesel engines 240-241
Dimensions 242-243
Identification markings 244

Bonnet
183-184
Under-bonnet layout, petrol 185
Under-bonnet la
yout, Diesel 186Batter
y 221-222
Energy economy mode 223
Checking components 19 0 -191
- battery- air filter/passenger compartment filter
- oil filter
- particle emissions filter (Diesel)
- brake pads/discs

En
gine compar tment
fuses 214, 217-220

A
ABS and EBFD systems...............................144Accessories ..................................................230Accessory socket, 12 V ................................124Access to rear seats.................................81,83Adjusting headlamps ....................................113Adjusting head restraints................................80Adjusting the steering wheel...........................85Advice on care and maintenance.................229Airbags, curtain.....................................154,155Airbags, front.........................................151,155Airbags, lateral......................................153,155Air conditioning ...............................................24Air conditioning, digital ..............................67, 73Air conditioning, manual...........................67,70Air filter..........................................................r190Air flow......................................................24, 66Air intake ...................................................66, 73Air recirculation .........................................70, 74Air vents..........................................................66Alloy wheels ..................................................229Anti-lock braking system (ABS)....................144Anti-pinch ........................................................97Anti-theft..........................................................92Armrest, front................................................123Assistance call ......................................143, 250Audible warning............................................143Audio streaming (Bluetooth).........................295Audio system.................................................283Automatic illumination of headlamps....109,112Automatic operation of hazard warning lamps .....143Automatic rain sensitivewindscreen wipers..............................114, 116Auxiliary socket ....................124, 270, 290,292
Capacity, fuel tank ........................................102CD MP3.................................................269, 289Central locking ..........................................91, 99Changing a bulb ..................................... 207-213Changing a fuse ....................................214-220Changing a wheel .................................200-206Changing a wiper blade........................117,224Changing the date.........................274, 296, 297Changing the remote control battery..............94Changing the time .........................274, 296, 297Checking levels......................................187-189Checking the engine oil level ..........................45Checking tyre pressures (using the kit)........194Checks ...................................................185-191
Children..................................128 -138, 149, 152Child seats ............................................130-135Cleaning (advice) ..........................................229Closing the boot ......................................91,101Closing the doors ......................................91,98Connectors, audio ................124, 270, 290,292Control panel.........................................252, 284Coolant level...........................................42, 187Coolant temperature.......................................42Coolant temperature indicator........................r42Courtesy lamps.....................................11 8,213Courtesy mirror.............................................r123Cruise control................................................176Cup holder.....................................................r122
Battery...................................................190,221Battery, charging...........................................221Battery, remote control.............................94, 95Black panel......................................................47Bluetooth (hands-free)........................................271,293Bluetooth (telephone)............................271,293Bonnet...........................................................183Boot...............................................................101Boot lamp..............................................119, 213Brake discs....................................................191Brake lamps..................................................211Brake pads ....................................................191Brakes ...........................................................191Braking assistance system ...........................144
B
C
Dashboard fusebox .......................................215Date (setting).................................274,296,297Daytime running lamps (LEDs).............113, 220Deactivating the passenger airbag...............152
Defrosting............................................70, 73, 76Demisting............................................70, 73, 76
Dials and gauges ......................................28,30Diesel additive level......................................189Dimensions...................................................242Dipped beam .........................................108, 208Dipstick....................................................45, 187Direction indicators.......................142, 208, 211Door pockets .................................................122Doors...............................................................98Doors emergency control.............................100Driving economically ......................................24
D
