223Practical information

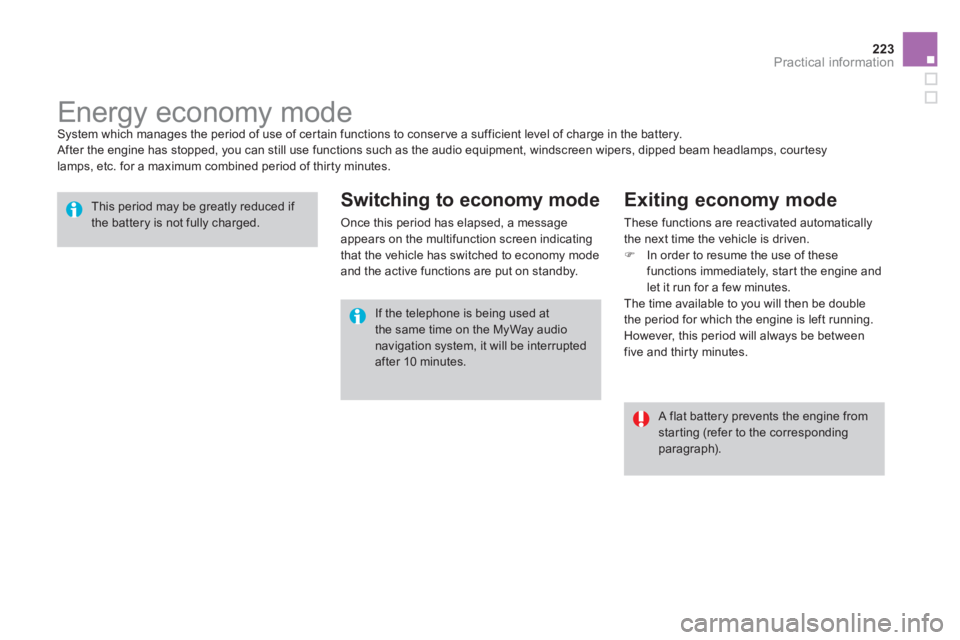

Energy economy mode System which manages the period of use of cer tain functions to conser ve a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen wipers, dipped beam headlamps, cour tesylamps, etc. for a maximum combined period of thirty minutes.
This period may be greatly reduced if the battery is not fully charged.

A flat battery prevents the engine from starting (refer to the correspondingparagraph).
If the telephone is being used at the same time on the MyWay audionavigation system, it will be interrupted after 10 minutes.
Switching to economy mode
Once this period has elapsed, a message
appears on the multifunction screen indicating
that the vehicle has switched to economy mode and the active functions are put on standby.

Exiting economy mode

These functions are reactivated automatically
t
he next time the vehicle is driven. ) In order to resume the use of thesefunctions immediately, star t the engine and
let it run for a few minutes.
The time available to you will then be double
the period
for which the engine is left running. However, this period will always be between five and thir ty minutes.

Exterior
- opening/closing
- anti-theft protection
- starting
- battery
Lighting controls 108-113
Headlamp adjustment 113
Changing bulbs 207-210
- front lamps
-
foglamps
- direction indicator repeatersWiper controls
114-117 Changing a wiper blade 224
Door mirrors
86
Doors
98-10 0
- opening/closing
- central locking- emergency control
Electric windows 96-97
Fuel tank 1
02-103
Misfuel prevention 104-105
Accessories
230-231


Hill
start assist 173
Braking assistanc e 14 4 -145
Tr ajectory control 145 -146
Tyre pressures 199, 244 B
oot 101 Temporary puncture
repair kit 194-199
Chan
ging a wheel 200 -206
- tools- removing/refiting
Changing bulbs 211-212
- rear lamps
- 3rd brake lamp
- num
ber plate lamps

Rear parking sensors 178 -179
T
owbar 227-228
To w i ng 225-226

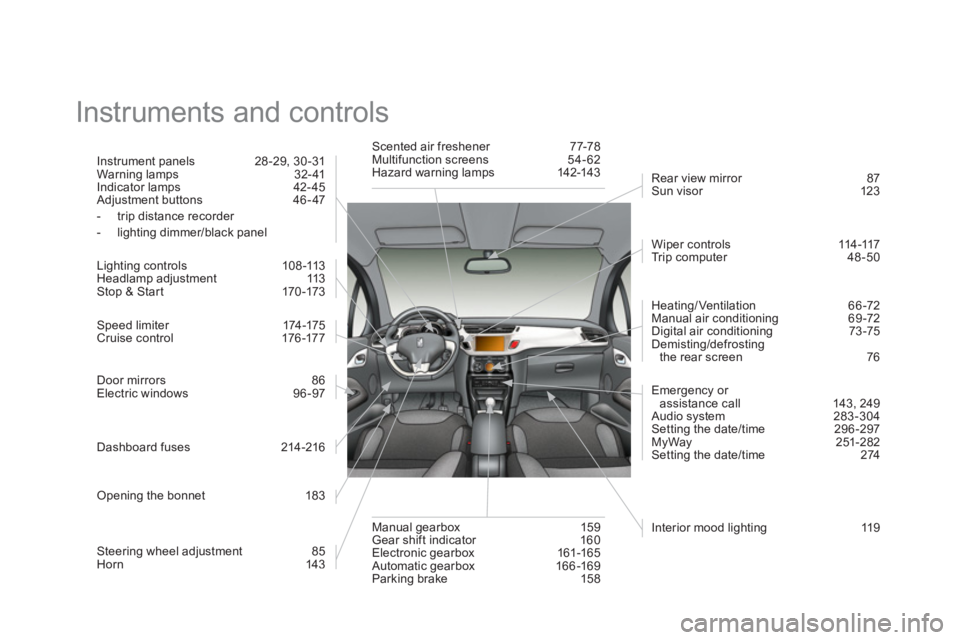

Instruments and controls
Instrument panels 28 -29, 30 -31
Warning lamps 32- 41
Indicator lamps 42- 45
Ad
justment buttons 46-47
- trip distance recorder
- li
ghting dimmer/black panel

Li
ghting controls 108-113
Headlamp adjustment 113 Stop & St a r t 170 -173
Speed limiter 174-175 Cruise control 176-17 7
Door mirrors
86
Electric windows 96-97
D
ashboard fuses 214 -216
Opening the bonnet 183
Steering wheel adjustment 85
Horn 143
Scented air freshener 77-78
Multifunction screens 54-62
Hazard warning lamps 142-143
Manual
gearbox 159 Gear shift indicator 160
Electronic gearbox 161-165
Automatic gearbox 166 -169
Parking brake 158 Rear view mirror 87
Sun visor 123
W i p e r c o n t r o l s 114 -117
Tr i p c o m p u t e r 4 8 - 5 0
Heatin
g/Ventilation 66 -72
Manual air conditioning 69 -72
Di
gital air conditioning 73 -75
Demisting/defrostingthe rear screen 76
Emergency or
assistance call 143, 249

Audio system 283 -304
Setting the date/time 296 -297
MyWay 251-282
Setting the date/time 274
Interior mood li
ghting 11 9

A
ABS and EBFD systems...............................144Accessories ..................................................230Accessory socket, 12 V ................................124Access to rear seats.................................81,83Adjusting headlamps ....................................113Adjusting head restraints................................80Adjusting the steering wheel...........................85Advice on care and maintenance.................229Airbags, curtain.....................................154,155Airbags, front.........................................151,155Airbags, lateral......................................153,155Air conditioning ...............................................24Air conditioning, digital ..............................67, 73Air conditioning, manual...........................67,70Air filter..........................................................r190Air flow......................................................24, 66Air intake ...................................................66, 73Air recirculation .........................................70, 74Air vents..........................................................66Alloy wheels ..................................................229Anti-lock braking system (ABS)....................144Anti-pinch ........................................................97Anti-theft..........................................................92Armrest, front................................................123Assistance call ......................................143, 250Audible warning............................................143Audio streaming (Bluetooth).........................295Audio system.................................................283Automatic illumination of headlamps....109,112Automatic operation of hazard warning lamps .....143Automatic rain sensitivewindscreen wipers..............................114, 116Auxiliary socket ....................124, 270, 290,292
Capacity, fuel tank ........................................102CD MP3.................................................269, 289Central locking ..........................................91, 99Changing a bulb ..................................... 207-213Changing a fuse ....................................214-220Changing a wheel .................................200-206Changing a wiper blade........................117,224Changing the date.........................274, 296, 297Changing the remote control battery..............94Changing the time .........................274, 296, 297Checking levels......................................187-189Checking the engine oil level ..........................45Checking tyre pressures (using the kit)........194Checks ...................................................185-191
Children..................................128 -138, 149, 152Child seats ............................................130-135Cleaning (advice) ..........................................229Closing the boot ......................................91,101Closing the doors ......................................91,98Connectors, audio ................124, 270, 290,292Control panel.........................................252, 284Coolant level...........................................42, 187Coolant temperature.......................................42Coolant temperature indicator........................r42Courtesy lamps.....................................11 8,213Courtesy mirror.............................................r123Cruise control................................................176Cup holder.....................................................r122
Battery...................................................190,221Battery, charging...........................................221Battery, remote control.............................94, 95Black panel......................................................47Bluetooth (hands-free)........................................271,293Bluetooth (telephone)............................271,293Bonnet...........................................................183Boot...............................................................101Boot lamp..............................................119, 213Brake discs....................................................191Brake lamps..................................................211Brake pads ....................................................191Brakes ...........................................................191Braking assistance system ...........................144
B
C
Dashboard fusebox .......................................215Date (setting).................................274,296,297Daytime running lamps (LEDs).............113, 220Deactivating the passenger airbag...............152
Defrosting............................................70, 73, 76Demisting............................................70, 73, 76
Dials and gauges ......................................28,30Diesel additive level......................................189Dimensions...................................................242Dipped beam .........................................108, 208Dipstick....................................................45, 187Direction indicators.......................142, 208, 211Door pockets .................................................122Doors...............................................................98Doors emergency control.............................100Driving economically ......................................24
D

313Alphabetical index
Fragrance car tridge........................................77Front seats................................................79, 82Fuel..........................................................24, 103Fuel consumption............................................24Fuel filler flap.........................................102,104Fuel gauge ....................................................102Fuel tank................................................102,104Fuses.............................................................214
G.P.S. ............................................................ 257Gearbox, automatic ..............................166,191Gearbox, electronic.......................161,170,191Gearbox, manual..................159, 160,170,191Gear lever,
automatic gearbox......................................166Gear lever,electronic gearbox system .........................161Gear lever, manual gearbox .........................159Gear shift indicator........................................ 160Glove box ...................................................... 123Grab handles.............................................81,83Guidance.......................................................257
Indicators, direction......................142, 208, 211Inflating accessories (using the kit)..............19 9Inflating tyres ..........................................24, 242Inputs for audio system........124, 270, 290,292Instrument panel lighting................................46Instrument panels.....................................28,30Instrument panelscreen....................28,30, 160 , 167, 174, 176Interior fittings ...............................................122Interior lamp..........................................118, 123Interior mood lighting ....................................119ISOFIX child seats .................................136-138ISOFIX mountings.................................136,138
G
EBA(Emergency braking assistance)........144,145Eco-driving.....................................................24Economy mode .............................................223Electric window controls .................................96Electronic brake force distribution(EBFD)........................................................ 144Electronic engine immobiliser..............................................92,95Emergency boot release...............................101Emergency braking system..........................145Emergency call.....................................143, 250Emergency warning lamps ...................142,143Energy economy mode .................................223Engine, Diesel ...............................103,186,240Engine, petrol ...............................103,185, 234Engine compartment.............................185, 186Engine compartmentfusebox.......................................................217Engine oil level indicator.........................r45, 187Engines ........................................234, 238,240Environment ......................24, 76,95, 189, 222ESP/ASR.......................................................145
I
J
Jack ...............................................................200JACK socket.........................124, 270,290,292
Head restraints, front......................................80Head restraints, rear.......................................r84Heated seats...................................................80Heating ................................................24, 70, 73Height and reach adjustment,steering wheel ..............................................85Hill start assist...............................................173Horn...............................................................143
E
Filling with fuel.......................................102-104Fittings, boot .................................................126Flashing indicators ................................ 142, 143Foglamps, front.....................................110,210Foglamps, rear......................................r110, 211
F
H
Halogen headlamps......................................207Hands-free kit........................................271,293Hazard warning lamps ..........................142, 143

44

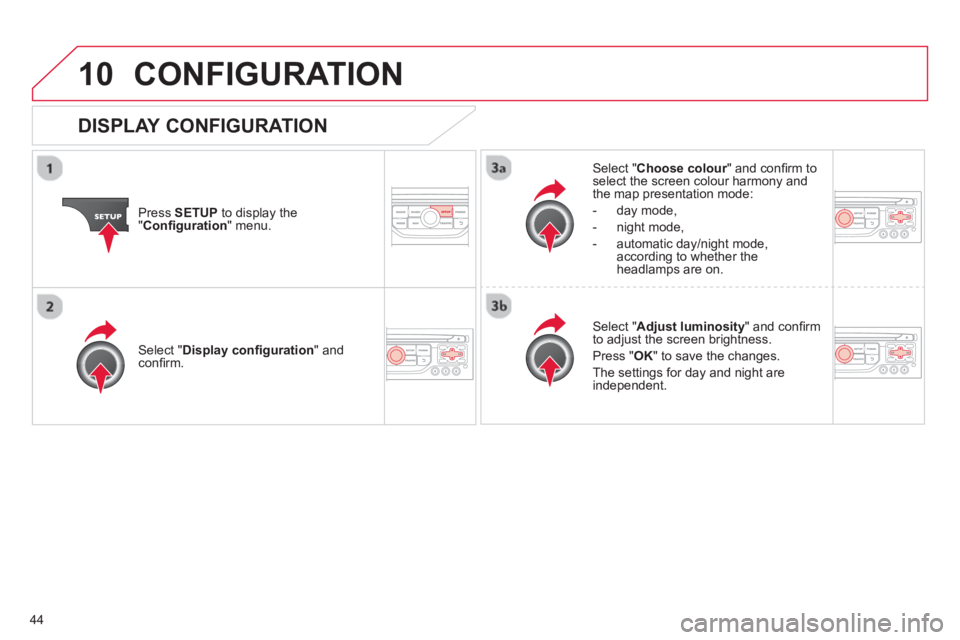

10CONFIGURATION
Press SETUP
to display the"Confi guration
" menu.
Select " Choose colour" and confi rm torselect the screen colour harmony and
the map presentation mode:
-
day mode,
- n
ight mode,
- automatic day
/night mode,according to whether the
headlamps are on.
Select " Adjust luminosity" and confi rm
to adjust the screen brightness.
Pr
ess " OK" to save the changes.
The settings
for day and night are independent.

Select " Display confi guration" andconfi rm.


DISPLAY CONFIGURATION

48

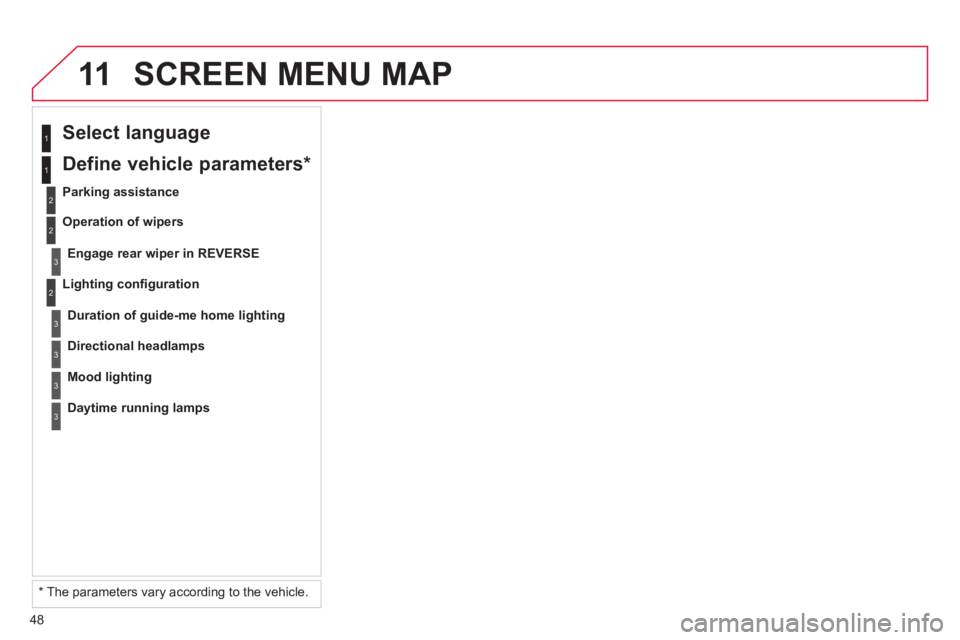

11 SCREEN MENU MAP
2
3
3
1
2
Lighting confi guration


Select language


Parking assistance
En
gage rear wiper in REVERSE
Duration of guide-me home lighting
1
Define vehicle parameters *
2

Operation of wipers
3Directional headlamps
3Mood lighting
3Daytime running lamps

*
The parameters var
y according to the vehicle.
