25
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack,bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres andrefit your summer tyres.



Observe the recommendations
on maintenance


Check the tyre pressures regularly, whencold, referring to the label in the door aperture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engineoil, oil filter, air filter...) and obser ve theschedule of operations recommended by the manufacturer.




When refuelling, do not continue after the 3 rd
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel. Disconnect your por table devices beforeleaving the vehicle.

37
Monitoring
Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the following warning lamps indicates a fault which
requires action on the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther byreading the associated message in the multifunction screen.If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified
workshop.

Warning lampis onCauseAction/Observations
STOPfixed, alone or associated with another warning lamp, accompanied by anaudible signal and a message on thescreen. Illumination o
f the warning lamp is
associated with a serious brakingsystem or engine coolant temperature
problem.
Stop as soon as it is safe to do so as the engine may cut out when driving.
Park, switch off the ignition and call a CITROËN dealer
or a qualified workshop.
Servicetemporarily. Minor problems have occurred for
which there is no specific warning lamp. Identi
fy the problem by reading the message shown in
the screen, such as, for example:
- the en
gine oil level,
- the screenwash level,
- the remote control batter
y,
- saturation of the par ticle emission filter on Diesel
vehicles (see "Checks - § particle emissionsfilter").
For any other faults, contact a CITROËN dealer or a
qualified workshop.
fix
ed. Major problems have occurred for
which there is no specific warning lamp. Identif
y the problem by reading the message shownin the screen and contact a CITROËN dealer or a qualified workshop.

45
Monitoring
System which informs the driver whether theengine oil level is correct or not.
This information is indicated for a few secondswhen the ignition is switched on, after theservice information.
Engine oil level indicator

The level shown will only be correctif the vehicle is on level ground and the engine has been off for more than 30 minutes.
Oil level correct
Oil level low
This is indicated by the flashing of "OIL", linked with the ser vice warning lamp, accompaniedby an audible signal and a message in themultifunction screen.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to prevent damage to the engine.


Oil level indicator fault

This is indicated by the flashing of "OIL--"
. Contact a CITROËN dealer or a qualified
workshop.
Th
ere are 2 marks on the
di
pstick:

-
A
= max; never exceed this level (risk of damage to theengine),
-
B
= min; top up the level via
the oil filler cap, using thegrade of oil suited to your engine.




Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.

185
Checks

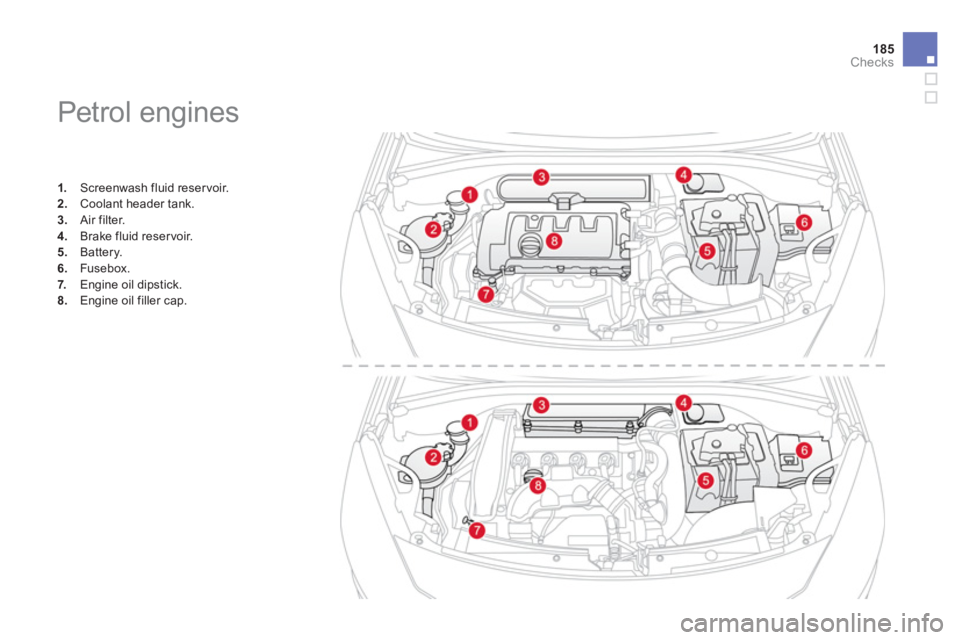

Petrol engines
1.
Screenwash fluid reservoir. 2.Coolant header tank.3.Air filter.
4.
Brake fluid reservoir.
5. Battery.
6.Fusebox.
7. Engine oil dipstick.8.Engine oil filler cap.

187
Checks

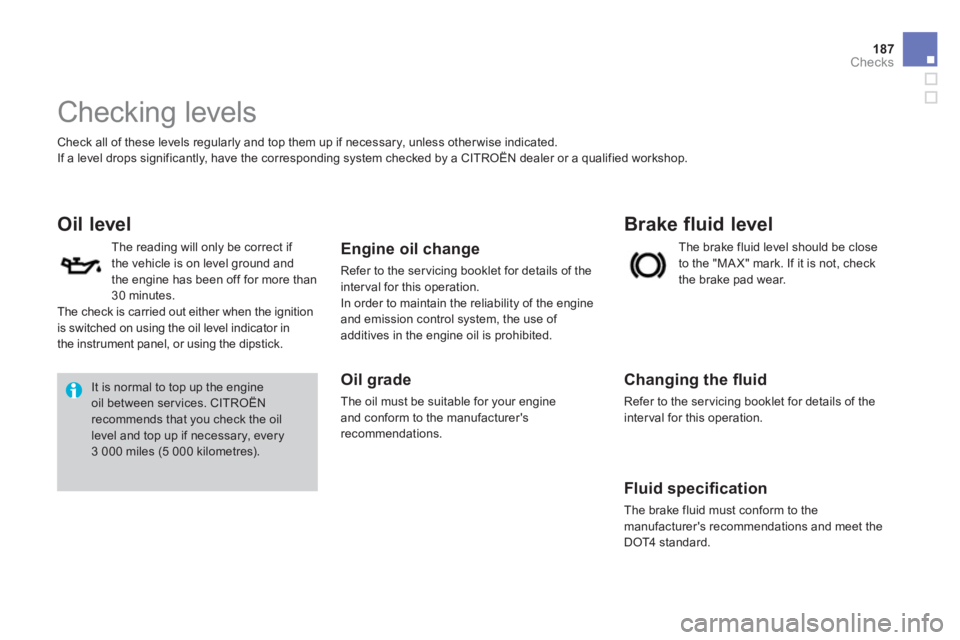

Checking levels
Check all of these levels regularly and top them up if necessary, unless other wise indicated.
If a level drops si
gnificantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.


Oil level
Engine oil change
Refer to the servicing booklet for details of theinterval for this operation.
In order to maintain the reliability of the engine and emission control system, the use of additives in the engine oil is prohibited.
Oil grade
The oil must be suitable for your engine and conform to the manufacturer'srecommendations.



Brake fluid level


Changing the fl uid

Refer to the servicing booklet for details of the
interval for this operation.


Fluid specifi cation

The brake fluid must conform to themanufacturer's recommendations and meet theDOT4 standard.
Th
e brake fluid level should be closeto the "MA X" mark. If it is not, check
the brake pad wear. The reading will only be correct if
the vehicle is on level ground and
the engine has been off for more than30 minutes.
The check is carried out either when the ignition is switched on using the oil level indicator in
the instrument panel, or using the dipstick.
It is normal to top up the engine oil between services. CITROËNrecommends that you check the oil
level and top up if necessary, every 3 000 miles (5 000 kilometres).

189Checks

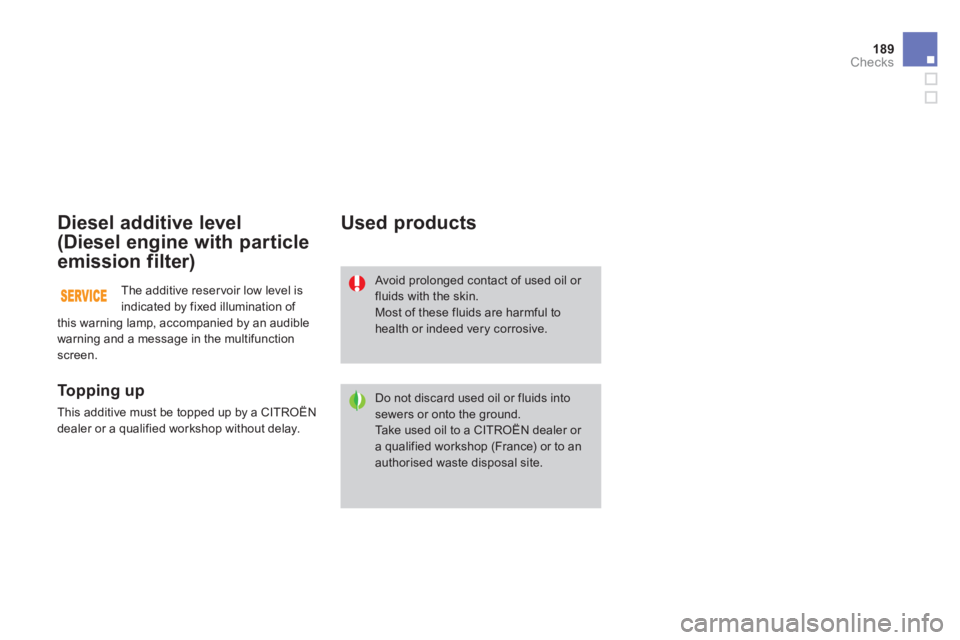

Diesel additive level
(Diesel engine with particle
emission filter)

To p p i ng up

This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

Used products
Avoid prolonged contact of used oil or fluids with the skin. Most of these fluids are harmful to health or indeed very corrosive.
Do not discard used oil or fluids intosewers or onto the ground.
Take used oil to a CITROËN dealer or a qualified workshop (France) or to an authorised waste disposal site. Th
e additive reservoir low level is
indicated by fixed illumination of
this warning lamp, accompanied by an audible
warning and a message in the multifunctionscreen.

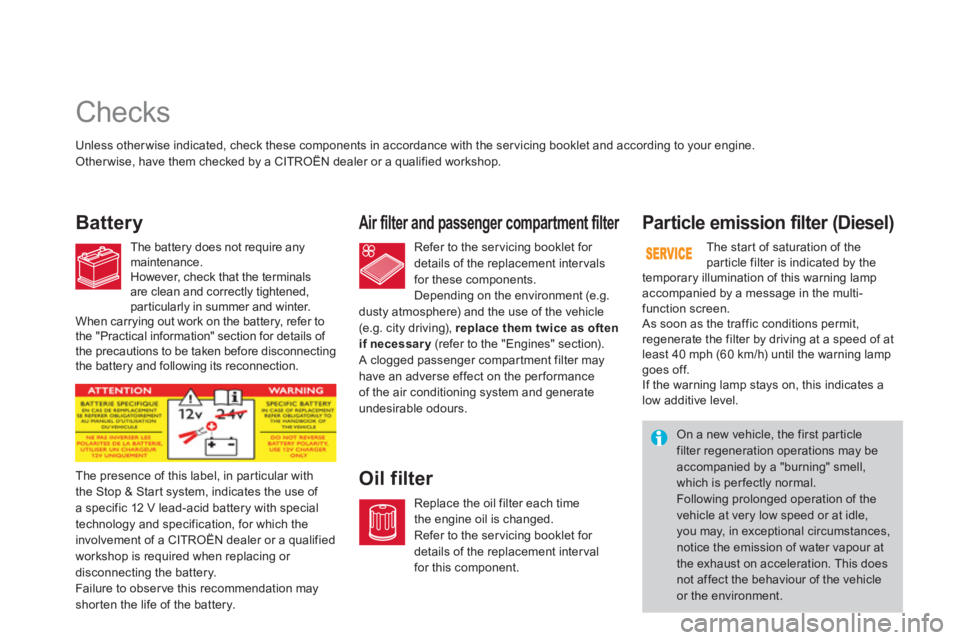

Checks
Battery

Air filter and passenger compartment filter


Oil filter
Par ticle emission filter (Diesel)
Unless other wise indicated, check these components in accordance with the ser vicing booklet and according to your engine.
Other wise, have them checked b
y a CITROËN dealer or a qualified workshop.
The batter
y does not require any
maintenance.

However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer to
the "Practical information" section for details of
the precautions to be taken before disconnecting
the battery and following its reconnection. Re
fer to the ser vicing booklet for
details of the replacement inter vals
for these components.
Dependin
g on the environment (e.g.
dusty atmosphere) and the use of the vehicle(e.g. city driving), replace them twice as often
if necessary(refer to the "Engines" section).
A clogged passenger compar tment filter may
have an adverse effect on the performance
of the air conditioning system and generateundesirable odours.
Re
place the oil filter each time
the engine oil is changed.
Re
fer to the ser vicing booklet for
details of the replacement inter val
for this component. The
presence of this label, in par ticular with
the Stop & Star t system, indicates the use of a specific 12 V lead-acid battery with special
technology and specification, for which the
involvement of a CITROËN dealer or a qualified
wor
kshop is required when replacing or disconnecting the battery. Failure to observe this recommendation mayshor ten the life of the battery. Th
e start of saturation of theparticle filter is indicated by the
temporary illumination of this warning lamp
accompanied by a message in the multi-
function screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lampgoes off.
If the warning lamp stays on, this indicates a low additive level.

On a new vehicle, the first par ticlefilter regeneration operations may be accompanied by a "burning" smell, which is perfectly normal.
Following prolonged operation of thevehicle at very low speed or at idle, you may, in exceptional circumstances,
notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.

191Checks

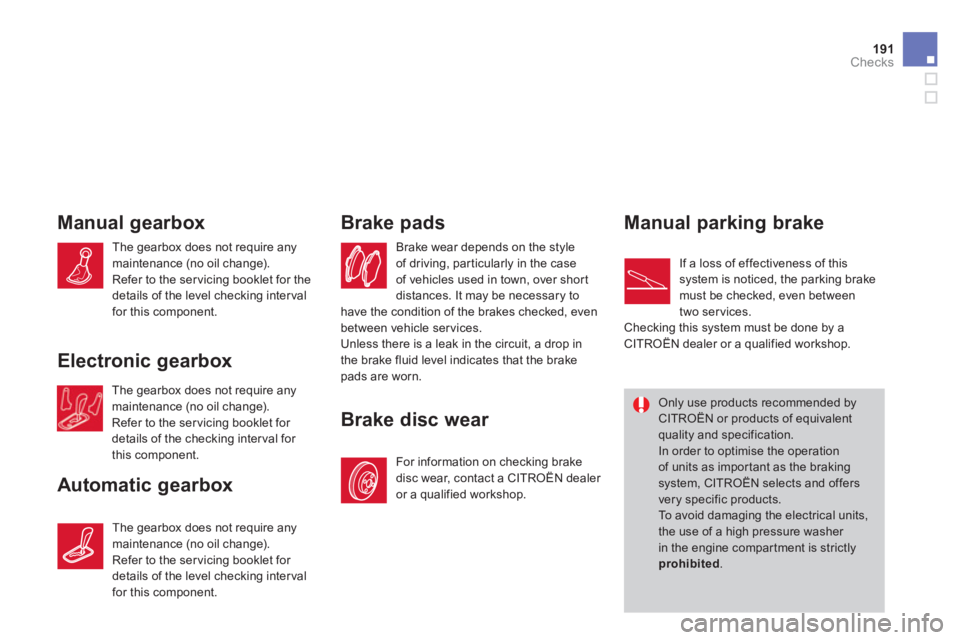

Manual gearbox
Automatic
gearboxBrake
pads
Brake wear depends on the style
of driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It ma
y be necessary to have the condition of the brakes checked, even between vehicle services. Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn. The
gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for the
details of the level checking interval for this component.















Only use products recommended by CITROËN or products of equivalent
quality and specification.
In order to optimise the operationof units as impor tant as the braking system, CITROËN selects and offers very specific products.
To avoid damaging the electrical units, the use of a high pressure washer in the engine compar tment is strictly prohibited.
The gearbox does not require any
maintenance (no oil change).
Refer to the ser vicing booklet for
details of the level checking inter val for this component.
Electronic gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
details of the checking interval for
this component.
For information on checkin
g brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake disc wear
Manual parking brake

If a loss of effectiveness of this system is noticed, the parking brake
must be checked, even between
tw
o services.
Checking this system must be done by aCITROËN dealer or a qualified workshop.

195
Practical information

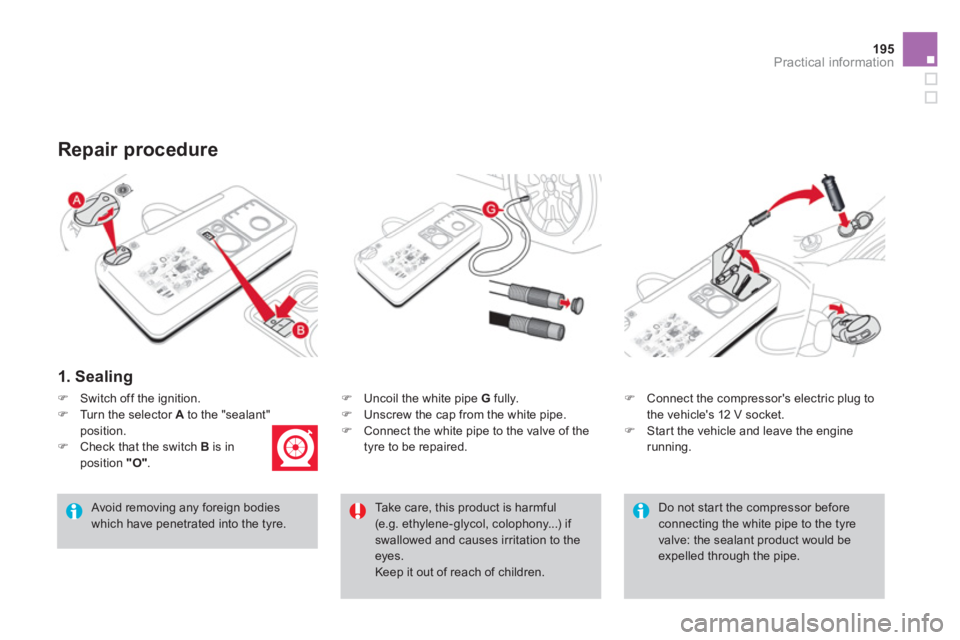

1. Sealing
) Uncoil the white pipe G
fully. )
Unscrew the cap from the white pipe.
)
Connect the white pipe to the valve of the
tyre to be repaired.
Repair procedure
Avoid removing any foreign bodieswhich have penetrated into the tyre.
)
Connect the compressor's electric plug to
the vehicle's 12 V socket.
) Star t the vehicle and leave the engine
running.
)Switch off the ignition. )Turn the selector A to the "sealant"
position.)Check that the switch B
is in position "O"
.
Take care, this product is harmful (e.g. ethylene-glycol, colophony...) if swallowed and causes irritation to theeyes.Keep it out of reach of children.


Do not star t the compressor before connecting the white pipe to the tyre valve: the sealant product would beexpelled through the pipe.

199Practical information

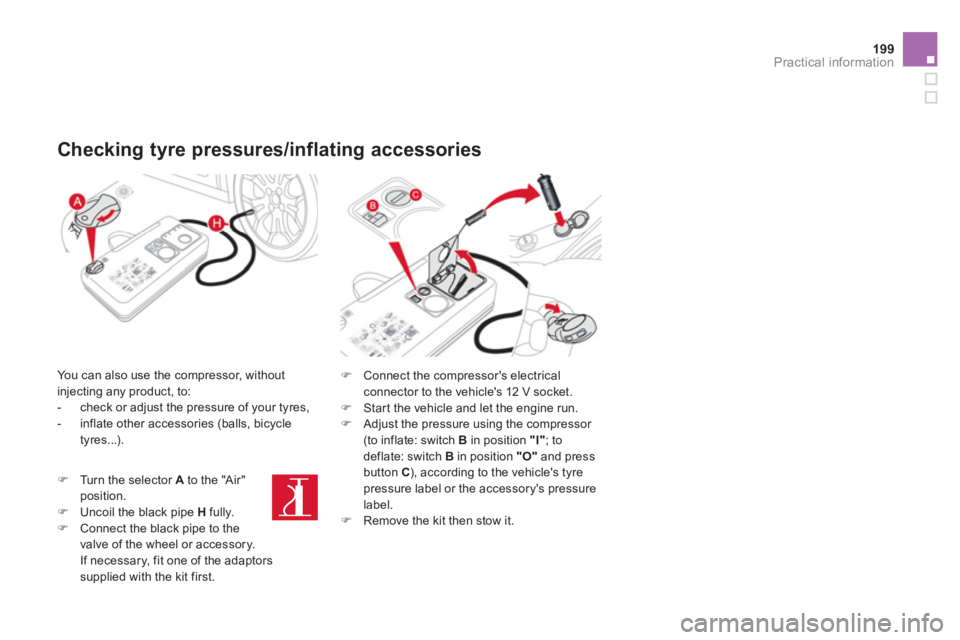

Checking tyre pressures/inflating accessories


You can also use the compressor, without
injecting any product, to:


- check or adjust the pressure of your tyres,

- inflate other accessories (balls, bicycle
tyres...).
) Connect the compressor's electricalconnector to the vehicle's 12 V socket. )
Start the vehicle and let the engine run.)
Adjust the pressure using the compressor
(to inflate: switch Bin position "I"; todeflate: switch Bin position "O"
and pressbutton C ), according to the vehicle's tyre
pressure label or the accessory's pressure label.) Remove the kit then stow it.


)Turn the selector A
to the "A ir"position.)Uncoil the black pipe Hfully. )Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptors supplied with the kit first.
