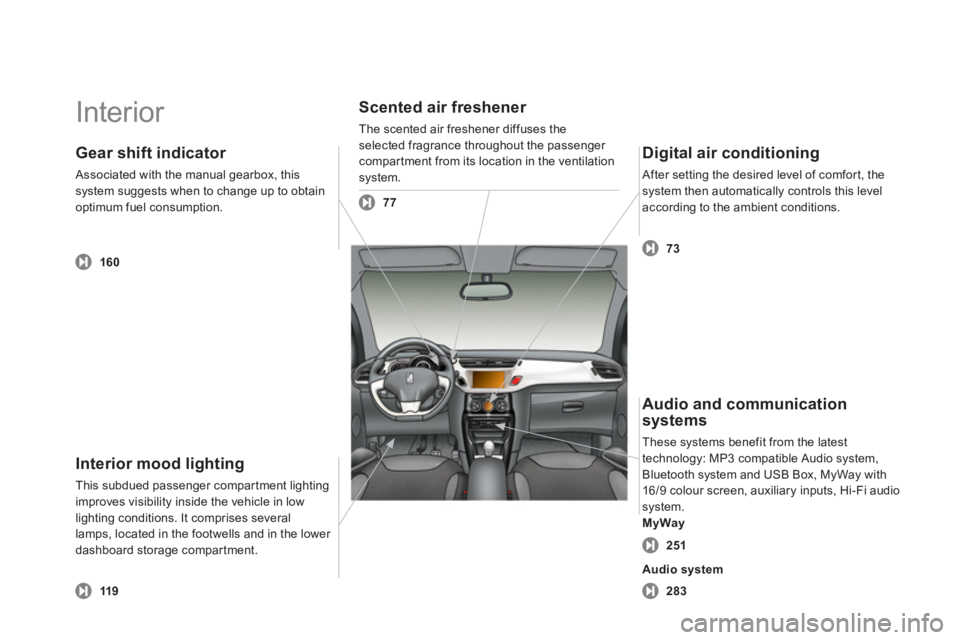

Interior
Interior mood lighting
This subdued passenger compartment lightingimproves visibility inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.
Gear shift indicator
Associated with the manual gearbox, this system suggests when to change up to obtain
optimum fuel consumption.
Scented air freshener

The scented air freshener diffuses theselected fragrance throughout the passenger compartment from its location in the ventilation
system.

Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this level
according to the ambient conditions.
119
160
77
73
283

Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, MyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio system.MyWay
251
Audio system

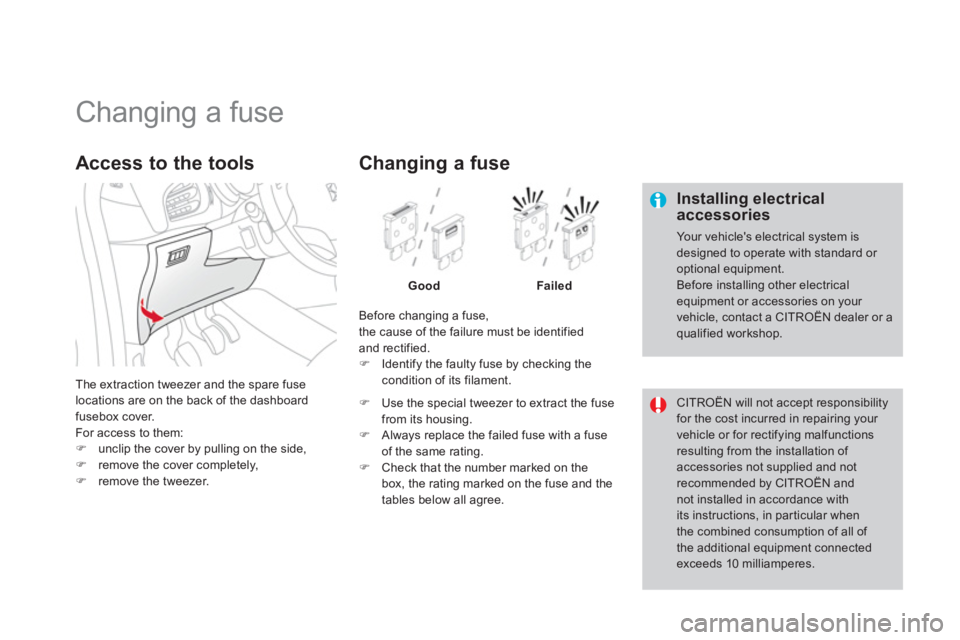

Changing a fuse

Installing electricalaccessories
Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electricalequipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.

CITROËN will not accept responsibilityfor the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
The extraction tweezer and the s
pare fuse
locations are on the back of the dashboardfusebox cover.
For access to them:)unclip the cover by pulling on the side, )remove the cover completely,)remove the tweezer.

Access to the tools

Before changing a fuse,the cause of the failure must be identifiedand rectified. )
Identify the faulty fuse by checking thecondition of its filament.


Changing a fuse
GoodFailed
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the failed fuse with a fuse of the same rating.)
Check that the number marked on the
box, the rating marked on the fuse and the
tables below all agree.
