Instruments and controls
1.
Steering lock and ignition. 2.
Audio equipment steering wheel controls.3.
Wiper/screenwash/trip computer stalk.4.
Scented air freshener.5.
Central locking switch.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Side adjustable air vent. 12.Glove box/Passenger's airbag deactivation. 13.Parking brake.14.Central armrest with storage.15.
Upper and lower storage.16.
MyWay or Audio system. 17.Heating/air conditioning controls.

Familiarisation
Vent ilat ion


Advice on interior settings
Digital air conditioning:use of the fully automatic mode by pressing the "AUTO"
button is recommended.
I require...
Heating or Manual air conditioning
Air distributionAir flowAir recirculation /Exterior air intakeTemperatureManual A/C
HEAT
COOL
DEMISTINGDEFROSTING

Warning lampis onCauseAction/Observations


Diesel enginepre-heating
fixed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp goes off before star ting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thir ty seconds in extreme climatic conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then star t the engine.
Parking brake
fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal.
Obser ve the safety.
For fur ther information on the parking brake, refer to
the "Driving" section.

Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
system has put the engine into STOPmode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want
t
o move off.
flashes for afew seconds, then goes off.
STOP mode is temporarily unavailable. or STA R T m o d e i s i n v o ke dautomatically. Re
fer to "Driving - § Stop & Start" for special cases
with STOP mode and START mode.

003
Comfort
This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments
for the seats, steering wheel and mirrors, for your comfor t and an optimum driving position.

Vent ilat ion
Air intake
The air circulating in the passenger compar tment
is filtered and originates either from the outside
via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routesdepending on the controls selected by
the driver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you to
di
ffuse the air in the passenger compar tment combining several air vents.
The air flow control enables you to increase or reduce the speed of the ventilation blower.


Control panel

The controls of this system are grouped
together on control panel Aon the centre console. Depending on the model, the functionsoffered are:


- the level of comfort required,

- air flow,

- air distribution,

- demistin
g-defrosting,

- manual or digital air conditioning controls.

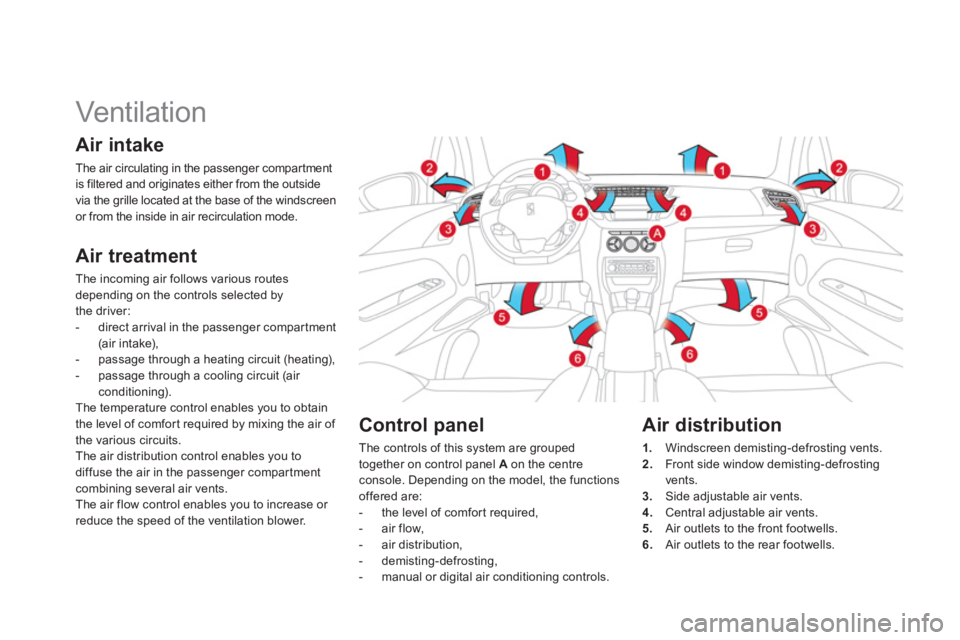

Air distribution
1.
Windscreen demisting-defrosting vents. 2.Front side window demisting-defrostingvents.3.Side adjustable air vents. 4.
Central adjustable air vents.
5. Air outlets to the front footwells.
6.Air outlets to the rear footwells.

Heating/ Ventilation
Manual control panel Electric control panel

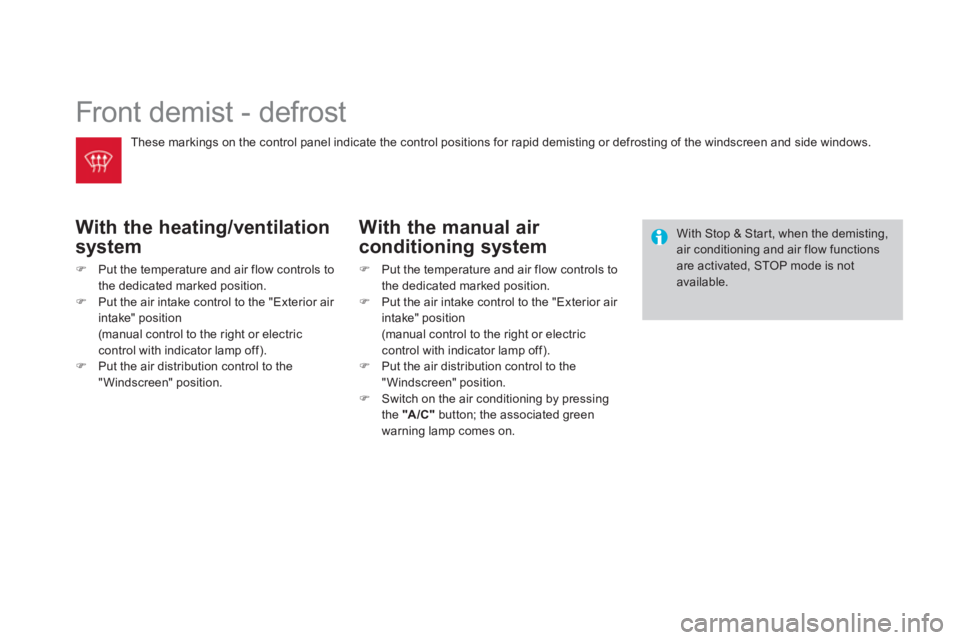

Front demist - defrost
With the heating/ventilation
s
ystem
)Put the temperature and air flow controls to
the dedicated marked position. )Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). )Put the air distribution control to the"Windscreen" position.
These markin
gs on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.


With the manual air
conditioning system
)
Put the temperature and air flow controls to
the dedicated marked position.) Put the air intake control to the "Exterior air
intake" position
(manual control to the right or electriccontrol with indicator lamp off).) Put the air distribution control to the "Windscreen" position. )
Switch on the air conditioning by pressingthe "A/C"
button; the associated green
warn
ing lamp comes on.

With Stop & Star t, when the demisting, air conditioning and air flow functionsare activated, STOP mode is notavailable.

It is possible to adjust one or more functionsmanually while leaving the other functions in automatic mode.
The "AUTO"
symbol switches off.
To return to automatic mode, press the "AUTO"button.

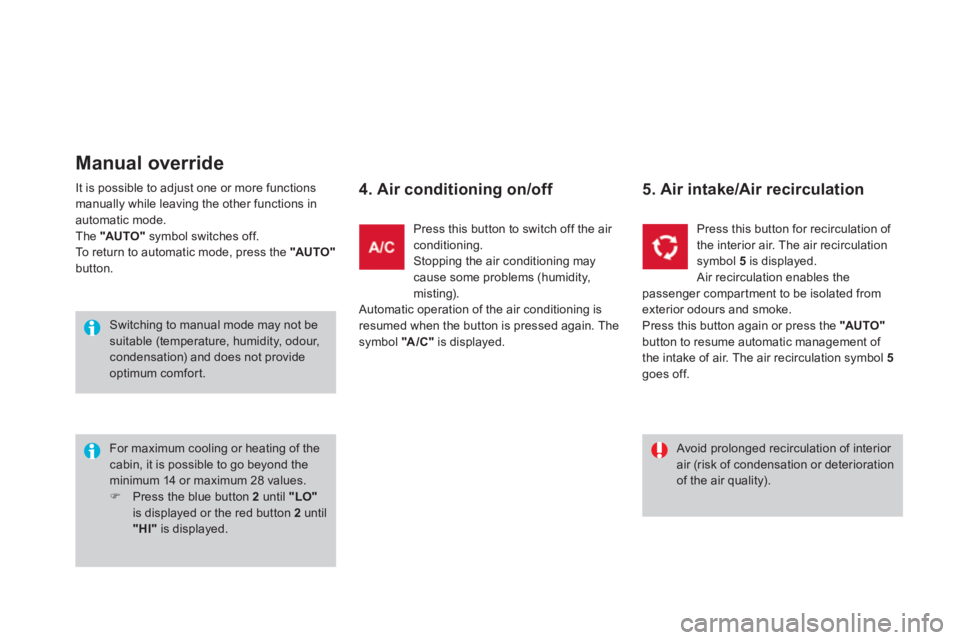

Manual override

4. Air conditioning on/off

For maximum cooling or heating of the cabin, it is possible to go beyond the minimum 14 or maximum 28 values.)Press the blue button 2
until "LO"is displayed or the red button 2
until"HI"
is displayed. Pr
ess this button to switch off the air conditioning.

Stopping the air conditioning maycause some problems (humidity,
misting).
Automatic operation of the air conditioning isresumed when the button is pressed again. The
symbol "A/C"is displayed.


5. Air intake/Air recirculation
Press this button for recirculation of
the interior air. The air recirculation symbol 5is displayed.
Air recirculation enables the passenger compar tment to be isolated from exterior odours and smoke.
Press this button again or press the "AU TO "
button to resume automatic management of
the intake of air. The air recirculation symbol 5goes off.
Avoid prolonged recirculation of interior air (risk of condensation or deterioration of the air quality).

Switching to manual mode may not besuitable (temperature, humidity, odour,condensation) and does not provide optimum comfort.

Additional adjustments

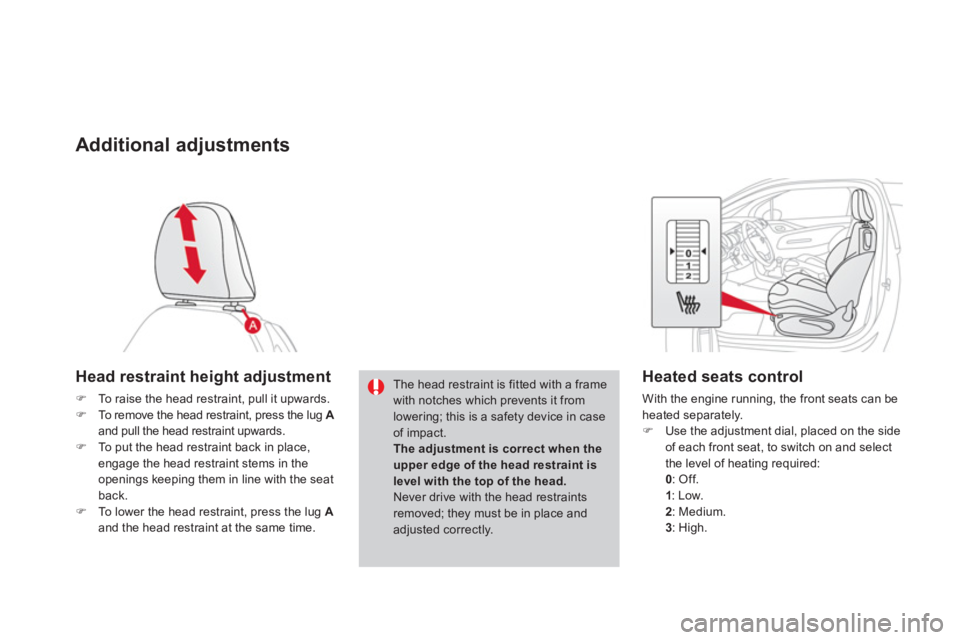

Head restraint height adjustment
)To raise the head restraint, pull it upwards. )To remove the head restraint, press the lug Aand pull the head restraint upwards. )To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat back. )To lower the head restraint, press the lug Aand the head restraint at the same time.
The head restraint is fitted with a framewith notches which prevents it fromlowering; this is a safety device in caseof impact. The adjustment is correct when theupper edge of the head restraint is level with the top of the head.Never drive with the head restraintsremoved; they must be in place andadjusted correctly.

Heated seats control

With the engine running, the front seats can be heated separately.)Use the adjustment dial, placed on the side
of each front seat, to switch on and select
the level of heating required: 0: Off. 1: Low. 2
: Medium. 3
: High.
