roof CITROEN DS3 CABRIO DAG 2013 Handbook (in English)

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear shift indicator invites youto change up; it is displayed in the instrumentpanel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"or Auto "A"
, according to the type of gearbox, without pressing theaccelerator pedal heavily or suddenly.


Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption and CO2emissions and also helpsreduce the background traffic noise.


If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.



Control the use of your
electrical equipment


Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning. Above 30 mph (50 km/h), close the windowsand leave the air vents open.
Remember to make use of equipment that can help keep the temperature in thepassenger compar tment down (sunroof and window blinds...). Switch off the air conditioning, unless it hasautomatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic. Switch off the heated seat as soon as possible.

25
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack,bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres andrefit your summer tyres.



Observe the recommendations
on maintenance


Check the tyre pressures regularly, whencold, referring to the label in the door aperture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engineoil, oil filter, air filter...) and obser ve theschedule of operations recommended by the manufacturer.




When refuelling, do not continue after the 3 rd
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel. Disconnect your por table devices beforeleaving the vehicle.

155
Safety
For the airbags to be fully effective, observe the following safety rules:
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on the centre par t of the wheel.
Passengers must not place their feet on thedashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.




Lateral airbags

Use only approved covers on the seats,compatible with the deployment the lateral airbags. For information on the range of seatcovers suitable for your vehicle, you cancontact a CITROËN dealer (see "Practical information - § Accessories").
Do not fix or attach anything to the seat backs (clothing...). This could cause injuryto the chest or arms if the lateral airbag isdeployed.
Do not sit with the upper par t of the body any nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof.This could cause injury to the head if thecurtain airbag is deployed. If fitted on your vehicle, do not remove thegrab handles installed on the roof, they play a part in securing the cur tain airbags.

Sit in a normal upright position.
Wear a correctly adjusted seat belt. Do not leave anything between the occupants and the airbags (a child, pet, object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a CITROËN dealer or a qualifiedworkshop.
Even if all of the precautions mentionedare obser ved, a risk of injury or of minor burns to the head, chest or arms when an airbag is deployed cannot be ruled out. Thebag inflates almost instantly (within a fewmilliseconds) then deflates within the sametime discharging the hot gas via openings provided for this purpose.

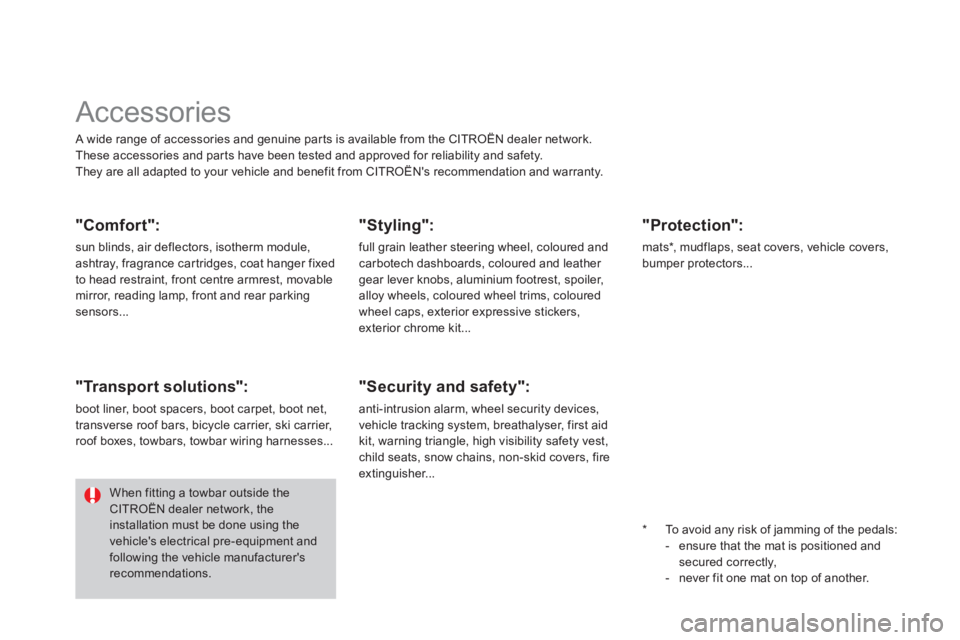

A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
The
y are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.





Accessories
"Comfort":
sun blinds, air deflectors, isotherm module,ashtray, fragrance car tridges, coat hanger fixed
to head restraint, front centre armrest, movable
mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net,
transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses...

"Styling":
full grain leather steering wheel, coloured and carbotech dashboards, coloured and leather gear lever knobs, aluminium footrest, spoiler,
alloy wheels, coloured wheel trims, coloured
wheel caps, exterior expressive stickers,
exterior chrome kit...

*

To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.


"Security and safety":

anti-intrusion alarm, wheel security devices,
vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety vest,child seats, snow chains, non-skid covers, fire extinguisher...


"Protection":

mats *
, mudflaps, seat covers, vehicle covers,
bumper protectors...

When fitting a towbar outside the CITROËN dealer network, the installation must be done using thevehicle's electrical pre-equipment and following the vehicle manufacturer'srecommendations.

2Access

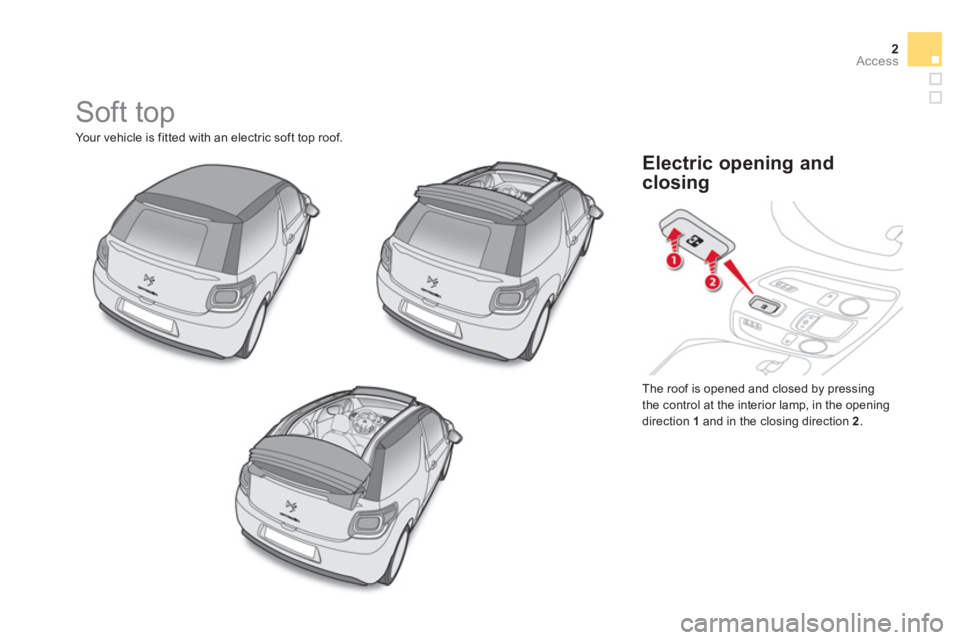

Soft top
Your vehicle is fitted with an electric soft top roof.
The roo
f is opened and closed by pressing
the control at the interior lamp, in the opening direction 1 and in the closing direction 2.


Electric opening and
closing

Access

In order to maintain the state of charge of the battery, it is recommended that the roof be operated with the engine running.

Operation of the roof is possible:


- engine running, or

- ignition on.



During operation of the roof with justthe ignition on, starting the engine may cause the roof to stop, depending on the state of charge of the battery. Tohave the roof continue the operation,operate the control again after the engine has started.

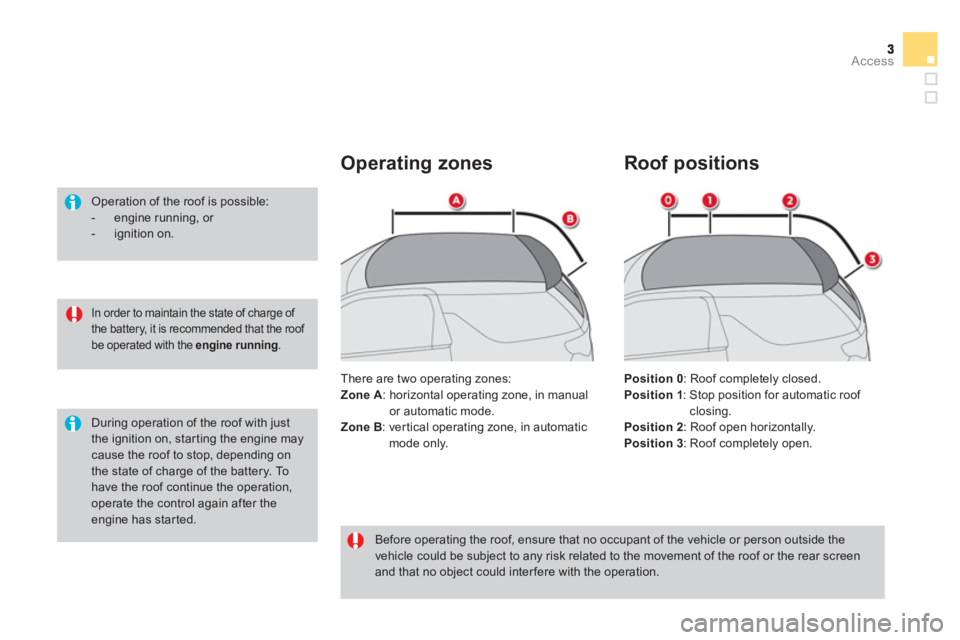

Operating zones
There are two operating zones:
Zone A : horizontal operating zone, in manualor automatic mode.
Zone B
: ver tical operating zone, in automaticmode only.
Before operating the roof, ensure that no occupant of the vehicle or person outside the vehicle could be subject to any risk related to the movement of the roof or the rear screen and that no object could interfere with the operation.


Roof positions
Position 0
: Roof completely closed.Position 1: Stop position for automatic roof closing. Position 2
: Roof open horizontally. Position 3
: Roof completely open.

4Access

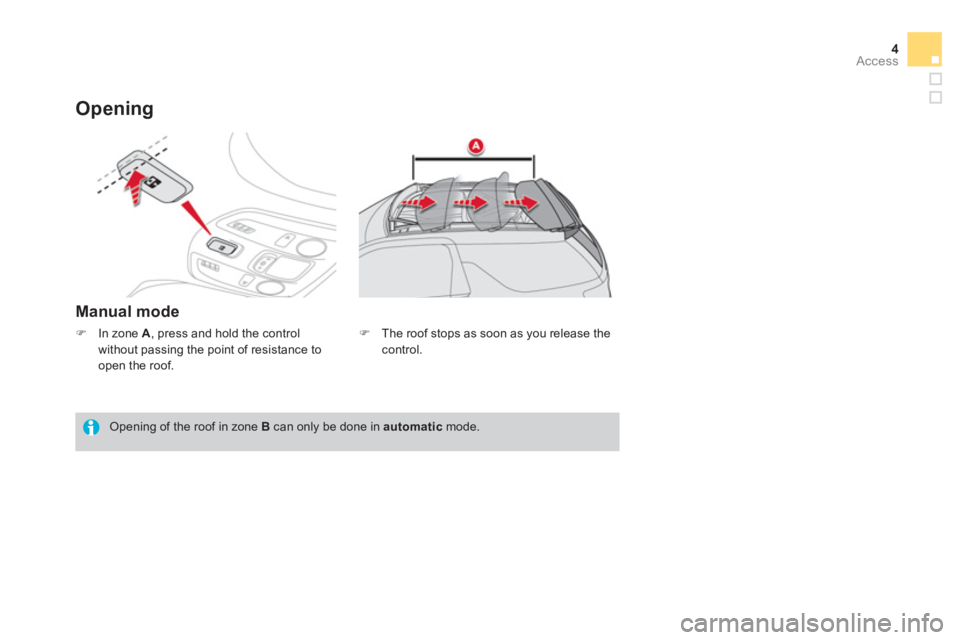

Opening
Manual mode
Opening of the roof in zone B
can only be done in automatic
mode.
)In zone A, press and hold the control
without passing the point of resistance to
open the roof. ) The roof stops as soon as you release thecontrol.

5
Access

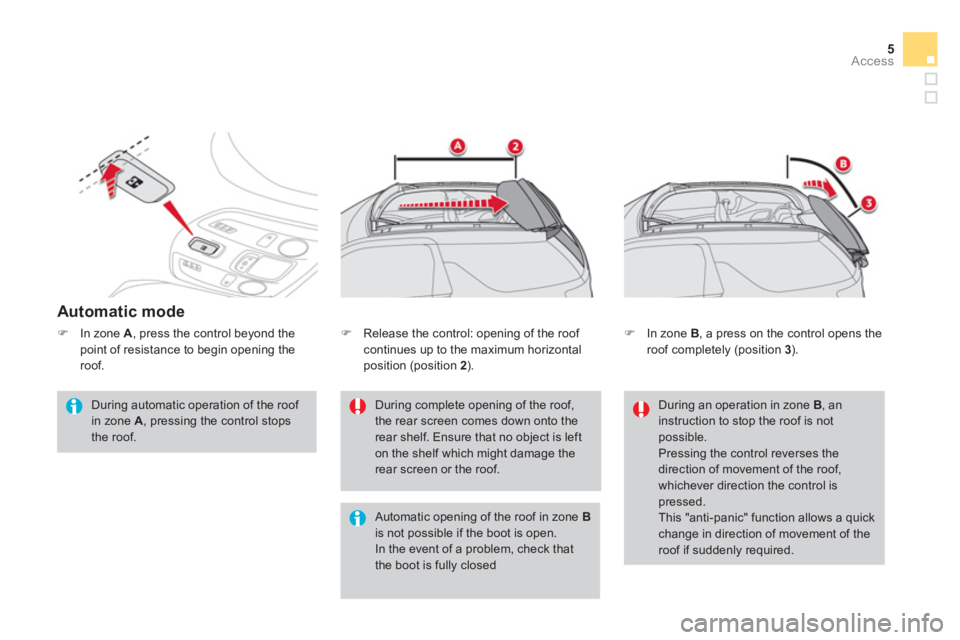

Automatic mode


During automatic operation of the roof in zone A, pressing the control stops
the roof.
During complete opening of the roof,the rear screen comes down onto the
rear shelf. Ensure that no object is lefton the shelf which might damage therear screen or the roof.

Automatic opening of the roof in zone Bis not possible if the boot is open. In the event of a problem, check that the boot is fully closed


During an operation in zone B
, an instruction to stop the roof is notpossible.
Pressing the control reverses the direction of movement of the roof,whichever direction the control ispressed.
This "anti-panic" function allows a quick
change in direction of movement of theroof if suddenly required.

)
Release the control: opening of the roof continues up to the maximum horizontal
position (position 2).
) In zone B
, a press on the control opens the
roof completely (position 3).)In zone A, press the control beyond the point of resistance to begin opening theroof.

6Access

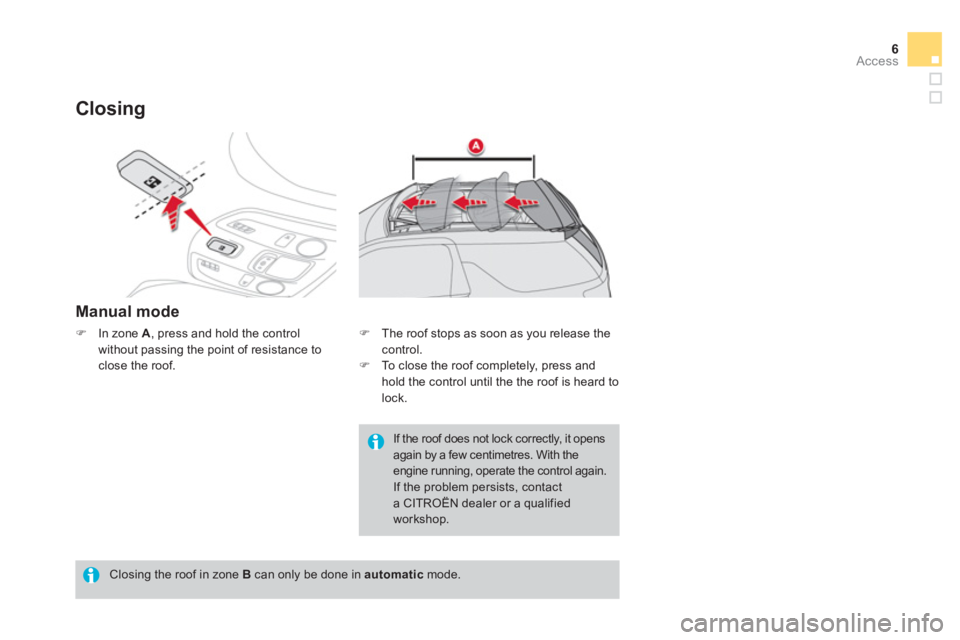

Closing
Manual mode
)In zone A, press and hold the control
without passing the point of resistance toclose the roof.
Closing the roof in zone B
can only be done in automatic
mode.
If the roof does not lock correctly, it opensagain by a few centimetres. With the engine running, operate the control again. If the problem persists, contact a CITROËN dealer or a qualified workshop.
)
The roof stops as soon as you release thecontrol. )
To close the roof completely, press and
hold the control until the the roof is heard tolock.

7Access

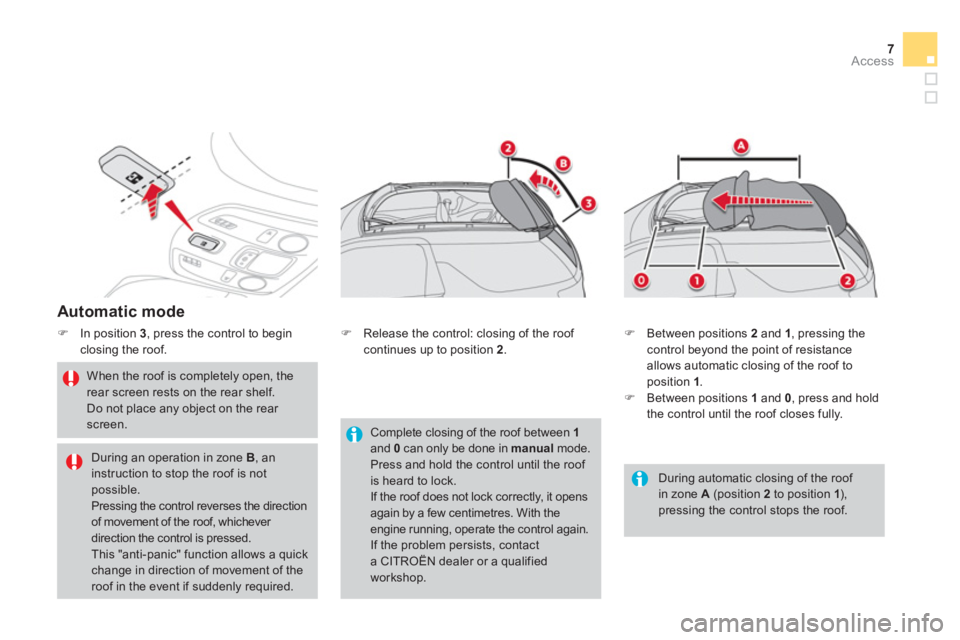

Automatic mode
)In position 3, press the control to begin closing the roof.


When the roof is completely open, the rear screen rests on the rear shelf. Do not place any object on the rear screen.


During automatic closing of the roof in zone A
(position 2to position 1 ),pressing the control stops the roof.
Complete closing of the roof between 1 and 0can only be done in manual
mode. Press and hold the control until the roof is heard to lock. If the roof does not lock correctly, it opensagain by a few centimetres. With the engine running, operate the control again. If the problem persists, contacta CITROËN dealer or a qualified workshop.
)
Release the control: closing of the roof continues up to position 2.)
Between positions 2
and 1, pressing the control beyond the point of resistance
allows automatic closing of the roof toposition 1.) Between positions 1
and 0
, press and hold
the control until the roof closes fully.


During an operation in zone B
, an instruction to stop the roof is not possible.
Pressing the control reverses the direction of movement of the roof, whichever
direction the control is pressed.
This "anti-panic" function allows a quick change in direction of movement of theroof in the event if suddenly required.
