CITROEN DS3 CABRIO DAG 2014 Handbook (in English)

99Access
System which provides full manual locking or
unlocking of the doors from the inside.
Manual central locking
control

Locking
)Press button Ato lock the vehicle.
The red indicator lamp on the button comes on.
Unlocking
) Press button A
again to unlock the vehicle.
The red indicator lamp on the button switches off.
If one of the doors is open, central locking from the inside does not take place.
If the vehicle is locked from the outside,the red indicator lamp flashes andbutton A
is inactive.)In this case, use the remote control or the key to unlock the vehicle.



Automatic central
locking

System which provides full automatic locking or unlocking of the doors and the boot while
driving.
You can activate or deactivate this function.


Locking

When the speed exceeds 6 mph (10 km/h), the doors and the boot lock automatically.

Unlocking
)
Above 6 mph (10 km/h), press button Ato
unlock the doors and the boot temporarily.
If one of the doors is open, theautomatic central locking does not take place.
If the boot is open, the automatic central locking of the doors is active.Driving with the doors locked can makeaccess more difficult for the emergencyservices in the event an emergency.

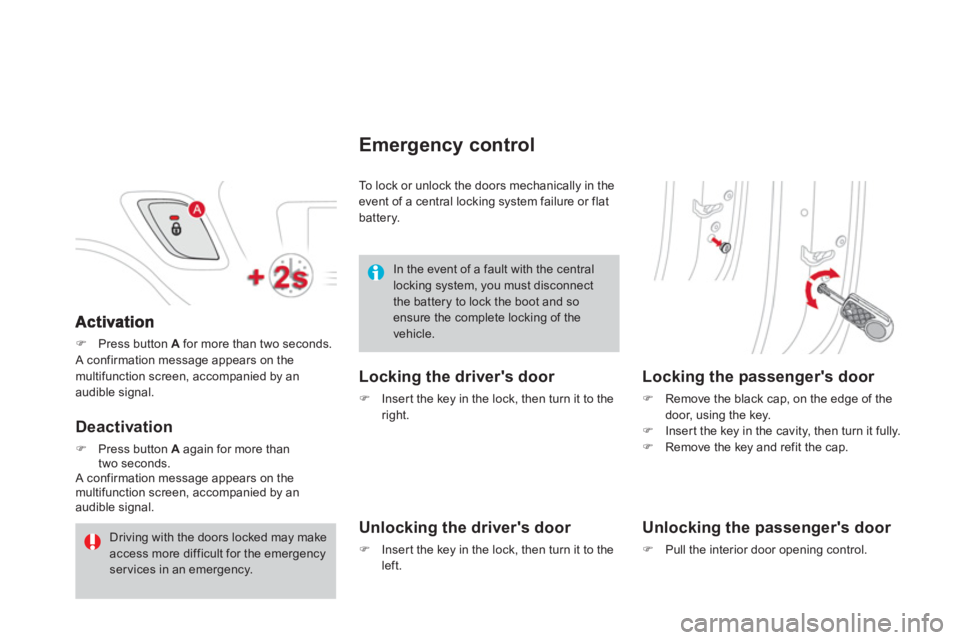

)Press button Afor more than two seconds.
A confirmation message appears on themultifunction screen, accompanied by an audible signal.
Deactivation
)Press button Aagain for more than
two seconds.
A confirmation message appears on themultifunction screen, accompanied by an audible signal.

To lock or unlock the doors mechanically in the
event of a central locking system failure or flatbattery.
Emergency control


Locking the driver's door
)
Inser t the key in the lock, then turn it to the
right.

Unlocking the driver's door
)
Inser t the key in the lock, then turn it to theleft.


Locking the passenger's door
)Remove the black cap, on the edge of the
door, using the key. )Inser t the key in the cavity, then turn it fully. )Remove the key and refit the cap.



Unlocking the passenger's door
)Pull the interior door opening control.
In the event of a fault with the central locking system, you must disconnectthe battery to lock the boot and soensure the complete locking of thevehicle.

Driving with the doors locked may make access more difficult for the emergency services in an emergency.

101Access











Boot


Opening
)After unlocking the vehicle using theremote control or the key, press the
opening control and raise the tailgate.
Closing
) Lower the tailgate using the interior grab
handle.
If the tail
gate is not closed correctly:
-when the engine is running, this
warning lamp comes on, accompanied
b
y a message on the multifunction
screen for a few seconds,
-when the vehicle is moving (speed above6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message on the multifunction screen for a few seconds.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
Tailgate release
Unlocking
)
Fold back the rear benchseat to gainaccess to the lock from inside the boot.)
Insert a small screwdriver into hole Aof thelock to unlock the tailgate.

Fuel tank Fuel tank capacity: approximately 50 litres (petrol) or 46 litres (Diesel) or 33 litres (LPG); (Depending on version: approximately 30 litres (petrol or Diesel)).
Low fuel level
Fillin
g
A label affixed to the inside of the flap remindsyou of the type of fuel to be used depending onyour engine.
Additions of fuel must be of at least 7 litres, in
order to be re
gistered by the fuel gauge.
The key cannot be removed from the lock until the cap is refitted. Opening the filler cap may create a noise caused by an inrush of air. This vacuum is entirely normal, resultingfrom the sealing of the fuel system. To
fill the tank safely: )the engine must be switched off,)
open the fuel filler flap,)
inser t the key in the cap, then turn it to
the left,
)remove the cap and hook it onto the clip
located on the inside of the flap, )fill the tank, but do not continue after the
3rd cut- off of the pump ; this could cause
malfunctions.
When
you have filled the tank:)put the cap back in place,)turn the key to the right, then remove it from the cap,)close the flap. Wh
en the fuel tank minimum level is reached this warning lamp comes on
on the instrument panel. When it firstcomes on there remains approximately 5 litres
of fuel in the tank.
You must refuel as soon as possible to avoid running out of fuel.
If you run out of fuel (Diesel), refer also to the
"Checks" section.
With Stop & Star t, never refuel with the system in STOP mode; you must switch off the ignition with the key.

103Access
Quality of the fuel used for
petrol engines

The petrol engines are perfectly compatible
with E10 or E24 type petrol biofuels (containing10 % or 24 % ethanol), conforming to Europeanstandards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reser ved exclusively for vehicles marketed for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol mustcomply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol(E10 0 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are per fectly compatiblewith biofuels which conform to current and future European standards (Diesel fuel which complies with standard EN 590 mixed with a
biofuel which complies with standard
EN 14214) available at the pumps (containing up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel
engines; however, this use is subject to strictapplication of the special ser vicing conditions.
Contact a CITROËN dealer or a qualified
workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
dama
ge to the engine and fuel system).
For the DS3 R ACING, CITROËNstrongly recommends the use of 98 RON unleaded petrol to ensure optimum operation of the engine (refer to the label inside the fuel filler flap).

* According to country of sale.

















Misfuel prevention (Diesel) * Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the
wrong fuel.
Located in the
filler neck, the misfuel prevention device appears when the filler cap is removed.
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The s
ystem remainsclosed and prevents filling.Do not persist but introduce a Diesel type filler nozzle.
It remains possible to use a fuel can to fill the tank. In order to ensure a good flow of fuel,do not place the nozzle of the fuel can in direct contact with the flap of the misfuel prevention device and pour slowly.



Tr a v e l l i ng abroad

As Diesel fuel pump nozzles maybe different in other countries, thepresence of the misfuel preventiondevice may make refuelling impossible.
Before travelling abroad, werecommend that you check with theCITROËN dealer network, whether your vehicle is suitable for the fuel pumps in the country in which you want to travel.

105
Access

005
Visibility
This section describes all of the lighting and wiper controls, headlamp adjustment, the various interior lamps including the interior mood lighting and in par ticular, the LED lamps, a true signature of your vehicle.

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting.
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility progressively according to climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when
th
e road is clear.

Main lighting
Other lamps are installed to fulfil therequirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for improved vision,
- LED lamps to be seen during the daytime.

Additional lighting

Various automatic lighting control modes
are also available accordin
g to the followingoptions:


- guide-me-home lighting,

- automatic illumination of headlamps.

Programming

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal surface of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.
