bluetooth CITROEN DS3 CABRIO DAG 2014 Handbook (in English)

Interior
Interior mood lighting
This subdued passenger compartment lightingimproves visibility inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.
Gear shift indicator
Depending on the driving conditions and your
driving style, this system may suggest changing
up to reduce your fuel consumption.
Scented air freshener

The scented air freshener diffuses theselected fragrance throughout the passenger compartment from its location in the ventilation
system.

Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this level
according to the ambient conditions.
119 17
3
77
73
313

Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, eMyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio system.eMyWay
259
Audio system

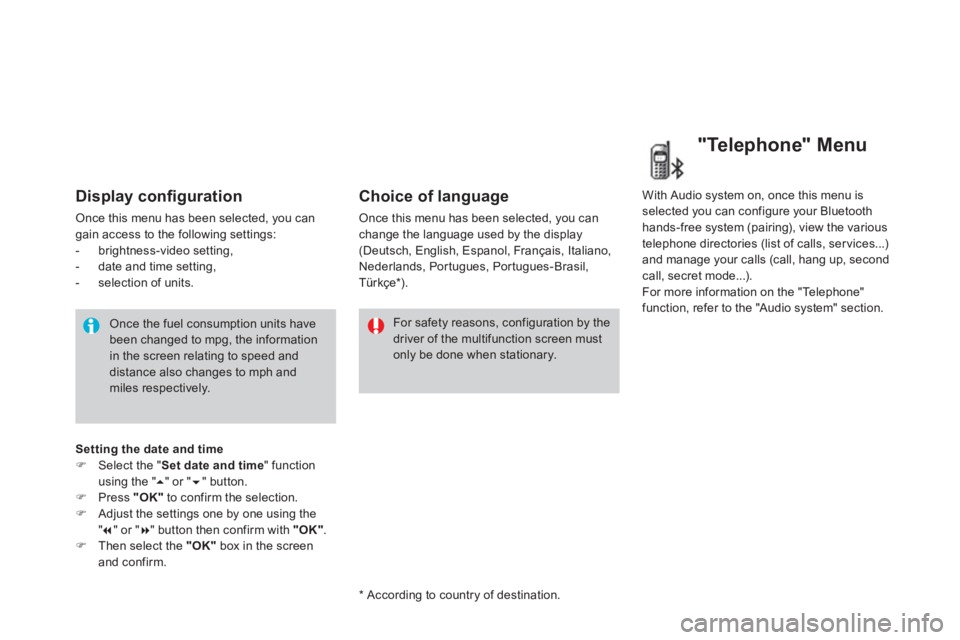

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the "Audio s
ystem" section.


"Telephone" Menu
Setting the date and time)Select the " Set date and time
" function using the "
" or " " button. )Press "OK"
to confirm the selection.)Adjust the settings one by one using the" " or "
" button then confirm with "OK".)Then select the "OK"
box in the screenand confirm.

013

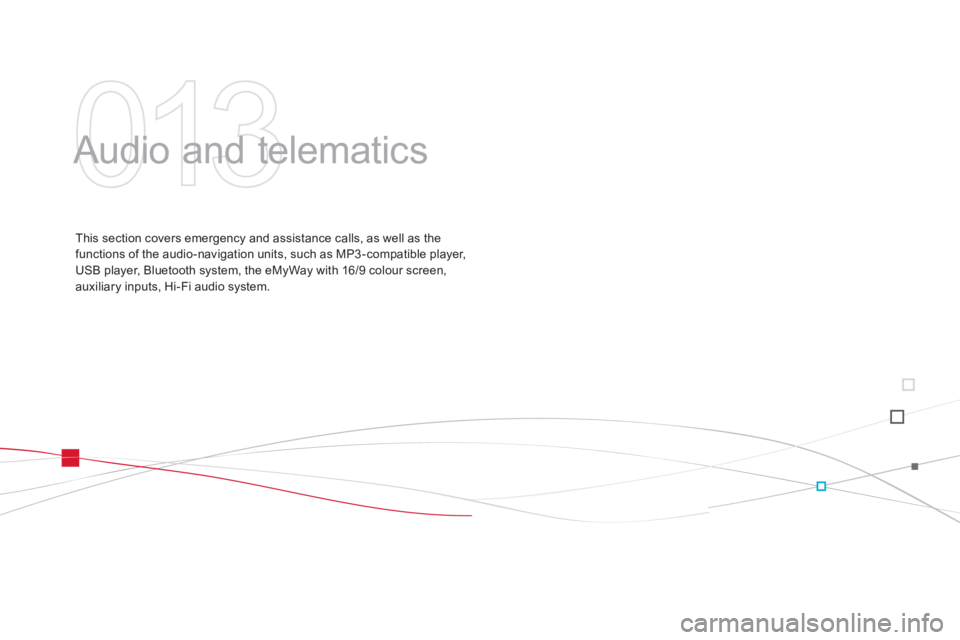

Audio and telematics
This section covers emergency and assistance calls, as well as the
functions of the audio-navigation units, such as MP3 -compatible player, USB player, Bluetooth system, the eMyWay with 16/9 colour screen, auxiliary inputs, Hi-Fi audio system.

259
operate in your vehicle.

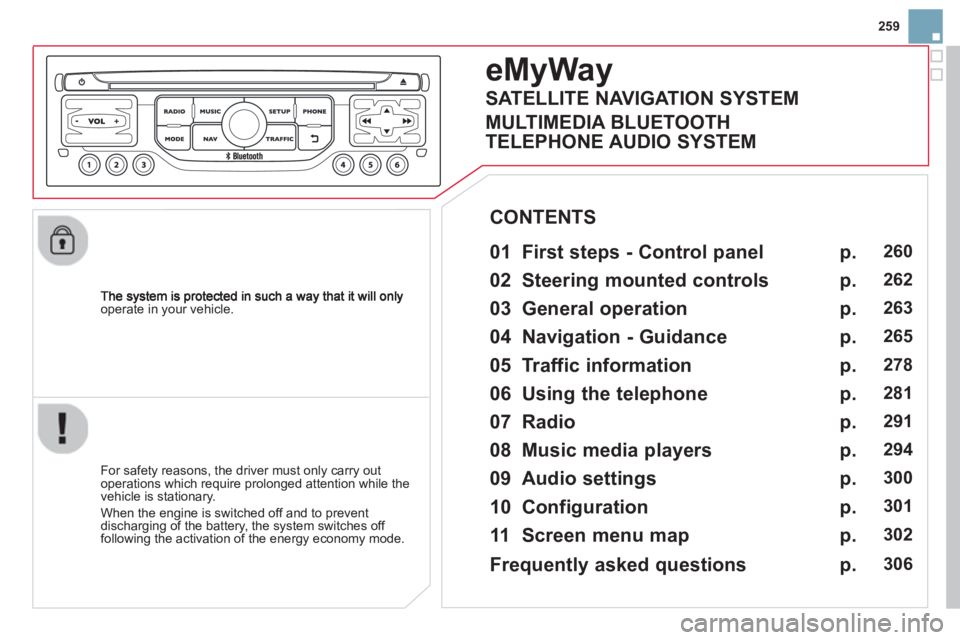

eMyWay


01 First steps - Control panel


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steerin
g mounted controls

03 General o
peration

04 Navi
gation - Guidance

05 Traffic information

06 Usin
g the telephone

07 Radio

08 Music media pla
yers

09 Audio settin
gs

10 Confi
guration

11 Screen menu ma
p
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
260
2
62
263
265
278
281
291
294
300
30
1
302
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

Frequentl
y asked questions p. 306

06
Pairing a Bluetooth telephone
First connection For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetoothmobile telephone to the hands-free system of the audio unit must be carried out with the vehicle stationary.

Activate the telephone's Bluetooth function and ensure that it is "visible to all" (telephoneconfi guration).
Press this button.
Select the name of the desired
peripheral from the list of devices detected then select "Connect " and confi rm.
The s
ystem offers to connect the
telephone:
-
in"Hands-free mode" (telephoneonly),
-
in "Audio" mode (streaming: playingmusic fi les on the telephone),
-
or "All
" (for selection of both
modes).
Select " OK
" and confi rm.
Select " Bluetooth functions " and confi rm.
Select "Peripherals search" andconfi rm.
The list of peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE
You can check the compatibility of your telephone at
www.citroen.co.uk (services).

283
06

Enter the same code on the telephone then accept
the connection.
Then accept automatic connection on the telephone to allow the
telephone to reconnect automaticall
y every time the vehicle is started.

The abilit
y of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
USING THE TELEPHONE


The " Hands-free mode
" should be used in preference if "Streaming"
is not desired.
The services available depend on the network, the SIM card and the compatibilit
y of the Bluetooth telephone used. Check the telephone manual
and with your network provider for details of the services available to you.
Select a code for the connection thenconfi rm "OK".


Depending on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.

On return to the vehicle,the last telephone connected automaticallyreconnects, within around 30 seconds after switching on the ignition (Bluetooth activated and visible).
To modi
fy the automatic connection mode, remove the pairing and
pair the telephone again with the desired mode.

285
06

Editing, importing or deleting a contact
Press PHONEthen select "Directory of contacts" and confi rm.
Select the desired contact and confi rm.
Select " Open " to view a contact on the
telephone or modify a contact saved in
the system.
Select " Import" to copy a contact from
the telephone to the system.
Select OK
or press the back button to exit this menu.
Select " Delete" to delete a contact
recorded in the system.
It is not possible to modi
fy or delete contacts in the telephone or theSIM card via the Bluetooth connection.
USING THE TELEPHONE


In the " Directory of contacts
" menu, the import and deletion of contacts is done one by one.

06
Press PHONEtwice.
Select " List of the paired peripherals"and confi rm.
It is possible to:
-
"
Connect" or " Disconnect " theselected telephone,
- delete the pairin
g of the selected
telephone.
It is also possible to select all pairin
gs.

USING THE TELEPHONE

Managing paired telephones

Changing the ringtone
Press PHONEtwice.
Select " Phone functions
" and confi rm.
Select " Ring options" and confi rm.
You can ad
just the volume and the type
of ringtone.
Select " Bluetooth functions".
Select " OK
" and confi rm to save thechanges.

08
Audio streaming
Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.
Connect the telephone: see "
USING THE TELEPHONE".
Select " Audio" or " All" profi le.
If pla
y does not start automatically, it may be necessary to start the audio playback from the telephone.
Control is from the peripheral device or by using the audio system buttons.
Once connected in streaming mode, the telephone is considered to bea media source.
It is recommended that you activate " Repeat" on the Bluetooth
peripheral.

MUSIC MEDIA PLAYERS


Connecting APPLE®players®
Connect the Apple ®player to the USB port using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio s
ystem.
The classi
fi cations available are those of the portable deviceconnected (artists / albums / genres / playlists / audiobooks / podcasts).
The default classifi cation used is b
y artist. To modify the classifi cationused, return to the fi rst level of the menu then select the desired classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.
The "
Shuffl e tracks" mode on an iPodÆ corresponds to the "Random" Æ
mode on the audio system.
The "
Shuffl e albums" mode on an iPodÆ corresponds to the "Random Æ
all" on the audio system.
"Shuffl e tracks" is restored b
y default on each connection.
The version o
f software in the audio system may not be compatible
with the generation of your Apple ®player.

303
11

Select TMC station
Automatic TMC
Manual TM
C
List of TMC stations

Display / Do not display
messages

"TRAFFIC INFORMATION"
MENU
Geo
graphic filter
Retain all the messages:
Retain the messages:

Around the vehicle

On the route


1
2
2
2
1
2
2
3
3
1
SCREEN MENU MAP(S)

Dial
Director
y of contacts
Call
Open
Import


"TELEPHONE" MENU
1
2
2
2
1
2
2
2
2
1
2
3
3
3
2
2
2
1
1
1
3
3
3
2
3
2
2
3
List of the paired peripherals

Connect

Di
sconnect

D
elete


D
elete all
Contact mem. status

Phone functions
Ring options
Delete calls log
Bluetooth functions
Peripherals search
Rename radiotele
phone

Hang up

Display all phone contacts
Delete
Contacts management
New contact
Delete all contacts
Im
port all the entries
Synchronization option
s

Display telephone contacts
No s
ynchronization

Displa
y SIM card contacts
2Cancel
2Sort by First name/Name
3
Cancel
