CITROEN DS3 CABRIO DAG 2016 Handbook (in English)

7Access
During automatic closing of the roof in zone A (position 2 to position 1 ), pressing the control stops the roof.
 Between positions 2 and 1 , pressing the control beyond the point of resistance allows automatic closing of the roof to position 1 .  Between positions 1 and 0 , press and hold the control until the roof closes fully.

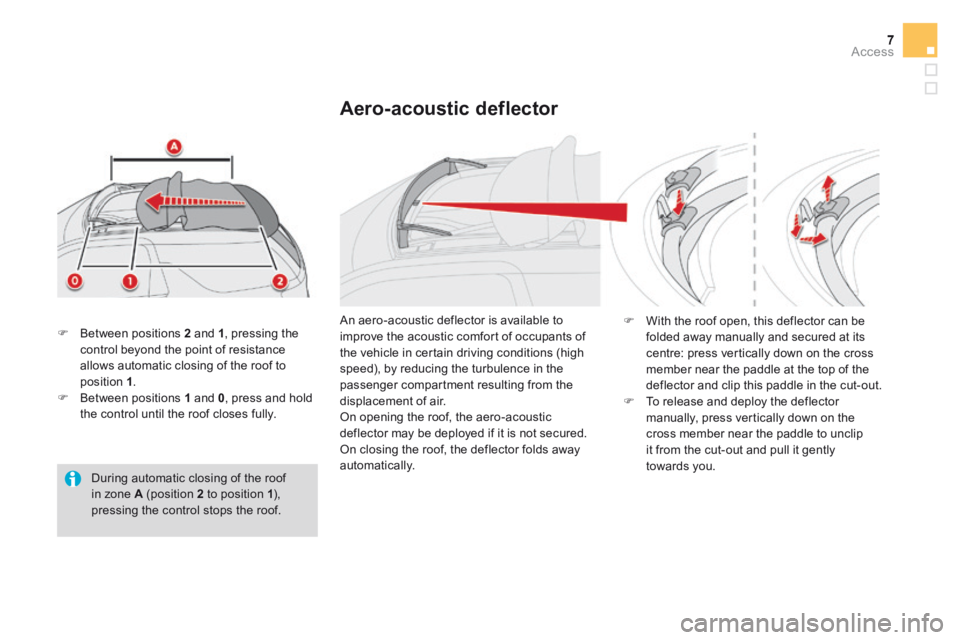

Aero-acoustic deflector
An aero-acoustic deflector is available to improve the acoustic comfort of occupants of the vehicle in certain driving conditions (high speed), by reducing the turbulence in the passenger compartment resulting from the displacement of air. On opening the roof, the aero-acoustic deflector may be deployed if it is not secured. On closing the roof, the deflector folds away automatically.
 With the roof open, this deflector can be folded away manually and secured at its centre: press vertically down on the cross member near the paddle at the top of the deflector and clip this paddle in the cut-out.  To release and deploy the deflector manually, press vertically down on the cross member near the paddle to unclip it from the cut-out and pull it gently towards you.

8Access
Operating the roof when
driving
If a roof operation is started while the vehicle's speed is below about 70 mph (120 km/h), exceeding this speed limitation leads to the following situations, depending on the type of roof operation in progress: - an operation in progress in zone A is stopped,
The roof opening and closing control operates up to about 70 mph (120 km/h). Above this speed, a message in the screen informs you that operation of the roof is not possible (speed too high).
- an opening operation in progress in zone Bis continued through to completion, - a closing operation in progress in zone B is stopped and complete opening of the roof to position 3 is carried out automatically,
- an opening or closing operation in zone Bfollowing an "anti-panic" function is continued through to completion.
A new operation of the roof will be possible as soon as the vehicle's speed drops below about 70 mph (120 km/h).
If the roof stops in zone B , a message in the screen will ask you to stop the operation of the roof immediately.  Press and hold the control: - in the opening direction to reach position 3 , - in the closing direction to reach position 2 .
Downgraded operation
You must not drive when the roof is stopped in zone B .

9Access

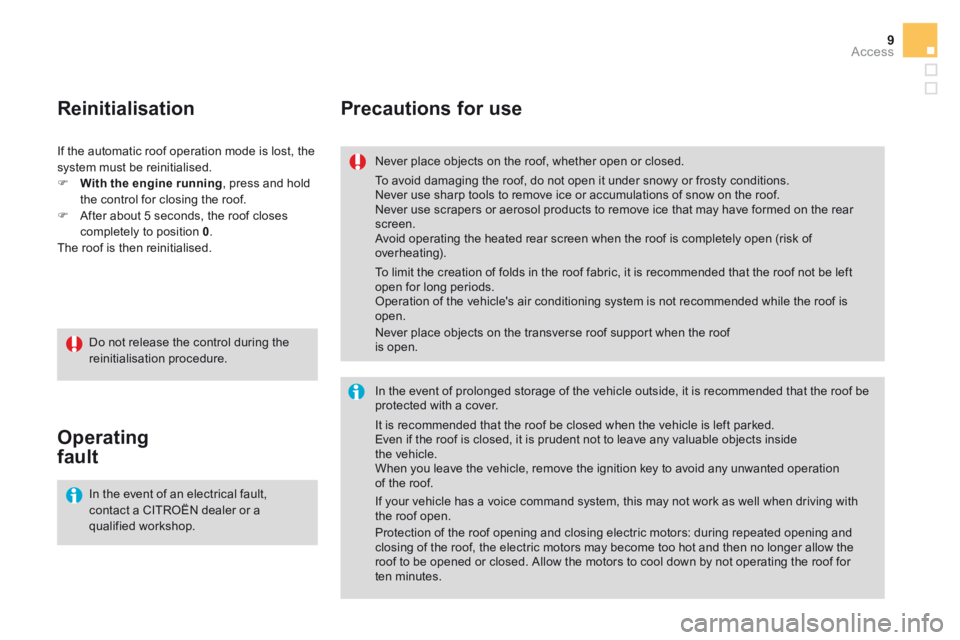

Precautions for use
Never place objects on the roof, whether open or closed.
In the event of prolonged storage of the vehicle outside, it is recommended that the roof be protected with a cover.
To avoid damaging the roof, do not open it under snowy or frosty conditions. Never use sharp tools to remove ice or accumulations of snow on the roof. Never use scrapers or aerosol products to remove ice that may have formed on the rear screen. Avoid operating the heated rear screen when the roof is completely open (risk of overheating).
To limit the creation of folds in the roof fabric, it is recommended that the roof not be left open for long periods. Operation of the vehicle's air conditioning system is not recommended while the roof is open.
Never place objects on the transverse roof support when the roof is open.
It is recommended that the roof be closed when the vehicle is left parked. Even if the roof is closed, it is prudent not to leave any valuable objects inside the vehicle. When you leave the vehicle, remove the ignition key to avoid any unwanted operation of the roof.
If your vehicle has a voice command system, this may not work as well when driving with the roof open.
Protection of the roof opening and closing electric motors: during repeated opening and closing of the roof, the electric motors may become too hot and then no longer allow the roof to be opened or closed. Allow the motors to cool down by not operating the roof for ten minutes.
Reinitialisation
Do not release the control during the reinitialisation procedure.
Operating
fault
In the event of an electrical fault, contact a CITROËN dealer or a qualified workshop.
If the automatic roof operation mode is lost, the system must be reinitialised.  With the engine running , press and hold the control for closing the roof.  After about 5 seconds, the roof closes
completely to position 0 . The roof is then reinitialised.

10Access

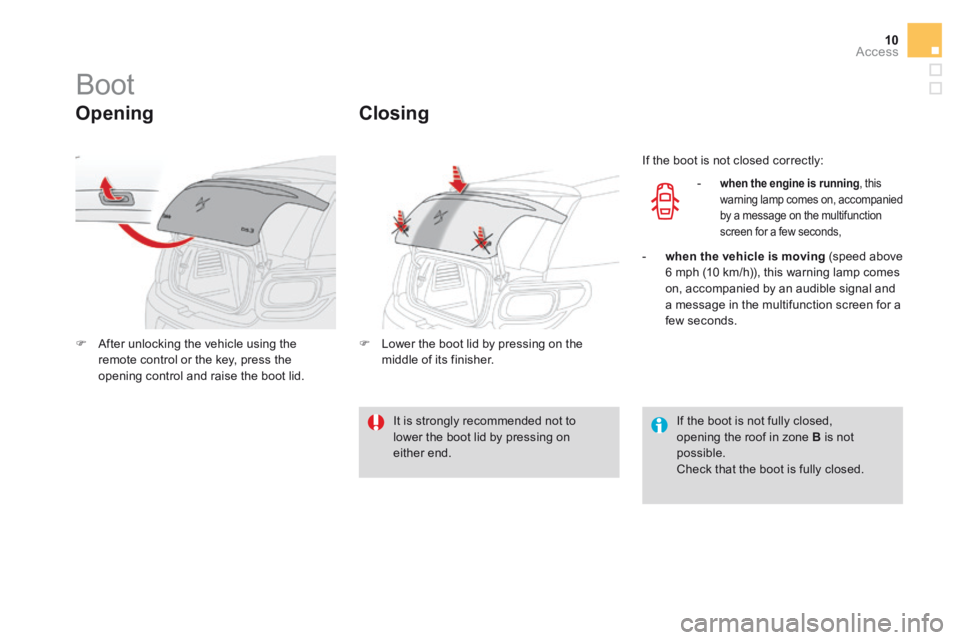

Boot
Opening
 After unlocking the vehicle using the remote control or the key, press the opening control and raise the boot lid.
Closing
 Lower the boot lid by pressing on the middle of its finisher.
If the boot is not closed correctly:
- when the engine is running , this warning lamp comes on, accompanied by a message on the multifunction screen for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message in the multifunction screen for a few seconds.
It is strongly recommended not to lower the boot lid by pressing on either end.
If the boot is not fully closed, opening the roof in zone B is not possible. Check that the boot is fully closed.

11Access
If the roof is carrying out an opening operation in zone B , an action on the boot opening control causes the roof to close. The boot will be released when the roof reaches position 2 . You can then raise the boot lid.

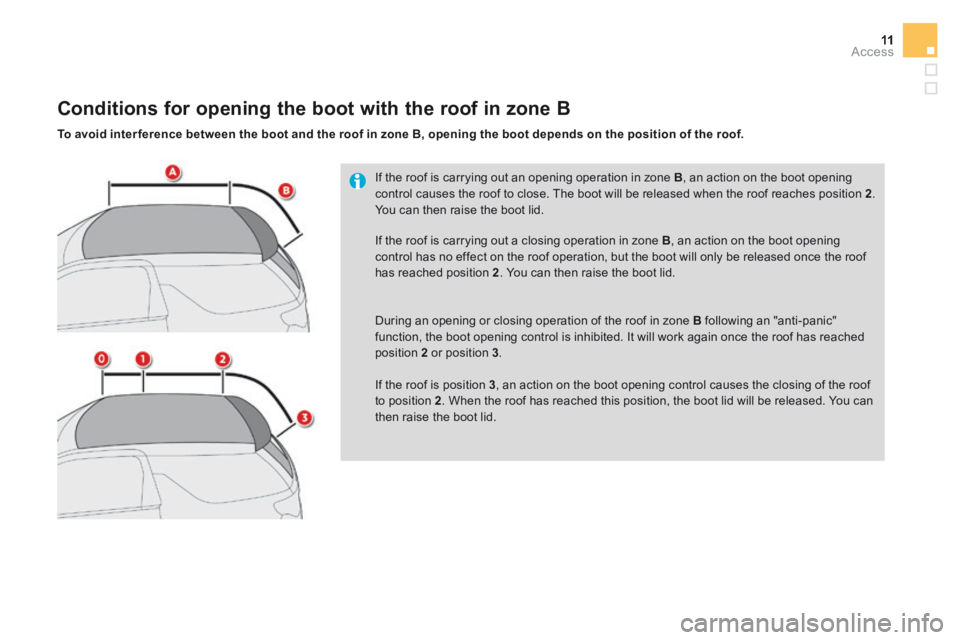

Conditions for opening the boot with the roof in zone B
To avoid inter ference between the boot and the roof in zone B, opening the boot depends on the position of the roof.
If the roof is carrying out a closing operation in zone B , an action on the boot opening control has no effect on the roof operation, but the boot will only be released once the roof has reached position 2 . You can then raise the boot lid.
During an opening or closing operation of the roof in zone B following an "anti-panic" function, the boot opening control is inhibited. It will work again once the roof has reached position 2 or position 3 .
If the roof is position 3 , an action on the boot opening control causes the closing of the roof to position 2 . When the roof has reached this position, the boot lid will be released. You can then raise the boot lid.

12Access

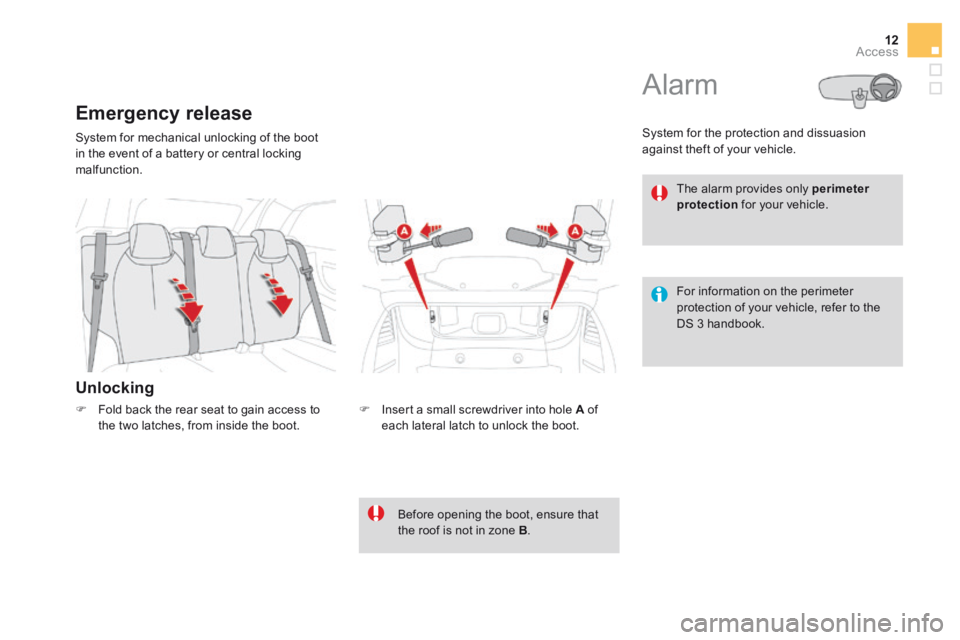

System for mechanical unlocking of the boot in the event of a battery or central locking malfunction.
Unlocking
Emergency release
 Insert a small screwdriver into hole A of each lateral latch to unlock the boot.  Fold back the rear seat to gain access to the two latches, from inside the boot.
Before opening the boot, ensure that the roof is not in zone B .
For information on the perimeter protection of your vehicle, refer to the DS 3 handbook.
The alarm provides only perimeter protection for your vehicle.
Alarm
System for the protection and dissuasion against theft of your vehicle.

13Comfort
The rear shelf is fixed .

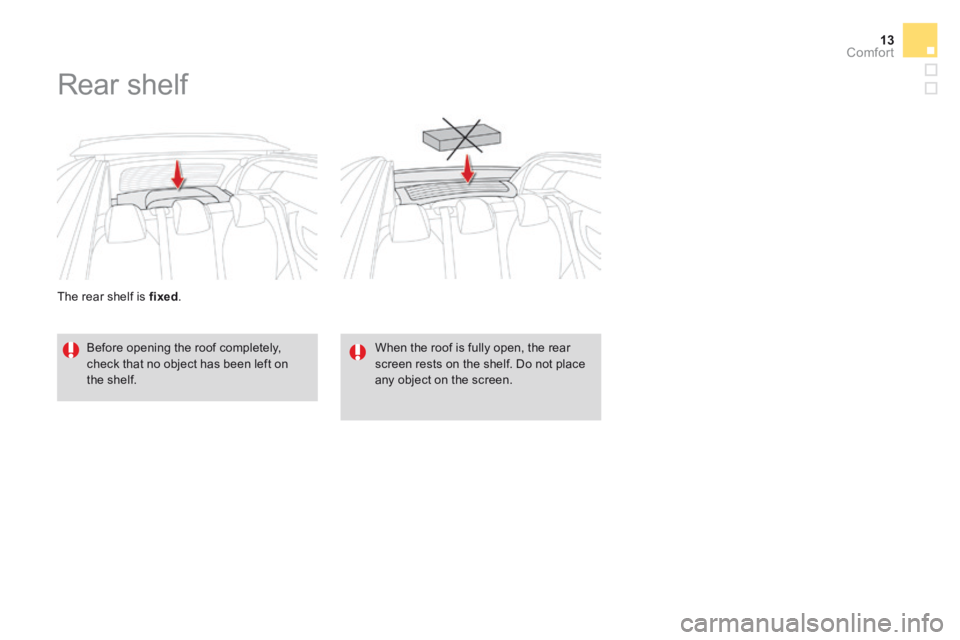

Rear shelf
Before opening the roof completely, check that no object has been left on the shelf.
When the roof is fully open, the rear screen rests on the shelf. Do not place any object on the screen.

14Practical information
Changing a fuse
 To unclip the upper boot trim, pull it down, starting on the left.  Remove the trim by tipping it downwards.  Change the fuses. To reassemble, carry out these operations in reverse order, starting at the back of the boot.
Fuse under the bonnet
(maxi-fuse)
Fuse N°RatingFunctions
-20 A Soft top roof
-20 A Soft top roof
If the roof is in zone B when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement, first close the roof manually from inside the boot (by folding the rear seats).
There are three fuses for the soft top roof.
Fuses under the rear shelf
Fuse N°RatingFunctions
MF0840 A Soft top roof
The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.

15Practical information

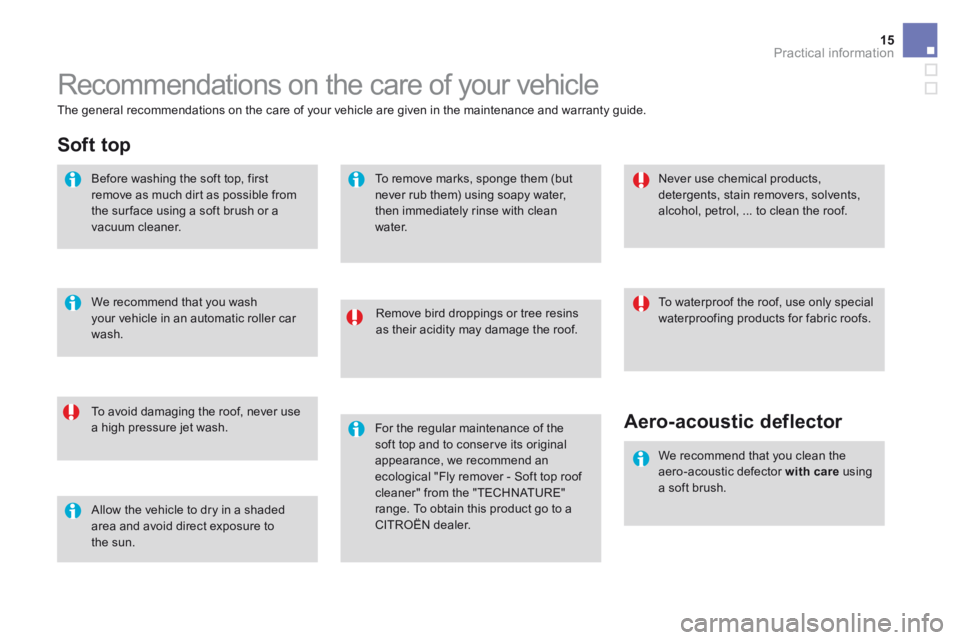

Recommendations on the care of your vehicle
Remove bird droppings or tree resins as their acidity may damage the roof.
To avoid damaging the roof, never use a high pressure jet wash.
Never use chemical products, detergents, stain removers, solvents, alcohol, petrol, ... to clean the roof.
The general recommendations on the care of your vehicle are given in the maintenance and warranty guide.
Allow the vehicle to dry in a shaded area and avoid direct exposure to the sun.
We recommend that you wash your vehicle in an automatic roller car wash.
To remove marks, sponge them (but never rub them) using soapy water, then immediately rinse with clean water.
To waterproof the roof, use only special waterproofing products for fabric roofs.
Soft top
Before washing the soft top, first remove as much dirt as possible from the sur face using a soft brush or a vacuum cleaner.
For the regular maintenance of the soft top and to conserve its original appearance, we recommend an ecological "Fly remover - Soft top roof cleaner" from the "TECHNATURE" range. To obtain this product go to a CITROËN dealer.
Aero-acoustic deflector
We recommend that you clean the aero-acoustic defector with care using a soft brush.

16Technical data
Petrol enginePureTech 82V Ti 120PureTech 110 S&STHP 165 S&STHP 150 S&S **
Gearbox Manual (5-speed) Automatic (4-speed) Manual (5-speed)
E AT 6 (6-speed automatic)
Manual (6-speed)
Model code: SB... HMZ6 5FS9 HNZ6/S H NZ T/S 5GZM/S 5GWM/S **
Cubic capacity (cc) 1 199 1 598 1 199 1 598
Bore x stroke (mm) 75 x 90.5 77 x 85.8 75 x 90.5 77 x 85.8
Max power: EU standard (kW) * 60 88 81 120 11 0 * *
Max power engine speed (rpm) 5 750 6 000 5 500 6 000
Max torque: EU standard (Nm) 118 160 205 240
Max torque engine speed (rpm) 2 750 4 250 1 500 1 750
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye s Ye s Ye s Ye s
Engine oil capacity (in litres) (with filter replacement) 3.25 4.25 3.25 4.25
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC). ** For Belgium.
Petrol engines
.../S: model fitted with Stop & Start.
