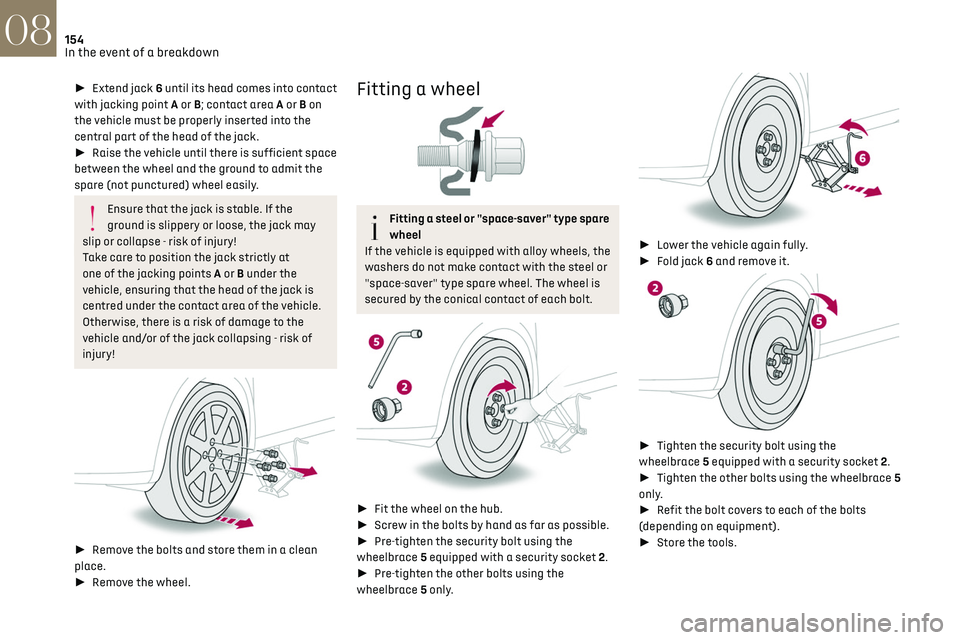

154In the event of a breakdown08
► Extend jack 6 until its head comes into contact
with jacking point A or B; contact area A or B on
the vehicle must be properly inserted into the
central part of the head of the jack.
►  Raise the vehicle until there is sufficient space
between the wheel and the ground to admit the
spare (not punctured) wheel easily.
Ensure that the jack is stable. If the
ground is slippery or loose, the jack may
slip or collapse - risk of injury!
Take care to position the jack strictly at
one of the jacking points A or B under the
vehicle, ensuring that the head of the jack is
centred under the contact area of the vehicle.
Otherwise, there is a risk of damage to the
vehicle and/or of the jack collapsing - risk of
injury!


►  Remove the bolts and store them in a clean
place.
►  Remove the wheel.
Fitting a wheel

Fitting a steel or "space-saver" type spare
wheel
If the vehicle is equipped with alloy wheels, the
washers do not make contact with the steel or
"space-saver" type spare wheel. The wheel is
secured by the conical contact of each bolt.


►  Fit the wheel on the hub.
►  Screw in the bolts by hand as far as possible.
►  Pre-tighten the security bolt using the
wheelbrace 5 equipped with a security socket 2.
►  Pre-tighten the other bolts using the
wheelbrace 5 only.


►  Lower the vehicle again fully.
►  Fold jack 6 and remove it.


► Tighten the security bolt using the
wheelbrace 5 equipped with a security socket 2.
►  Tighten the other bolts using the wheelbrace 5
only.
►  Refit the bolt covers to each of the bolts
(depending on equipment).
►  Store the tools.
After changing a wheel

With a "space-saver" type spare wheel
Deactivate certain driving aid functions
(Active Safety Brake, Adaptive cruise control,
etc.).
Do not exceed the maximum authorised speed
of 50 mph (80 km/h).
Driving with more than one “space-saver” type
spare wheel is prohibited.
Visit a dealer or a qualified workshop as
soon as possible to have the tightness of
the bolts and the pressure of the spare wheel
checked.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), the presence of
misting on the internal surface of the glass of
the headlamps and rear lamps is normal; it
