64Safety05
Horn

► Press the central part of the steering wheel.
Pedestrian horn (Electric)
The pedestrian horn operates once the vehicle is
moving and at speeds of up to 19 mph (30 km/h),
in forward or reverse gear.
Malfunction
In the event of a malfunction, this warning
lamp comes on on the instrument panel.
Contact a dealer or a qualified workshop to have
the system checked.
* In accordance with the general conditions of use of the service, available from dealers and subject to technological and technical limitations.
** In areas c overed by ‘Localised Emergency Call’ and ‘Localised Assistance Call’.
The list of countries covered and telematic services provided is available from dealers or on the website for your country.
Emergency or assistance
call




Localised Emergency Call
(PE112)
►  In an emergency, press button 1 for more than
2 seconds.
The lighting of the indicator lamp and a voice
message confirm that the call has been made to
the emergency services*.
‘Localised Emergency Call’ immediately locates
your vehicle and puts you in contact with the
appropriate emergency services**.
►  Pressing again immediately cancels the
request.
The indicator lamp flashes when the vehicle data
is sent, and then remains lit when communication
is established.
If an impact is detected by the airbag
control unit, an emergency call is made
automatically, independently of the
deployment of any airbags.
‘Localised Emergency Call’ is a service
that can be accessed free of charge.
System operation
– Upon switching on the ignition, if the indicator
lamp lights up red, then green, and then goes out:
the system is operating correctly.
–

If the indic
ator lamp is fixed red: system
malfunction
–

If the indic
ator lamp flashes red: replace the
emergency battery.
In the latter two cases, emergency and assistance
call services may not work.
Contact a dealer or a qualified repairer as soon as
possible.
The system fault does not prevent the
vehicle from being driven.
Data processing
All processing of personal information
by the "Localised Emergency Call" system
(PE112) complies with the framework for

137
Practical information07
Accelerated charging
The end of charging is indicated by the charging
control unit and by the fixed lighting of the green
indicator lamp in the flap.
►  Hang up the nozzle on the charging unit and
close the charging flap.
Fast charging
The end of charging is indicated by the charger
and by the fixed lighting of the green indicator
lamp in the flap.
►  Hang up the nozzle on the charging station.
►  Depending on version, replace the protective
cover on the base and close the charging flap.
Towing device
Load distribution
►  Distribute the load in the trailer so that
the heaviest items are as close as possible to
the axle, and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus reducing
engine performance. The maximum load which
can be towed must be reduced by 10% per
1,000 metres of altitude.
Use towing devices and their genuine
wiring harnesses approved by the
Manufacturer. It is recommended that the
fitting be performed by a dealer or a qualified
workshop.
If not fitted by a dealer, it must still be fitted
in accordance with the Manufacturer's
instructions.
Certain driving or manoeuvring aid functions
are automatically deactivated if an approved
towing system is used.
Observe the maximum authorised towable
weight, indicated on the vehicle's
registration certificate, the manufacturer's
label as well as in the Technical data section of
this guide.
Complying with the maximum authorised
nose weight (towball) also includes the use of
accessories (bicycle carriers, tow boxes, etc.).
Observe the legislation in force in the
country where you are driving.
Electric motor
Electric vehicles must never be equipped
with towing devices.
It is therefore not possible to tow a trailer or
caravan.
Roof bars
As a safety measure and to avoid
damaging the roof, it is essential to use
the transverse bars approved for the vehicle.
Observe the instructions on fitting and use
contained in the guide supplied with the roof
bars.


To install the roof bars, you must secure them
only to the four fixing points on the roof frame.
These points are concealed by the vehicle's doors
when they are closed.
The roof bar fixings include a lug to be fitted into
the hole at each fixing point.
Maximum load distributed over the roof
bars, for a loading height not exceeding
40 cm: 75 kg.
As this value may change, please verify the
maximum load set out in the manual supplied
with the roof bars.

168
Technical data09

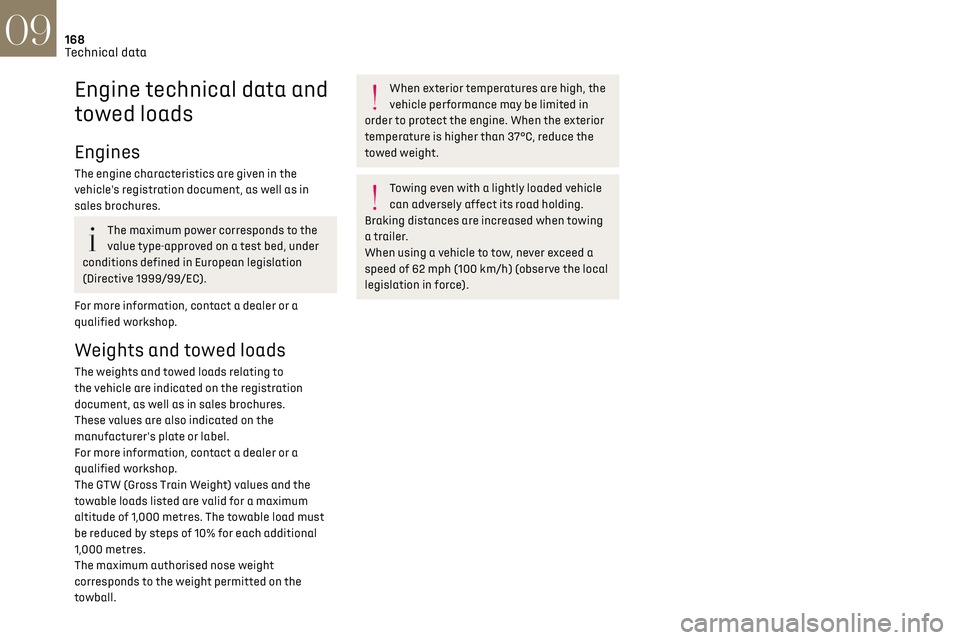

Engine technical data and
towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.
The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact a dealer or a
qualified workshop.
Weights and towed loads
The weights and towed loads relating to
the vehicle are indicated on the registration
document, as well as in sales brochures.
These values are also indicated on the
manufacturer's plate or label.
For more information, contact a dealer or a
qualified workshop.
The GTW (Gross Train Weight) values and the
towable loads listed are valid for a maximum
altitude of 1,000 metres. The towable load must
be reduced by steps of 10% for each additional
1,000 metres.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball.
When exterior temperatures are high, the
vehicle performance may be limited in
order to protect the engine. When the exterior
temperature is higher than 37°C, reduce the
towed weight.
Towing even with a lightly loaded vehicle
can adversely affect its road holding.
Braking distances are increased when towing
a trailer.
When using a vehicle to tow, never exceed a
speed of 62 mph (100 km/h) (observe the local
legislation in force).
Engines and towed loads - Petrol
Engines PureTech 100
S&S PureTech 130
S&S PureTech 130 PureTech 155
S&SPureTech 155
Gearboxes BVM6
(Manual
6-speed) EAT8
(Automatic 8-speed) EAT8
(Automatic 8-speed) EAT8
(Automatic 8-speed) EAT8
(Automatic 8-speed)
Codes EB2ADTD MB6
STTd EB2ADTS ATN8
STTd EB2ADTSM ATN8 EB2ADTX ATN8
STTdEB2ADTXM ATN8
Model codes
UR... HNKK
HNSSHNSSHNNS HNNS
Cubic capacity (cm
3) 11991199119911991199
Max. power: EC standard (kW) 7496 96115 115
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1200
1200 5001200 500
Unbraked trailer (kg) 620640500 640500
Maximum authorised nose weight (kg) 4848484848

169
Technical data09
Engines and towed loads - Petrol
Engines PureTech 100
S&S PureTech 130
S&S PureTech 130 PureTech 155
S&SPureTech 155
Gearboxes BVM6
(Manual
6-speed) EAT8
(Automatic 8-speed) EAT8
(Automatic 8-speed) EAT8
(Automatic 8-speed) EAT8
(Automatic 8-speed)
Codes EB2ADTD MB6
STTd EB2ADTS ATN8
STTd EB2ADTSM ATN8 EB2ADTX ATN8
STTdEB2ADTXM ATN8
Model codes
UR... HNKK
HNSSHNSSHNNS HNNS
Cubic capacity (cm
3) 11991199119911991199
Max. power: EC standard (kW) 7496 96115 115
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1200
1200 5001200 500
Unbraked trailer (kg) 620640500 640500
Maximum authorised nose weight (kg) 4848484848

170
Technical data09
Engines and towed loads - Diesel
EnginesBlueHDi 100BlueHDi 130
Gearboxes BVM6
(Manual 6-speed) EAT8
(Automatic 8-speed)
Codes DV5RD MB6 STTdDV5RC ATN8 STTd
Model codes
UC... YHYJ
YHZR
Cubic capacity (cm³) 14991499
Max. power: EC standard (kW) 7593
Fuel DieselDiesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1200
1200
Unbraked trailer (kg) 640640
Maximum authorised nose weight (kg) 4848
Electric motor
Model codes: ZKXZ
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 0
Unbraked trailer (kg) 0
Maximum authorised nose weight (kg) 0
Electric motor
Technology Synchronous with permanent magnets
Max. power: EC standard (kW) 100
Traction battery
Technology Lithium-Ion
Installed capacity (kWh) 50
Domestic charging
Alternating current voltage (Vac)
Rating (A) 230 (single-phase)
8 or 16
Accelerated charging
Alternating current voltage (Vac)
Rating (A) 230 (single-phase or three-phase)
16 or 32
Fast charging
Direct current voltage (Vdc) 400

171
Technical data09
Electric motor
Model codes: ZKXZ
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 0
Unbraked trailer (kg) 0
Maximum authorised nose weight (kg) 0
Electric motor
TechnologySynchronous with permanent magnets
Max. power: EC standard (kW) 100
Traction battery
Technology Lithium-Ion
Installed capacity (kWh) 50
Domestic charging
Alternating current voltage (Vac)
Rating (A) 230 (single-phase)
8 or 16
Accelerated charging
Alternating current voltage (Vac)
Rating (A) 230 (single-phase or three-phase)
16 or 32
Fast charging
Direct current voltage (Vdc) 400

172
Technical data09
Identification markings
Various visible markings for the identification and
research of your vehicle.


A. Vehicle Identification Number (VIN), under the
bonnet.
Stamped on the chassis, near the right-hand
front wheel arch.
B. Vehicle Identification Number (VIN), on the
dashboard.
Engraved on a label, visible through the
windscreen.
C. Manufacturer's label.
Affixed to the centre pillar.
Bears the following information:
–
Manufact
urer’s name.
–

European whole v
ehicle type approval number.
–

V
ehicle Identification number (VIN).
–

G
ross vehicle weight (GVW).
–

G
ross train weight (GTW).
–

Maximum w
eight on the front axle.
–

Maximum w
eight on the rear axle.
D. Tyres / paint code label.


Affixed to the driver's door.
Bears the following information about the tyres:
–

tyre pre
ssures, unladen and laden.
–

tyre specific
ation, made up of the dimensions
and type as well as the load and speed indices.
–

spare tyre pre
ssure.
Also indicates the paint colour code.
Dimensions (in mm)
These dimensions have been measured on an
unladen vehicle.


* Mirrors folded

224
Alphabetical index
S
Safety, children 70, 72–76
Saturation of the particle filter (Diesel)
143
Screen menu map

189
Screenwash

60
Screenwash, front

60
Screenwash, rear

60–61
SCR (Selective Catalytic Reduction)

19, 144
Seat angle

38
Seat belts

68–69, 74
Seat, rear bench

42
Seats, electric

38–39
Seats, front

38–39
Seats, heated

40
Seats, rear

42–43, 73
Selector, drive

89
Selector, gear

86–89
Sensors (warnings)

95
Serial number, vehicle

172
Service indicator

17, 21
Servicing

17, 142, 144
Settings, equipment

24
Settings, system

180, 192, 215
Sidelamps

55, 156–157
Smart Access

30, 83
Snow chains

94, 138
Socket, 12 V accessory

49
Socket, auxiliary

177, 187, 211
Socket, Jack

211
Speakers

50
Speed limiter

98–100, 102
Speed limit recognition

95, 97
Speedometer

9, 95
Sport mode

90
Spotlamps, side

57
Stability control (ESC) 66
Starting a Diesel engine
129
Starting the engine

82
Starting the vehicle

82, 86–89
Starting using another battery

83, 162
State of charge, battery

25
Station, radio

175, 185, 209–210
Stay, bonnet

139
Steering mounted controls,
audio

173–174, 183, 196
Steering wheel, adjustment

40
Stickers, customising ~ Stickers, expressive

147
Stopping the vehicle

82, 86–89
Stop & Start

22, 44, 92–93, 129, 139, 142, 165
Storage

49
Storage box

53
Storage wells

53
Sunshine sensor

43
Sun visor

49
Suspension

144
Switching off the engine

82
Synchronising the remote control

33
T
Tables of engines 171
Tables of fuses
159–161
Tank, fuel

129–130
Technical data

169–171
Telephone

50, 178–179, 190–191, 212–214
Temperature, coolant

18
Time (setting)

180, 193, 216
TMC (Traffic info)

203
Tool box

53
Tools

148–150
Topping-up AdBlue® 145
Total distance recorder
21
Touch screen

22–23, 25, 48
Towbar

137
Towed loads

168–170
Towing another vehicle

165–167
Traction control (ASR)

66–67
Traffic information (TMC)

203
Trailer

137
Trajectory control systems

66
Triangle, warning

148
Trip computer

22
Trip distance recorder

21
Tyres

143
Tyre under-inflation detection

93, 152
U
Under-inflation (detection) 93
Unlocking
27, 29
Unlocking from the inside

30
Unlocking the boot

27, 29
Unlocking the doors

31
Unlocking the tailgate

29
Updating the date

193, 215
Updating the time

180, 193, 216
USB

177, 187, 206, 210
V
Ventilation 43
Video
211
Visiopark 1

118
