remote control Citroen DS3 RHD 2013 1.G Owner's Manual

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILIT Y
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen (eMyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Alarm
100 Window controls
102Doors
105Boot
106 Fuel tank
108 Misfuel prevention (Diesel)
112 Lighting controls
117LED lamps
117Headlamp adjustment
118Wiper controls
122Courtesy lamp
123 Interior mood lighting
123 Boot lamp
004004005005002002003003

Familiarisation
90
Open
A.Unfolding / Folding the key.
B.Unlocking the vehicle.

Remote control key
Other functions...C.
Normal locking of the vehicle or
Deadlocking the vehicle Vehicle location.1
.Opening the fuel filler flap.
2. Opening and hooking the fuel filler cap.
Fuel t ank
106, 108
191
Ta n k c a p a c i ty:
- approximately 50 litres (petrol),
- approximately 46 litres (Diesel).
- approximately 33 litres (LPG),
- (according to version: approximately30 litres (petrol or Diesel)).A.Interior release lever.B.
Exterior safety catch. C.
Bonnet stay.


Bonnet

37
Monitoring
Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the following warning lamps indicates a fault which
requires action on the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther byreading the associated message in the multifunction screen.If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified
workshop.

Warning lampis onCauseAction / Observations
STOPfixed, alone or associated with another warning lamp,accompanied by anaudible signal and amessage on the screen. Illumination o
f the warning lamp is
associated with a serious brakingsystem or engine coolant temperature
problem.
Stop as soon as it is safe to do so as the engine may cut out when driving.
Park, switch off the ignition and call a CITROËN dealer
or a qualified workshop.
Servicetemporarily. Minor problems have occurred for
which there is no specific warning lamp. Identi
fy the problem by reading the message shown in
the screen, such as, for example:
- the en
gine oil level,
- the screenwash level,
- the remote control batter
y,
- saturation of the par ticle emission filter on Diesel
vehicles (see the "Checks - Particle emissionsfilter" section).
For any other faults, contact a CITROËN dealer or a
qualified workshop.
fix
ed. Major problems have occurred for
which there is no specific warning lamp. Identif
y the problem by reading the message shownin the screen and contact a CITROËN dealer or a qualified workshop.

Mirrors
Each fitted with an adjustable mirror glasspermitting the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the demisting-defrosting
operates with the engine running, by switching on the heated rear screen (refer to the "Rear screen demist-defrost"page).


Adjustment
)
Move control Ato the right or to the left to select the corresponding mirror. )
Move control Bin all four directions to
adjust. )
Return control Ato the central position.
Door mirrors
The objects observed are, in reality,
closer than they appear.Take this into account in order to correctly judge the distance of vehicles approaching from behind.




Folding
)From outside: lock the vehicle using theremote control or the key. )From inside: with the ignition on, pull the control A
in the central position rear wards.


Unfolding
)From outside: unlock the vehicle using theremote control or the key. )From inside: with the ignition on, pull the control A
in the central position rearwards.

If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A.

The folding and unfolding of the door mirrors using the remote control can bedeactivated by a CITROËN dealer or a qualified workshop.
Never fold or unfold the electric foldingmirrors manually.

004
Access
This section describes the functions of the remote control key, electric
windows, central locking of doors and boot and access to the fuel filler.

Remote control key System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
)First press this button to unfold the key.


Unlocking using the remote
control

Unlocking using the key
)
Turn the key to the right in the driver's door lock to unlock the vehicle.
Locking the vehicle


Locking using the remote control

Locking is confirmed by fixed lighting of
the direction indicators for approximatelytwo seconds.
According to version, the door mirrors fold at
the same time.
)Press the open padlock to unlockthe vehicle.
)
Press the closed padlock to lockthe vehicle.
Unlockin
g is confirmed by rapid flashing of
the direction indicators for approximately
two seconds.
According to version, the door mirrors unfold at
the same time.

Locking using the key
)Turn the key to the left in the driver's door lock to lock the vehicle completely.

91Access
If one of the doors or the boot is stillopen, the central locking does not takeplace.
When the vehicle is locked, if it isunlocked inadvertently, it will relockautomatically after thirty secondsunless a door or the boot is open.

The folding and unfolding of the door mirrors using the remote control can bedeactivated by a CITROËN dealer or a qualified workshop.




Folding the key
)
First press this button to fold the key.

If you do not press the button when folding the key, there is a risk of damage to the mechanism.

Deadlocking using the remote
control

)
Press the closed padlock to lock
the vehicle completely.
) Press the closed padlock again withinfive seconds to deadlock the vehicle.


Deadlocking using the key
)
Turn the key to the left in the driver's door lock to lock the vehicle completely.)
Turn the key to the left again within five seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed lightingof the direction indicators for approximately
two seconds.
According to version, the door mirrors fold at
the same time.
Deadlocking renders the exterior andinterior door controls inoperative.
It also deactivates the manual centralcontrol button.
Therefore, never leave anyone insidethe vehicle when it is deadlocked.

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction, you can no longer unlock, lock or locate your
vehicle.)First of all, use the key in the lock to unlock
or lock your vehicle.
)Then, reinitialise the remote control.
If the problem persists, contact a CITROËN
dealer as soon as possible.
Remote control problem
Reinitialisation
)Switch off the ignition.)Turn the key to position 2 (Ignition).)Press the closed padlock immediately for afew seconds.)Switch off the ignition and remove the keyfrom the ignition switch.
The remote control is fully operational again.

Changing the battery

Battery ref.: CR1620 / 3 volts. )Unclip the casing by inserting a coin at the notch and rotating.
)Slide the flat battery out of its location.)Slide the new battery into its location
observing the original direction.
)Clip the casing in place, then the chrome
finisher. )Reinitialise the remote control.

If the batter
y is flat, you are
informed by lighting of this warninglamp in the instrument panel, an audible signal
and a message in the multifunction screen.
) Unfold the key.)
Release the chrome finisher by pressingon lug A.)
Maintain pressure on lug A
and remove thechrome finisher by sliding it off at 45°.

95
Access
Do not throw the remote control batteries away, they contain metalswhich are harmful to the environment.
Take them to an approved collectionpoint.
Lost keys

Go to a CITROËN dealer with the vehicle's registration document, your personalidentification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder coderequired to order a new key.


Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.


Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency. As a safety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.


Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this couldcause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure that only your keys can be used to open and star t the vehicle.

Access

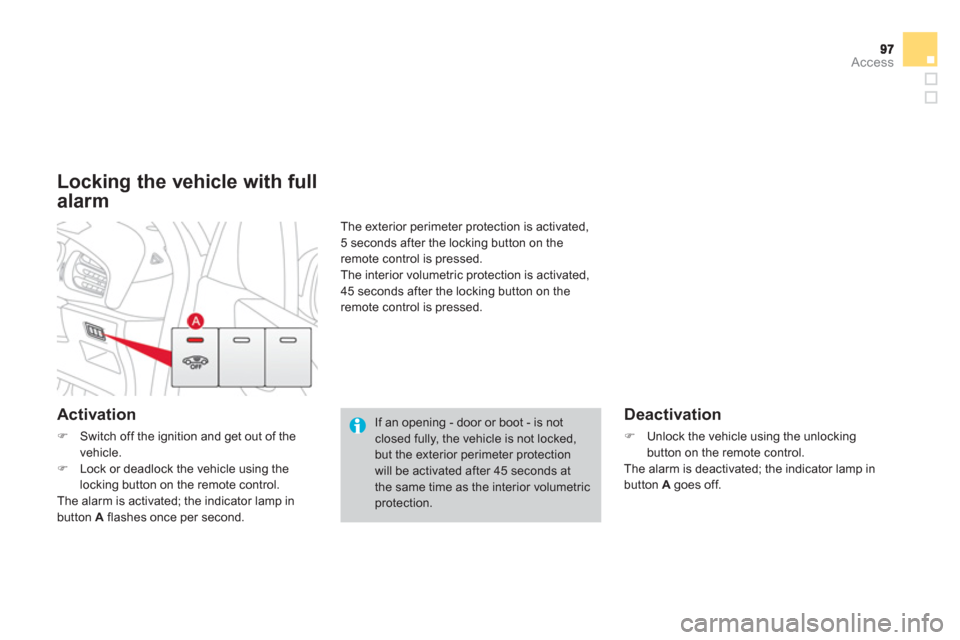

Locking the vehicle with full
alarm

Activation
)Switch off the ignition and get out of the
vehicle.)Lock or deadlock the vehicle using the
locking button on the remote control.
The alarm is activated; the indicator lamp in
button Aflashes once per second.
If an opening - door or boot - is notclosed fully, the vehicle is not locked,but the exterior perimeter protection will be activated after 45 seconds atthe same time as the interior volumetricprotection.

Deactivation
)
Unlock the vehicle using the unlockingbutton on the remote control.
The alarm is deactivated; the indicator lamp in button Agoes off.
The exterior perimeter protection is activated, 5 seconds after the locking button on theremote control is pressed.
The interior volumetric protection is activated,
45 seconds after the locking button on the remote control is pressed.
