205Driving
System which keeps your vehicle immobilised temporarily (approximately 2 seconds) when star ting on a gradient, the time it takes to move your foot from the brake pedal to the accelerator pedal. This function is only active when: - the vehicle is completely stationary, with your foot on the brake pedal, - when certain conditions of gradient are met, - with the driver’s door closed. The hill star t assist function cannot be deactivated.
Hill start assist
On an ascending slope, with the vehicle stationar y, the vehicle is held for a brief moment when you release the brake pedal: - provided you are in first gear or neutral with a manual gearbox, - provided you are in position A or M with the electronic gearbox system.
Operation
Operating fault
If a fault occurs with the system, these warning lamps come on. Contact a CITROËN dealer or a qualified workshop to have the system checked.
Do not leave the vehicle while it is being held in the hill star t assist phase. If you need to leave the vehicle while the engine is running, apply the parking brake manually then ensure that the parking brake warning lamp is on (not flashing) in the instrument panel.
On a descending slope, with the vehicle stationar y and reverse gear engaged, the vehicle is held for a brief moment when you release the brake pedal.

Stop & Start The Stop & Star t system puts the engine temporarily on standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as y ou want to move off. The restar t takes place instantly, quickly and silently. Per fect for urban use, the Stop & Star t system reduce s fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
With the automatic gearbox system, for your comfor t during parking maoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear. STOP mode does not affect the functionality of the vehicle, such as braking, power steering, for example.
Never refuel with the engine in STOP mode; you must switch off the ignition with the key.
The "ECO" warning lamp comes on in the instrument panel and the engine goes into standby:
- with a manual gearbox , at speeds below 12 mph (20 km/h), when you put the gear lever into neutral and release the clutch pedal, - with the 6-speed electronic gearbox system , at a speed below 5 mph (8 km/h),
when you press the brake pedal or put the gear lever into position N .
If your vehicle is fitted with the system, a time counter calculates the sum of the periods in STOP mode during a journey. It resets itself to zero every time the ignition is switched on with the key.
STOP mode is not invoked when: - the driver's door is open, - the driver's seat belt is not fastened, - the vehicle has not exceeded 6 mph (10 km/h) since the last engine start using the key, - the electric parking brake is applied or being applied, - the engine is needed to maintain a comfor table temperature in the passenger compar tment, - demisting is active, - some special conditions (battery charge, engine temperature, braking assistance, ambient temperature...) where the engine is needed to assure control of a system.
Special cases:STOP mode unavailable
In this case, the "ECO" warning lamp flashes for a few seconds, then goes off. This operation is per fectly normal.

207Driving
Going into engine START mode
The "ECO" warning lamp goes off and the engine star ts:
- with a manual gearbox , when you depress the clutch pedal, - with the 6-speed electronic gearbox system:

215Driving
Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
The functions of this system are grouped together on the steering mounted controls. 1. Cruise control mode selection dial. 2. Speed programming/value decrease button. 3. Speed programming/value increase button. 4. Cruise control off/resume button. 5. Stored speeds display button. (see "Storing speeds")
Steering mounted controls
The cruise control system cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver. You are advised to keep your feet near the pedals at all times.
The programmed information is grouped together in the instrument panel screen. 6. Cruise control off/resume indication. 7. Cruise control mode selection indication. 8. Programmed speed value. 9. Selecting a stored speed. (see "Storing speeds")
Displays in the instrument panel
Operation
The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h) and engagement of: - four th gear on the manual gearbox, - second gear on the electronic gearbox system, in sequential driving mode, - position A on the electronic gearbox system. The cruise control is switched off manually d offor by pressing the brake or clutch pedal or on triggering of the ESP system for safety reasons. It is possible to exceed the programmed speed temporarily by pressing the accelerator pedal. To return to the programmed speed, simply
release the accelerator pedal. Switching off the ignition cancels any programmed speed value.

233Checks

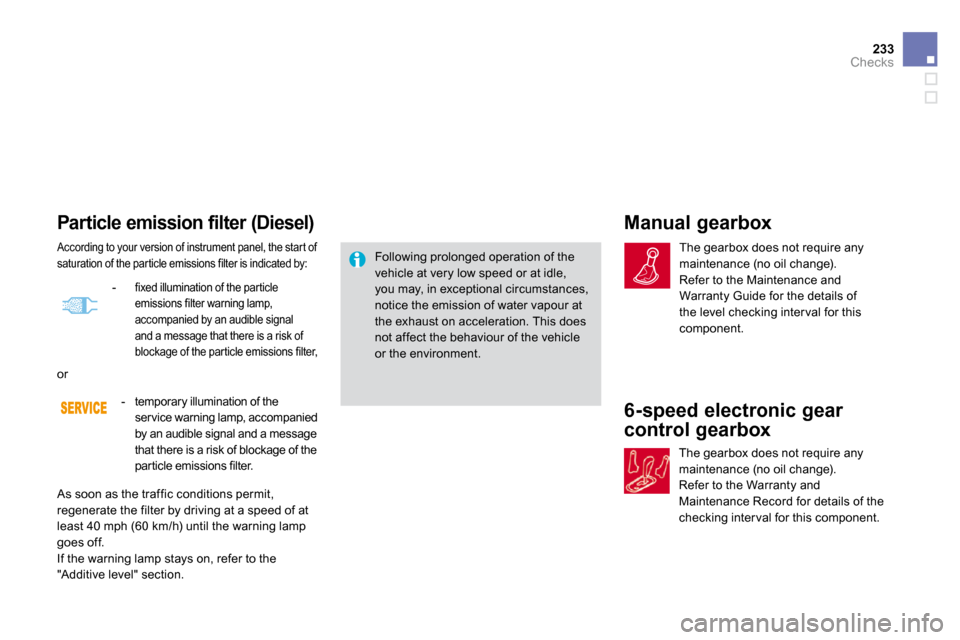

Particle emission filter (Diesel)
Following prolonged operation of the vehicle at very low speed or at idle, you may, in exceptional circumstances, notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.
Manual gearbox
The gearbox does not require any maintenance (no oil change). Refer to the Maintenance and Warranty Guide for the details of the level checking inter val for this component.
According to your version of instrument panel, the start of saturation of the particle emissions filter is indicated by:
6-speed electronic gear
control gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the Warranty and Maintenance Record for details of the checking inter val for this component.
- temporary illumination of the service warning lamp, accompanied
by an audible signal and a message that there is a risk of blockage of the particle emissions filter.
- fixed illumination of the particle emissions filter warning lamp, accompanied by an audible signal and a message that there is a risk of blockage of the particle emissions filter,
or
As soon as the traffic conditions permit, regenerate the filter by driving at a speed of at least 40 mph (60 km/h) until the warning lamp
goes off. If the warning lamp stays on, refer to the "Additive level" section.

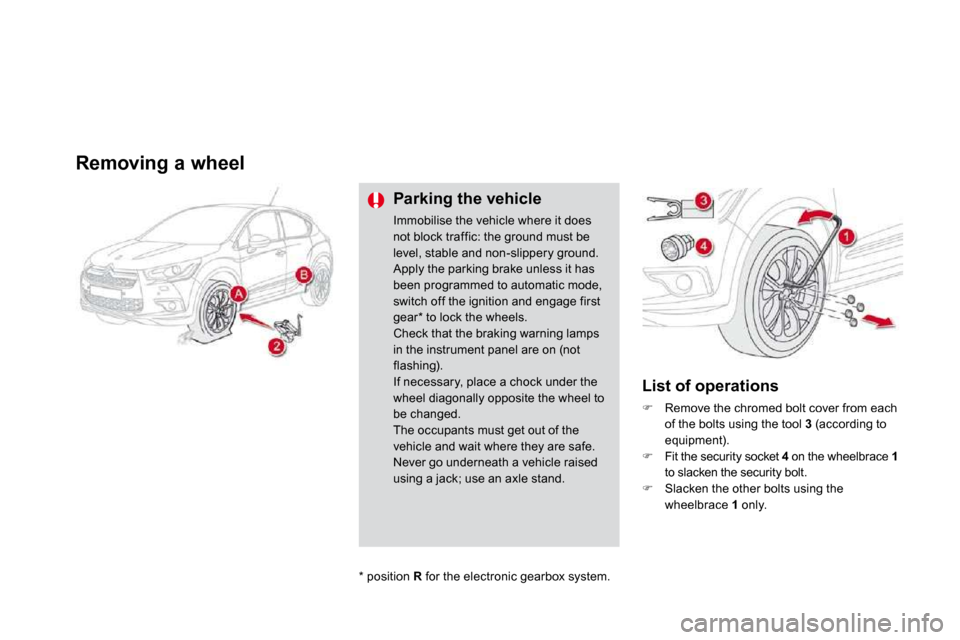

Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not block traffic: the ground must be level, stable and non-slippery ground. Apply the parking brake unless it has been programmed to automatic mode, switch off the ignition and engage first gear * to lock the wheels. Check that the braking warning lamps in the instrument panel are on (not flashing). If necessary, place a chock under the wheel diagonally opposite the wheel to be changed. The occupants must get out of the vehicle and wait where they are safe. Never go underneath a vehicle raised using a jack; use an axle stand.
List of operations
 Remove the chromed bolt cover from each of the bolts using the tool 3 (according to
equipment).  Fit the security socket 4 on the wheelbrace 1 to slacken the security bolt.
 Slacken the other bolts using the wheelbrace 1 only.
* position R for the electronic gearbox system.

265Practical information
Load reduction mode
System which manages the use of cer tain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.
Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic gearbox system.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Following reconnection of the battery
Following reconnection of the battery, switch on the ignition and wait 1 minute before star ting to permit initialisation of the electronic systems. However, if problems are encountered following this operation, contact a CITROËN dealer or a qualified workshop. Referring to the corresponding section, you must yourself reinitialise: - the remote control key, - the GPS satellite navigation system.

265Practical information
Load reduction mode
System which manages the use of cer tain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.
Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic gearbox system.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Following reconnection of the battery
Following reconnection of the battery, switch on the ignition and wait 1 minute before star ting to permit initialisation of the electronic systems. However, if problems are encountered following this operation, contact a CITROËN dealer or a qualified workshop. Referring to the corresponding section, you must yourself reinitialise: - the remote control key, - the GPS satellite navigation system.

Towing the vehicle Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
The towing eye is installed in the boot under the floor. To gain access to it:  open the boot,  raise the floor,
 secure it by hooking its cord on the hook on the rear parcel shelf suppor t,  remove the towing eye from the holder.
Access to the tools
General recommendations
Obser ve the legislation in force in your country. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle. The driver must stay at the wheel of the towed vehicle. Driving on motor ways and fast roads is prohibited when towing. When towing a vehicle with all four wheels on the ground, always use an approved towing bar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always call on a professional recovery ser vice: - vehicle broken down on a motor way or fast road, - when it is not possible to put the gearbox into neutral, unlock the steering, or release the parking brake, - towing with only two wheels on the ground, - where there is no approved towing bar available...

269Practical information
 On the front bumper, unclip the cover by pressing at the bottom.  Screw the towing eye in fully.  Install the towing bar.
 On the rear bumper, unclip the cover by pressing at the bottom.  Screw the towing eye in fully.  Install the towing bar.  Switch on the hazard warning lamps on both vehicles.  Move off gently, drive slowly and for a shor t distance.
Towing your vehicle Towing another vehicle
 Place the gear lever in neutral (position N on the electronic gearbox system). Failure to obser ve this special condition could result in damage to cer tain components (braking, transmission...) and the absence of braking assistance the next time the engine is star ted.
 Unlock the steering by turning the key in the ignition one notch and release the
parking brake.  Switch on the hazard warning lamps on both vehicles.
 Move off gently, drive slowly and for a shor t distance.
