Citroen DS4 2010.5 1.G Owner's Manual

313
06
1
2
3
4
5
6
7
MANAGING CONTACTS
PHONE then select " Directory of contacts " and confi rm.
Select the desired contact and confi rm.
Select " Import " to copy one contact to the system.
Select " Call " to start the call.
Select " Open " to view an external contact or modify a contact saved in the system.
Select OK or ESC to exit this menu.
Select " Delete " to delete a contact saved in the system.
It is necessary to import an external contact to modify the record. It will be saved in the system. It is not possible to modify or delete contacts in the telephone or the SIM card via the Bluetooth connection.
USING THE TELEPHONE

314
1
2
2
3
1
3
4
06 USING THE TELEPHONE
Press PHONE twice.
Select " Dial " then confi rm.
Select " Directory of contacts " then confi rm.
Dial the telephone number using the virtual keypad selecting each number in turn.
Confi rm " OK " to make the call.
Press TEL or twice on PHONE .
CALLING A NEW NUMBER CALLING A CONTACT
Select the desired contact and confi rm.
If access was via the PHONE button, select " Call " and confi rm.
Select the number and confi rm to start the call.
MAKING A CALL Use of the telephone is not recommended while driving. We recommended that you park safely or make use of the steering mounted controls.

315
1
2
06
1
USING THE TELEPHONE
CALLING A RECENTLY ENTERED NUMBER
Press TEL , select " Call list " and confi rm,
Select the desired number and confi rm.
To erase the calls log, press PHONE twice, select " Phone functions " and confi rm then select " Delete calls log " and confi rm.
ENDING A CALL
Press PHONE then select " OK " to end the call.
Or make a long press on TEL at the steering mounted controls.
Or make two short presses on TEL at the steering mounted controls.
Or press the MODE button, as many times as necessary, until the telephone screen is displayed.
press PHONE to display the calls log.
or
Press " OK " to display the contextual menu then select " Hang up " and confi rm.

316
1
2
06 USING THE TELEPHONE
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the screen.
"Yes " to accept the call is selected by default.
Press " OK " to accept the call.
Select " No " and confi rm to reject the call.
A short press on TEL accepts an incoming call.
A long press on TEL rejects an incoming call.

317
06
1
2a
2b
2c
2d
USING THE TELEPHONE
OPTIONS DURING A CALL *
During a call, press the MODE button several times to select display of the telephone screen, then press" OK " to open the contextual menu.
Select " Private mode " and confi rm to take the call on the handset.
Or select " Hands-free mode " and confi rm to take the call via the vehicle's speakers.
Select " Put call on hold " and confi rm to put the current call on hold.
Or select " Resume the call " and confi rm to resume the call on hold.
Select " DTMF ring tones " to use the numerical keypad, so as to navigate through the menu of an interactive vocal server.
Select " Hang up " to end the call.
* Depending on the compatibility of the phone and your service plan.
it is possible to hold a 3-way conference call by making 2 cal ls in succession. Select " Conference mode call " in the contextual menu accessible using the TEL button at the steering mounted controls.

318
1
2
3
1
2
3
4
5
06
Press PHONE twice.
Select " List of the paired peripherals " and confi rm.
It is possible to:
- " Connect " or " Disconnect " the selected telephone,
- delete the pairing of the selected telephone.
It is also possible to select all pairings.
USING THE TELEPHONE
MANAGING PAIRED TELEPHONES CHANGING THE RING TONE
Press PHONE twice.
Select " Phone functions " and confi rm.
Select " Ring options " and confi rm.
You can adjust the volume and the type of ring tone.
Select " Bluetooth functions ".
Select " OK " and confi rm to save the changes.

319

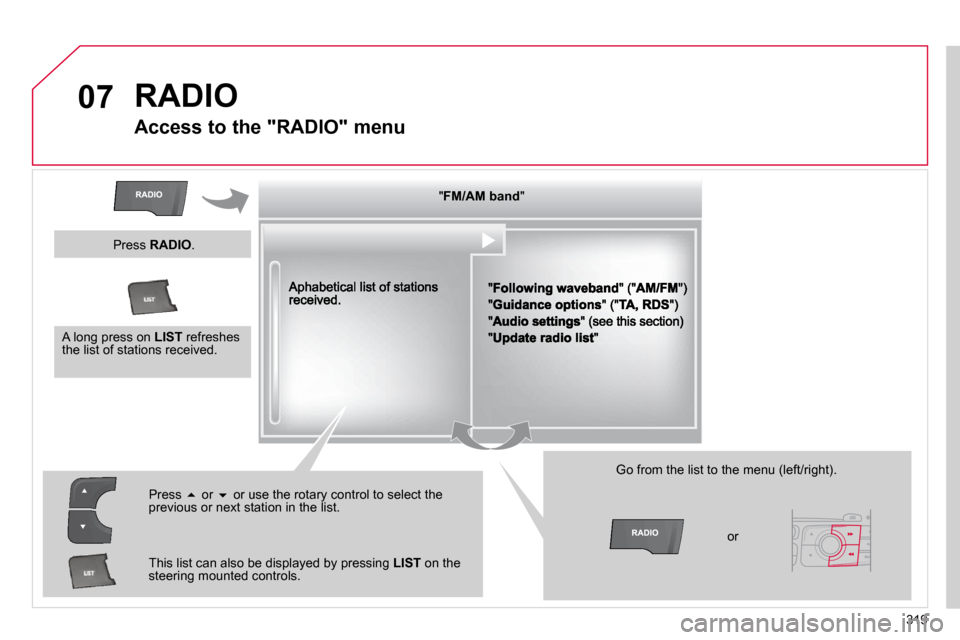

07 RADIO
Access to the "RADIO" menu
" " " " " " " " " " " " " " " " " " " FM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM band " " " " " " " " " " " " " " " " " " "
Press  or  or use the rotary control to select the previous or next station in the list.
This list can also be displayed by pressing LIST on the steering mounted controls.
Go from the list to the menu (left/right).
or
A long press on LIST refreshes the list of stations received.
Press RADIO .

320
07
1a
1b
1c
1
2
RADIO
By alphabetical list
Press RADIO or LIST , select the station of your choice and confi rm.
By automatic frequency search
Press  or  for the automatic search for a lower or higher radio frequency.
Or turn the thumb wheel on the steering mounted control.
By manual frequency search
Press  or  to adjust the radio frequency step by step.
Press the button on the numerical keypad to recall a preset station.
Or press then turn the thumb wheel at the steering mounted controls.
SELECTING A STATION
The external environment (hill, building, tunnel, underground car park...) may interfere with the re ception, including in RDS station tracking mode. Th is phenomenon is a normal result of the way in which r adio waves are transmitted and does not in any way indicate a fault with the audio system.
PRESETTING A STATION
Press one of the buttons on the numerical keypad for 2 seconds to preset the current station.
An audible signal confi rms that the station has been preset.
The quality of reception is represented by this symbol.

321
1
2
3
07
RADIO .
ACTIVATE/DEACTIVATE RDS
RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative frequencies. How ever, in certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of receptio n of the station during a journey.
Select " Guidance options " and confi rm.
Select " Activate/Deactivate RDS " and confi rm.
RADIO
Select " Activate/Deactivate RDS ".
Radio displayed, press " OK " to display the contextual menu.

322
08 MUSIC MEDIA PLAYERS
Access to the "MUSIC MEDIA PLAYER" menu
" " " " " " " " " " " " " " " " " " " MEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIA " " " " " " " " " " " " " " " " " " "
This list can also be displayed by pressing LISTat the steering mounted controls.
Go from the list to the menu (left/right).
or
Press MUSIC .
