service indicator CITROEN DS4 2010 User Guide

151
Localised Assistance Call
If you purchased your vehicle outside
the Brand's dealer network, we suggest
that you have a dealer check and, if
desired, modify the configuration of
these services.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's on-
board telematic system.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
The fault with the system does not
prevent the vehicle being driven.Operation of the system
When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.
If the orange indicator lamp
flashes then goes off: the system
has a fault.
If the orange indicator lamp is on fixed: the
back-up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
Contact a qualified repairer as soon as
possible. Press this button for more than
2
seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been made**.
**

D
epending on the geographic cover for
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle. The list of countries covered by Telematic
services is available at dealers or on the
website in your country.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
Call" to confirm.
05
Safety

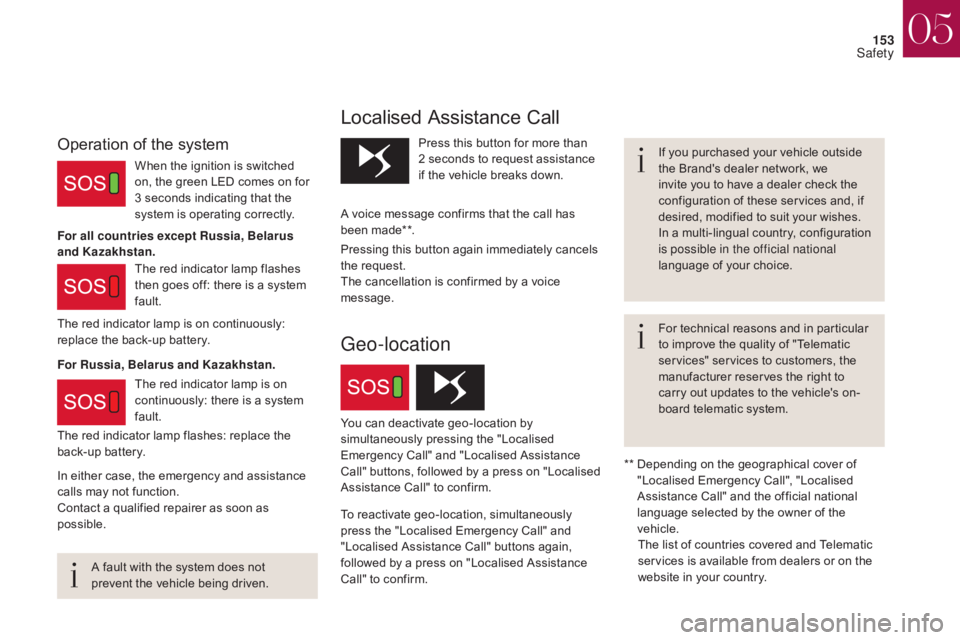

153
A fault with the system does not
prevent the vehicle being driven.If you purchased your vehicle outside
the Brand's dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons and in particular
to improve the quality of "Telematic
services" services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's on-
board telematic system.
Localised Assistance Call
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
The red indicator lamp flashes
then goes off: there is a system
fault.
The red indicator lamp is on
continuously: there is a system
fault.
Press this button for more than
2
seconds to request assistance
if the vehicle breaks down.
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
Call" to confirm. Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message. **

D
epending on the geographical cover of
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle. The list of countries covered and Telematic
services is available from dealers or on the
website in your country.
Operation of the system
The red indicator lamp flashes: replace the
back-up battery. The red indicator lamp is on continuously:
replace the back-up battery. For all countries except Russia, Belarus
and Kazakhstan.
For Russia, Belarus and Kazakhstan.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible. A voice message confirms that the call has
been made**.
Geo-location
05
Safety

209
Lane departure warning system
System which detects the involuntary crossing
of longitudinal traffic lane markings on the
ground (solid or broken line).
Sensors, fitted below the front bumper, trigger
a warning if the vehicle drifts over a lane
marking (speed higher than 50 mph (80 km/h)).
This system is particularly useful on motor ways
and main roads.The lane departure warning system
cannot in any circumstances replace
the need for vigilance on the part of the
driver.
It is necessary to observe driving
regulations and take a break every
two
hours.
Deactivation
F Press this button again, the indicator lamp goes off.
The status of the system remains in the
memory when the ignition is switched off. No warning is transmitted while the direction
indicator is active and for approximately
20
seconds after the direction indicator is
switched off.
A warning may be transmitted if a direction
marking (e.g. arrow) or non-standard marking
(e.g. graffiti) is crossed.
Operating fault
The detection may be impeded:
- i f the sensors are dirty (mud, snow...),
-

i
f the markings on the ground are
worn,
-

i
f there is little contrast between
the markings on the ground and
the road sur face.
In the event of a malfunction, the
service warning lamp comes on,
accompanied by an audible signal
and a message in the screen.
Contact a CITROËN dealer or a qualified
workshop.Detection
You are warned by the vibration of the driver's
seat cushion:
-

o
n the right-hand side, if the marking on
the ground has been crossed on the right,
-

o
n the left-hand side, if the marking on the
ground has been crossed on the left.
Activation
F When switching the ignition on or with the engine running, press this button; the
indicator lamp comes on.
06
Driving

245
Checking levels
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
Engine oil level
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns)
and the cooling fan could start at any
time (even with the ignition off).
The location of the dipstick is shown in the
corresponding underbonnet layout view.
F
T
ake the dipstick by its coloured grip and
remove it completely.
F
W
ipe the end of the dipstick using a clean
non-fluffy cloth.
A = MA X
B = MIN If you find that the level is above the A mark or
below the B mark, do not star t the engine
.
-
I
f the level is above the MAX
mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
-
I
f the level is below the MIN
mark, you
must top up the engine oil.
To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes.
Oil grade
Before topping up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
Checking using the dipstick
F Refit the dipstick and push fully down, then pull it out again to make the visual check:
the correct level is between the marks A
and B .
07
Practical information

246
Power steering fluid
level
The power steering fluid level should
be close to the "MA X" mark. With
the engine cold, unscrew the cap to
check the level.
Brake fluid level
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations. The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Topping up the engine oil level
The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F

U
nscrew the oil filler cap to reveal the filler
aperture.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel is not valid
during the 30 minutes after topping up.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
07
Practical information

253
Once the AdBlue® tank is empty,
a s
ystem required by regulations
prevents starting of the engine.
If the SCR

system is faulty, the level
of emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine
starting.
In either case, a range indicator gives
you the distance you can travel before
the vehicle is immobilised.
AdBlue® and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
SCR system
Using a fluid called AdBlue® containing urea, a
catalytic converter turns up to 85% of nitrogen
oxides (NOx) into nitrogen and water, which are
harmless to health and the environment. The AdBlue
® is held in a special tank with
a capacity of about 17 litres: this provides
a driving range of about 12 500 miles
(20

000

km). An alert is triggered automatically
to warn you when the reserve level is
reached: you can then drive about 1 500 miles
(2

400

km) before the tank is empty.
During each scheduled service of your vehicle
by a CITROËN dealer or a qualified workshop,
the AdBlue
® tank is refilled in order to allow
normal operation of the SCR system.
If the estimated mileage of your vehicle
between two services is greater than
12

500

miles (20 000 km), it will be necessary
to top-up the AdBlue
®.
07
Practical information

409
Pads, brake ........................................... 251, 252
Paint colour code .......................................... 3
08
Parcel shelf, rear
........................................... 12

2
Parking brake

................................ 1
92, 251, 252
Parking brake, electric

................ 1
9, 20, 31, 193
Parking sensors, front

...................................2

22
Parking sensors, rear.................................... 221
Personalisation
...............................

................46
Player, Apple
® .............................. .................345
Player, MP3 CD ............................ 3 42, 385, 386
Player, USB

................................................... 3

42
Port, USB

...................................... 1
13, 342, 387
Pre-heater, Diesel
...............................

............30
Pressures, tyres
............................................ 3

08
Pre-tensioning seat belts

.............................. 16

0
Priming pump
...............................

.................298
Priming the fuel system

................................ 29

8
Protecting
children
......... 1

62, 166, 167, 171, 173, 175 -178
Puncture
................

................................ 260, 267
P
Radio ............... ..................... 338, 339, 342, 381
Radio, digital (Digital Audio Broadcasting - DA B) .................................................... 340, 341
Range, AdBlue

...............................
........... 37, 39
RDS
................

............................................... 339
Rear screen, demisting
......................... 1

0 0 , 111
Recharging the battery

.................................29

4
Reduction of electrical load

..........................23

9
Regeneration of the particle filter

.................25

0
Reinitialising the electric windows

.................. 87
R

einitialising the remote control
......... 6
9, 75, 76
Reminder, key in ignition

...............................18

8
R
Remote control ........................ 64, 65, 70 -73, 77
Removing a wheel .............................. ..........275
Removing the mat

...............................
..........11 9
Replacing bulbs
..............................

...... 279, 285
Replacing fuses
..............................

..............288
Replacing the air filter

...................................25

0
Replacing the oil filter

................................... 25

0
Replacing the passenger
compartment filter

...................................... 25

0
Resetting the service indicator

.......................36
R

esetting the trip recorder
..............................44
R

eset trip
......................................................... 59
R

ev counter
................................................ 1

4 -16
Reversing camera
...............................

..........223
Reversing lamps
........................................... 28

5
Risk areas (update)

....................................... 32

9
Roof bars
....................................................... 24

0
Running out of fuel (Diesel)

..........................29

8
Safety, children

............................ 1
62, 166, 167,
171, 173 , 175 -178
Screen, cold climate

..................................... 2

32
Screen, colour and mapping........................... 16
Screen menu map

........3
18, 320, 324, 332, 334,
336, 346, 348, 350, 360, 362, 398, 399
Screen, monochrome
............................. 4

7, 398
Screen, multifunction
(with audio system)

............................... 4
7, 380
Screenwash, front
......................................... 13

9
Screenwash, rear
...............................

...........141
SCR (Selective Catalytic Reduction)

............25

3
SCR system

..............................
.............. 37, 253
Seat belts
.............................. 1

57, 158, 160, 172
S
Seat, rear bench .............................. ...............98
Seats, electric ................................................. 93
Se
ats, front
...............................
........... 92, 93, 97
Seats, heated
...............................

...................95
Seats, rear
....................................................... 98
S

erial number, vehicle
..................................3

08
Service indicator
....................................... 3

4, 43
Servicing
...............................

..........................10
Settings, equipment
............................ 1

6, 47, 53
Settings (Menus)
.......................... 3

46, 348, 350
Settings, system

...............................
.............353
Sidelamps
............................. 1

31, 280, 283, 285
Side repeater
..............................

..................283
Ski flap

..............................
............................121
Snow chains
.................................................. 2

31
Socket, 12 V accessory

.................1

12, 121, 12 2
Socket, auxiliary

...............................
.....342, 388
Socket, JACK

...............................
. 113, 342, 388
Sockets, audio

.............................. 1
13, 387, 388
Sockets, auxiliary

.......................................... 11

3
Speed limiter
...............................

..........213, 215
Speedometer
..............................

.............. 14, 15
Spotlamps, side
.................................... 1

33, 284
Starting the engine

....................................... 18

6
Starting the vehicle

............... 1
86, 189, 190, 198
Starting using another battery

......................2

93
Station, radio
......................................... 33

8, 339
Stay, bonnet
...............................

...................242
Steering wheel, adjustment

............................99
S

topping the vehicle
............. 1
86, 189, 190, 198
Stop & Start
...............................2

7, 60, 103, 107,
110, 206, 227, 242, 250, 295
Storage
................

............................112 , 115 -117
Storage box
................................................... 11

5
Storage compartments
................................. 11

5
Storing driving positions

.................................97
S

towing rings
..............................
..................124
Sun visor
....................................................... 11

4
Alphabetical index

410
Under floor storage .......................................12 4
Under-inflation (detection) ............................ 20
4
Unlocking
..............................

..........................70
Unlocking from the inside

...............................78
U

nlocking the boot
.......................................... 64
U

nlocking the doors
........................................ 64
U

pdating risk areas
....................................... 32

9
Updating the date

............................................ 55
U

pdating the time
............................................ 55
U

REA
...............
............................................... 37
USB
........

....................................................... 342
USB player

.................................................... 11

3
Ventilation
..............................

......... 10, 103, 104
Voice recognition

...............................
...355, 359
Warning and indicator lamps

..........................17
W

arning lamp, Diesel engine pre-heater
.......3

0
Warning lamps
........................ 1

7, 19, 20, 26, 43
Warning lamp, SCR emissions control system

................
........................................... 25
Warning lamp, Service.................................... 21
Washing (advice) ........................................... 223
Weights
...............

.......................................... 302
Wheel, spare
................................. 2

71, 273, 308
Window controls

............................................. 87
V
W U
T
Switching off the engine ............................... 18 6
Synchronising the remote control ....... 6 9, 75, 76
Tables of fuses

.............................................. 28

8
Tank, fuel

...............................
................ 227, 229
Technical data
.......................................3

03, 305
Telephone
.............................3

60, 362, 364-366
Three flashes (direction indicators)

..............13

0
Time (setting)

..............................
.............. 47, 55
TMC (Traffic info)

.......................................... 33

0
To o l s
................

.............................................. 271
To r c h
..............................

...............................123
Total distance recorder

...................................44
T

ouch screen tablet
............................ 5
1, 54, 59
Touch screen tablet ( M e nu s)
............................. 5

1, 53, 54, 313, 317
Towball, quickly detachable

..........................23

3
To w b a r
................

................................... 185, 238
Towbar with quickly detachable towball
...............................

..........................233
Towed loads

..........................................3
03, 305
Towing another vehicle

.................................29

6
Traction control (ASR)

..................................15

5
Traffic information (TA)

......................... 3
31, 382
Traffic information (TMC)

..............................33

0
Tr a i l e r
...............

..................................... 185, 238
Trajectory control systems

............................15

5
Trip computer

...................................... 5
6, 58 - 60
Trip distance recorder

..................................... 44
T

y r e s
........................................................ 1
0, 308
Tyre under-inflation detection

.......................20

4 Windscreen, panoramic ................................
11
4
Wiper blades (changing) ....................... 1
40, 241
Wiper, rear ..................................................... 141
Wipers
............................................. 3

0, 137, 138
Wipers, automatic rain sensitive

............13

7, 13 8
Alphabetical index
