139Visibility

006
Fittings

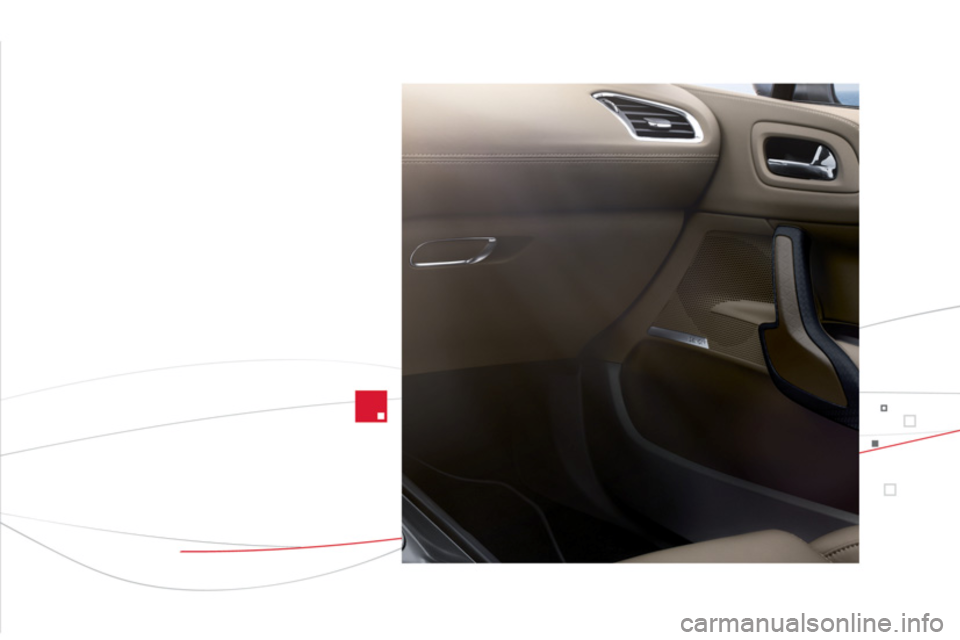

Interior fi ttings



1.
Sun visor


(see "Familiarisation - § Panoramic
windscreen")

2.
Ticket/card holder


3.
Illuminated

glove box


(see details on a following page)

4.
Door

pockets


5.
USB port/Auxiliary socket


(see details on a following page)

6.
Cigar lighter/12 V accessor y socket


(see details on following pages)

7.
Por table ashtray


(see details on following pages)

8.
Centre armrest with storage


(see details on a following page)

143Fittings











Illuminated glove
box

It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
Its lid has locations for storing a pen, a pair of
glasses, tokens, maps, a cup...


)
To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fitted with air conditioning, it
provides access to the ventilation nozzle B
,
distributing the same conditioned air as the
vents in the passenger compartment.






Portable ashtray




)
Pull the cover to open the ashtray.

)
To empty it, remove the ashtray by pulling it
upwards.
To avoid any problem of inter ference
or risk of over turning, do not place the
ashtray near the gear lever.

Cigarette lighter/12 V
accessory socket


)
To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.

)
To connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.





















USB port/auxiliary
socket

Connected to the USB por t, the
por table device charges automatically
while in use.
The "AU X "
connection box, located in the
centre console, comprises an auxiliary JACK
socket and/or a USB port.
It permits the connection of a por table device,
such as a digital audio player of the iPod
® or
USB memory stick type.
It reads cer tain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them on the multifunction
screen.
For more information on the use of this
equipment, refer to the "Audio and Telematics"
section.

145Fittings














Semi-raised centre console




1.
Front armrest


(see details on following pages)

2.
Open storage


3.
Cup holder


4.
Storage pocket









Raised centre console




1.
Front armrest

(see details on following pages)

2.
12 V accessor y socket

(see details on following pages)

3.
Storage box


4.
Cup holder/Bottle holder


5.
Storage pocket


6.
Large multifunctional storage unit

(see details on following pages)

Large multifunctional
storage unit

This storage unit is closed by a sliding shutter.
It contains:


- the USB port and 12 V/auxiliary sockets 1
,

- a retractable suppor t 2
to receive your
mobile phone or por table device,

- a space ventilated by a closeable nozzle 3
,
to keep food and drinks fresh if the air
conditioning is operating. It is illuminated only when the sliding
shutter is fully open.
The sliding shutter can be par tly
closed up to the level of the retractable
suppor t, so as to keep the storage unit
cool.

147Fittings








Front armrest
Comfor t and storage system for the driver and front passenger.
The height and length of the armrest cover can be adjusted.


Longitudinal adjustment

Height adjustment
Storage



)
Raise the cover to the required position
(low, intermediate or high).

)
If you raise the cover slightly beyond the
high position, guide it when lowering it to
the low position.


)
Slide the cover fully for wards or rear wards.
The storage space in the armrest can hold up
to 6 CDs.
This storage space may be fitted with a
230 V/50 Hz socket.


)
Raise the lever.

)
Raise the cover fully.

Longitudinal adjustment









Front armrest
Comfor t and storage device for the driver and front passenger.
The length of the armrest cover can be adjusted.
The armrest's compar tment can hold up to
6 CDs.


)
Raise the cover fully.



Storage



)
To move for wards, raise the lever.
The armrest slides for wards to its stop.

)
To stow it, slide it fully back and press
down to lock it.
