AUDIO STREAMING


Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.

Connect the telephone: see "USING THE TELEPHONE".
Select " Audio
" or " All
" profi le.

If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device only.

Once connected in streaming mode, the telephone is considered to be
a media source.
It is recommended that you activate " Repeat
" on the Bluetooth
peripheral.


MUSIC MEDIA PLAYERS


iPod/iPhone


Connect the iPod or iPhone to the USB port using a suitable cable
(not supplied).
Play starts automatically.

Control is via the audio system.

The classifi cations available are those of the portable device
connected (artists/albums/genres/playlists/audiobooks/podcasts).
The default classifi cation used is by artist. To modify the classifi cation
used, return to the fi rst level of the menu then select the desired
classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.

333
08
12
3
MUSIC MEDIA PLAYERS

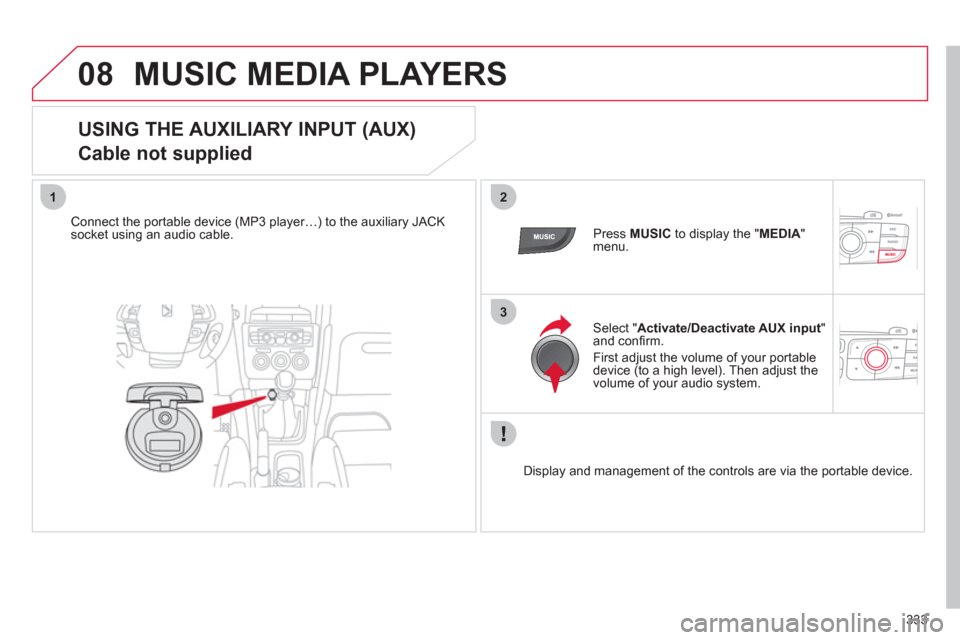

USING THE AUXILIARY INPUT (AUX)
Cable not supplied

Connect the portable device (MP3 player…) to the auxiliary JACK
socket using an audio cable.
Press MUSIC
to display the " MEDIA
"
menu.

Select " Activate/Deactivate AUX input
"
and confi rm.
First adjust the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.

Display and management of the controls are via the portable device.

341
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


Some contacts are
duplicated in the list. The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown
in alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specifi c order. Modify the display setting in the telephone
directory.
The system does not
receive SMS text messages. The Bluetooth mode does not permit sending SMS text messages to the
system.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
Le CD has been recorded in a format that is not compatible with the
player.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio system.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio system's CD player does not play
DVDs.

- Some recorded CDs will not be played by
the audio system because they are not of the
correct quality.

There is a long waiting
period following the insertion
of a CD or connection of a
USB memory stick. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to a
few minutes. This phenomenon is normal.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

352
04
1
2
3
AUDIO







AUDIO CD


Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the
quality of the original player.
Without pressing the EJECT
button, insert a CD in the player,
play begins automatically.

To play a disc which has already been
inserted, press the SOURCE
button several
times in succession and select " CD
".


Press one of the buttons to select a
track on the CD.
PLAYING A CD

Press LIST
to display the list of tracks
on the CD.

Press and hold one of the buttons for
fast forward or backward.

353
04 AUDIO













CD, USB


INFORMATION AND ADVICE

On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 directory levels. However, it is recommended that this be kept
to 2 levels so as to limit the time taken to access and play the CD.
During play, the folder structure is not observed.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.

Do not connect a hard disk or USB device other than audio players to
the USB port. This may cause damage to your installation.

The audio system will only play fi les with extension ".mp3" or ".wma"
and a compression rate that is constant or variable between 32 Kbps
and 320 Kbps.

It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.

The playlists accepted are types .m3u and .pls.
The number of fi les is limited to 5 000 in 500 directories on a
maximum of 8 levels.

354
04
1
3
2
4
5












CD, USB

AUDIO


PLAYING A COMPILATION

Insert an MP3 compilation in the CD player or
connect a memory stick to the USB port, directly or
via an extension lead.

The system creates playlists (temporary memory) the creation time
for which can take from a few seconds to several minutes.
The playlists are updated every time the ignition is switched off or a
USB memory stick is connected.
Play starts automatically after a period which depends on the
capacity of the USB memory stick.

At a fi rst connection, the order suggested is by folder.
When connecting again, the order previously chosen is
retained.

To play a disc or memory stick which
has already been inserted, press
SOURCE
several times in succession
and select " CD
" or " USB
".


Press one of the buttons to select the
next or previous track.

Press one of the buttons to select the
next or previous folder in the order
chosen.

Press and hold one of the buttons for
fast forwards or backwards.

Press LIST
to display the menu of
folders in the compilation.

356
04 AUDIO


iPod ®
or PORTABLE PLAYER


Management of the device is via the audio system controls.
The audio fi les on a Mass Storage portable player * can
be heard through the vehicle's speakers by connecting
it to the USB port (cable not supplied).

If the portable player is not recognised by the USB port,
connect it to the auxiliary Jack socket.
The iPod
®
must be updated regularly for the best connection.

The playlists are those defi ned in the iPod
®
.

The iPod
®
must be generation 5 or later.


* Check your player's manual.

362


1
2
3
4
05
5

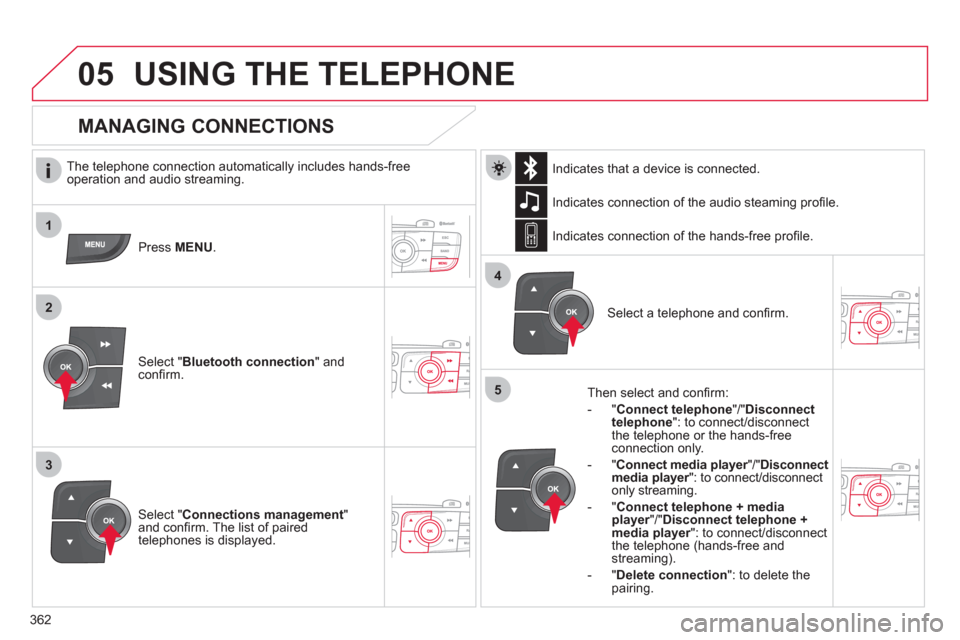

USING THE TELEPHONE


The telephone connection automatically includes hands-free
operation and audio streaming.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.


MANAGING CONNECTIONS


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
"/" Disconnect
telephone
": to connect/disconnect
the telephone or the hands-free
connection only.

- " Connect media player
"/" Disconnect
media player
": to connect/disconnect
only streaming.

- " Connect telephone + media
player
"/" Disconnect telephone +
media player
": to connect/disconnect
the telephone (hands-free and
streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.

375
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player
the right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The message "USB
device error" is displayed
in the screen. The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.

M
Main beam .................................. 122, 257, 258
Maintenance................................................. 34
Map reading lamps ..................................... 136
Markings, identification ............................... 287
Massage function .......................................... 91
Mat .............................................................. 150
Menu, main .................................................348
Mini fuel level .............................................. 117Navigation ...................................................299
Number plate lamps .................................... 262
Oil filter ........................................................ 238
Oil level ..................................................52, 235
Opening the bonnet .................................... 231
Opening the boot ........................................ 114
Opening the doors ...................................... 112
Operation indicator lamps ........................ 41-51
O N
Jack ............................................................. 249
JACK socket ................................144, 333, 357Labels, identification ................................... 287
Lamps, warning and indicator .................. 41-51
Lane Depar ture Warning System
(LDWS) ..................................................... 215
Level, brake fluid ......................................... 235
Level, power steering fluid ..........................236
Levels and checks................................231-240
Lighting, guide-me home .................... 125, 126
Lighting, interior .................................. 136, 137
Lighting bulbs (replacement) .............. 256 -263
Lighting control stalk ........................... 122, 125
Lighting dimmer ................................38, 39, 57
Loading......................................................... 34
Load reduction mode .................................. 271
Locating your vehicle .................................. 103
Locking from the inside ............................... 107
Locking the boot .......................................... 114
Long objects, transpor ting .......................... 152
Luggage retaining strap .............................. 153
JL
Ignition ......................................................... 104
Indicator lamps, status ............................. 41-51
Indicators, direction .................... 172, 258, 261
Inflating accessories (using the kit) ............ 248
Inflating tyres ............................................. 287
Inputs for audio system ...............144, 333, 357
Instrument panel lighting .............................. 57
Instrument panels ................ 38, 39, 55, 59, 68
Instrument panel screen .........................38, 39
Intelligent Traction Control .......................... 177
Interior fittings ..................................... 142, 143
Interior mood lighting .................................. 137
ISOFIX child seats ............................... 167-168
ISOFIX mountings ....................................... 166
IMirror, rear view ............................................ 97
Mirrors, door ....................................95, 96, 216
Misfuel prevention ....................................... 119
Motorway function (direction indicators) ..... 172
Mountings for ISOFIX seats ....................... 166
MP3 CD ...............................................329, 353
Music media players ...........................328, 353
Keeping
children safe ......................158 -169, 182, 185
Key in ignition warning ................................ 104
Key with remote control ...................... 100 -106
K
Paint colour code ........................................ 287
Parcel shelf, rear ......................................... 154
Parking brake ......................................200, 240
P
