Page 224 of 396
Cruise control
System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The functions of this system are grouped
together on the steering mounted controls.
1.
Cruise control mode selection dial.
2.
Speed programming/value decrease
button.
3.
Speed programming/value increase button.
4.
Cruise control off/resume button.
5.
Memorised speeds display button.
(see "Memorising speeds")
Steering mounted controls
The cruise control system cannot, in
any circumstances, replace the need to
respect speed limits, nor can it replace
the need for vigilance and responsibility
on the par t of the driver.
You are advised to keep your feet near
the pedals at all times. The programmed information is grouped
together in the instrument panel screen.
6.
Cruise control off/resume indication.
7.
Cruise control mode selection indication.
8.
Programmed speed value.
9.
Selecting a stored speed.
(see "Storing speeds")
Displays in the instrument panel
Operation
The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h) and engagement of:
- four th gear on the manual gearbox,
- second gear on the electronic gearbox
system or automatic gearbox, in sequential
driving mode,
- position A
on the electronic gearbox
system or D
on an automatic gearbox.
The cruise control is switched off
manually
or by pressing the brake or clutch pedal or
on triggering of the ESP system for safety
reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 241 of 396
239Checks
Particle emission filter (Diesel)
On a new vehicle, the first operations of
regeneration of the par ticle emissions
filter may be accompanied by the smell
of "burning", which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for the
details of the level checking inter val
for this component.
According to your version of instrument panel, the start of
saturation of the par ticle emissions filter is indicated by:
6-speed electronic
gearbox system
The gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for
details of the checking inter val for
this component.
- temporary illumination of the
ser vice warning lamp, accompanied
by an audible signal and a message
that there is a risk of blockage of the
particle emissions filter.
-
fixed illumination of the par ticle
emissions filter warning lamp,
accompanied by an audible signal
and a message that there is a risk of
blockage of the particle emissions filter,
or
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, refer to
the "Additive level" section.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for
details of the level checking inter val
for this component.
Page 254 of 396

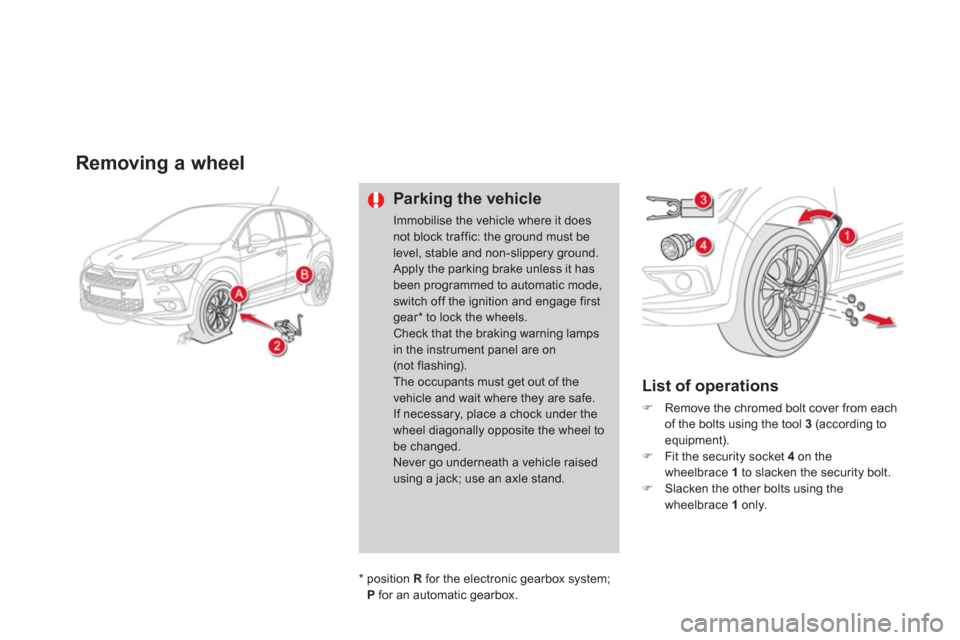

Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does
not block traffic: the ground must be
level, stable and non-slippery ground.
Apply the parking brake unless it has
been programmed to automatic mode,
switch off the ignition and engage first
gear * to lock the wheels.
Check that the braking warning lamps
in the instrument panel are on
(not f lashing).
The occupants must get out of the
vehicle and wait where they are safe.
If necessary, place a chock under the
wheel diagonally opposite the wheel to
be changed.
Never go underneath a vehicle raised
using a jack; use an axle stand.
List of operations
)
Remove the chromed bolt cover from each
of the bolts using the tool 3
(according to
equipment).
)
Fit the security socket 4
on the
wheelbrace 1
to slacken the security bolt.
)
Slacken the other bolts using the
wheelbrace 1
only.
*
position R
for the electronic gearbox system;
P
for an automatic gearbox.
Page 273 of 396
271Practical information
Load reduction mode
System which manages the use of cer tain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit. Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic
gearbox system.
Before disconnecting the
battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before star ting to permit initialisation of the
electronic systems. However, if problems
are encountered following this operation,
contact a CITROËN dealer or a qualified
workshop.
Referring to the corresponding section,
you must yourself reinitialise:
- the remote control key,
- the GPS satellite navigation system.
Page 276 of 396
Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
The towing eye is installed in the boot under
the floor.
To gain access to it:
)
open the boot,
)
raise the floor,
)
secure it by hooking its cord on the hook on
the rear parcel shelf suppor t,
)
remove the towing eye from the holder.
Access to the tools
General
recommendations
Obser ve the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motor ways and fast roads is
prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering. In the following cases, you must always call
on a professional recovery ser vice:
- vehicle broken down on a motor way or
fast road,
- when it is not possible to put the gearbox
into neutral, unlock the steering, or release
the parking brake,
- towing with only two wheels on the
ground,
- where there is no approved towing bar
available...
Page 277 of 396
275Practical information
)
On the front bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
On the rear bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps on
both vehicles.
)
Move off gently, drive slowly and for a short
distance.
Towing your vehicle
Towing another vehicle
)
Place the gear lever in neutral
(position N
on the electronic gearbox
system or automatic gearbox).
Failure to obser ve this instruction
could result in damage to
certain components (braking,
transmission...) and the absence of
braking assistance the next time the
engine is started.
)
Unlock the steering by turning the key
in the ignition one notch and release the
parking brake.
)
Switch on the hazard warning lamps on
both vehicles.
)
Move off gently, drive slowly and for a short
distance.
Page 284 of 396
MODELS:
ENGINES AND GEARBOXES
Model codes:
NX...
5FS0
5FV8/P
5FMA
5FU8
PETROL ENGINES
VTi 120
THP 155
THP 160
THP 200
Cubic capacity (cc)
1 598
1 598
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
88
115
120
147
Max power engine speed (rpm)
6 000
6 000
6 000
5 500
Max torque: EU standard (Nm)
160
240
240
275
Max torque engine speed (rpm)
4 250
1 400
1 400
1 700
Fuel
Unleaded
Unleaded
Unleaded
Unleaded
Catalytic conver ter
yes
yes
yes
yes
GEARBOX
Manual
(5 -speed)
Electronic gearbox system (6 -speed)
Automatic
(6 -speed)
Manual
(6 -speed)
OIL CAPACITIES (in litres)
Engine (with filter replacement)
4.2
4.2
4.2
4.2
Page 285 of 396
283Technical data
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 120
THP 155
THP 160
THP 200
Gearboxes
Manual
Electronic gearbox system
Automatic
Manual
Model codes:
NX...
5FS0
5FV8/P
5FMA
5FU8
- Unladen weight
1 205
1 284
1 363
1 316
- Kerb weight
1 280
1 359
1 438
1 391
- Gross vehicle weight (GV W)
1 755
1 795
1 835
1 820
- Gross train weight (GTW)
on a 12 % gradient
2 955
3 195
2 635
2 820
- Braked trailer (within the GTW limit)
on a 12 % gradient
1 200
1 400
800
1 000
- Braked trailer * (with load transfer within the
GTW limit)
1 450
1 650
1 000
1 250
- Unbraked trailer
640
680
715
695
- Recommended nose weight
75
75
75
75
*
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Page 286 of 396
MODELS:
ENGINES AND GEARBOXES
Model codes:
NX...
9HP0
9HR8
9HR8/S
9HR8/PS
RHH8
RHC8/P
DIESEL ENGINES
HDi 90 PEF
HDi 110 PEF
HDi 160 PEF
Cubic capacity (cc)
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
85 x 88
Max power: EU standard (kW)
68
82
120
Max power engine speed (rpm)
4 000
3 600
4 000
Max torque: EU standard (Nm)
230
270
340
Max torque engine speed (rpm)
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Catalytic conver ter
yes
yes
Ye s
Particle emissions filter (PEF)
yes
yes
Ye s
GEARBOX
Manual
( 5 -speed)
Manual
(6 -speed)
Electronic gearbox system (6 -speed)
Manual
(6 -speed)
Electronic gearbox system (6 -speed)
OIL CAPACITIES (in litres)
Engine (with filter replacement)
3.75
3.75
3.75
-
-
.../S:
e-HDi model fitted with Stop & Star t.
Page 287 of 396
285Technical data
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 90 PEF
HDi 110 PEF
e- HDi 110 PEF
HDi 160 PEF
Gearbox
Manual
Manual
Manual
Electronic
gearbox system
Manual
Electronic
gearbox system
Model codes:
NX...
9HP0
9HR8
9HR8/S
9HR8/PS
RHH8
RHC8/P
- Unladen weight
1 205
1 290
1 295
1 300
1 320
1 320
- Kerb weight
1 280
1 365
1 370
1 375
1 395
1 395
- Gross vehicle weight (GV W)
1 765
1 805
1 810
1 815
1 880
1 895
- Gross train weight (GTW)
on a 12 % gradient
2 865
3 105
3 110
3 115
3 180
3 195
- Braked trailer (within GTW limit)
on 12 % gradient
1 100
1 300
1 300
1 300
1 300
1 300
- Braked trailer * (with load transfer with the
GTW limit)
1 350
1 550
1 550
1 550
1 550
1 550
- Unbraked trailer
640
680
680
680
695
695
- Recommended nose weight
75
75
75
75
75
75
*
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
