13Familiarisation
Interior


6-speed electronic gearbox
system
This system offers driving combining a fully
automatic mode and a manual mode.

Interior mood lighting

This dimmed lighting of the passenger
compar tment improves visibility inside the
vehicle when the light is poor.

Audio and communication
systems
These systems benefit from the following
technologies: radio, CD player, USB player,
Bluetooth system, satellite navigation system
with colour screen, auxiliary sockets.

Radio


203


137



345


293





Electric parking brake

It combines the functions of automatic
application on switching off the engine and
automatic release when moving off.
Manual application and release remains
possible.

192

eMyWay satellite navigation system


Massage function

This system gives a lumbar massage for a
period of 60 minutes. The massage is done in
6 cycles of 10 minutes each.

91

Instruments and controls




1.
Cruise control/speed limiter controls.

2.
Controls for optional functions.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicator control
stalk.

5.
Instrument panel.

6.
Driver's airbag.
Horn.

7.
Controls for audio and telematic system.

8.
Controls for Bluetooth system or telephone.

9.
Bonnet release.

10.
Door mirror controls.
Electric window controls.

11.
Fusebox.

12 .
Manual headlamp height adjustment
Lower side switch panel.

13.
Fuel filler flap opening switch.
Upper side switch panel.

14 .
Side adjustable air vent.

15.
Front side window demisting vent.

25Familiarisation

Cruise control/speed limiter
controls

Steering wheel with
integrated controls
58



Optional functions controls


220, 222


57

2.
Dashboard lighting dimmer.
296, 347




Audio system controls


296, 347





Bluetooth system or
telephone controls


1.
Black panel (black screen).
68
or

Control of the central colour screen associated
with the satellite navigation system.
136

3.
Courtesy lamp on/off.
224


or
Parking space sensors.
Monitoring

Monochrome screen C

This displays the following information:


- time,

- date,

- ambient temperature (this flashes if there is
a risk of ice),

- openings check (if a doors or the boot is
open),

- parking sensor information,

- current audio source,

- telephone or Bluetooth system information,

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission control
system faulty") or information messages (e.g.:
"Automatic switching on of the headlamps
activated") may appear temporarily. These can
be cleared by pressing the "ESC"
button.


Displays in the screen

From the control panel of your audio system,
you can press:


)
button A
to chooses between the display
of audio information in full screen or the
shared display of audio and trip computer
information,

)
the "MENU"
button for access to the main
menu
,

)
the "
" or "
" buttons to scroll through the
items on the screen,

)
the "
" or "
" buttons to change a setting
value,

)
the "OK"
button to confirm,
or


)
the "ESC"
button to abandon the operation
in progress.



Controls



)
Press the "MENU"
button for access to the
main menu
:


- "Multimedia",

- "Telephone",

- "Trip computer",

- "Bluetooth connection",

- "Personalisation-configuration",

)
Press the "
" or "
" button to select the
menu required, then confirm by pressing
the "OK"
button.



Main menu

63Multifunction screens
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB/FM auto tracking, RadioText (TXT)
display) or to choose the media play mode
(Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and
Telematics" section.


"Multimedia" menu
"Trip computer" menu

This menu allows you to view information on
the status of the vehicle.

Warning log

This summarises the status and warning
messages for systems (active, not active or
faulty), displaying them in succession in the
multifunction screen.


)
Press the "MENU"
button for access to the
main menu.

)
Press the arrows, then the "OK"
button to
select the " Tr i p c o m p u t e r
" menu.

)
In the " Tr i p c o m p u t e r
" menu, select the
" Warning log" line and confirm.




"Telephone" menu

With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and
Telematics" section.


"Bluetooth
connection" menu
Wit the audio system on, this menu allows a
Bluetooth device (telephone, media player)
to be connected or disconnected and the
connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" application, refer to the "Audio and
Telematics" section.

279Practical information

"Multimedia":

audio systems, steering mounted audio controls,
speakers, Hi-Fi module, Bluetooth hands-free
system, por table satellite navigation system,
semi-integral support bracket for portable
navigation system, speed camera detector, USB
Box, reversing camera, por table video screen,
por table video suppor t bracket, 230 V/50 Hz
socket, 230 V/12 V adaptor, Wi-Fi on board...
By visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of your vehicle, refills (sealant cartridge for the
temporar y puncture repair kit...), ...



Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution.
You are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.

Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.

293

The system is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a CITROËN dealer for confi guration of
the system.






eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
294
296
297
299
312
315
325
328
334
335
336
339

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

315
06 USING THE TELEPHONE


Access to the "TELEPHONE" menu


" Telephone
"

" Dial
"
" Directory of contacts
"
" Contact management
"
" Phone functions
"
" Bluetooth functions
"
" Hang up
"
(call in progress)

Go from the list to the menu (left/right).
or

List of recent calls sent and
received with the telephone
connected to the system.
Press PHONE
.

To make a call, select a number in the list and confi rm " OK
"
to start the call.

Connecting a different telephone deletes the list of
recent calls. No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation of
address book in progress.
Telephone call in
progress.
In the top bar of the permanent
display

316
1
25
63
4
06

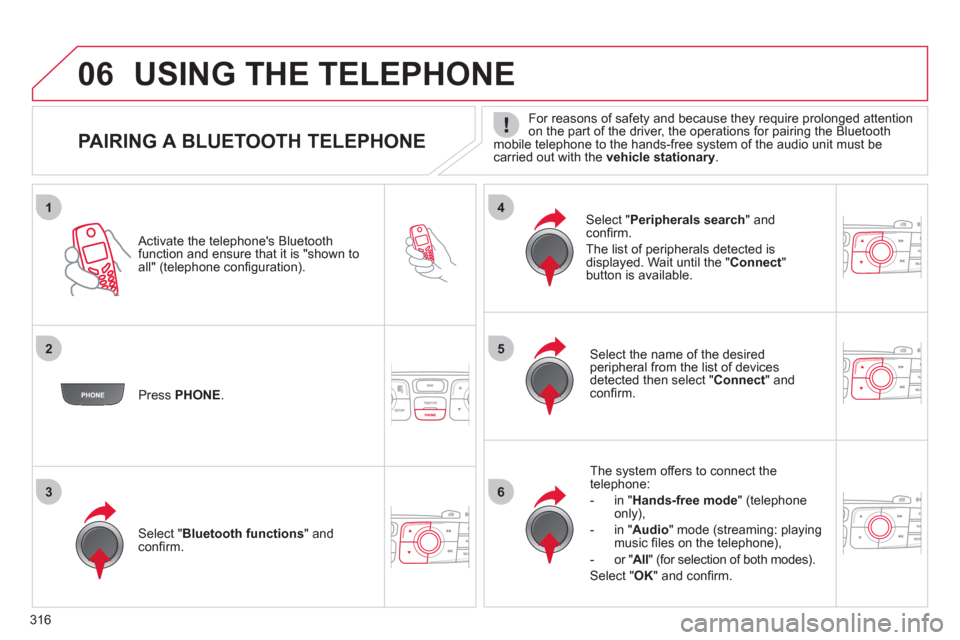

PAIRING A BLUETOOTH TELEPHONE


For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must be
carried out with the vehicle stationary
.

Activate the telephone's Bluetooth
function and ensure that it is "shown to
all" (telephone confi guration).

Press PHONE
.
Select the name of the desired
peripheral from the list of devices
detected then select " Connect
" and
confi rm.

The system offers to connect the
telephone:


- in " Hands-free mode
" (telephone
only),

- in " Audio
" mode (streaming: playing
music fi les on the telephone),

- or " All
" (for selection of both modes).
Select " OK
" and confi rm.
Select " Bluetooth functions
" and
confi rm.
Select " Peripherals search
" and
confi rm.
The list of peripherals detected is
displayed. Wait until the " Connect
"
button is available.

USING THE TELEPHONE

317
8
7
06

Enter the same code on the telephone then accept
the connection.
Then accept automatic connection on the telephone to allow the
telephone to reconnect automatically every time the vehicle is
started.



The ability of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.

USING THE TELEPHONE


The " Hands-free mode
" should be used in preference if
"Streaming" is not desired.
The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services available to you. A list of mobile telephones with the best level of
compatibility is available on www.citroen.co.uk.

Select a code for the connection then
confi rm " OK
".
On return to the vehicle,the last telephone connected
automatically reconnects, within around 30 seconds after
switching on the ignition (Bluetooth activated and visible).
To modify the automatic connection mode, remove the pairing and
pair the telephone again with the desired mode.
