glove box Citroen DS4 2012 1.G Owner's Manual

15
Familiarisation
Instruments and controls
1.
Steering lock and ignition. 2.Steering mounted control paddles for the
6 -speed electronic gearbox system.
3.Wiper/screenwash/trip computercontrol stalk. 4. Speaker (tweeter).
5. Windscreen demisting vent.
6.Sunshine sensor. 7. Passenger's airbag.8.Glove box/Audio/video sockets/Passenger's airbag deactivation switch.9.
Heated seat control. 10.Lumbar massage control. 11.
Electric parking brake. 12.
Gear lever, 6 -speed electronic gearbox system.13.Large multifunctional storage unit.

Passenger safety
1.
Open the glove box.2.
Inser t the key.3.Select the position: "OFF"(deactivation), with "rear facing"child seat,
"ON"
(activation), with front passenger or "forwards facing" child seat.4.
Remove the key keeping the switch in the new position.
Passenger's front airbag
186
A.
Front left seat belt not fastened/unfastened
warning lamp.
B. Front right seat belt not fastened/unfastened warning lamp.C.
Rear right seat belt unfastened warninglamp. D.Rear centre seat belt unfastened warning lamp. E.Rear left seat belt unfastened warning lamp.
F. Passenger's front airbag deactivated
warning lamp.
G.Passenger's front airbag activated warning lamp.


Seat belts and passenger's
front airba
g
181, 187

Lighting dimmer fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.
Passenger's airbag systemfixed in the seat beltand passenger's front airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passen
ger's front airbag is activated.
In this case, do not install a "rear facing"child seat.
Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.


Automatic wiping

fixed. The wiper control is pushed
downwards. Automatic front wipin
g is activated.
To deactivate automatic wipin
g, operate the control stalk downwards or put the stalk into another position.
Warning lampis onCauseAction/Observations
Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Star t system has put the engine into STOPmode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
fl
ashes for a few seconds, then goesoff. STOP mode is temporaril
y unavailable. or STA R T mode is invokedautomatically. Refer to "Drivin
g - § Stop & Star t" for special cases
with STOP mode and STA R T m o d e .
Parking space sensorsfixed.The parking space sensors function
is selected.To star t measurement, operate the direction indicator
on the side of the space to be measured, and do notexceed 12 mph (20 km/h). A message is displayed
once t
he measurement has been completed.

53Monitoring
Passenger'sairbag systemfixed in the instrument panel and/or seat beltand front passenger'sairbag warning lamps
display.
The control switch, located in theglove box, is set to the OFFposition.
The passenger's front airbag is deactivated.
Set the control to the "ON"
position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rear-facingposition.
Warning lampis onCauseAction/Observations
ESP/ASRfixed. The button, located at the bottom left of the dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability programme.
ASR: anti-slip regulation.Pr
ess the button to activate the ESP/ASR. Its indicator lamp goes off.
The ESP/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

Interior fi ttings
1.Sun visor(see "Familiarisation - § Panoramic
windscreen") 2.Ticket/card holder
3.Illuminated glove box(see details on a following page)4. Door pockets5.USB port/Auxiliary socket(see details on a following page)6.Cigar lighter/12 V accessory socket(see details on following pages)7.Por table ashtray(see details on following pages)8.Centre armrest with storage(see details on a following page)

145
Fittings











Illuminated glove
box

It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
Its lid has locations for storing a pen, a pair of glasses, tokens, maps, a cup... )To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the
front passenger airbag deactivation switch A.
If the vehicle is fitted with air conditioning, it provides access to the ventilation nozzle B
,
distributing the same conditioned air as the
vents in the passen
ger compartment.






Portable ashtray
)
Pull the cover to open the ashtray. )
To empty it, remove the ashtray by pulling it upwards.
To avoid any problem of interference or risk of over turning, do not place the ashtray near the gear lever.

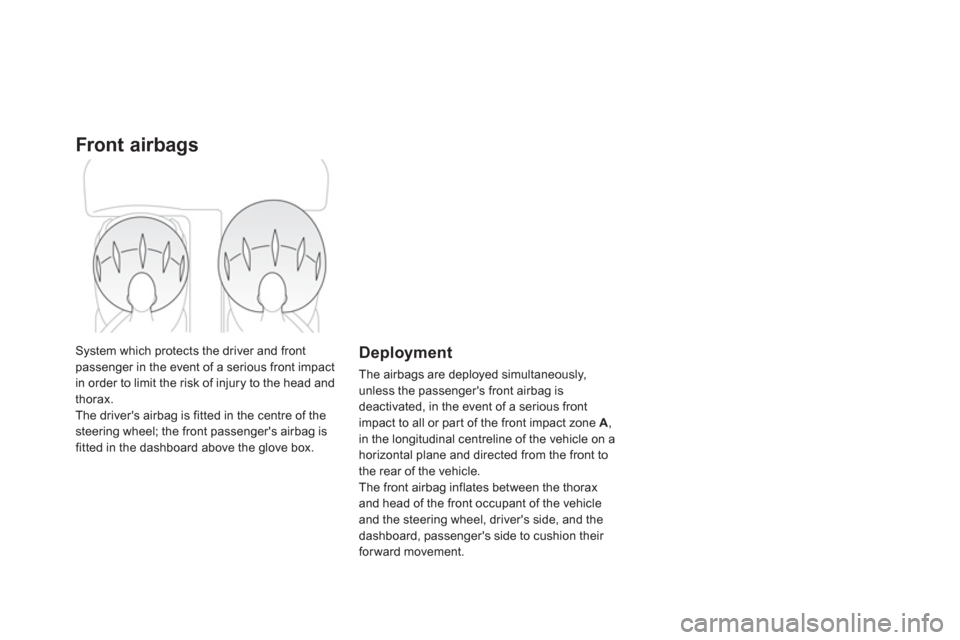

Front airbags
System which protects the driver and frontpassenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag is fitted in the dashboard above the glove box.

Deployment

The airbags are deployed simultaneously,unless the passenger's front airbag is
deactivated, in the event of a serious front
impact to all or par t of the front impact zone A ,
in the longitudinal centreline of the vehicle on a
horizontal plane and directed from the front to
the rear of the vehicle.
The front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steerin
g wheel, driver's side, and the
dashboard, passenger's side to cushion their
forward movement.

251Practical information














Changing a wheel
Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle.

The tools are installed in the boot under the floor.
To gain access to them: )open the boot, )raise the floor,)secure it by hooking its cord on the hook
on the rear shelf suppor t,
)with a standard size spare wheel, unclip and remove the box in the middle of the
wheel containing the tools,

or )with a "space-saver" spare wheel; lift the
wheel at the rear towards you for access
to the storage box containing the tools.

Access to the tools
List of tools

All of these tools are specific to your vehicle. Do not use them for other purposes.

Wheel with trim
When removing the wheel, detach thetrim first using the wheelbrace 1pulling at the valve passage hole.When refitting the wheel
, refit the trim starting by placing its notch facing the valve and press around its edge withthe palm of your hand.
3."Bolt cover" tool.
For removing the bolt protectors (covers)on alloy wheels.4.Socket for the security bolts (located in theglove box).
For adapting the wheelbrace to the special"security" bolts. 1
.Wheelbrace.
For removing the wheel trim and the wheel
fixing bolts.
2. Jack with integral handle.For raising the vehicle.

Fusebox 1
Fuse N°RatingFunctions
F8
3 A Alarm siren, alarm ECU.
F13 10 A
Cigarette lighter.
F1410 A
12 V socket in boot.
F1
63 A Lighting for the large multifunctional storage unit, rear map
reading lamps, glove box illumination.
F17
3 A Sun visor illumination, front map reading lamps.
F2
815 A Audio system, radio (after-market).
F3
020 A Rear wiper.
F32 10 A
Hi-Fi amplifier.
Fusebox
2
Fuse N°RatingFunctions
F3
615 A
Rear 12 V socket.
F37
- Not used.
F38
- Not used.
F3
9- Not used.
F4
025 A
230 V/50 Hz socket.
Fuse tables

383Visual search
Interior


Boot fittings 155 -15 8


- rear parcel shelf

- hooks

- 12 V socket

- torch

- lashing eyes

- storage compar tment

Rear seats
93-94
Rear armrest/Ski flap 154
IS
OFIX mountings 168 -170

Child seats 162-167
Front seats
88-92
Seat belts 181-184 Airbags 185 -190

Glove box 145
Deactivating the passenger's airbag 187
Interior fittings 144-154
- auxiliary socket/USB por t
- cigarette lighter/12 V socket
- portable ashtray- front armrest
- 230 V/50 Hz socket
- mats


Panoramic windscreen 12


- blind

- sun visor
