stop start Citroen DS4 2012 1.G Owner's Manual

SAFETY DRIVING FITTINGS CHILD SAFETY
194 Electric parking brake
202Manual parking brake
203 Manual gearbox
204Gear shift indicator
205 6-speed electronic gearboxsystem
209Automatic gearbox
213 Hill start assist
214Stop & Start
217 Lane departure warningsystem
218 Blind spot sensors
222Speed limiter
224Cruise control
226 Parking space sensors
228Parking sensors
174 Direction indicators
174 Hazard warning lamps
175Horn
175Emergency or assistance call
176Tyre under-infl ation detection
178 Braking assistance systems
179Tr ajectory control systems(ESP)
181 Front seat belts
185 Airbags
162Child seats
168 ISOFIX child seats
171Child lock
14 4 Interior fi ttings
15 0Front armrest
155Boot fi ttings
008008009009006006007007

Exterior
Parking sensors
This system measures the size of a free parking space between two vehicles or obstacles.
Stop & Start system
This system puts the engine temporarily into standby during stops in the traffic (traffic lights, traffic jams, etc...). The engine
restarts automatically as soon as you want to move off.
The Stop & Start system reduces fuel consumption and exhaust emissions, as well as noise levels when stationary.
226

Directional lighting

This lighting automatically provides
additional visibility when cornering.
13
1
Panoramic windscreen
This large glazed area provides
incomparable visibility and light in the passenger compartment.
1
2

Cornering lighting

At low speed, this lighting comes on
automatically to improve vision when cornering, at intersections, when parkingparking... making use of the front foglamp on
the side in question.
13
2

Monitoring
Illumination of the warning lamp indicates
the state of the system.
Side switch panel
179
B.Deactivate the parking sensors.


228
C.
Deactivate the Stop & Start system.
21
4
D.Activate blind spot monitoring.
218
E. Activate the lane departure warningsystem.
217
F
.Deactivate the volumetric alarm protection.
10
9
A. Deactivate the ESP/ASR system.

27Familiarisation
104
1.Stopposition. 2.Ignition on
position. 3.Startingposition.


Ignition switch

When switching the ignition on and off, thespeedometer needle, and the rev counter and fuel gauge bars go to the extent of their travel and then return to 0.

Starting
Your vehicle is fitted with a system whichholds your vehicle stationary momentarily,
the time to move your foot from the brake to
the accelerator, to help with movin
g off on a gradient.
This function is only active when:
- the vehicle is completely stationary withyour foot on the brake pedal,
- cer tain conditions of gradient are met,
- the driver's door is closed.
213

Do not get out of the vehicle during the hill start assist temporary holdingphase.
Hill start assist

31Familiarisation

Stop & Start


Engine going into STOP mode
214Th
e "ECO"warning lamp comes on in
the instrument panel and the engine isput into standby automatically:


- with a manual
gearbox;
at speeds below
12 mph (20 km/h), when you put the gear
lever into neutral and release the clutchpedal, -with the 6-speed electronic gearbox
system;at speeds below 5 mph (8 km/h),
when you press the brake pedal or put the
gear lever in position N.
Engine going into START mode

Deactivation/Reactivation
You can deactivate the system at any time bypressing the "ECO OFF"
button; the button's
warning lamp comes on.
215
215
The system is reactivated automatically every time you start the engine withthe key.


Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key. Th
e "ECO"
warning lamp goes off
and the engine restarts automatically:
-
with a manual gearbox;when you fullydepress the clutch pedal, -
with the 6-speed electronic gearboxsystem;


●
with the gear lever in position A
or M ,
when you release the brake pedal,

●
or gear lever in position N
and brake
pedal released, when you change to
position
Aor M ,

●
or when you engage reverse.

In certain circumstances the ST
OP mode may not be available; the "ECO"warning lamp
flashes for a few seconds then goes off.In certain condition, START mode may engageautomatically; the "ECO"
warning lamp flashes
then goes off.
Driving safely

45
Monitoring
Warning lampis onCauseAction/Observations
Battery chargefixed. The battery charging circuit has a fault(dir ty or loose terminals, slack or cut
alternator belt, ...).The warnin
g lamp should go off when the engine isstarted.
If it does not go off, contact a CITROËN dealer or aqualified workshop.
Brakingfixed, associated with
the STOP warninglamp. The brakin
g system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.

+fixed, associated with
the electric parkin
gbrake malfunctionwarning lamp, if the parking brake isreleased. The brakin
g system has a fault. You must stop as soon as it is safe to do so. Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.

+ fixed, associated with
the
STOP and ABSwarning lamps. Th
e electronic brake force distribution (EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified workshop.

Lighting dimmer fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.
Passenger's airbag systemfixed in the seat beltand passenger's front airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passen
ger's front airbag is activated.
In this case, do not install a "rear facing"child seat.
Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.


Automatic wiping

fixed. The wiper control is pushed
downwards. Automatic front wipin
g is activated.
To deactivate automatic wipin
g, operate the control stalk downwards or put the stalk into another position.
Warning lampis onCauseAction/Observations
Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Star t system has put the engine into STOPmode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
fl
ashes for a few seconds, then goesoff. STOP mode is temporaril
y unavailable. or STA R T mode is invokedautomatically. Refer to "Drivin
g - § Stop & Star t" for special cases
with STOP mode and STA R T m o d e .
Parking space sensorsfixed.The parking space sensors function
is selected.To star t measurement, operate the direction indicator
on the side of the space to be measured, and do notexceed 12 mph (20 km/h). A message is displayed
once t
he measurement has been completed.

Type 2 central instrument panel screen
Information displays


- Display of instantaneous information with:
●
the ran
ge,
●
the current fuel consumption,
●

Stop & Start time counter,


- Display of trip "1"
with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed,
for the first trip.



- Displa
y of trip "2"
with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed, for the second trip.



●
information on the current audio source,

●
black screen,

●
navi
gation-guidance messages.
)Press the button, located at the end of the
wiper stalkor )turn the thumb wheel, located on the left of
the steering wheel
,
to display the following information in turn:
●
reminder of the speed,
●
instantaneous information
,●
trip "1" ,
●
trip "2",

A few definitions…
This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
The fuel consumption of your vehicle will be higher than the official figures obtainedby CITROËN during the first 3 000 miles(5 000 km) of the vehicle's life.
Range
(miles or km)This indicates the distancewhich can still be travelled with the fuelremaining in the tank in relation to the average
fuel consumption over the last few miles(kilometres) travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).

Current fuelconsumption
(mpg or l/100 km or km/l)
This is the average fuel consumption during the last few seconds.


Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption since the last trip computer zero reset.
Average speed
(mph or km/h)This is the average speed calculatedsince the last trip computer zero reset (ignition on).
Distance travelled
(miles or km)This indicates the distancetravelled since the last trip computer zero reset.
Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop & Star t, a timecounter calculates the time spent in STOP mode during a journey.
It resets to zero every time the ignition isswitched on with the key.

79Comfort

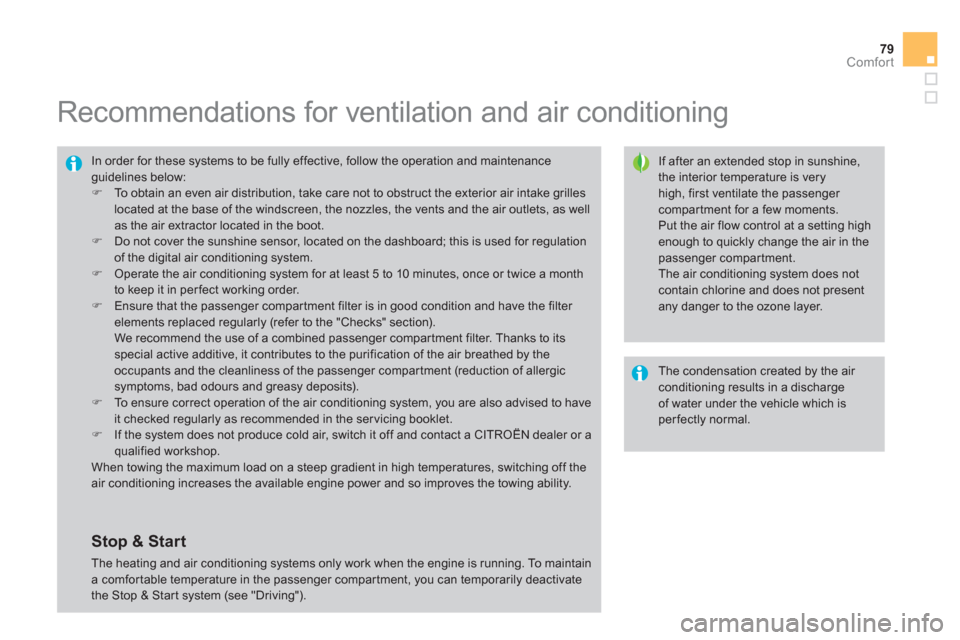

Recommendations for ventilation and air conditioning


If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in per fect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet.
)
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.


The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.




Stop & Start
The heating and air conditioning systems only work when the engine is running. To maintaina comfor table temperature in the passenger compartment, you can temporarily deactivatethe Stop & Start system (see "Driving").
