81
DS4_en_Chap02_ouvertures_ed03-2015
Doors
Opening
From outside
F After unlocking the vehicle or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
pull the door handle.
From inside
F Pull the interior control lever of a front door; this unlocks the vehicle completely.
Closing
When a door is not closed correctly:
-
w
ith the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an alert message for a few
seconds.
-

w
ith the vehicle moving (speed above
6
mph (10 km/h)), in addition to the warning
lamp and alert message, there is an
audible signal for a few seconds.
When the selective unlocking is
activated, the first press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking activated:
-

o

pening the the driver's door
unlocks the driver's door only (if the
vehicle has not already been
completely unlocked),
-

o

pening one of the passenger
doors unlocks the rest of the
vehicle.
Access

DS4_en_Chap02_ouvertures_ed03-2015
Boot
The vehicle or just the boot is unlocked,
depending on the setting.Selective unlocking
By default, complete unlocking is activated.
This setting is done in the "driving" menu,
then "Vehicle settings" and "Vehicle
access" .
When unlocking of the boot only is activated:
F

W
ith the electronic key on your person and
in the recognition zone A , press the boot
unlocking control to unlock just the boot,
then raise the tailgate.
Use this button for access to
additional information. F

L
ower the tailgate using one of the interior
grab handles.
Closing
Opening
Complete unlocking
F After unlocking the vehicle or the boot with
the Keyless Entry and Starting system
electronic key on your person in the
recognition zone A , press the boot opening
control then raise the tailgate. If the boot is not closed correctly:
-
w
ith the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied by
the display of an alert message
for a few seconds.
-
w
ith the vehicle moving (speed above
6 mph (10 km/h)), in addition to the warning
lamp and alert message, there is an an
audible signal for a few seconds.
Unlocking is signalled by rapid flashing of the
direction indicators for a few seconds.

11 5
DS4_en_Chap04_amenagement_ed03-2015

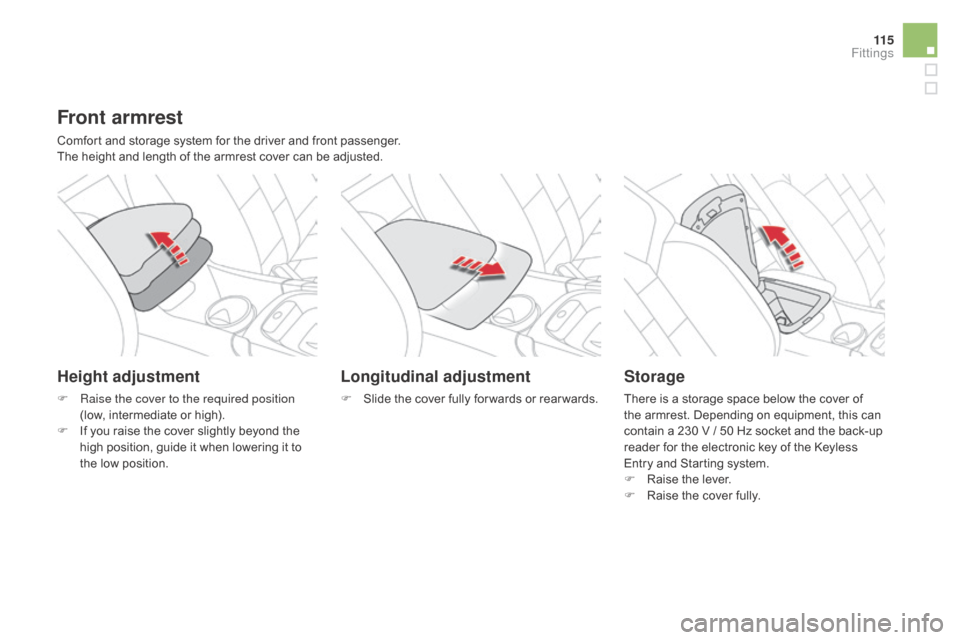

Front armrest
Comfort and storage system for the driver and front passenger.
The height and length of the armrest cover can be adjusted.
Height adjustment
F Raise the cover to the required position (low, intermediate or high).
F

I
f you raise the cover slightly beyond the
high position, guide it when lowering it to
the low position.
Longitudinal adjustment
F Slide the cover fully for wards or rear wards.
Storage
There is a storage space below the cover of
the armrest. Depending on equipment, this can
contain a 230 V / 50 Hz socket and the back-up
reader for the electronic key of the Keyless
Entry and Starting system.
F

Ra
ise the lever.
F

R
aise the cover fully.
Fittings

DS4_en_Chap04_amenagement_ed03-2015
Front armrest
Comfort and storage system for the driver and front passenger.
The length of the armrest cover can be adjusted.
Storage
There is a storage space below the cover of
the armrest. Depending on equipment, this can
contain the back-up reader for the electronic
key of the Keyless Entry and Starting system.
F
R
aise the cover fully.
Longitudinal adjustment
F To move for wards, raise the lever. The armrest slides for wards to its stop.
F

T
o stow it, slide it fully back and press
down to lock it.

133
DS4_en_Chap05_visibilite_ed03-2015
Welcome lighting
The remote switching on of the lighting makes your access to the vehicle easier in poor light. It is
activated depending on the ambient light level detected by the sunshine sensor.
Switching onSwitching off
F Press the open padlock on the
remote control or one of the front
door handles with the "Keyless
Entry and Starting" system.
The sidelamps and dipped beam headlamps,
as well as the side spotlamps, located under
the door mirrors, come on; your vehicle is also
unlocked. Activation or deactivation, as well as
the duration of the lighting duration
for the welcome lighting can be set
via the vehicle configuration menu.
Programming
The welcome lighting switches off automatically
after a programmed time, when the ignition is
switched on or on locking the vehicle.
Visibility

189
DS4_en_Chap08_conduite_ed03-2015
Starting / Switching off the engine with Keyless Entry and
Starting
Starting the engine
F Place the gear selector lever P or N with an automatic gearbox, or neutral with a
manual gearbox.
F

W
ith the electronic key inside the vehicle,
press the brake pedal for vehicles with an
automatic gearbox, or fully declutch for
vehicles with a manual gearbox. F

B
riefly press the " S TA R T/
STOP " button while maintaining
pressure on the pedal until the
engine starts. If the electronic key is not detected
in the zone, a message is displayed.
Move the electronic key into the zone
so that the engine can be started.
If one of the starting conditions is not
met, a reminder message appears in
the instrument panel screen. In some
circumstances, it is necessary to
turn the steering wheel slightly while
pressing the " START/STOP " button
to assist unlocking of the steering;
a message warns you when this is
needed.
The presence of the "Keyless Entry
and Starting" electronic key in the
recognition zone is essential.
As a safety measure, do not leave this
zone with the vehicle running.
diesel vehicles
In temperatures below zero
the engine will not start until
the preheater warning lamp
has gone off.
If this warning lamp comes on after
pressing " START/STOP ", you should
hold the brake or clutch pedal down
until the warning lamp goes off and do
not press the " START/STOP" button
again.
The steering column unlocks and the engine
starts more or less instantly.
See the advice below for Diesel versions.
It is not necessary to place the electronic key in
the reader.
driving

191
DS4_en_Chap08_conduite_ed03-2015
Emergency switch-off
In the event of an emergency only,
the engine can be switched of without
conditions. To do this, press and hold
the "START/STOP " button for about
3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
Electronic key not
recognised
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine, a
message is displayed. F

P
ress and hold the " S TA R T/
STOP " button for about
3
seconds if you want to force
switching off the engine ( note
that restar ting will not be
possible without the key ).
Ignition on position
(without starting)
With the Keyless Entry and Starting key inside
the vehicle, pressing the "START/STOP"
button, with no action on the pedals , allows
the ignition to be switched on.
F
P

ress the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F

P
ress the button again to switch off the
ignition and so allow the vehicle to be
locked.
With the ignition on, the system
automatically goes into energy
economy mode when required to
maintain the state of charge of the
battery.
driving

279
DS4_en_Chap10_verifications_ed03-2015
Fuel tankCapacity of the tank: approximately 60 litres.
Low fuel level
When the low fuel level in the
tank is reached, this warning lamp
comes on in the instrument panel,
accompanied by an audible warning
Refuelling
F Press control A until the automatic opening of the fuel flap is heard.
T

his control remains active for a few
minutes after switching off the ignition. If
necessary, switch the ignition on again to
reactivate it.
F

T
ake care to select the pump that delivers
the correct fuel for your vehicle.
With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key, or the
START/STOP button if your vehicle has
Keyless Entry and Starting.
Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. This vacuum is entirely normal and results
from the sealing of the fuel system.
and the display of an alert message. When it
first comes on, around 6 litres of fuel remain
in the tank.
Until sufficient fuel has been added, every
time the ignition is switched on, this warning
lamp appears, accompanied by an audible
signal and an alert message. When driving,
this audible signal and the display of this
alert message are repeated with increasing
frequency, as the level drops towards 0
.
You must refuel as soon as possible to avoid
running out.
If you run out of fuel (Diesel), refer to the
corresponding section.
Checks

DS4_en_Chap13_index-alpha_ed03-2015
Internet browser ............................................3 63
ISOFIX ............... .................................... 157-16 0
Isofix mountings
...............................

.............157
L
Labels, identification ..................................... 3 15
Lamp, boot ............................... .............123, 14 4
Lamps, parking
............................................. 13

1
Lane Departure Warning System (LDWS)

...............................
...........212
Level, AdBlue
®
additive ............... ........................................ 294
Level, brake fluid
...............

.............................................. 288
Level, Diesel additive
...............

........................................ 290
Level, engine coolant
...............

......................................... 289
Level, engine oil

...............................
....... 35, 287
Level, power steering fluid
...............

.............................................. 288
Levels and checks

..............................
..285 -290
Lighting, dashboard
........................................ 41
L

ighting dimmer
..............................
.... 18, 19, 41
Lighting, directional
............................... 13

5, 13 6
Lighting, guide-me home
...............................

.................... 131, 132
Lighting, interior
.................................... 14

2, 143
Lighting, mood
..............................

................143
Lighting, welcome

......................................... 13

3
Loading
..............................

..................... 14, 265
Load reduction mode

.................................... 26

3
Localised Assistance Call
........

...................................................... 318
Locating your vehicle

................................ 6
3, 68
Locking
...................................................... 6

2, 66
Locking from the inside
..............................

........................73
Long objects, transporting
..............................

..................120
Low fuel level

..............................
............ 26, 279
Luggage retaining strap
............................................................ 12

1
Jack
........

....................................................... 235
Jukebox (copy)

...............................

............... 353
Jump starting

..............................

.................. 260
Key
.......

...................................................... 60 -72
Keyless Entry and Starting

............... 6

6, 72, 189
Key not recognised

....................................... 19

0
Key with remote control

.................... 6

0, 62, 186
Kit, hands-free
...................................... 3

78, 404
Kit, temporary puncture repair

...................... 23

0
J
K
Ignition on...................................... 188, 189, 191
Immobiliser, electronic ............................ 7 2, 186
Indicator, engine oil level

.......................... 3
5, 39
Indicator lamps, operation

........................3

0-34
Indicators, direction
......................1

66, 246, 250
Inflating tyres

..............................
....................14
Inflating tyres and accessories (using the kit)

..............................
................234
Input, auxiliary
............................... 1

12, 350, 402
Instrument panels
...............................

.18 -20, 39
Intelligent Traction Control
............................ 16

9
I
Hazard warning lamps ..................................16 6
Hazard warning lamps, automatic operation
...............................

......................167
Headlamp adjustment
................................... 13

4
Headlamps, automatic illumination
...............................

........... 129, 132
Headlamps, dipped beam

............. 1
28, 245, 247
Headlamps, directional
................. 13

4, 13 5, 24 5
Headlamps, halogen
..................................... 24

5
Headlamps, main beam

................ 1
28, 245, 247
Headlamps, Xenon

....................................... 24

5
Headlamp wash
............................................ 13

9
Head restraints, front

...................................... 88
H

ead restraints, rear
....................................... 91
H

eating
................
........................96, 98, 99, 102
Hill start assist

............................................... 20

4
Hooks
...............................

.............................12 2
H
