Page 370 of 436
DS4_en_Chap12c_SMEGplus_ed03-2015
Back

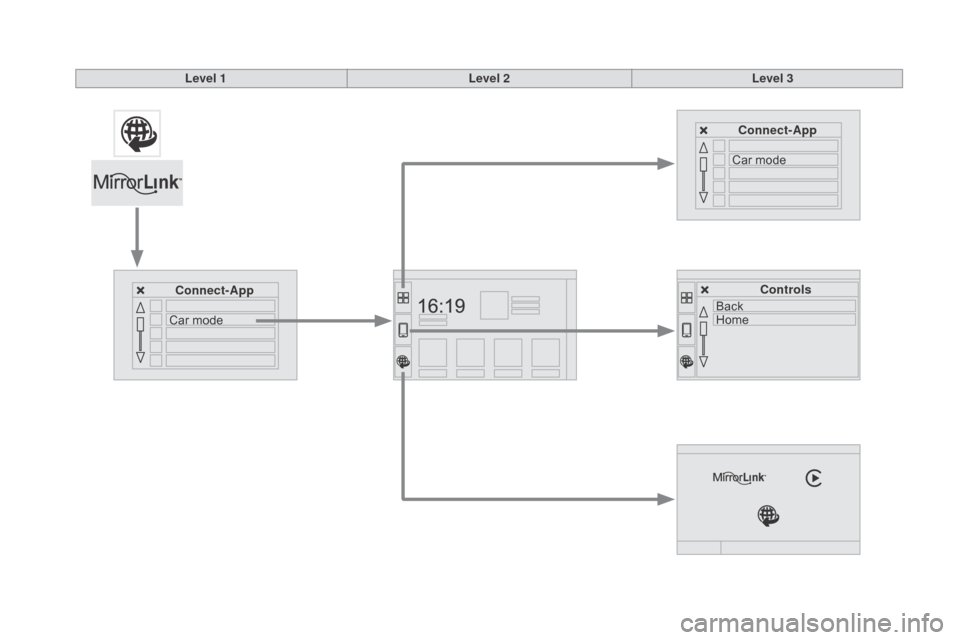

HomeControls
Connect-App
Car mode Connect-App
Car mode
Level 1
Level 2Level 3
Page 381 of 436
1
19
379
DS4_en_Chap12c_SMEGplus_ed03-2015
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth telephone
used. Check the telephone manual and
with your network provider for details of
the services available to you.
The ability of the system to connect
with only one profile depends on the
telephone. The three profiles may all
connect by default.
Visit www.citroen.co.uk for more information
(compatibility, additional help, ...).
The recognised telephone
appears in the list.
Depending on your telephone, you may be
asked to accept automatic connection every
time the ignition is switched on. On return to the vehicle, if the last telephone
connected is present again, it is reconnected
automatically and within around 30 seconds
after switching on the ignition the pairing is
done without any action on your part, with
(Bluetooth activated).
To modify the automatic connection mode,
select the telephone in the list then select the
desired profile.Depending on the type of telephone,
the system will ask you to accept or not
the transfer of your contacts.
If not, select " Update".
Connecting a Bluetooth®
peripheral device
Automatic reconnection
On switching on the ignition, the telephone
connected when the ignition was last switched
off is automatically reconnected, if this
connection mode had been activated during the
pairing procedure.
The connection is confirmed by the display of a
message and the name of the telephone.
Manual connection
Press on Telephone to display the
primary page.
Press on the secondary page.
Select " Bluetooth " to display the list
of paired peripherals.
Select the peripheral to connect. Press on " Search".
The connection is confirmed by the display of a
message and the name of the telephone.
Audio and Telematics
Page 390 of 436
DS4_en_Chap12c_SMEGplus_ed03-2015
QUESTIONANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources. For optimum sound quality, the audio settings for Volume, Bass,
Treble, Equalizer and Loudness can be adapted to the different
sound sources, which may result in audible differences when
changing source. Check that the audio settings for (Volume, Bass,
Treble, Equalizer, Loudness) are adapted to the
sources listened to. It is advisable to set the
Audio functions (Bass, Treble, Fr-Re balance,
Le-Ri balance) to the middle position, select the
"Linear", musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
With the engine off, the
system switches off after a
few minutes of use. When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
Page 411 of 436
409
DS4_en_Chap12d_RD5_ed03-2015
(so that the caller cannot hear)
In the contextual menu:
-
s
elect " Micro OFF " to switch off
the microphone.
-
d
eselect " Micro OFF " to switch
the microphone on. In the contextual menu:
-
s
elect "Telephone mode " to
transfer the call to the telephone.
-
d
eselect "Telephone mode " to
transfer the call to the vehicle. From the contextual menu, select
"dT
MF tones" and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
" Switch " and conform to return to a
call left on hold.
Secret - Mute Combined modeInteractive voice response
Consultation call
In certain cases, the combined mode has to
activated from the telephone.
If the contact has been cut off, when you
reconnect on returning to the vehicle,
the Bluetooth connection will be restored
automatically (depending on the compatibility of
the telephone). (to leave the vehicle without ending the call)
Audio and Telematics
Page 417 of 436
415
DS4_en_Chap12d_RD5_ed03-2015
QUESTIONANSWER SOLUTION
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5
MHz is displayed...). The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more power ful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or in an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2
seconds in radio mode. During this brief sound cut-out, the RDS searches for another
frequency giving better reception of the station. Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station does not broadcast traffic information.
Tune to a radio station which broadcasts traffic
information.
The stored stations are not
found (no sound, 87.5 MHz
is displayed...). An incorrect waveband is selected.
Press the BAND button to return to the waveband
on which the stations are stored.
Audio and Telematics
Page 419 of 436
417
DS4_en_Chap12d_RD5_ed03-2015
QUESTIONANSWER SOLUTION
The message "USB
peripheral error"
or "Peripheral not
recognised" is displayed in
the screen. The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick (FAT32).
A telephone connects
automatically,
disconnecting another
telephone. Automatic connection overrides manual connection.
Modify the telephone settings to remove
automatic connection.
The Apple
® player is
not recognised when
connecting to the USB
port. The Apple® player is of a generation that is not compatible with a
USB connection. Connect the Apple® player to the AUX Jack
socket using a suitable cable (not supplied).
The hard disk or device
is not recognised when
connecting to the USB
port. Some hard disks and devices need a power supply greater than is
provided by the audio system.
Connect the device to the 230 V socket, the 12 V
socket or an external power supply.
Caution
: ensure that the device does not
transmit a voltage greater than 5 V (risk of
destruction of the system).
When streaming, the
sound cuts momentarily. Some models of telephone prioritise connection with the "hands-
free" profile. Delete the "hands-free" connection profile to
improve streaming.
In "Random all" play, not
all of the tracks are played. In "Random all" play, the system can only take into account up to
999 tracks.
Audio and Telematics
Page 420 of 436
DS4_en_Chap12d_RD5_ed03-2015
QUESTIONANSWER SOLUTION
With the engine off, the
audio system switches off
after a few minutes of use. When the engine is switched off, the audio system operating time
depends on the state of charge of the battery.
The switch-off is normal: energy economy mode is activated
automatically to preserve the state of charge of the vehicle's
battery. (See the "Energy Economy Mode" section). Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction of the volume or stopping of
the playing of the CD. Switch the audio system off for a few minutes to
allow the system to cool.
Page 425 of 436
423
DS4_en_Chap13_index-alpha_ed03-2015
Control, heated seats ......................................88
C ontrols, steering mounted .................. 3 24, 393
Control stalk, lighting
.............................1
28 -132
Control stalk, wipers
...............................1
37-141
Courtesy lamps
..................................... 13
3, 142
Cruise control
........................................ 21
6, 221
Cup holder
...............................
......................114
Filling the fuel tank
...................................................... 2
79-282
Filter, air
...............
.........................................291
Filter, oil
......................................................... 2
91
Filter, particle
........................................2
90, 292
Filter, passenger
compartment
.............................................. 2
91
Fitting a wheel
...............................
................2 41
Fitting roof bars
.............................................26
5E
FEco-driving .....................................................14
Economy mode ............................... ..............263
Electronic brake force distribution (EBFD)
...............................
.........................168
Emergency braking assistance (EBA)
..............................
....................168, 169
Emergency call
......................................1
67, 318
Emergency warning lamps
................... 16
6, 167
Emissions control system, SCR
..............................
........................ 29, 294
Energy economy mode
.................................26
3
Engine compartment
............................ 2
85, 286
Engine, Diesel
....................... 2
81, 283, 286, 310
Engine, petrol
................................ 2
81, 285, 306
Environment
..................... 1
4, 72, 206, 262, 290Fittings, boot
.................................................
12 1
Fittings, interior ...................................... 11
0 , 111
Fittings, rear
...............................
...................120
Flap, fuel filler
...............................
......... 279, 282
Flashing indicators
................ 1
31, 166, 246, 248
Foglamps, front
..................... 1
30, 136, 245, 249
Foglamps, rear
.............................. 1
30, 250, 252
Frequency (radio)
..................................3
46, 395
Fuel ............................................................... 281
Fuel consumption
............................................ 14
F
uel tank........................................................282
Fusebox, dashboard
..................................... 25
5
Fusebox, engine
compartment
.............................................. 2
57
Fuses
................
.............................................253
G
Gauge, fuel................................................ 18, 19
Gearbox, automatic
............. 2 00, 208, 262, 292
Gearbox, manual
..........................1
99, 208, 292
Gear shift indicator
...............................
.......................205
Gear lever, automatic gearbox
................
....................................... 200
Gear lever, manual gearbox
................
....................................... 19 9
Glove box
....................................................... 111
G
uide-me-home
...............................
.....131, 132
DDAB (Digital Audio Broadcasting) -
Digital radio .........................................3 48, 397
Date (setting)
...............................
.............. 46, 51
Daytime running lamps
................. 1
29, 245, 248
Deactivating the passenger
airbag
.......................................................... 17
7
Defrosting
...............................
......... 93, 105, 106
Diesel
...............................
....................... 32, 281
Dimensions
..............................
.....................314
Dipstick
................
.................................... 35, 287
Direction indicators
....... 1
31, 166, 245, 246, 250
Display screen, instrument panel
..... 1
8, 19, 205
Display screen, multifunction (with audio system)
....................................... 43
D
oor pockets
................................................. 11
0
Doors
..............................................................
.81
Drawer, storage
...............................
..............11 9
Driving economically ....................................... 14
Driving positions (storing)
...............................90
D
ynamic stability control (DSC)
....................16
9
Alphabetical index
Page 426 of 436
DS4_en_Chap13_index-alpha_ed03-2015
Internet browser ............................................3 63
ISOFIX ............... .................................... 157-16 0
Isofix mountings
...............................
.............157
L
Labels, identification ..................................... 3 15
Lamp, boot ............................... .............123, 14 4
Lamps, parking
............................................. 13
1
Lane Departure Warning System (LDWS)
...............................
...........212
Level, AdBlue
®
additive ............... ........................................ 294
Level, brake fluid
...............
.............................................. 288
Level, Diesel additive
...............
........................................ 290
Level, engine coolant
...............
......................................... 289
Level, engine oil
...............................
....... 35, 287
Level, power steering fluid
...............
.............................................. 288
Levels and checks
..............................
..285 -290
Lighting, dashboard
........................................ 41
L
ighting dimmer
..............................
.... 18, 19, 41
Lighting, directional
............................... 13
5, 13 6
Lighting, guide-me home
...............................
.................... 131, 132
Lighting, interior
.................................... 14
2, 143
Lighting, mood
..............................
................143
Lighting, welcome
......................................... 13
3
Loading
..............................
..................... 14, 265
Load reduction mode
.................................... 26
3
Localised Assistance Call
........
...................................................... 318
Locating your vehicle
................................ 6
3, 68
Locking
...................................................... 6
2, 66
Locking from the inside
..............................
........................73
Long objects, transporting
..............................
..................120
Low fuel level
..............................
............ 26, 279
Luggage retaining strap
............................................................ 12
1
Jack
........
....................................................... 235
Jukebox (copy)
...............................
............... 353
Jump starting
..............................
.................. 260
Key
.......
...................................................... 60 -72
Keyless Entry and Starting
............... 6
6, 72, 189
Key not recognised
....................................... 19
0
Key with remote control
.................... 6
0, 62, 186
Kit, hands-free
...................................... 3
78, 404
Kit, temporary puncture repair
...................... 23
0
J
K
Ignition on...................................... 188, 189, 191
Immobiliser, electronic ............................ 7 2, 186
Indicator, engine oil level
.......................... 3
5, 39
Indicator lamps, operation
........................3
0-34
Indicators, direction
......................1
66, 246, 250
Inflating tyres
..............................
....................14
Inflating tyres and accessories (using the kit)
..............................
................234
Input, auxiliary
............................... 1
12, 350, 402
Instrument panels
...............................
.18 -20, 39
Intelligent Traction Control
............................ 16
9
I
Hazard warning lamps ..................................16 6
Hazard warning lamps, automatic operation
...............................
......................167
Headlamp adjustment
................................... 13
4
Headlamps, automatic illumination
...............................
........... 129, 132
Headlamps, dipped beam
............. 1
28, 245, 247
Headlamps, directional
................. 13
4, 13 5, 24 5
Headlamps, halogen
..................................... 24
5
Headlamps, main beam
................ 1
28, 245, 247
Headlamps, Xenon
....................................... 24
5
Headlamp wash
............................................ 13
9
Head restraints, front
...................................... 88
H
ead restraints, rear
....................................... 91
H
eating
................
........................96, 98, 99, 102
Hill start assist
............................................... 20
4
Hooks
...............................
.............................12 2
H
