Glove box
1
11
Deactivating the passenger's front airbag

1
50 -152, 177
Front fittings

1
10 -112, 114-119
-

a
uxiliary socket / USB port
-

1
2 V socket
-

f
ront armrest
-

2
30 V / 50 Hz socket
-

m
ats
-

s
torage drawersPanoramic windscreen

1
13
-
blinds
-

s
un visor
Over view

33
DS4_en_Chap01_controle-de-marche_ed03-2015
Passenger's
airbag systemfixed in the seat belt
and passenger's front
airbag warning lamps
display.The control switch, located in the
glove box, has been placed in
the

"O
N"
p
osition.
The passenger's front airbag is activated.
In this case, do not install a rear ward
facing child seat on this seat.Move the control switch to the "OFF" position to
deactivate the passenger's front airbag.
In this case, you can install a rear ward facing child
seat, unless there is a fault with the airbags (airbag
warning lamp on).
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,

...) the Stop & Start system
has put the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a
few


seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on Stop & Start, refer to the
corresponding section.
Warning
/indicator lampis on Cause Action/Observations
Monitoring

DS4_en_Chap01_controle-de-marche_ed03-2015
Passenger's
airbag systemfixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing child
seat, unless there is a fault with the
airbags (airbag warning lamp on). Set the control to the "ON"
position to activate the
passenger's front airbag.
In this case, do not install a rear ward facing child seat
on this seat.
Warning
/indicator lampis on Cause Action/Observations
deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the multifunction screen.

DS4_en_Chap04_amenagement_ed03-2015

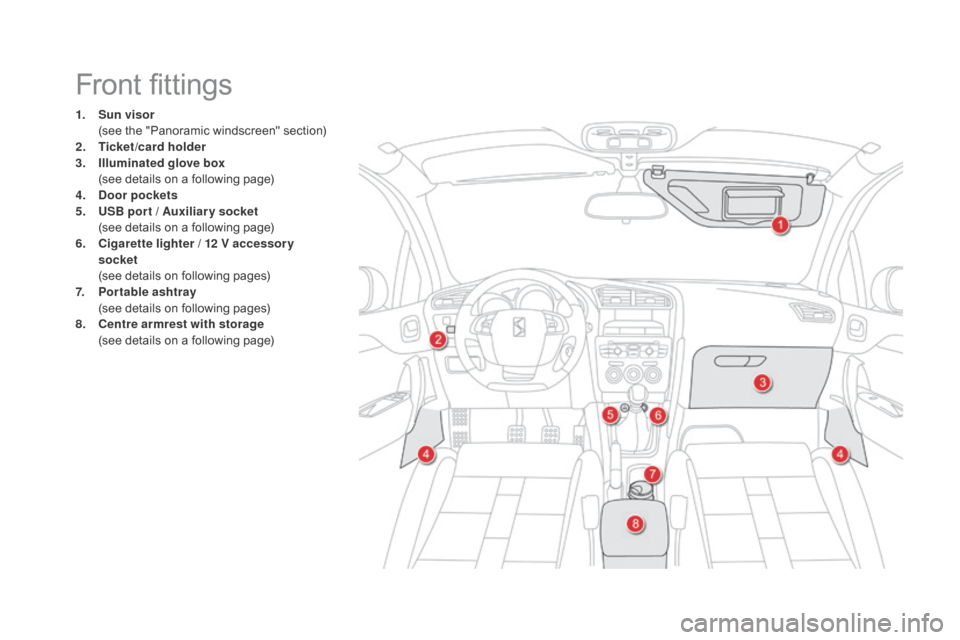

Front fittings
1. Sun visor (
see the "Panoramic windscreen" section)
2.
T

icket/card holder
3.
I

lluminated glove box
(

see details on a following page)
4.
d

oor pockets
5.
U

SB por t / Auxiliar y socket
(

see details on a following page)
6.
C

igarette lighter / 12 V accessor y
socket
(

see details on following pages)
7.
P

ortable ashtray
(

see details on following pages)
8.
C

entre armrest with storage
(

see details on a following page)

111
DS4_en_Chap04_amenagement_ed03-2015

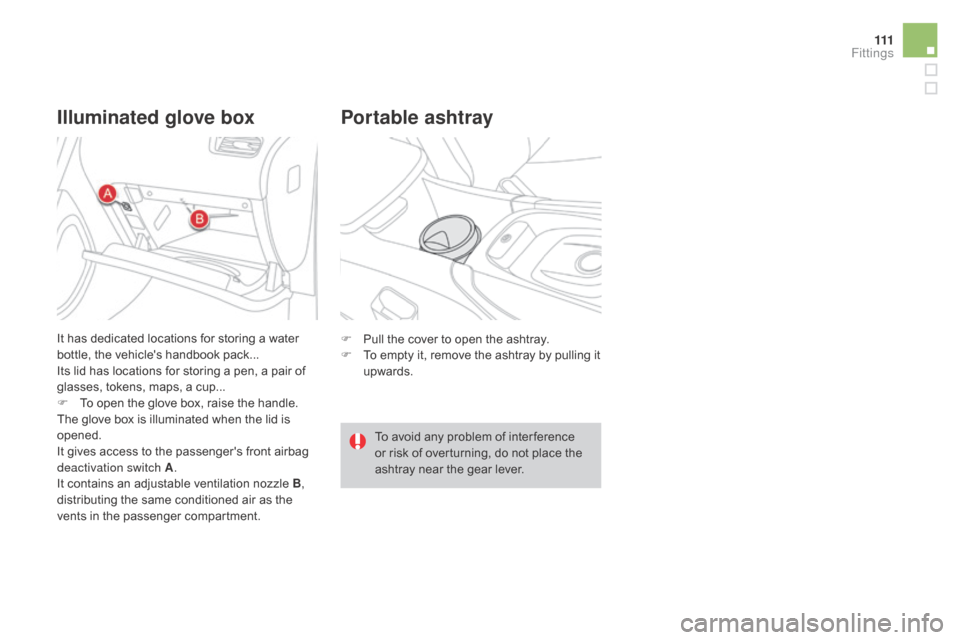

Illuminated glove boxPortable ashtray
F Pull the cover to open the ashtray.
F
T o empty it, remove the ashtray by pulling it
upwards.
To avoid any problem of inter ference
or risk of overturning, do not place the
ashtray near the gear lever.
It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
Its lid has locations for storing a pen, a pair of
glasses, tokens, maps, a cup...
F

T

o open the glove box, raise the handle.
The glove box is illuminated when the lid is
opened.
It gives access to the passenger's front airbag
deactivation switch A .
It contains an adjustable ventilation nozzle B ,
distributing the same conditioned air as the
vents in the passenger compartment.
Fittings

Front airbags
System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.deployment
The airbags are deployed, except the
passenger's front airbag if it is deactivated, in
the event of a serious front impact to all or part
of the front impact zone A, in the longitudinal
centreline of the vehicle on a horizontal plane
and directed from the front to the rear of the
vehicle.
The front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steering wheel, driver's side, and the
dashboard, passenger's side to cushion their
for ward movement.
