16
DS4_en_Chap01_instruments-de-bord_ed01-2016
Type 2 instrument panel central screen and controls
1. Speed limiter or cruise control settings.
2. Engine oil level indicator*.
S

ervice indicator.
R

ange indicators (miles or km) related to
the AdBlue additive and the SCR system
(BlueHDi).
T

rip computer.
C

urrent audio source playing.
R

epeat of the navigation instruction.
R

epeat of the vehicle's speed. Press the button on the end of the wiper control
stalk to cycle through the different active
functions available (trip computer, current audio
source, navigation...).
Approaching the maximum engine speed, the
bars flash to indicate to you the need to change
up a gear.
Rev counter
* Depending on version.
Alert or information messages can also be
displayed temporarily. When switching the ignition on or off,
the speedometer needle and the bars
of the rev counter and fuel gauge carry
out a full sweep and then return to 0.
Display zones
Control
01
Instruments

51
DS4_en_Chap01_instruments-de-bord_ed01-2016
Touch screen tablet
This system gives access to:
- m enus for adjusting settings for vehicle
functions and systems,
-

a
udio and display settings menus,
-

a
udio system and telephone controls and
the display of associated information.
-

t
he display of the ambient temperature
(a blue snowflake appears if there is a risk
of i c e),
-

t
he display of the trip computer.
Recommendations
It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...). A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the touch screen tablet with wet
hands.
Uses a soft clean cloth to clean the touch
screen tablet.
General operation
Principles
Press the virtual buttons in the touch screen
tablet.
Each menu is displayed over one or two pages
(primary page and secondary page).
As a safety measure, the driver
should only carr y out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when driving.
And, depending on equipment, it also allows:
-

t

he display of visual parking sensors
information,
-

a

ccess to the controls for the navigation
system and Internet services, and the
display of associated information. After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
Use the "
Options" button to go to the
secondary page.
Use this button for access to
additional information and to the
settings for certain functions.
Use this button to confirm.
Use this button to quit or to return to
the primary page.
01
Instruments

52
DS4_en_Chap01_instruments-de-bord_ed01-2016
Menus
Navigation
Telephone Radio Media Driving
Gives access to the trip computer
and, depending on version, allows
settings to be adjusted for certain
functions.Settings
Allows configuration of the display
and the system. Connected services
The connected services are
accessible via Bluetooth, Wi-
Fi, CarPlay™ or MirrorLink™
connections.
Press one of the buttons on the control panel
for direct access to a particular menu.
1.
V
olume / mute.
For more information on the touch screen
tablet, refer to the Audio and telematics
section.
01
Instruments

295
DS4_en_Chap08_en-cas-de-panne_ed01-2016
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Before disconnecting the battery:
F
c
lose all openings (doors, boot, windows),
F

s
witch off all electrical consumers (audio
system, wipers, lighting, etc.),
F

s
witch off the ignition and wait for
four
m

inutes.
At the battery, it is only necessary to
disconnect the (+) terminal.
Disconnecting the battery
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of
the battery (up to about 8 hours).
F

Ra

ise the lever A fully.
F

R

efit the open clamp B on the (+) terminal.
F

P

ush the clamp B fully down.
F

L

ower the lever A to lock the clamp B
.
Do not force the lever as locking
will not be possible if the clamp is
not positioned correctly; start the
procedure again.
Following reconnection of the
battery
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself initialise or reset certain systems,
such as:
-

t
he one-touch electric windows,
-

t
he date and time,
-

t
he settings of the audio system or of the
satellite navigation system.
Quick-release terminal clamp
F Raise the lever A fully to release the clamp B .
F R emove the clamp B by lifting it off.
Disconnecting the (+) terminal Reconnecting the (+) terminal
08
In the event of a breakdown

313
DS4_en_Chap10b_SMEGplus_ed01-2016
7-inch touch screen tablet
GPS satellite navigation - Multimedia audio - Bluetooth® telephone
Contents
First steps
3 14
Steering mounted controls

3
16
M e n u s
3

17
Navigation
3

18
Navigation - Guidance

3
26
Tr a f fi c
3

3 0
Radio Media

3
32
Radio

3
38
DAB (Digital Audio Broadcasting) radio

3
40
Media
3

42
Settings
3

46
Connected services

3
54
MirrorLink
TM 35 4
CarPlay® 35 8
Telephone
3
60
Frequently asked questions

3
68
The system is protected in such a way that it will only operate in
your vehicle. As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.
Audio and Telematics

315
DS4_en_Chap10b_SMEGplus_ed01-2016
With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.
Volume adjustment (each source
is independent, including traffic
announcements (TA) and navigation
instructions).
Select the audio source (depending on
version):
-

F

M

/ DAB

/ AM* stations.
-

U

SB memory stick.
-

S

martphone via MirrorLink
TM or CarPlay®.
-
C
D player (located in front panel).
-

T

elephone connected by Bluetooth* and
using Bluetooth* audio streaming.
-

M

edia player connected to the auxiliary
socket ( jack, cable not supplied).
* Depending on equipment.
Short-cuts: using the virtual buttons in the
upper band of the touch screen tablet, it is
possible to go directly to the selection of audio
source, the list of stations (or titles, depending
on the source).
The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures. In very hot conditions, the volume may
be limited to protect the system. The
return to normal takes place when
the temperature in the passenger
compartment drops.
To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.
Audio and Telematics

1
2
10
326
DS4_en_Chap10b_SMEGplus_ed01-2016
Navigation - Guidance
Choosing a new destination
Select "Enter destination ". Select "
Save" to save the address
entered as a contact entry.
The system allows up to 200 entries.
Select " Confirm ".
Press on " Show route on map " to start
navigation.
Select "
Address ".
Select the " Country:" from the
list offered, then in the same
way the " City:" or its post
code, the " Road:", the " N°:".
Confirm each time. Select "
Navigate to ".
Choose the restriction criteria:
" To l l s ", "Ferries ", "Tr a f f i c ", "Strict ",
" Close ".
Choose the navigation criteria:
"
Fastest " or "Shortest " or "Time/
distance " or "Ecological". To delete navigation information, press on
"
Settings ".
Press on " Stop navigation ".
To resume navigation press on " Settings".
Press on " Resume guidance ".
Press on Navigation
to display the
primary page.
Press on the secondary page.
Towards a new destination
Or
Audio and Telematics

1
1
23
24
25
32
330
DS4_en_Chap10b_SMEGplus_ed01-2016
Risk areas / Danger zone alert settings
Press on Navigation to display the
primary page.
Press on the secondary page.
Select " Settings ".
Select " Alarm!" (Alert).
It is then possible to activate Risk areas alerts
then:
-

"

Audible warning"
-

"

Alert only when navigating"
-

"

Alert only for overspeed"
-

"

Display speed limits"
-

T

iming: the choice of timing allows the
time before giving a Risk areas alert to be
defined.
Select " Confirm ". This series of alerts and displays is
only available if Risk areas have first
been downloaded and installed on the
system.
Tr a f fi c
Traffic information
Display of messages
Press on Navigation
to display the
primary page.
Press on the secondary page.
Select " Traffic messages ".
Choose filter settings for: "On the route ",
" Around ",
" Near destination ", filters to fine-
tune the list of messages.
Press again to remove the filter.
Audio and Telematics

368
DS4_en_Chap10b_SMEGplus_ed01-2016

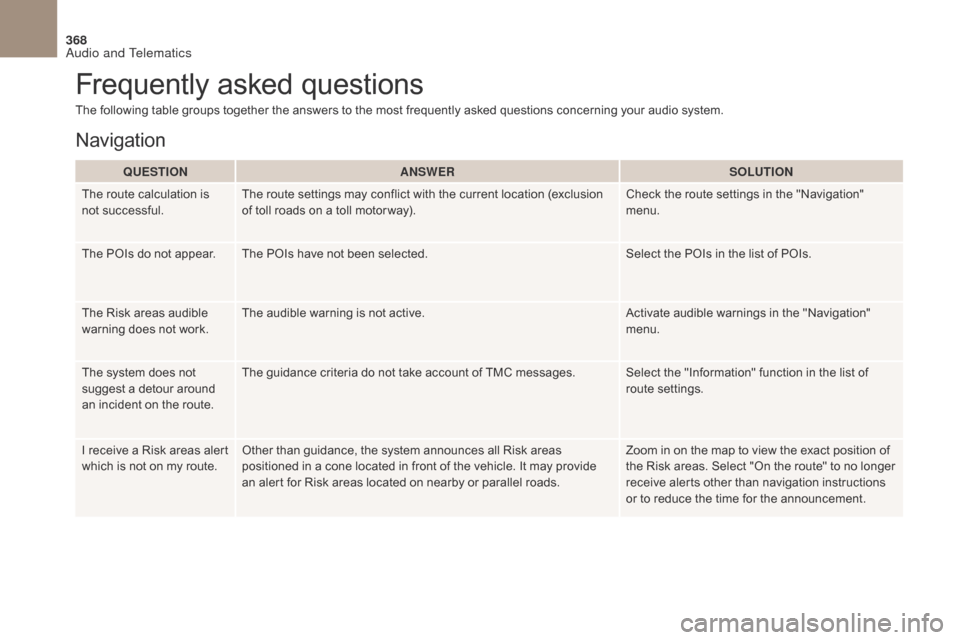

The following table groups together the answers to the most frequently asked questions concerning your audio system.QUESTION ANSWER SOLUTION
The route calculation is
not successful. The route settings may conflict with the current location (exclusion
of toll roads on a toll motor way). Check the route settings in the "Navigation"
menu.
The POIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The Risk areas audible
warning does not work. The audible warning is not active.
Activate audible warnings in the "Navigation"
menu.
The system does not
suggest a detour around
an incident on the route. The guidance criteria do not take account of TMC messages. Select the "Information" function in the list of
route settings.
I receive a Risk areas alert
which is not on my route. Other than guidance, the system announces all Risk areas
positioned in a cone located in front of the vehicle. It may provide
an alert for Risk areas located on nearby or parallel roads. Zoom in on the map to view the exact position of
the Risk areas. Select "On the route" to no longer
receive alerts other than navigation instructions
or to reduce the time for the announcement.
Frequently asked questions
Navigation
Audio and Telematics

408
Alphabetical index
DS4_en_Chap11_index-alpha_ed01-2016
Key ................................................ 70, 72, 76, 77
Key, electronic .............................. 70 -72, 74, 190
Keyless Entry and Starting

................. 7
0, 73, 77
Key not recognised

....................................... 19

0
Key with remote control

.................... 6
4, 65, 186
Kit, hands-free
............................. 3

64, 365, 390
M
K
Maintenance, routine ...................................... 10
M ap reading lamps ....................................... 14
2
Markings, identification
................................. 3

08
Massage function

...............................
............96
Mat
.......

......................................................... 11 9
Memorising a speed

............................... 5
3, 213
Menu
.................................... 3

18, 320, 324, 332,
334, 336, 346, 348, 350, 360, 362
Menu, main

..............................
.....................380
Menus (audio)

.............................. 3
32, 334, 336
Menus (Touch screen tablet)

................3

13, 317
Mirror, rear view

............................................ 10

2
Mirrors, door.................................. 10 0, 101, 210
Misfuel prevention
...............................

..........229
Mountings, Isofix
...............................

............175
MP3 CD

................
.................................385, 386
Kit, puncture repair .......................................
26
0
Kit, temporary puncture repair
.............. 2
60, 267
Labels, identification
..................................... 3

08
Lamp, boot

...............................

............. 123, 144
Lamps, parking
............................................. 13

1
Lane Departure Warning System (LDWS)
....................................................... 20

9
Level, brake fluid

........................................... 24

6
Level, Diesel additive

.................................... 24

9
Level, engine coolant

.................................... 2

47
Level, engine oil

...............................

....... 33, 245
Level, power steering fluid

............................ 24

6
Levels and checks

......................... 24

3-247, 249
Lighting, cornering
...............................

......... 13 6
Lighting, dashboard
........................................ 45
L

ighting dimmer

..............................

.... 14, 15, 45
Lighting, directional
....................................... 13

5
Lighting, guide-me home

...................... 13

1, 132
Lighting, interior
.................................... 14

2, 143
Lighting, mood
..............................

................ 143
Lighting, welcome

......................................... 13

3
Loading
..............................

..................... 10, 240
Load reduction mode

.................................... 23

9
Localised Assistance Call

..................... 15

0, 152
Locating your vehicle

................................ 6

7, 73
Locking
............................................................ 77
L

ocking from the inside

................................... 78
L

ong objects, transporting

............................ 12

1
Low fuel level

..............................

.................. 227
I
L
J
Jack ....................................................... 271, 342
Jump starting .............................. ..................293
Ignition
................

................................... 188, 191
Ignition on...................................................... 191
Immobiliser, electronic
............................ 7
7, 186
Indicator, AdBlue
® range ................................. 37
I
ndicator, engine oil level .......................... 3 3, 43
Indicator lamps, operation

........................ 1
7, 26
Indicator lamps, status

.................................... 26
I

ndicators, direction
.............................. 1
30, 281
Inflating tyres

..............................
............ 10, 308
Inflating tyres and accessories (using the kit)

..............................
........ 260, 267
Input, auxiliary
...............................

................388
Instrument panels
..........................1

4-16, 43, 46
Intelligent Traction Control
............................ 15

5
ISOFIX
...............

................................... 176 , 17 7
Isofix mountings
...............................

.............175
Navigation
...............................

...... 318, 320, 324
Number plate lamps

......................................28

6
Oil change

...............................
......................245
Oil consumption

............................................24

5
OIl, engine
...............................

......................245
Opening the bonnet

......................................2

42
Opening the boot

..............................
........ 70, 81
Opening the doors

...............................
..... 70, 80
N
O
