19
Warning/indicator lampStateCause Action/Observations
Power steering Fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked in the dealer network or by a qualified
workshop.
Under-inflation Fixed. The pressure in one or more of the
tyres is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ Flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked in the dealer network or by
a


qualified workshop.
Airbags Temporarily on. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off. This warning lamp should go off when the engine is
started.
If it does not go off, contact the dealer network or a
qualified workshop.
Fixed. One of the airbag or seat belt
pyrotechnic pretensioner systems has
a fault. Have them checked in the dealer network or by a
qualified workshop.
01
Instruments

22
Warning/indicator lampStateCause Action/Observations
Electric parking
brake Fixed.
The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric brake control.
Follow the safety recommendations.
For more information on the Electric parking brake ,
refer to the corresponding section.
Deactivation of
the automatic
functions of the
electric parking
brake Fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (depending on the country of
sale) via the vehicle configuration menu or contact the
dealer network or a qualified workshop.
Passenger's
airbag system Fixed, in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in the
glove box, has been placed in the
"
ON " position.
The passenger's front airbag is
activated.
In this case, do not install a rear ward
facing child seat on this seat. Move the control switch to the "
OFF" position to
deactivate the passenger's front airbag.
In this case, you can install a rear ward facing child
seat, unless there is a fault with the airbags (airbag
warning lamp on).
Passenger's
front airbag Fixed, in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in
the glove box, is set to the "
OFF"
position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing child
seat, unless there is a fault with the
airbags (airbag warning lamp on). Set the control to the "
ON" position to activate the
passenger front airbag. In this case, do not install a
rear ward facing child seat on this seat.
01
Instruments

105
** As per the geographic coverage of "Localised Emergency Call", "Localised
Assistance Call" and the official national
language chosen by the owner of the
vehicle.
The list of countries covered and Telematic
ser vices is available from dealers or on the
website for your country.
"Localised Emergency Call" immediately
locates your vehicle, contacts you in your own
language** and – if necessary – requests that
relevant emergency services be dispatched**.
In countries where the ser vice is not available,
or when the locating ser vice has been
expressly declined, the call is sent directly
to the emergency services (112) without the
vehicle location.
If an impact is detected by the airbag
control unit, and independently of the
deployment of any airbags, an emergency
call is made automatically.
If you benefit from the DS Connect BOX
offer with the SOS and assistance pack
included, you have available additional
ser vices in your personal space, via the
website in your country.
Operation of the system
When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.
The orange indicator lamp
flashes then goes off: the system
has a fault.
The orange indicator lamp is permanently on:
the back-up battery should be replaced.
In both cases, the emergency and assistance
calls ser vice may not work.
Contact a qualified repairer as soon as
possible.
The fault with the system does not prevent
the vehicle being driven.
Localised Assistance Call
** As per the geographic coverage of "Localised Emergency Call", "Localised
Assistance Call" and the official national
language chosen by the owner of the
vehicle.
The list of countries covered and Telematic
ser vices is available from dealers or on the
website for your country.
Press this button for more than
2

seconds to request assistance
if the vehicle breaks down.
A voice message confirms that the call has
been made**. Pressing this button again
immediately cancels the request.
Geo-location
The cancellation is confirmed by a voice
message.
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by pressing "Localised
Assistance Call" to confirm.
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by pressing "Localised
Assistance Call" to confirm.
05
Safety

106
If you purchased your vehicle outside the
dealer network, we invite you to have a
dealer check the configuration of these
ser vices and, if desired, modify them to
suit your wishes.
In a multi-lingual country, configuration is
possible in the official national language
of your choice.
For technical reasons and in particular to
improve the quality of Telematic ser vices
services to customers, the manufacturer
reser ves the right to carry out updates to
the vehicle's on-board telematic system.
Emergency or assistance
call (type 2)
Localised Emergency Call
In an emergency, press this
button for more than 2 seconds.
The flashing green LED and
the voice message confirm that
the call has been made to the
"Localised Emergency Call" call
c e nt re*.
Pressing this button again
immediately cancels the call.
The green LED goes off.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call.
Localised Emergency Call immediately
locates your vehicle, contacts you in your own
language** and – if necessary – requests that
relevant emergency services be dispatched**.
In countries where the ser vice is not available,
or when the locating ser vice has been
expressly declined, the call is sent directly
to the emergency services (112) without the
vehicle location.
If an impact is detected by the airbag
control unit, and independently of the
deployment of any airbags, an emergency
call is made automatically. If you benefit from the DS Connect BOX
offer with the SOS and assistance pack
included, you have available additional
ser vices in your personal space, via the
website in your country.
*

I
n accordance with the general conditions
of use for the ser vice available from dealers
and subject to technological and technical
limitations.
**

A
s per the geographic coverage of
Localised Emergency Call, Localised
Assistance Call and the official national
language chosen by the owner of the
vehicle.
The list of countries covered and Telematic
ser vices is available from dealers or on the
website for your country.
05
Safety

11 3

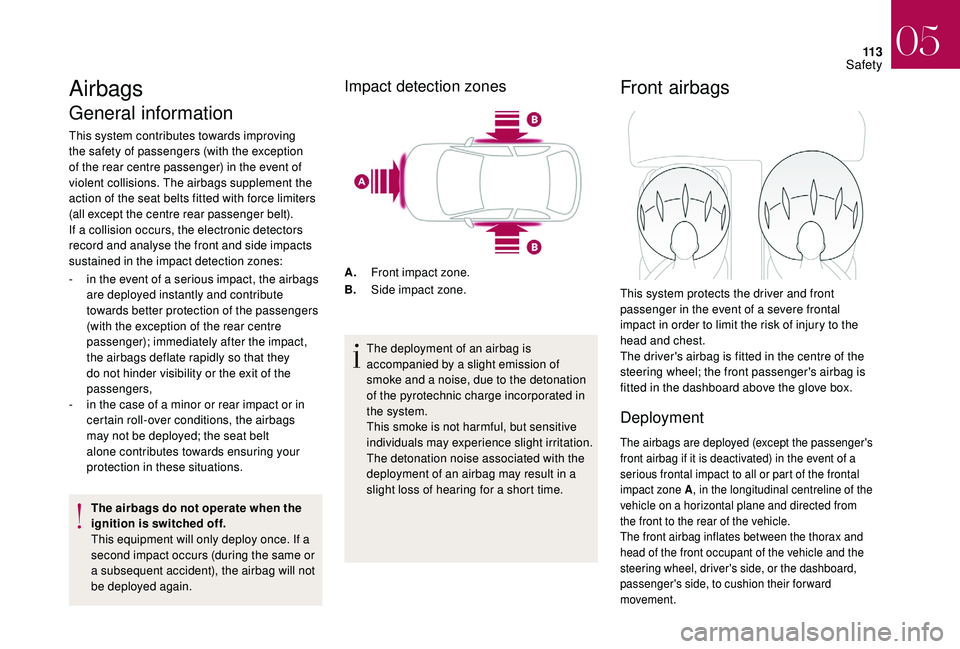

Airbags
General information
This system contributes towards improving
the safety of passengers (with the exception
of the rear centre passenger) in the event of
violent collisions. The airbags supplement the
action of the seat belts fitted with force limiters
(all

except the centre rear passenger belt).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
-

i
n the event of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the passengers
(with the exception of the rear centre
passenger); immediately after the impact,
the airbags deflate rapidly so that they
do not hinder visibility or the exit of the
passengers,
-

i
n the case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt
alone contributes towards ensuring your
protection in these situations.
The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once. If a
second impact occurs (during the same or
a subsequent accident), the airbag will not
be deployed again.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The deployment of an airbag is
accompanied by a slight emission of
smoke and a noise, due to the detonation
of the pyrotechnic charge incorporated in
the system.
This smoke is not harmful, but sensitive
individuals may experience slight irritation.
The detonation noise associated with the
deployment of an airbag may result in a
slight loss of hearing for a short time.
Front airbags
Deployment
The airbags are deployed (except the passenger's
front airbag if it is deactivated) in the event of a
serious frontal impact to all or part of the frontal
impact zone A , in the longitudinal centreline of the
vehicle on a horizontal plane and directed from
the front to the rear of the vehicle.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the
steering wheel, driver's side, or the dashboard,
passenger's side, to cushion their for ward
movement.
This system protects the driver and front
passenger in the event of a severe frontal
impact in order to limit the risk of injury to the
head and chest.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
05
Safety

11 8
Deactivating the passenger's
front airbag
Never install a rear ward facing child
restraint system on a seat protected by an
active front airbag. This could cause the
death or serious injury of the child. The warning label present on both sides of the
passenger's sun visor repeats this advice.
In line with current legislation, the following
tables contain this warning in all of the
languages required.
Passenger airbag OFF
05
Safety

11 9

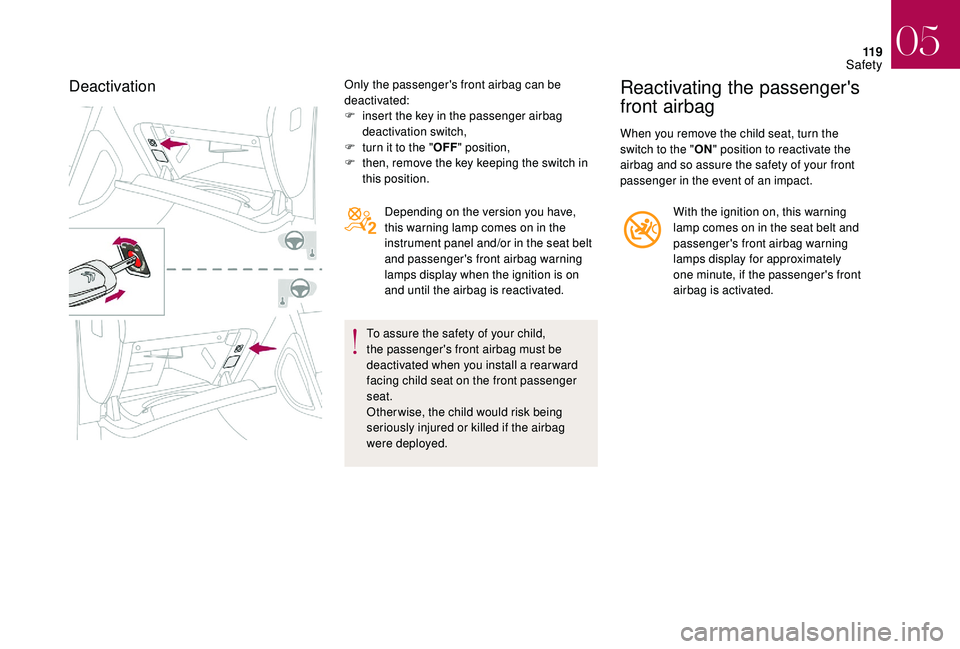

DeactivationOnly the passenger's front airbag can be
deactivated:
F
i
nsert the key in the passenger airbag
deactivation switch,
F

t
urn it to the " OFF" position,
F

t
hen, remove the key keeping the switch in
this position.
Depending on the version you have,
this warning lamp comes on in the
instrument panel and/or in the seat belt
and passenger's front airbag warning
lamps display when the ignition is on
and until the airbag is reactivated.
To assure the safety of your child,
the passenger's front airbag must be
deactivated when you install a rear ward
facing child seat on the front passenger
seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.Reactivating the passenger's
front airbag
When you remove the child seat, turn the
switch to the " ON" position to reactivate the
airbag and so assure the safety of your front
passenger in the event of an impact.
With the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning
lamps display for approximately
one minute, if the passenger's front
airbag is activated.
05
Safety

226
Stop & Start ...23 , 45 , 79, 147-148 , 17 7, 181 , 212Storage .......................................... 81, 84-86 , 88
Storage compartments ...................................84
Storing driving positions
........................... 6

7- 6 8
Stowing rings


........................................... 88, 90
Sun visor
...............................

..........................80
Switching off the engine


...............................13 4
Synchronising the remote control
.............50, 54
T
Tables of fuses ...................................... 20 5-208
Tank, AdBlue® additive ................................. 18 4
Ta n k , f u e l
................................................ 166 -167
Technical data


....................................... 217, 219
Telephone
..............................

...................28-33
Textured Paint


............................................... 18 6
Three flashes (direction indicators)
................ 94
T

icket holder


................................................... 81
Time (setting)


................................ 37- 3 9, 45, 36
TMC (Traffic info)

............................................ 14
T

o o l s


............................................... 192-193, 205
Topping up the AdBlue
® additive .................. 18 4
To r c h
............................................................... 89
Total distance recorder


................................... 35
Touch screen ............................................. 4 0 - 41
Towball, quickly detachable


................... 171-174
To w b a r
...............................

.................... 13 3, 170
Towbar with quickly detachable towball ...17 1-174Towed loads ................................... 216 -217, 219
Towing another vehicle ..........................212-213
Traction control (ASR)


...........................108 -110
Traffic information (TA)


.....................................4
Traffic information (TMC)


................................14
Tr a i l e r
...............

..................................... 13 3, 170
Trip computer


............................................ 41- 4 4
Trip distance recorder
..................................... 35
T

y r e s

.............................................................. 222
Tyre under-inflation detection


................162-163
S
Safety, children ........................
................ 113 -114, 11 6 -117 , 11 9, 123 , 125 -127
Screen, cold climate

..................................... 17

0
Screen, colour and mapping ......................11 -12
Screen, monochrome


................................37- 3 9
Screen, multifunction (with audio system) ...37- 3 9 , 3Screenwash, front ......................................... 10 0
Screenwash, rear .......................................... 101
SCR (Selective Catalytic Reduction)


............183
Seat belts


....................................... 11 0 -112, 12 2
Seat, rear bench


............................................. 69
Seats, electric


........................................... 65-66
Seats, front
...............................

.................64-68
Seats, heated


.................................................. 68
Seats, rear


....................................................... 69
Serial number, vehicle


..................................222
Service indicator


....................................... 30, 36
Servicing
......................................................... 3

0
Settings, equipment


........................11 -12, 37- 41
Settings, system


.............................................. 35
Sidelamps
........................ 92,

94, 198 , 201, 203
Side repeater


................................................ 202
Ski flap
..............................

..............................88
Snow chains


.................................................. 169
Socket, 12 V accessory
................82, 85 , 88-89
Socket, auxiliary
.......................................... 26,

6
Socket, JACK


........................................ 82, 26 , 6
Sockets, audio
............................................ 8

2, 6
Sockets, auxiliary
...............................

.............82
Speed limiter
.......................................... 15

0 -15 3
Speedometer


............................................. 1 0 -11
Stability control (ESC)................................... 108
Starting a Diesel engine
............................... 16

8
Starting the engine
....................................... 13

4
Starting the vehicle
........ 13

2, 13 4 -13 8 , 143 -14 6
Starting using another battery


......................209
Station, radio
...............................

..........23-25, 3
Stay, bonnet


........................................... 17 7-178
Steering mounted controls, audio
.................... 3
S

teering wheel, adjustment
............................ 70
S

topping the vehicle

......132, 13 4 -13 8 , 143 -14 6
U
Under floor storage ......................................... 90
Under-inflation (detection) .....................162-163
Unlocking


.................................................. 5 0 - 51
Unlocking from the inside
...............................56
Unlocking, selective


........................................ 60
Unlocking the boot

...............................
...........47
Unlocking the doors
........................................ 47
U

pdating the date
............................................ 36
U

pdating the time
...............................
.......45, 36
UREA warning lamp


....................................... 33
USB


........................................................ 26-27, 6
V
Ventilation ............................................ 72-73, 78
Voice commands ......................................... 5 -10
W
Warning and indicator lamps ..........................13
W arning lamp, airbag ...................................... 22
W
arning lamp, Diesel engine pre-heater

.......26
Warning lamps


.............................. 13, 15 , 22 , 36
Warning lamp, SCR emissions control system
.............................................. 21
Warning lamp, Service ....................................17
Washing (advice) ................................... 161, 18 6
Weights
...............

.......................................... 216
Wheel, spare
...............................

..192-195 , 222
W

indscreen, panoramic
.................................. 80
Wiper blades (changing)


....................... 10 0, 176
Wiper, rear ..................................................... 101
Wipers


............................................... 26, 9 8 -10 0
Wipers, automatic rain sensitive


............. 9 9 -10 0
Alphabetical index
