coolant level CITROEN DS4 2018 Owners Manual

14
Warning/indicator lampStateCause Action/Observations
STOP Fixed, alone or
associated with
another warning
lamp, accompanied
by an audible signal
and a message in the
screen. Illumination of this warning lamp is
associated with a serious fault with
the braking system, power steering,
engine lubrication system or cooling
system.
Stop as soon as it is safe to do so as there is a risk
that the engine will cut out while driving.
Park, switch off the ignition and call the dealer network
or a qualified workshop.
Maximum
coolant
temperature Fixed.
The temperature of the cooling
system is too high. You must stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact the dealer network or
a


qualified workshop.
Engine oil
pressure Fixed.
There is a fault with the engine oil
lubrication circuit. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact the dealer
network or a qualified workshop.
Seat belt not
fastened/
unfastened *Fixed, then flashing,
accompanied by an
increasing audible
signal. The driver or front passenger has
not fastened or has unfastened their
seat belt.
At least one rear passenger has
unfastened their seat belt. Pull on the belt in question and insert the tongue in the
buckle.
This warning repeats the seat belt information given by
the roof console warning lamps.
*

D
epending on the country of sale.
01
Instruments

180

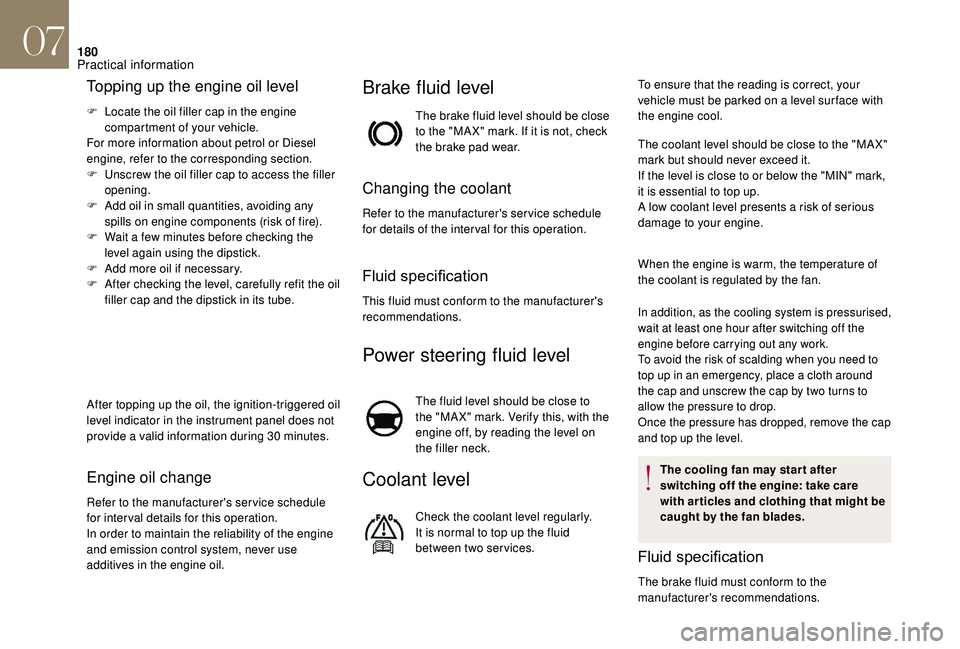

Topping up the engine oil level
F Locate the oil filler cap in the engine compartment of your vehicle.
For more information about petrol or Diesel
engine, refer to the corresponding section.
F

U
nscrew the oil filler cap to access the filler
opening.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the oil
filler cap and the dipstick in its tube.
After topping up the oil, the ignition-triggered oil
level indicator in the instrument panel does not
provide a valid information during 30 minutes.
Engine oil change
Refer to the manufacturer's service schedule
for inter val details for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
Brake fluid level
The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Changing the coolant
Refer to the manufacturer's service schedule
for details of the inter val for this operation.
Fluid specification
This fluid must conform to the manufacturer's
recommendations.
Power steering fluid level
The fluid level should be close to
the "MA X" mark. Verify this, with the
engine off, by reading the level on
the filler neck.
Coolant level
Check the coolant level regularly.
It is normal to top up the fluid
between two services. To ensure that the reading is correct, your
vehicle must be parked on a level sur face with
the engine cool.
The coolant level should be close to the "MA X"
mark but should never exceed it.
If the level is close to or below the "MIN" mark,
it is essential to top up.
A low coolant level presents a risk of serious
damage to your engine.
When the engine is warm, the temperature of
the coolant is regulated by the fan.
In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid the risk of scalding when you need to
top up in an emergency, place a cloth around
the cap and unscrew the cap by two turns to
allow the pressure to drop.
Once the pressure has dropped, remove the cap
and top up the level.
The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might be
caught by the fan blades.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.
07
Practical information

225

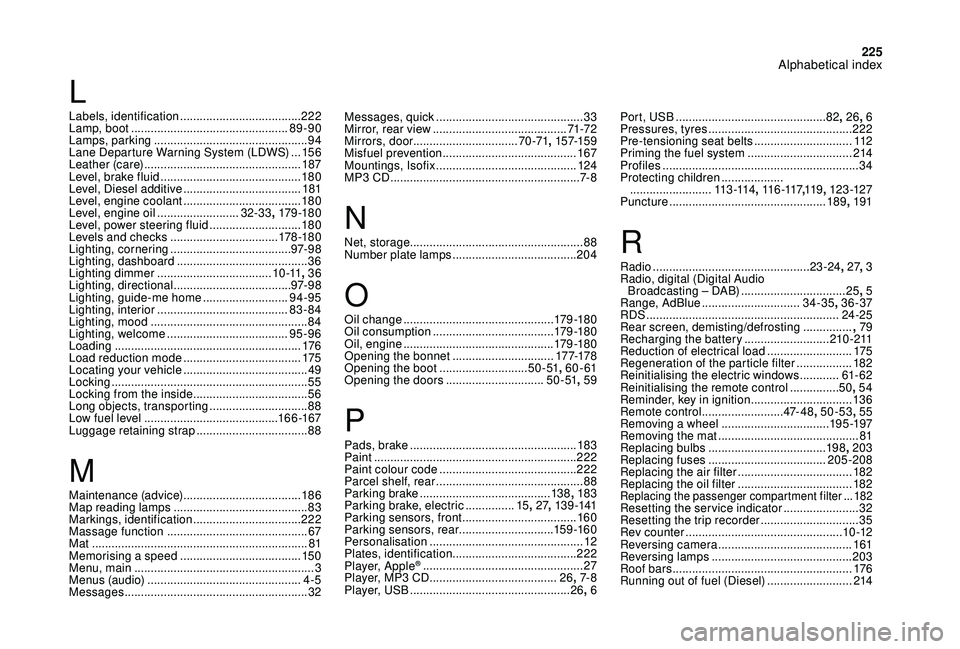

Messages, quick .............................................33
M irror, rear view ......................................... 71-72
Mirrors, door ................................ 70 -71, 157-159
Misfuel prevention


......................................... 167
Mountings, Isofix


........................................... 124
MP3 CD
.......................................................... 7- 8
N
Net, storage..................................................... 88
Number plate lamps ...................................... 204
O
Oil change .............................................. 17 9 -18 0
Oil consumption ..................................... 179 -18 0
Oil, engine


.............................................. 179 -18 0
Opening the bonnet


...............................17 7-178
Opening the boot


...........................5 0 - 51, 60 - 61
Opening the doors


..............................5 0 - 51, 59
P
Pads, brake ................................................... 183
Paint .............................................................. 222
Paint colour code
.......................................... 222
Parcel shelf, rear


............................................. 88
Parking brake


........................................ 13 8, 183
Parking brake, electric
............... 15,

27, 13 9 -141
Parking sensors, front


...................................160
Parking sensors, rear .............................15 9 -16 0
Personalisation


............................................... 12
Plates, identification ...................................... 222
Player, Apple
® ................................................. 2 7
Player, MP3 CD ............................... ........26, 7- 8
Player, USB

................................................. 26, 6 Port, USB
..............................................82
, 26, 6
Pressures, tyres

............................................
222
Pre-tensioning seat belts

..............................
112
Priming the fuel system ................................
214
Profiles

............................................................
34
Protecting children

...................


.........................
113 -114, 11 6 -117 ,11 9 , 123 -127
Puncture

................................................
189, 191
R
Radio ................................................ 23 -24, 27, 3
Radio, digital (Digital Audio Broadcasting – DAB)
................................25, 5
Range, AdBlue


.............................. 34-35, 36 -37
RDS
................

........................................... 24-25
Rear screen, demisting/defrosting
............... ,

79
Recharging the battery


..........................210 -211
Reduction of electrical load


..........................175
Regeneration of the particle filter
.................182
Reinitialising the electric windows
............ 61

- 62
Reinitialising the remote control
............... 50,

54
Reminder, key in ignition

...............................13

6
Remote control


.........................47- 4 8, 50-53 , 55
Removing a wheel
................................. 195 -197
Removing the mat


........................................... 81
Replacing bulbs
.................................... 19

8, 203
Replacing fuses


.................................... 205-208
Replacing the air filter
................................... 18

2
Replacing the oil filter
................................... 18

2
Replacing the passenger compartment filter ...182Resetting the service indicator .......................32
Resetting the trip recorder ..............................35
Rev counter


................................................ 10 -12
Reversing camera
...............................

..........161
Reversing lamps
..............................

.............203
Roof bars


....................................................... 176
Running out of fuel (Diesel)
..........................214
L
Labels, identification ..................................... 222
Lamp, boot ................................................ 89-90
Lamps, parking


............................................... 94
Lane Departure Warning System (LDWS)


...15 6
Leather (care)


................................................ 187
Level, brake fluid
........................................... 18 0
Level, Diesel additive


.................................... 181
Level, engine coolant


.................................... 18 0
Level, engine oil
.........................32-33, 179 -18 0
Level, power steering fluid
............................18 0
Levels and checks

..............................
...178 -18 0
Lighting, cornering


..................................... 97- 9 8
Lighting, dashboard


........................................ 36
Lighting dimmer


................................... 1 0 -11, 36
Lighting, directional


.................................... 97- 9 8
Lighting, guide-me home


..........................94-95
Lighting, interior
...............................

.........83-84
Lighting, mood


................................................ 84
Lighting, welcome


..................................... 95-96
Loading


......................................................... 176
Load reduction mode


.................................... 175
Locating your vehicle


...................................... 49
Locking
...............................

.............................55
Locking from the inside
...................................56
Long objects, transporting


..............................88
Low fuel level

......................................... 16

6 -167
Luggage retaining strap
.................................. 88
M
Maintenance (advice) .................................... 18 6
Map reading lamps ......................................... 83
M
arkings, identification

.................................222
Massage function
........................................... 67
Mat


.................................................................. 81
Memorising a speed

..................................... 15

0
Menu, main
....................................................... 3
M

enus (audio)

............................................... 4-5
Messages


........................................................ 32
Alphabetical index
