window Citroen DS4 DAG 2010.5 1.G User Guide

113Access
1. Driver's electric window control.2. Passenger's electric window control.
- manual mode Press or pull the control gently. The window stops when the control is released. - automatic mode Press or pull the control firmly. The window opens or closes fully when the control is released.  Pressing the control again stops the movement of the window.
The electric window controls remain operational for approximately 45 seconds after the ignition is switched off or until the vehicle is locked after a door is opened. If the passenger 's window cannot be operated from the driver's door control panel, carry out the operation from the passenger's door control panel, and vice versa.
Electric windows Fitted with a safety anti-pinch system.
One-touch electric windows
There are two options:
After approximately ten consecutive complete opening/closing movements
of the window, a protection function is activated which only authorises closing of the window to prevent damage to the electric window motor. Once the window is closed, the controls will become available again after approximately 40 minutes.

Safety anti-pinch
When the window rises and meets an obstacle, it stops and par tially lowers again.
Reinitialisation
If a window does not rise automatically, its operation must be reinitialised:  pull the control until the window stops,  release the control and pull it again until the window closes fully,  continue to hold the control for approximately one second after the window has closed,  press the control to lower the window automatically to the low position,  when the window has reached the low position, press the control again for approximately one second. The safety anti-pinch function is not operational during these operations.
If the window cannot be closed (for example, in the presence of ice), once the window has lowered:  press and hold the control until the window opens fully,  then pull the control immediately and hold it until the window closes,  continue to hold the control for approximately one second after the window has closed. The safety anti-pinch function is not
operational during these operations.
Always remove the key from the ignition when leaving the vehicle, even for a shor t time. If an obstacle is encountered during operation of the electric windows, you must reverse the movement of the window. To do this, press the control concerned. When the driver operates the passenger's electric window control, they must ensure that nothing is preventing the windows closing correctly. The driver must ensure that the passengers use the electric windows correctly. Be aware of children when operating the windows.

Advice on child seats
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident. Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for shor t journeys. When installing a child seat using the seat belt, ensure that the seat belt is tightened correctly on the child seat and that it secures the child seat firmly on the seat of your vehicle. Move the seat for wards if necessary. For optimum installation of the "for wards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfor t. If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "for wards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent. Deactivate the passenger airbag when a "rear wards-facing" child seat is installed on the front seat. Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.
Installing a booster seat
The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap par t of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
As a safety precaution, do not leave: - a child or children alone and unsuper vised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors
and rear windows, use the "Child lock". Take care not to open the rear windows by more than one third. To protect young children from the rays of the sun, fit side blinds on the rear windows.

185Safety
Curtain airbags
System which protects the driver and passengers (with the exception of the rear centre passenger) in the event of a serious side impact in order to limit the risk of injury to the side of the head. Each cur tain airbag is built into the pillars and the upper passenger compar tment area.
Deployment
The cur tain airbag is deployed at the same time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B , perpendicular to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle. The cur tain airbag inflates between the front or rear occupant of the vehicle and the windows.
Operating fault
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be deployed. In the event of a rear or front collision, the airbag is not deployed.
If this warning lamp comes on in the instrument panel, accompanied by an audible signal and a message in the screen, contact a CITROËN dealer or a qualified workshop to have the system checked.
The airbags may no longer be deployed in the event of a serious impact.

259Practical information
Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Access to the fuses
 Refer to the paragraph "Access to the tools".
Fuse tables
Removable
relay N°RatingFunctions
R1- 230 V/50 Hz socket.
R2- 12 V socket in boot.
Fuse N°RatingFunctions
F320 A Parking lamps, trailer hazard warning lamps.
F420 A Interior lighting, trailer inter face.
F530 A Front one-touch electric windows.
F6- Not used.
F1120 A 12 V trailer socket.
F12- Not used.
F1330 A Hi-Fi amplifier.
F2220 A Trailer signalling.

265Practical information
Load reduction mode
System which manages the use of cer tain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.
Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic gearbox system.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Following reconnection of the battery
Following reconnection of the battery, switch on the ignition and wait 1 minute before star ting to permit initialisation of the electronic systems. However, if problems are encountered following this operation, contact a CITROËN dealer or a qualified workshop. Referring to the corresponding section, you must yourself reinitialise: - the remote control key, - the GPS satellite navigation system.

265Practical information
Load reduction mode
System which manages the use of cer tain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.
Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic gearbox system.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Following reconnection of the battery
Following reconnection of the battery, switch on the ignition and wait 1 minute before star ting to permit initialisation of the electronic systems. However, if problems are encountered following this operation, contact a CITROËN dealer or a qualified workshop. Referring to the corresponding section, you must yourself reinitialise: - the remote control key, - the GPS satellite navigation system.

Accessories A wide range of accessories and genuine par ts is available from the CITROËN dealer network. These accessories and par ts have been tested and app roved for reliability and safety. They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors...
"Transport systems":
child seats and booster cushions, boot carpet, boot liner, boot net, boot spacers, transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, wiring harnesses...
"Styling":
gear lever knobs, aluminium foot rest, alloy wheels, chrome mirror shells, chrome door aper ture finishers...
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle tracking system, child seats and booster cushions, breathalyser, first aid kit, fire extinguisher, warning triangle, high visibility vest, wheel security bolts, snow chains, non-slip covers...
If a towbar and wiring harness are fitted outside the CITROËN dealer network, the installation must be done using the vehicle's electrical pre-equipment and fitted following the manufacturer's recommendations.
* To avoid any risk of jamming the pedals: - ensure that mats are correctly positioned and secured, - never fit one mat on top of another.
"Protection":
mats * , seat covers compatible with lateral airbags, mud flaps, door protective mouldings, bumper protection strips, vehicle cover...

291
03

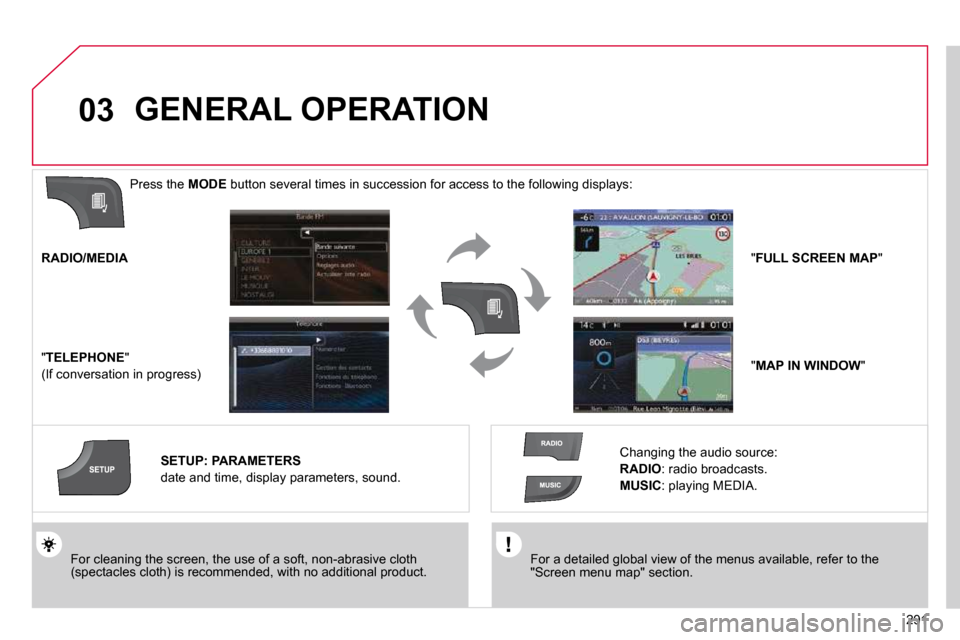

For a detailed global view of the menus available, refer to the "Screen menu map" section. For cleaning the screen, the use of a soft, non-abrasive clot h (spectacles cloth) is recommended, with no additional product.
RADIO/MEDIA
" TELEPHONE "
(If conversation in progress)
SETUP: PARAMETERS
date and time, display parameters, sound.
Changing the audio source:
RADIO : radio broadcasts.
MUSIC : playing MEDIA.
Press the MODE button several times in succession for access to the following d isplays:
GENERAL OPERATION
" FULL SCREEN MAP "
" MAP IN WINDOW "

292
03
1
1
1
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1
A press on the OK dial gives access to short-cut menus according to the display in the screen.
